263
DS5_en_Chap09_verifications_ed01-2015
F After emptying the bottle, wipe away any spillage around the tank filler using a damp
cloth.
F

R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in place.
F

L

ower the boot floor and close the tailgate.
Important: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine - you must add at
least 3.8 litres, so two 1.89 litre bottles. If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.Important:
when topping up after
running out of additive , signalled
by the message "Top up emissions
additive: Starting prevented", you must
wait for approximately 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, placing the key of the
"Keyless Entr y and Star ting" system
inside the vehicle or inser ting the
electronic key in the reader.
Switch on the ignition, wait for
10
seconds, then start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
checks

DS5_en_Chap10_caracteristiques_ed01-2015
Petrol engineTHP 15 0THP 155 THP 160 THP 165 S&S THP 200
Gearbox 6-speed
automatic 6-speed
automatic 6-speed
automatic EAT6 6-speed
automatic 6-speed manual
Model code 5FEA5 F
v

A - A /15FMA -Y -A /
d5

GZT/S -T/1S -T/2S 5FU8
Cubic capacity (cc) 1 5981 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8
Max power*: EU standard (kW) 11 0115120 121147
Max power engine speed (rpm) 6 0506 000 6 0006 000 5 800
Max torque: EU standard (Nm) 240240240240 275
Max torque engine speed (rpm) 1 4001 4001 4001 400 1 700
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye sYe sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 4.25
4.254.254.254.25
Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

267
DS5_en_Chap10_caracteristiques_ed01-2015
Petrol weights and towed loads (in kg)
Petrol engineTHP 15 0THP 155 THP 160 THP 165 S&S THP 200
Gearbox 6-speed
automatic 6-speed
automatic 6-speed
automatic EAT6 6-speed
automatic 6-speed
manual
Model code 5FEA5 F
v

A - A /15FMA -Y -A /
d5GZT/S -T/1S -T/2S5FU8
-

U

nladen weight 1 4971 4201 495 1 4291 430
-

K

erb weight* 1 5701 495 1 5701 504 1 505
-

G

ross vehicle weight (GV W) 2 0302 0352 030 2 0172 050
-

G

ross train weight (GTW)
o

n a 12 % gradient 2 830
3 3352 830 3 1172 800
-

B

raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient 800
1 300 8001 10 0 750
-

B

raked trailer** (with load transfer within the
GTW limit) 800
1 500 8001 400 1 050
-

U

nbraked trailer 74 574 574 5750 750
-

R

ecommended nose weight 7575757575
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

T

he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).Petrol engine
THP 155THP 165 S&S THP 200
Gearbox 6-speed automaticEAT6 6-speed automatic 6-speed manual
Model code 5 F
v
A - A /1
5GZT/S -T/1S -T/2S 5FU8
-
U
nladen weight
1 5401 539 1 572
-
K
erb weight*
1 6151 6141 647
-
G
ross vehicle weight (GV W)
2 1702 225 2 195
-
G
ross train weight (GTW)
o

n a 12% gradient
3 320
3 225 2 795
-
B
raked trailer (within the GTW limit)
o

n a 10% or 12% gradient
1 150
1 000 600
-
U
nbraked trailer
74 5750600
-
R
ecommended nose weight
757575
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights and towed loads (in kg) - Commercial versions

269
DS5_en_Chap10_caracteristiques_ed01-2015
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
e-H d i 110
e-H d i 115
BlueH d i 115
BlueH d i 120
Gearbox ETG6 6-speed
electronic ETG6 6-speed
electronic 6-speed
manual 6-speed
manual
Model code 9HR8/PS9H
d8
/PS
BHXM/S -M/1S -M/2S BHZM/S -M/1S -M/2S
Cubic capacity (cc) 1 5601 5601 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.375 x 88.375 x 88.3
Max power*: EU standard (kW) 8284 8588
Max power engine speed (rpm) 3 6003 600 3 7503 750
Max torque: EU standard (Nm) 270270300 300
Max torque engine speed (rpm) 1 7501 7501 7501 750
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 3.75
3.753.753.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
H d i 135
BlueH d i 135
BlueH d i
15 0
Gearbox 6-speed
manual 6-speed
automatic 6-speed
manual 6-speed
manual
Model code RH
d8 -
8/1 - 8/2
RH
d
A -A /1
AH
v
AHSM/S - M/1S
-M/2S AHX AHRM/S -M/1S
-M/2S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Max power*: EU standard (kW) 10 010 011 0
Max power engine speed (rpm) 4 0004 0004 000
Max torque: EU standard (Nm) 320320370
Max torque engine speed (rpm) 2 0002 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) -
-6 .1
Diesel engines and gearboxes
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

271
DS5_en_Chap10_caracteristiques_ed01-2015
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
H d i 160
BlueH d i 180
Gearbox 6-speed manual6-speed automaticEAT6 6-speed automatic
Model code RHH8 -8/1 -8/2RHHA -A /1AHW T/S -T/1S -T/2S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
Max power*: EU standard (kW) 120132
Max power engine speed (rpm) 3 7503 750
Max torque: EU standard (Nm) 340400
Max torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter Ye sYe s
Engine oil capacity (with filter replacement)
(in litres) 5.25
5 .1
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. * The kerb weight is equal to the unladen weight + driver (75 kg).
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
di
esel engine
e-H d i 110
e-H d i 115
BlueH d i 115
BlueH d i 120
Gearbox ETG6 6-speed
electronic ETG6 6-speed
electronic 6-speed
manual 6-speed

manual
Model code 9HR8/PS9H
d8
/PS
BHXM/S -M/1S -M/2S BHZM/S -M/1S -M/2S
-
U
nladen weight
1 4201 420 1 4281 428
-
K
erb weight*
1 4951 4951 5031 503
-
G
ross vehicle weight (GV W)
2 0202 0202 0202 020
-
G
ross train weight (GTW)

o
n a 12% gradient
3 120
3 1203 1203 120
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
1 10 0
1 10 01 10 01 10 0
-
B
raked trailer** (with load transfer with the
GTW limit) 1 400
1 4001 4001 400
-
U
nbraked trailer
74 574 574 574 5
-
R
ecommended nose weight
75757575
Diesel weights and towed loads (in kg)

273
DS5_en_Chap10_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
di
esel engine
H d i 135
BlueH d i 135
BlueH d i 180
Gearbox 6-speed manual6-speed automatic 6-speed manual 6-speed manual
Model code RH
d8 -
8/1 - 8/2
RH
d
A -A /1
AH
v
AHSM/S - M/1S
-M/2S AHX AHRM/S -M/1S
-M/2S
-
U
nladen weight
1 5301 540 1 5371 537
-
K
erb weight*
1 6051 6151 6121 612
-
G
ross vehicle weight (GV W)
2 1302 1252 130 2 130
-
G
ross train weight (GTW)
o

n a 12% gradient
3 330
3 3253 330 3 330
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
1 200
1 2001 2001 200
-
B
raked trailer** (with load transfer with the
GTW limit) 1 500
1 5001 5001 500
-
U
nbraked trailer
750750750750
-
R
ecommended nose weight
75757575
Diesel weights and towed loads (in kg)
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. * The kerb weight is equal to the unladen weight + driver (75 kg).
**
T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
di
esel engine
H d i 160
BlueH d i 180
Gearbox 6-speed manual6-speed automaticEAT6 6-speed automatic
Model code RHH8 -8/1 -8/2RHHA -A /1AHW T/S -T/1S -T/2S
-
U
nladen weight
1 5301 540 1 540
-
K
erb weight*
1 6051 6151 615
-
G
ross vehicle weight (GV W)
2 1302 1252 125
-
G
ross train weight (GTW)

o
n a 12% gradient
3 330
3 3253 325
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
1 200
1 2001 200
-
B
raked trailer** (with load transfer with the
GTW limit) 1 500
1 5001 500
-
U
nbraked trailer
750750750
-
R
ecommended nose weight
757575

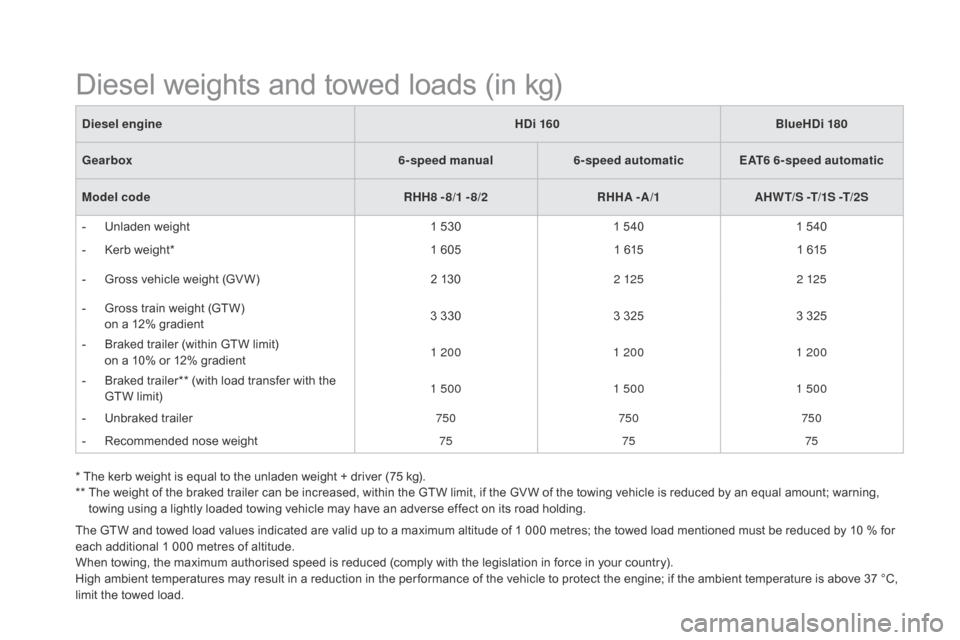

Diesel weights and towed loads (in kg)
