Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-
be
fore a long journey,
-
at e

ach change of season,
-
af

ter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting ; go to a CITROËN dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
0

00 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Eco-driving

Petrol-Diesel instrument panel
1. Rev counter (x 1 000 rpm or tr/min),
graduation according to engine (petrol or
Diesel).
2.
Fu

el gauge.
3.
En

gine coolant temperature gauge.
4.
An

alogue speedometer (mph or km/h).
5.
Cr

uise control or speed limiter settings. A. Ma
in lighting and controls dimmer.
B. - Sh ort press: display in turn of servicing
information, remaining range for the
AdBlue additive and the alert log.
- Lo

ng press: reset the service indicator or
trip recorder (depending on context).
6. Ge
ar shift indicator or gear lever position
and gear engaged for an automatic
gearbox.
7.
In

strument panel screen: distance
recorders, service indicator, engine oil
level indicator*, remaining range for the
AdBlue additive and the SCR system*, alert
messages, trip computer, media currently
playing, navigation instructions*.
8.
Di

gital speedometer (mph or km/h).
dials and screenscontr ol buttons
When switching the ignition on or off,
the speedometer needle and the bars of
the dials carry out a full sweep and then
return to 0.
* Depending on version.

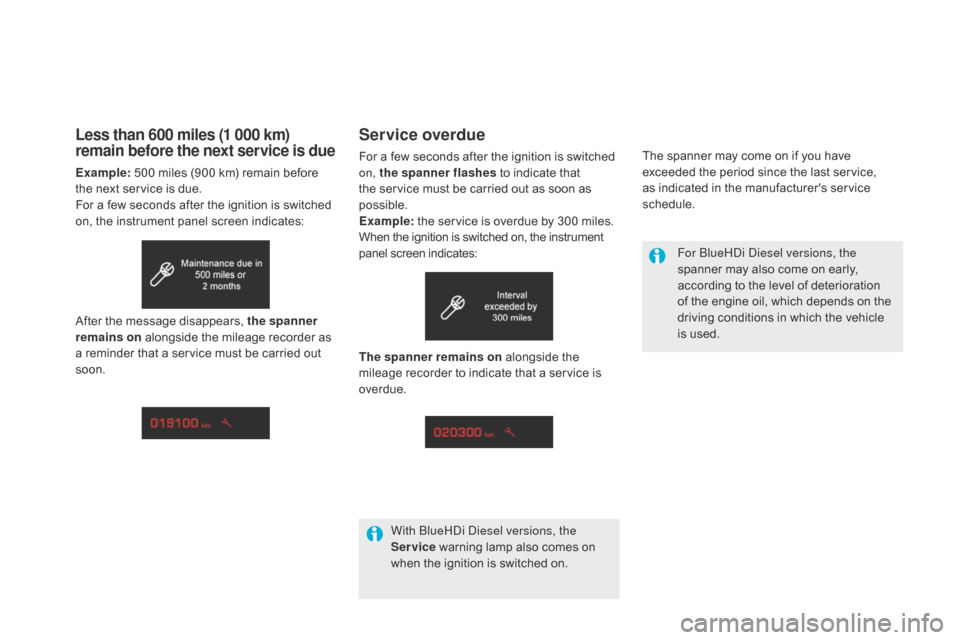

Service overdue
For a few seconds after the ignition is switched
on, the spanner flashes to indicate that
the service must be carried out as soon as
possible.
Example: the service is overdue by 300 miles.
When the ignition is switched on, the instrument
panel screen indicates: For BlueHDi Diesel versions, the
spanner may also come on early,
according to the level of deterioration
of the engine oil, which depends on the
driving conditions in which the vehicle
is used.
The spanner remains on alongside the
mileage recorder to indicate that a service is
overdue.
With BlueHDi Diesel versions, the
Service warning lamp also comes on
when the ignition is switched on.
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 500 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched
on, the instrument panel screen indicates:
After the message disappears, the spanner
remains on alongside the mileage recorder as
a reminder that a service must be carried out
soon.
The spanner may come on if you have
exceeded the period since the last service,
as indicated in the manufacturer's service
schedule.

Engine oil level
indicator*
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on checking the levels,
refer to the corresponding section.
Oil level indicator fault
This is signalled by the display of the message "Oil
level measurement invalid" in the instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on checking the levels,
refer to the corresponding section.
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30
mi

nutes.
Oil level correct
* Depending on version.

247
DS5_en_Chap09_verifications_ed02-2015
Checking levels
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms). To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.checking using the
d ipstick
The location of the dipstick is shown in the
corresponding underbonnet layout view.
F
Ta

ke the dipstick by its coloured grip and
remove it completely.
F
Wi

pe the end of the dipstick using a clean
non-fluffy cloth.
F
Re

fit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B . A = MA X
B = MIN
If you find that the level is above the A mark or
below the B mark, do not star t the engine .
-
If t

he level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-
If t

he level is below the MIN mark, you
must top up the engine oil.
checks

DS5_en_Chap09_verifications_ed02-2015
Power steering fluid
level
The power steering fluid level should
be close to the "MA X" mark. With
the engine cold, unscrew the cap to
check the level. The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.
Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Topping-up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F
Un
screw the oil filler cap to reveal the filler
aperture.
F
Ad

d oil in small quantities, avoiding any
spills on engine components (risk of fire).
F
Wa

it a few minutes before checking the
level again using the dipstick.
F
Ad

d more oil if necessary.
F
Af

ter checking the level, carefully refit the
oil filler cap and the dipstick in its tube. After topping-up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel is not valid
during the 30 minutes after topping up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
never use additives in the engine oil.

DS5_en_Chap09_verifications_ed02-2015
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a CITROËN dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products
To p p i n g u p
This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

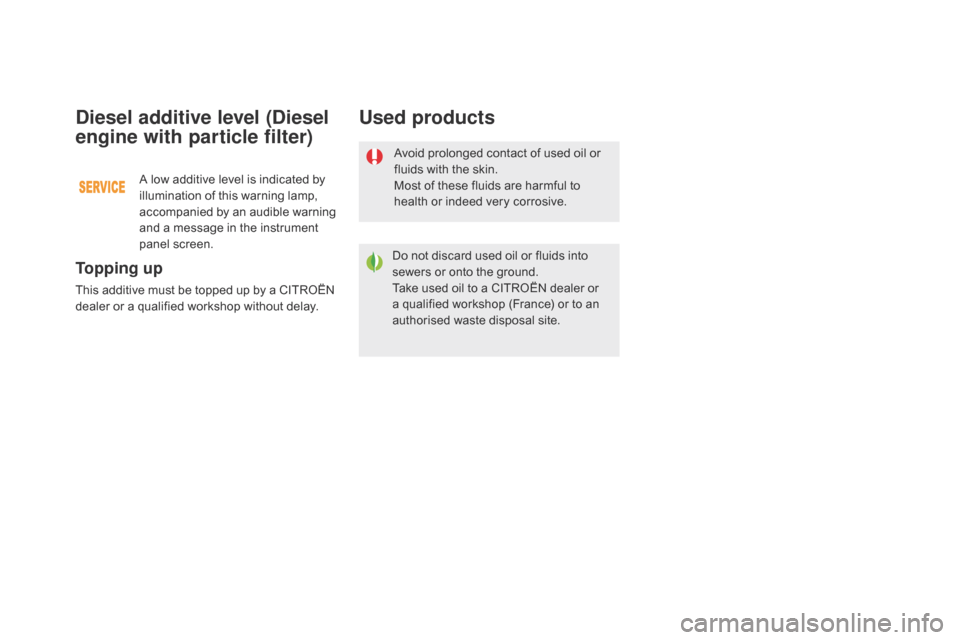

diesel additive level (die sel
engine with particle filter)
A low additive level is indicated by
illumination of this warning lamp,
accompanied by an audible warning
and a message in the instrument
panel screen.

251
DS5_en_Chap09_verifications_ed02-2015
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Air filter and passenger compartment filter
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.
city driving), replace them twice as often if
necessary.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
Checks
12 v battery
The battery does not require any maintenance.
However, check regularly that the terminals are
correctly tightened and that the connections
are clean.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.
Unless other wise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.
When carrying out any operation on the 12 V
battery, refer to the corresponding section for
details of the precautions to be taken before
starting work.
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Oil filterParticle filter (
die
sel)
The start of saturation of the particle
filter is indicated by the temporary
illumination of this warning lamp
accompanied by a message in the
multifunction screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed
of at least 40 mph (60 km/h) until the
warning lamp goes off.
If the warning lamp stays on, this
indicates a low additive level.
For more information on checking levels,
refer to the corresponding section.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
checks

DS5_en_Chap09_verifications_ed02-2015
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
have the condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Brake pads
For information on checking brake
disc wear, contact a CITROËN dealer
or a qualified workshop.
Brake disc wear Electric parking brake
This system does not require any
routine servicing. However, in the
event of a problem, have the system
checked by a CITROËN dealer or a
qualified workshop.
Only use products recommended by
CITROËN or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, CITROËN selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
For more information on the electric parking
brake, refer to the corresponding section.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the level
checking interval for this component.

AB
Accessories .................................................. 23 4
Accessory position ....................................... 101
Ad
ditive, AdBlue
.............................. 29
, 253 -261
Additive, Diesel
.....................................

250, 251
Adjusting headlamps
.................................... 150
A

djusting head restraints
.......................... 72
, 75
Adjusting seats
.......................................... 72

, 73
Adjusting the date
..................................... 39

, 42
Adjusting the height and reach of the steering wheel
........................................ 81
A

djusting the seat belt height
....................... 187
A

djusting the time
............................... 38
, 39, 42
Advice on care and maintenance
............................................... 233
A

dvice on driving
......................................
98, 99
Airbags
....................................................

31, 189
Airbags, curtain
..................................... 191

, 192
Airbags, front......................................... 189, 192
Airbags, lateral
...................................... 191

, 192
Air conditioning, automatic
....................... 90

, 91
Air vents
.......................................................... 89
A

larm
............................................................... 63
An

ti-lock braking system (ABS)
.................... 182
A

nti-pinch
........................................................ 68
Ant

i-theft
....................................................... 10

1
Armrest, front
............................................ 82

, 85
Armrest, rear
............................................. 82

, 86
Ashtray
............................................................ 8

2
Assistance call
......................................

181, 278
Assistance, emergency braking
................... 182
A

udible warning
............................................ 181
A

udio streaming (Bluetooth)
................. 29
1, 293
Audio system
...........................................

39, 281
Automatic headlamps
............................. 20

, 147Battery ............................................
223 -227, 251
Battery, charging ........................................... 2
25
Battery, remote control
............................. 59

, 60
Black panel ...................................................... 38
Blind spot sensors
........................................ 123
Bl

ueHDi
.........................................
246, 253 -261
Bluetooth (hands-free)
.................................. 292
Boo

t
.................................................................62
B

oot (opening)
.................................................53
B

rake discs
....................................................252
B

rake lamps
..................................................2

16
Brake warning lamp
........................................ 27
B

raking assistance system
...........................182
B

raking, dynamic emergency
...............103

, 107
Bulbs (changing)
.................................... 21

1-218
Capacity, fuel tank
........................................ 23

9
Cap, fuel filler
................................................ 239
CD .................................................................

287
CD, MP3
................................................ 28

8, 289
Central locking
.......................................... 53

, 55
Changing a bulb
..................................... 211

-218
Changing a fuse
..................................... 21

9-222
Changing a wheel
.................................. 20

2-209
Changing a wiper blade
........................ 15

6, 228
Changing the remote control battery
.............. 59
Ch

ecking the engine oil level
.................. 36
, 247
Checking the levels
................................ 24

7-25 0
Checking tyre pressures (using the kit)
........ 201
C

hecks
..................................
244, 245, 251, 252
Checks, routine
..................................... 25

1, 252Date (setting)
.............................................

39, 42
Daytime running lamps
..................14

5, 211, 212
Deactivating ESC
.......................................... 18 4
D

eactivating the passenger airbag
...............19 0
D

eadlocking
....................................................56
D

emisting, defrosting
......................................95
Dem

isting, defrosting
the mirrors
..............................................

80, 95
cd
Child lock ............................................... 169, 176
Children .................................. 160 -176, 188, 190
Child seats
............................................ 1

6 2-18 8
Child seats, conventional
...................... 168

, 169
Child seats, ISOFIX
............................... 170

-173
Cigarette lighter............................................... 83
C
IT

ROËN
Lo
calised
Emergency Call
.......................................... 278
C

leaning (advice)
.......................................... 233
Cl

ock
............................................................... 38
C

losing the boot
.............................................. 62
C

losing the doors
......................................
53, 55
Configuration, vehicle
............................... 39

, 45
Control, emergency boot release
................... 62
Co

ntrol, emergency door
................................ 57
Co

ntrol, heated seats
...................................... 76
Co

ntrol stalk, lighting
............................ 142

, 148
Control stalk, wipers
.............................. 153

-155
Courtesy lamps
............................................. 157
C

ruise control
........................................ 12
8, 133
Cup holder
....................................................... 8

2
