Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
changing the cell battery
Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
CITROËN dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
F
U
nclip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.
Remote control problem -
reinitialisation
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

P
lace the mechanical key (integral with the
remote control) in the lock to unlock your
vehicle.
F

P
lace the electronic key in the reader.
F

S
witch on the ignition by pressing
START/STOP.
The electronic key is fully operational again.
If the problem persists, contact a CITROËN
dealer or a qualified workshop as soon as
possible.
Access

DS5_en_Chap02_ouvertures_ed01-2015
Lost electronic key
Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the electronic key with you when you leave the vehicle, even for a short time.
Electrical interference
The electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and
started.

61
DS5_en_Chap02_ouvertures_ed01-2015

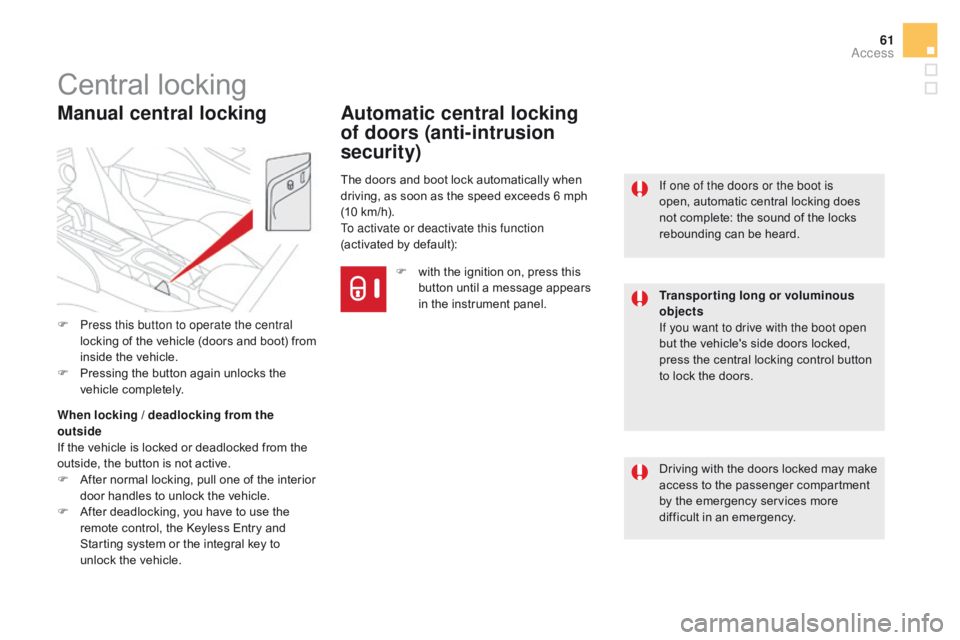

Central locking
Driving with the doors locked may make
access to the passenger compartment
by the emergency services more
difficult in an emergency. If one of the doors or the boot is
open, automatic central locking does
not complete: the sound of the locks
rebounding can be heard.
Transporting long or voluminous
objects
If you want to drive with the boot open
but the vehicle's side doors locked,
press the central locking control button
to lock the doors.
Manual central locking
F Press this button to operate the central locking of the vehicle (doors and boot) from
inside the vehicle.
F

P
ressing the button again unlocks the
vehicle completely.
When locking / deadlocking from the
outside
If the vehicle is locked or deadlocked from the
outside, the button is not active.
F

A
fter normal locking, pull one of the interior
door handles to unlock the vehicle.
F

A
fter deadlocking, you have to use the
remote control, the Keyless Entry and
Starting system or the integral key to
unlock the vehicle.
Automatic central locking
of doors (anti-intrusion
security)
The doors and boot lock automatically when
driving, as soon as the speed exceeds 6 mph
(10 km/h).
To activate or deactivate this function
(activated by default):
F

w
ith the ignition on, press this
button until a message appears
in the instrument panel.
Access

DS5_en_Chap02_ouvertures_ed01-2015
Boot
F After unlocking the boot only or the vehicle, press the opening control then raise the
tailgate.
Opening from outside
F Press this button until the boot is heard to unlock.
Tailgate release
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the left.
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
closing
F Lower the tailgate using the interior grab
handle.
If the tailgate is not closed correctly, engine
running or vehicle moving


(speed above
6 mph (10 km/h)), a message appears in the
instrument panel screen for a few seconds.
Opening from inside

OFF
63
DS5_en_Chap02_ouvertures_ed01-2015

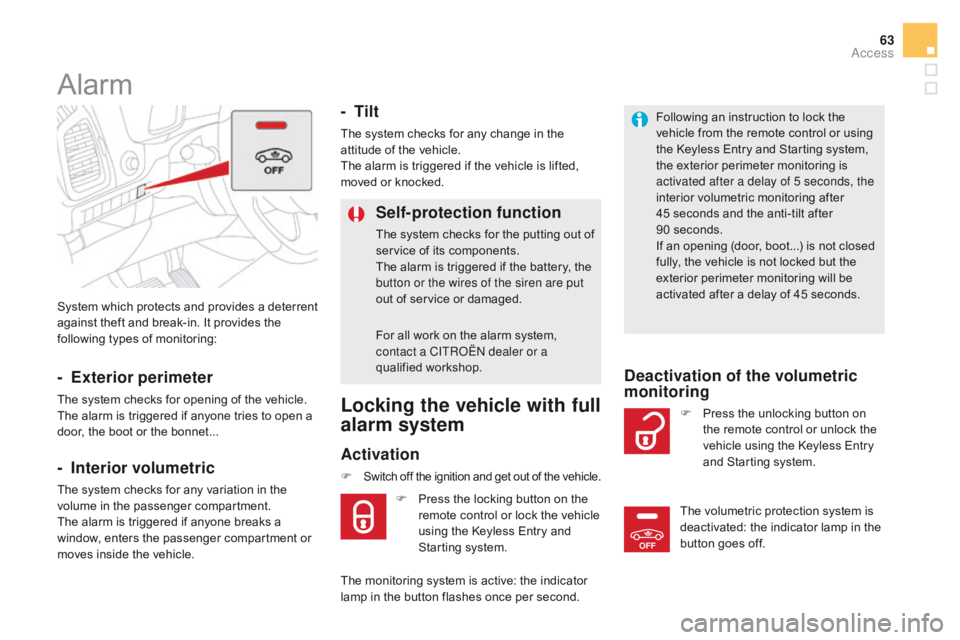

System which protects and provides a deterrent
against theft and break-in. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
button or the wires of the siren are put
out of service or damaged.For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control or lock the vehicle
using the Keyless Entry and
Starting system. Following an instruction to lock the
vehicle from the remote control or using
the Keyless Entry and Starting system,
the exterior perimeter monitoring is
activated after a delay of 5 seconds, the
interior volumetric monitoring after
45 seconds and the anti-tilt after
90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the
exterior perimeter monitoring will be
activated after a delay of 45 seconds.
F
P
ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.
deactivation of the volumetric
monitoring
The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.
The monitoring system is active: the indicator
lamp in the button flashes once per second.
Access

OFF
DS5_en_Chap02_ouvertures_ed01-2015

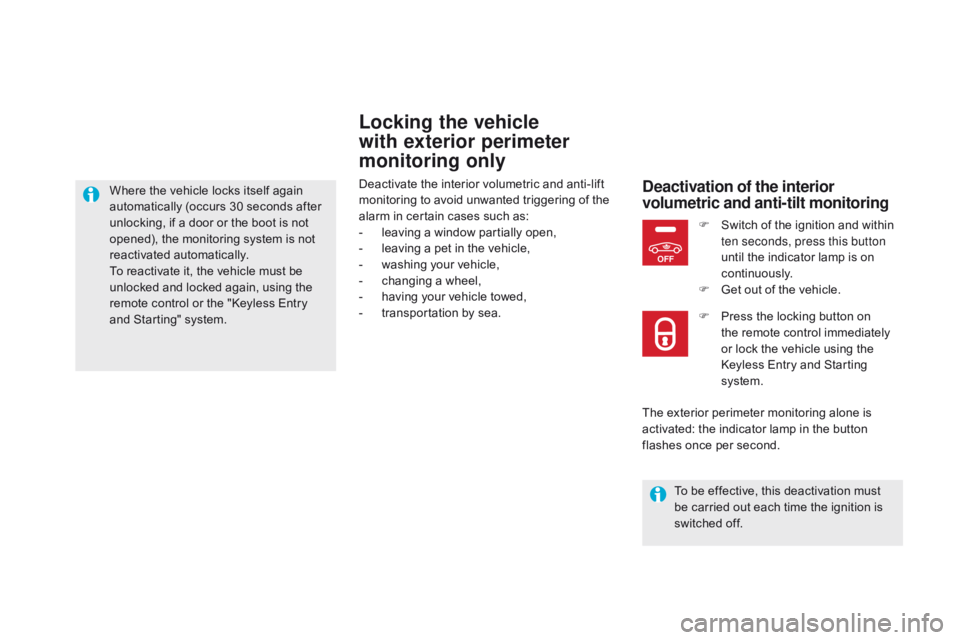

Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
l
eaving a window partially open,
-

l
eaving a pet in the vehicle,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

h
aving your vehicle towed,
-

t
ransportation by sea.deactivation of the interior
volumetric and anti-tilt monitoring
F Switch of the ignition and within ten seconds, press this button
until the indicator lamp is on
continuously.
F

G
et out of the vehicle.
F

P
ress the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.

OFF
OFF
65
DS5_en_Chap02_ouvertures_ed01-2015
Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren and
flashing of the direction indicators for thirty
seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
F

P

ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
F

P

ress the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second. When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
F

U
nlock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F

O
pen the door; the alarm is triggered.
F

S
witch on the ignition; the alarm stops.
The indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
* According to country.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
Access

DS5_en_Chap02_ouvertures_ed01-2015
Electric windows
1. Left hand front electric window switch.
2. Right hand front electric window
switch.
3.
R

ight hand rear electric window switch.
Operation
Manual mode
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
4.
Le

ft hand rear electric window switch.
5.
de

activating the rear electric window
switches,
lo

cking the rear doors
(

child lock).
Automatic mode
To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing or pulling the switch again stops the
movement of the window. The electric window switches
remain operational for approximately
45
seconds after switching off the
ignition, while the vehicle's doors are
still closed
Once a door is opened, or once the
45 seconds have elapsed, you have
to switch on the ignition to operate the
windows.

67
DS5_en_Chap02_ouvertures_ed01-2015
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
deactivating the rear
window controlsReinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the movement of
the window. To do this, press the switch concerned.
When operating the passenger electric window switches, the driver must ensure that no one
is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windows correctly.
Be particularly aware of children when operating the windows.
Be aware of passengers and other persons present close to the vehicle when closing the
windows remotely using the the electronic key or the Keyless Entry and Starting system. Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-

l
ower the window completely, then raise
it. It will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-
c
ontinue to press the switch for at least one
second after reaching this position, window
closed.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear windows from the driver's
controls remain possible.
Access

DS5_en_Chap02_ouvertures_ed01-2015

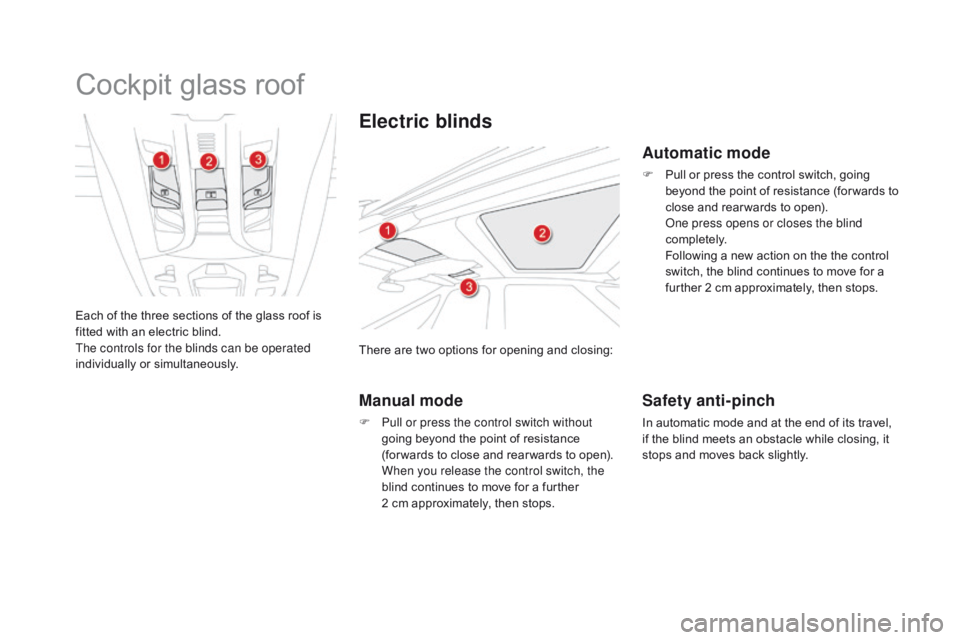

Cockpit glass roof
Each of the three sections of the glass roof is
fitted with an electric blind.
The controls for the blinds can be operated
individually or simultaneously.There are two options for opening and closing:
Electric blinds
Automatic mode
F Pull or press the control switch, going
beyond the point of resistance (for wards to
close and rear wards to open).
O

ne press opens or closes the blind
completely.
F

ollowing a new action on the the control
switch, the blind continues to move for a
further 2 cm approximately, then stops.
Manual mode
F Pull or press the control switch without going beyond the point of resistance
(for wards to close and rear wards to open).
W

hen you release the control switch, the
blind continues to move for a further
2 cm approximately, then stops.
Safety anti-pinch
In automatic mode and at the end of its travel,
if the blind meets an obstacle while closing, it
stops and moves back slightly.
