DS5_en_Chap02_ouvertures_ed01-2015

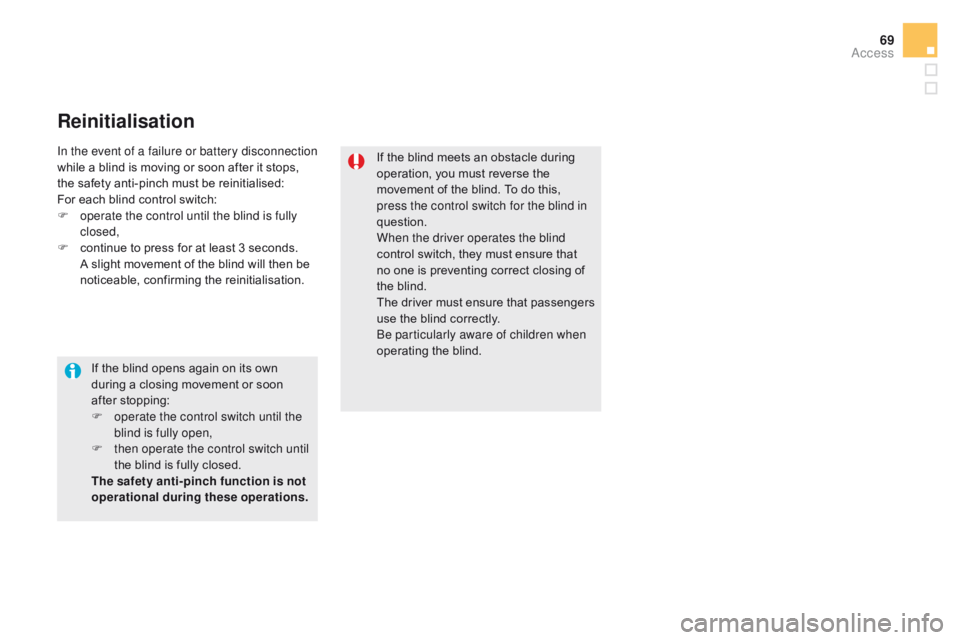

Reinitialisation
If the blind meets an obstacle during
operation, you must reverse the
movement of the blind. To do this,
press the control switch for the blind in
question.
When the driver operates the blind
control switch, they must ensure that
no one is preventing correct closing of
the blind.
The driver must ensure that passengers
use the blind correctly.
Be particularly aware of children when
operating the blind.
If the blind opens again on its own
during a closing movement or soon
after stopping:
F

o

perate the control switch until the
blind is fully open,
F

t

hen operate the control switch until
the blind is fully closed.
The safety anti-pinch function is not
operational during these operations.
In the event of a failure or battery disconnection
while a blind is moving or soon after it stops,
the safety anti-pinch must be reinitialised:
For each blind control switch:
F

o

perate the control until the blind is fully
closed,
F

c

ontinue to press for at least 3 seconds.
A slight movement of the blind will then be
noticeable, confirming the reinitialisation.
Access

DS5_en_Chap03_confort_ed01-2015
Comfort

DS5_en_Chap03_confort_ed01-2015

DS5_en_Chap03_confort_ed01-2015

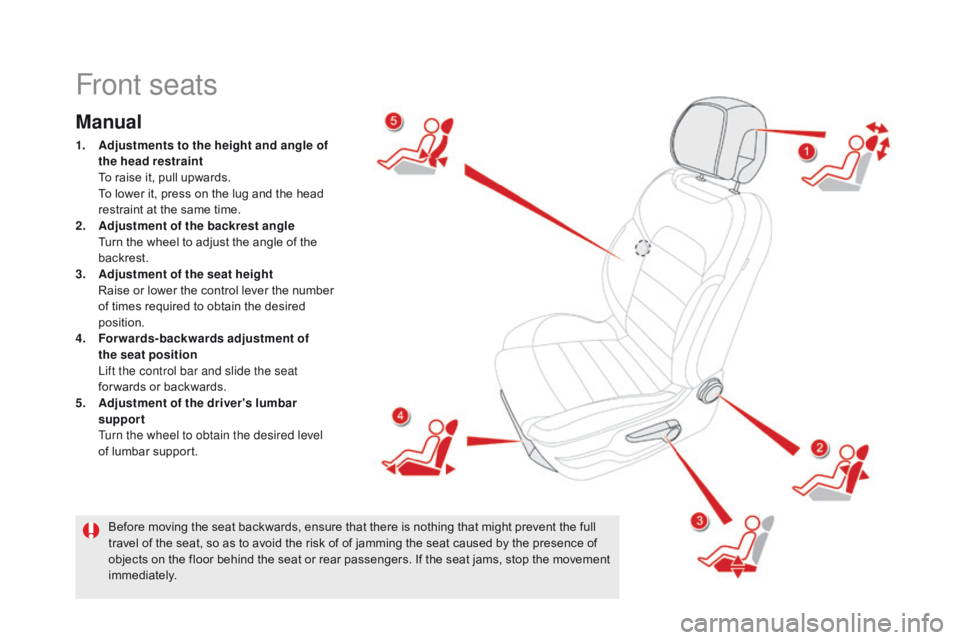

Front seats
Manual
1. Adjustments to the height and angle of
the head restraint
T

o raise it, pull upwards.
T

o lower it, press on the lug and the head
restraint at the same time.
2.
A

djustment of the backrest angle
T

urn the wheel to adjust the angle of the
backrest.
3.
A

djustment of the seat height
R

aise or lower the control lever the number
of times required to obtain the desired
position.
4.
F

orwards-backwards adjustment of
the seat position
L

ift the control bar and slide the seat
for wards or backwards.
5.
A

djustment of the driver's lumbar
support
T

urn the wheel to obtain the desired level
of lumbar support.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.

73
DS5_en_Chap03_confort_ed01-2015
Switch on the ignition or start the engine if the vehicle has gone into
economy mode.
The electric functions of the driver's seat are active for about 45 seconds
after opening the front door. They are deactivated about 45 seconds after
switching off the ignition and in economy mode.
To reactivate them, switch on the ignition.
Electric
1. Adjustment of the seat cushion angle and height, and forwards-backwards
adjustment
F

R
aise or lower the front of the control
to
adjust the seat cushion angle.
F

R
aise or lower the rear of the control
to
raise or lower the seat.
F

S
imultaneously raise or lower the
front
and rear of the control in order
to
raise or lower the entire seat.
2.
A

djustment of the backrest angle
M

ove the control for wards or backwards
to
adjust the backrest angle.
3.
A

djustment of driver's lumbar
support
P

ress the control switches to obtain
the
desired level of lumbar support.
4.

M
anual adjustment of the cushion
P

ull on the grip to adjust the length of
the
cushion. Before moving the seat backwards, ensure that there is
nothing that might prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused by the presence
of objects on the floor behind the seat or rear passengers. If
the seat jams, stop the movement immediately.
comfort

DS5_en_Chap03_confort_ed01-2015
Storing driving positions
System which stores the electrical settings
of the driver's seat and the head-up display
settings. It enables you to store up to
two positions using the buttons on the side
of
the driver's seat.
Storing a position using
buttons M / 1 / 2
F Switch on the ignition.
F
A djust your seat and the head-up display.
F

P
ress button M , then press button 1 or 2
within four seconds.
A

n audible signal indicates that the position
has been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
F Briefly press button 1 or 2 to recall the corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movement
by pressing button M , 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.

75
DS5_en_Chap03_confort_ed01-2015
The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

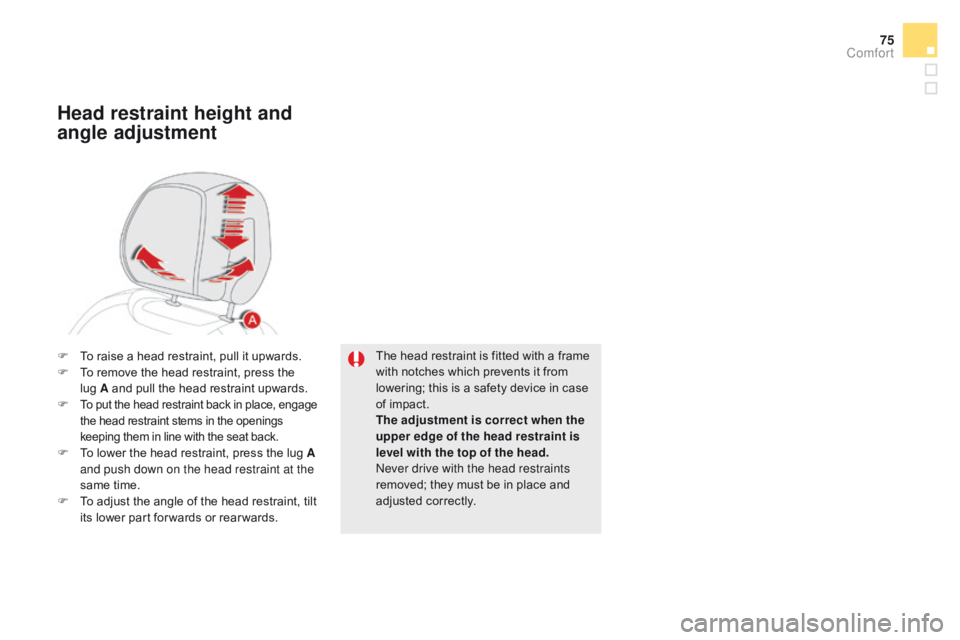

Head restraint height and
angle adjustment
F To raise a head restraint, pull it upwards.
F T o remove the head restraint, press the
lug A and pull the head restraint upwards.
F

To put the head restraint back in place, engage
the head restraint stems in the openings
keeping them in line with the seat back.
F To lower the head restraint, press the lug A and push down on the head restraint at the
same time.
F

T
o adjust the angle of the head restraint, tilt
its lower part for wards or rear wards.
comfort

DS5_en_Chap03_confort_ed01-2015
Massage function
This system provides a back massage. It only
operates when the engine is running or in
STOP mode of the Stop & Start system.
Activation
F Press this switch.
Its indicator lamp comes on and the massage
function is activated for a period of 1 hour.
During this time, massage is per formed in
6 cycles of 10 minutes (6 minutes of massage
followed by 4 minutes break).
After one hour, the function is deactivated, the
indicator lamp goes off.
deactivation
You can deactivate the massage
function at any time by pressing this
switch, its indicator lamp goes off.
Heated seats control
F Use the adjustment wheel to switch on and select the level of heating required:
0: Off.
1 : Low.
2 : Medium.
3 : High.
With the engine running, the front seats can be
heated separately.

77
DS5_en_Chap03_confort_ed01-2015

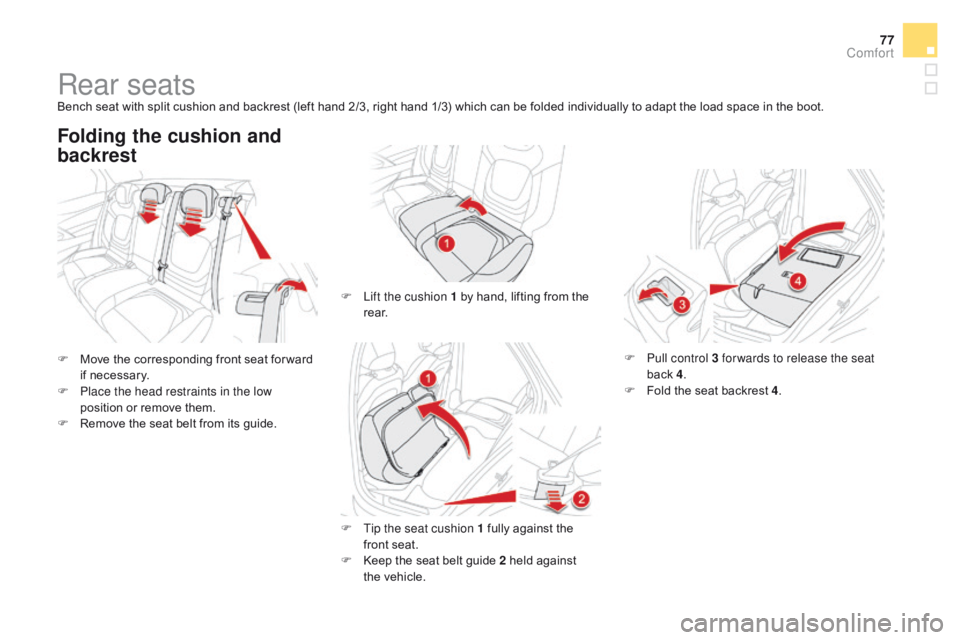

Rear seatsBench seat with split cushion and backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
F
M
ove the corresponding front seat for ward
if necessary.
F

P
lace the head restraints in the low
position or remove them.
F

R
emove the seat belt from its guide.
Folding the cushion and
backrest
F Lift the cushion 1 by hand, lifting from the r e a r.
F

T
ip the seat cushion 1 fully against the
front seat.
F

K
eep the seat belt guide 2 held against
the
vehicle. F

P
ull control 3 for wards to release the seat
back 4 .
F

F
old the seat backrest 4.
comfort

DS5_en_Chap03_confort_ed01-2015

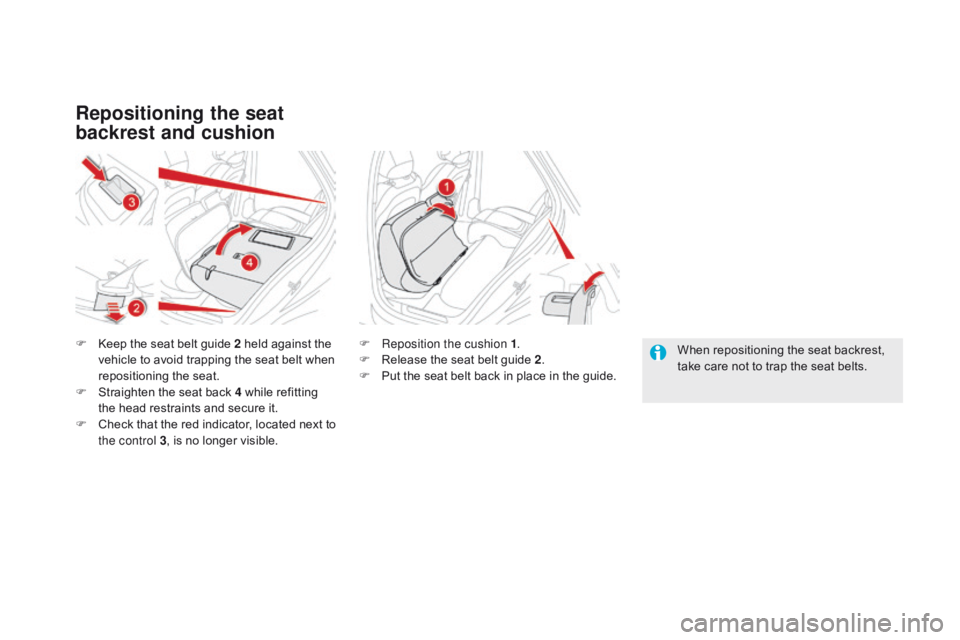

Repositioning the seat
backrest and cushion
F Keep the seat belt guide 2 held against the vehicle to avoid trapping the seat belt when
repositioning the seat.
F

S
traighten the seat back 4 while refitting
the head restraints and secure it.
F

C
heck that the red indicator, located next to
the control 3 , is no longer visible. F
R eposition the cushion 1
.
F R elease the seat belt guide 2.
F

P
ut the seat belt back in place in the guide.When repositioning the seat backrest,
take care not to trap the seat belts.
