002003004
DS5_en_Chap00a_sommaire_ed01-2015
cOMFORT
A
ccE
SSdR IvI NG
72 Front seats
77
R

ear seats
80


Mirrors
81
S

teering wheel adjustment
82
F

ront fittings
86
R

ear fittings
87
B

oot fittings
88
T

riangle (stowing)
89
H

eating and Ventilation
91

D
ual-zone digital air
conditioning
95
F

ront demist - defrost
95
R

ear screen demist - defrost 98 D
riving recommendations
99
S

tarting-switching off the
engine
102
E

lectric parking brake
108
H

ill start assist
109
M

anual gearbox
110
A

utomatic gearbox
114
E

lectronic gearbox
118
G

ear shift indicator
119
T

yre under-inflation detection
121
St

op & Start
125
L

ane departure warning
system
126
B

lind spot sensors129 H
ead-up display
131
M

emorising speeds
133
Spe

ed limiter
136
C

ruise control
139
P

arking sensors
141
R

eversing camera
52 E
lectronic key - remote
control
54
"

Keyless Entry and Starting"
61
C

entral locking
62


Boot
63
A

larm
66
E

lectric windows
68
C

ockpit glass roof

Head-up display 129 -130
Instrument panels, screens
1
8, 37-38
-

c
heck / service indicator /
trip distance recorder
-

l
ighting dimmer
Warning lamps
1

9-31
Indicators
32

-36
Electric parking brake

1
02-107
Ignition switch / Starting and
switching off using the
START/STOP button
9
9 -101
Clock
3
8
Hazard warning lamps
1
82
Instruments and controls
Courtesy lamps 159 -160
Seat belt / passenger's front airbag warning lamps display

1
89, 192
Rear view mirror

8
1
Heating / Ventilation

8
9 -90
Digital air conditioning
9

1-94
Demisting / Defrosting

9
5
USB Player / Jack auxiliary socket
8

2, 85
Dashboard fuses
2

21-222
6 -speed manual gearbox

1

09
Automatic gearbox

1

10 -113
Electronic gearbox

1

14-117
Gear shift indicator

1

18
Hill start assist

1

08 Audio system/ Bluetooth

3
49 -375
Monochrome screen C

3
9 - 42
Setting the date/time

4
2
Vehicle configuration

4
0 - 41
Touch screen tablet

2
85 -348
Colour screen

4
3 - 47
Setting the date/time

4
7
Vehicle configuration

4
5
Opening the bonnet

2

44 Rear electric windows

6
6 - 67
12 V accessory socket

8
2, 83
DS5_en_Chap00b_vue-ensemble_ed01-2015

Instruments and controls
Automatic headlamps 149 -150
Lane departure warning system

1
25
Volumetric alarm monitoring
6

3-65
Electric windows, front /rear

6

6 - 67
Electric child lock

1

78
Central locking

6

1
Opening the fuel filler flap

2

41
Opening the boot

6

2
Parking sensors

1

39 -140
DSC/ASR systems

1

86 -187
Stop & Start

1

21-124
or
Blind spot sensors

1

26 -128
Side switch panel
Localised emergency call 1
83, 282-283
Localised assistance call

1
83, 282-283
Cockpit glass roof

6
8 - 69
Head-up display

1
29 -130Door mirrors

8
0
Headlamp height adjustment
1
52
centre switch panel
DS5_en_Chap00b_vue-ensemble_ed01-2015

Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

53
DS5_en_Chap02_ouvertures_ed01-2015

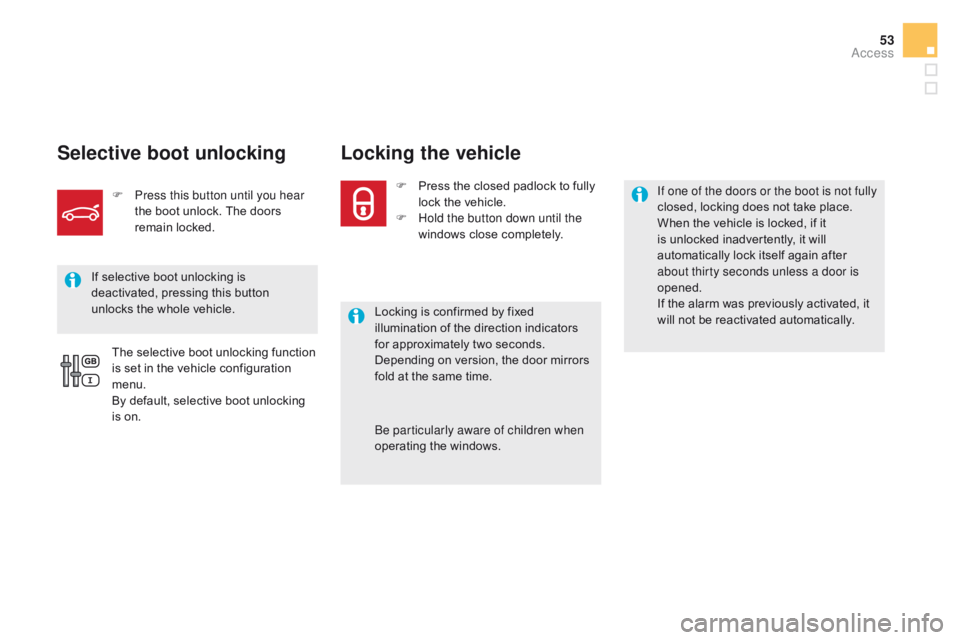

Selective boot unlocking Locking the vehicle
Locking is confirmed by fixed
illumination of the direction indicators
for approximately two seconds.
Depending on version, the door mirrors
fold at the same time.F

P
ress the closed padlock to fully
lock the vehicle.
F
H
old the button down until the
windows close completely.
F

P

ress this button until you hear
the boot unlock. The doors
remain locked.
Be particularly aware of children when
operating the windows. If one of the doors or the boot is not fully
closed, locking does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
automatically lock itself again after
about thirty seconds unless a door is
opened.
If the alarm was previously activated, it
will not be reactivated automatically.
If selective boot unlocking is
deactivated, pressing this button
unlocks the whole vehicle.
The selective boot unlocking function
is set in the vehicle configuration
menu.
By default, selective boot unlocking
is on.
Access

55
DS5_en_Chap02_ouvertures_ed01-2015

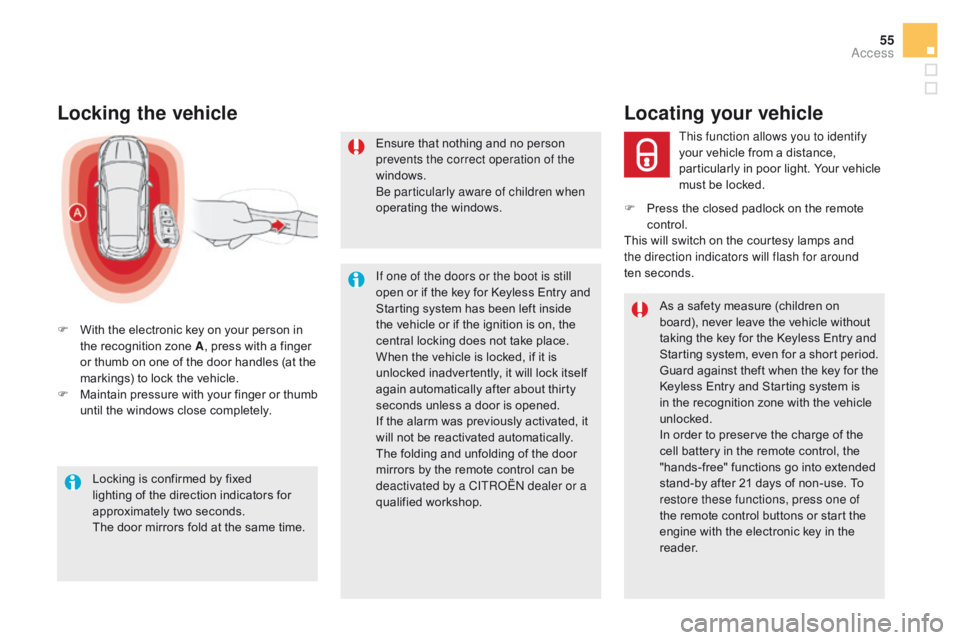

Locking the vehicle
F With the electronic key on your person in the recognition zone A , press with a finger
or thumb on one of the door handles (at the
markings) to lock the vehicle.
F

M
aintain pressure with your finger or thumb
until the windows close completely.
Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The door mirrors fold at the same time. If one of the doors or the boot is still
open or if the key for Keyless Entry and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated, it
will not be reactivated automatically.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless Entry and
Starting system, even for a short period.
Guard against theft when the key for the
Keyless Entry and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use. To
restore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
Ensure that nothing and no person
prevents the correct operation of the
windows.
Be particularly aware of children when
operating the windows.
This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.
Locating your vehicle
F Press the closed padlock on the remote
control.
This will switch on the courtesy lamps and
the direction indicators will flash for around
ten
se

conds.
Access

DS5_en_Chap02_ouvertures_ed01-2015

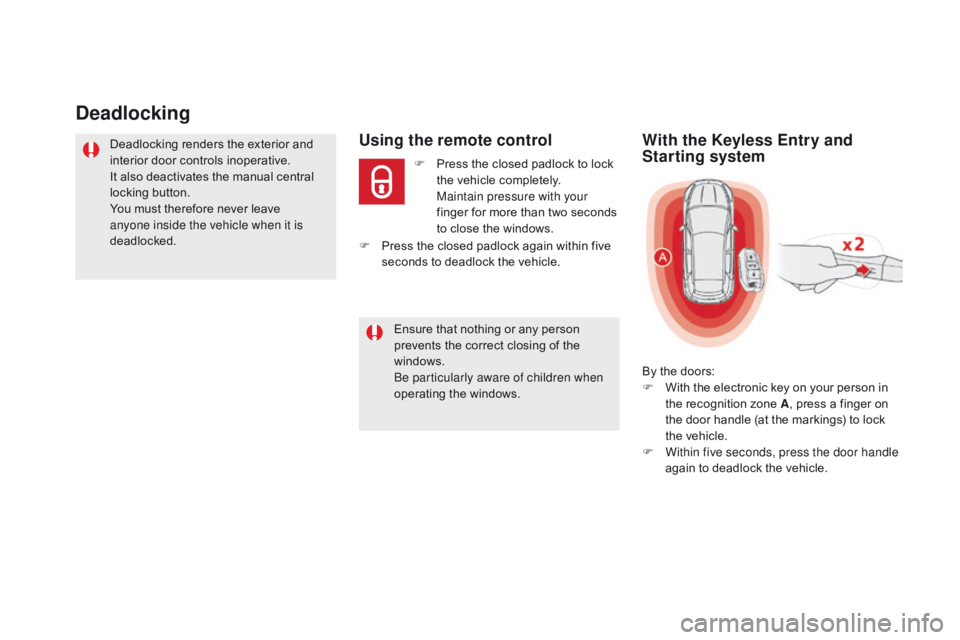

deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
You must therefore never leave
anyone inside the vehicle when it is
deadlocked.Using the remote control
F Press the closed padlock to lock the vehicle completely.
M

aintain pressure with your
finger for more than two seconds
to close the windows.
With the Keyless Entry and
Starting system
By the doors:
F W ith the electronic key on your person in
the recognition zone A , press a finger on
the door handle (at the markings) to lock
the vehicle.
F

W
ithin five seconds, press the door handle
again to deadlock the vehicle.
Ensure that nothing or any person
prevents the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
F

P

ress the closed padlock again within five
seconds to deadlock the vehicle.

OFF
63
DS5_en_Chap02_ouvertures_ed01-2015
System which protects and provides a deterrent
against theft and break-in. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
button or the wires of the siren are put
out of service or damaged.For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control or lock the vehicle
using the Keyless Entry and
Starting system. Following an instruction to lock the
vehicle from the remote control or using
the Keyless Entry and Starting system,
the exterior perimeter monitoring is
activated after a delay of 5 seconds, the
interior volumetric monitoring after
45 seconds and the anti-tilt after
90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the
exterior perimeter monitoring will be
activated after a delay of 45 seconds.
F
P
ress the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.
deactivation of the volumetric
monitoring
The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.
The monitoring system is active: the indicator
lamp in the button flashes once per second.
Access

OFF
DS5_en_Chap02_ouvertures_ed01-2015
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
l
eaving a window partially open,
-

l
eaving a pet in the vehicle,
-

w
ashing your vehicle,
-

c
hanging a wheel,
-

h
aving your vehicle towed,
-

t
ransportation by sea.deactivation of the interior
volumetric and anti-tilt monitoring
F Switch of the ignition and within ten seconds, press this button
until the indicator lamp is on
continuously.
F

G
et out of the vehicle.
F

P
ress the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system.
To be effective, this deactivation must
be carried out each time the ignition is
switched off.

DS5_en_Chap02_ouvertures_ed01-2015
Electric windows
1. Left hand front electric window switch.
2. Right hand front electric window
switch.
3.
R

ight hand rear electric window switch.
Operation
Manual mode
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
4.
Le

ft hand rear electric window switch.
5.
de

activating the rear electric window
switches,
lo

cking the rear doors
(

child lock).
Automatic mode
To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing or pulling the switch again stops the
movement of the window. The electric window switches
remain operational for approximately
45
seconds after switching off the
ignition, while the vehicle's doors are
still closed
Once a door is opened, or once the
45 seconds have elapsed, you have
to switch on the ignition to operate the
windows.
