Boot
F After unlocking the boot only or the vehicle,
press the opening control then raise the
tailgate.
Opening from outside
F Press this button until the boot is heard to
un lock.
Tailgate release
Unlocking
F Fold back the rear seats to gain access to
the lock from inside the boot.
F
In

sert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
Mov

e the latch to the left.
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
closing
F Lower the tailgate using the interior grab
han
dle.
If the tailgate is not closed correctly, engine
running or vehicle moving
(

speed above
6 mph (10 km/h)), a message appears in the
instrument panel screen for a few seconds.
Opening from inside

63
DS5_en_Chap02_ouvertures_ed02-2015
System which protects and provides a deterrent
against theft and break-in. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
service of its components.
The alarm is triggered if the battery, the
button or the wires of the siren are put
out of service or damaged.For all work on the alarm system,
contact a CITROËN dealer or
a
q

ualified workshop.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the
r emote control or lock the vehicle
using the Keyless Entry and
Starting system.
Following an instruction to lock the
vehicle from the remote control or using
the Keyless Entry and Starting system,
the exterior perimeter monitoring is
activated after a delay of 5 seconds,
the interior volumetric monitoring
after 45 seconds and the anti-tilt after
90
s

econds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the
exterior perimeter monitoring will be
activated after a delay of 45 seconds.
The monitoring system is active: the indicator
lamp in the button flashes once per second.
Access

OFF
OFF
DS5_en_Chap02_ouvertures_ed02-2015
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
le
aving a window partially open,
-
le

aving a pet in the vehicle,
-
wa

shing your vehicle,
-
ch

anging a wheel,
-
ha

ving your vehicle towed,
-
tr

ansportation by sea.deactivation of the interior
v olumetric and anti-tilt monitoring
F Switch of the ignition and within
t
en seconds, press this button
until the indicator lamp is on
continuously.
F
Ge

t out of the vehicle.
F
Pr

ess the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system. To be effective, this deactivation must
be carried out each time the ignition is
switched off.
F Pr
ess the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.
deactivation
The alarm system is deactivated: the
indicator lamp in the button goes off.

OFF
OFF
65
DS5_en_Chap02_ouvertures_ed02-2015
Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty
s
econds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
F
Pr

ess the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
F
Pr

ess the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second. When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
In this case, carry out the operations below to
deactivate the monitoring functions:
F
Un

lock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F
Op

en the door; the alarm is triggered.
F
Sw

itch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key
( integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
* Depending on the country of sale.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F
To a

void triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
Access

77
DS5_en_Chap03_confort_ed02-2015
Rear seats
F Move the corresponding front seat for ward
if necessary.
F
Pl

ace the head restraints in the low
position or remove them.
F
Re

move the seat belt from its guide.
Folding the cushion and
backrest
F Lift the cushion 1 by hand, lifting from
the r ear.
F
Ti

p the seat cushion 1 fully against the
front seat.
F
Ke

ep the seat belt guide 2 held against
the
v

ehicle. F
Pu

ll control 3 for wards to release the seat
back 4 .
F
Fo

ld the seat backrest 4.
Bench seat with split cushion and backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
comfort

DS5_en_Chap03_confort_ed02-2015
Ski flap
Opening
F Lower the armrest.
F Pr ess the flap opening control.
F
Lo

wer the flap.
F
Lo

ad the objects from inside the boot.
F
Lo

wer the rear armrest for a more
comfortable position.
It may be fitted with cup holders and also gives
access to the ski flap.
Rear armrest
Do not leave the flap open when not
carrying long objects in the vehicle.
It allows long objects to be carried in the vehicle.
Rear fittings

87
DS5_en_Chap03_confort_ed02-2015
Boot fittings
1. Rear shelf It c
an be removed when carrying large
objects.
2.
Bag h

ooks
3.
St

owing rings
4.
Wa

rning triangle retaining straps
comfort

DS5_en_Chap03_confort_ed02-2015

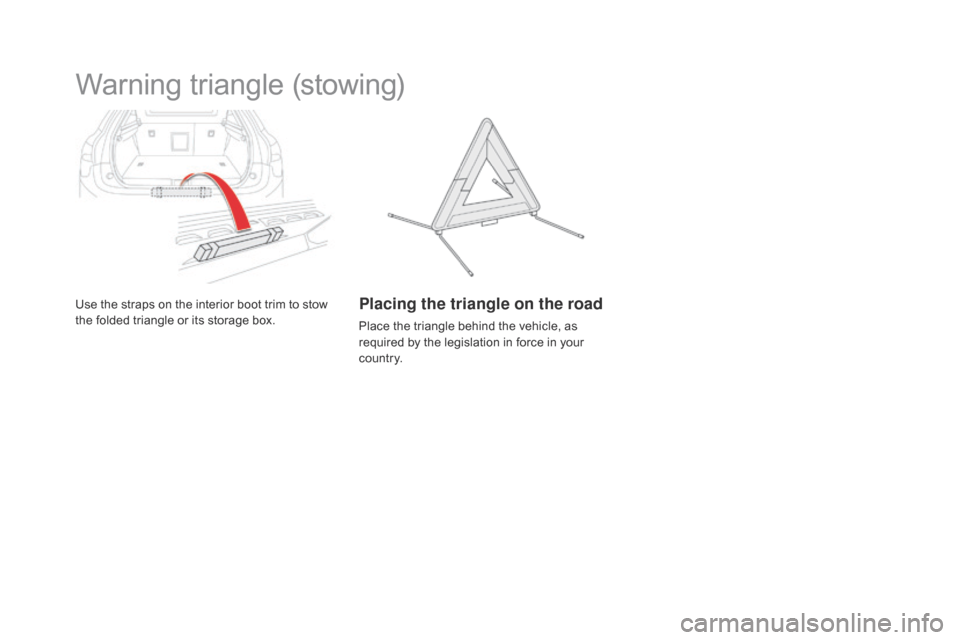

Warning triangle (stowing)
Use the straps on the interior boot trim to stow
the folded triangle or its storage box.Placing the triangle on the road
Place the triangle behind the vehicle, as
required by the legislation in force in your
c o unt r y.

DS5_en_Chap03_confort_ed02-2015
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
To o
btain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F
Do n

ot cover the sunshine sensor, located on the dashboard; this is used for regulation
of the digital air conditioning system.
F
Op

erate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F
En

sure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly (refer to the "Checks" section).
We r

ecommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F
To e

nsure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F
If t

he system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
You can switch off the air conditioning (AC button) and stay in Automatic mode in order
to limit fuel consumption. If misting appears while in this mode, you can switch the air
conditioning back on temporarily to improve the situation.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
If you want to prioritise heating, start
and leave the engine running by
pressing ECO OFF.

DS5_en_Chap05_visibilite_ed02-2015
Manual adjustment of
halogen headlampsAutomatic adjustment of
xenon headlamps
To avoid causing a nuisance to other road
users, the height of the halogen headlamps
should be adjusted according to the load in the
vehicle.
0.
1 or 2 p

eople in the front seats.
-.
In

termediate setting.
1.
5 pe

ople + maximum authorised load.
-.
In

termediate setting.
2.
Dr

iver + maximum authorised load.
-.
In

termediate setting.
3.
5 pe

ople + maximum load in the boot. If a fault occurs, this warning lamp
is displayed in the instrument panel,
accompanied by an audible signal
and a message in the instrument
panel screen.
In order to avoid causing a nuisance to other
road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, in relation to the load in the vehicle.
If a fault occurs, do not touch the xenon
bulbs.
Contact a CITROËN dealer or a
qualified workshop.
The system then places your headlamps in the
lowest position.
Headlamp beam height adjustment
The initial setting is position "0" .
