DS5_en_Chap02_ouvertures_ed02-2015

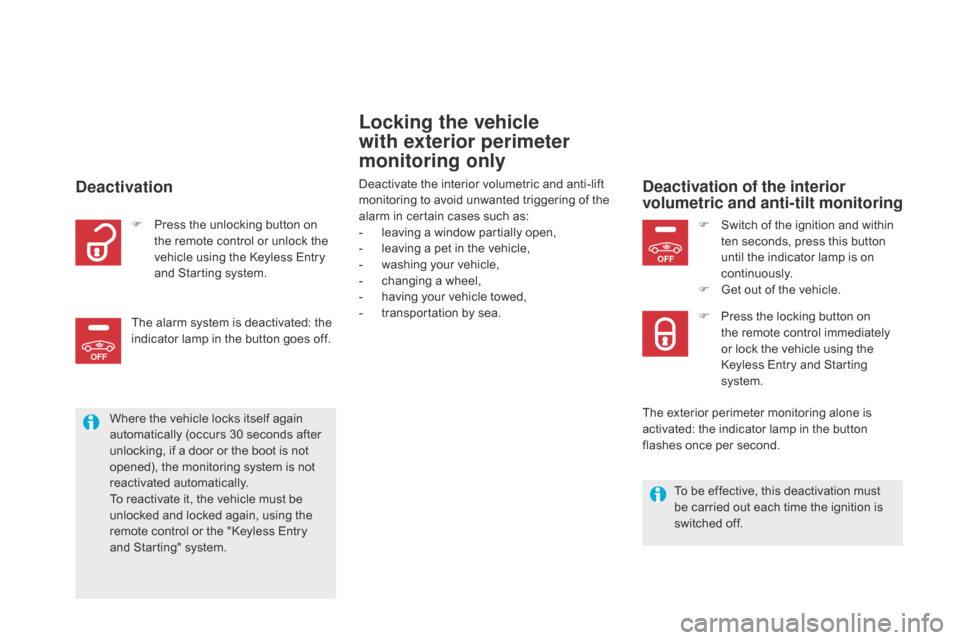

Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
-
le
aving a window partially open,
-
le

aving a pet in the vehicle,
-
wa

shing your vehicle,
-
ch

anging a wheel,
-
ha

ving your vehicle towed,
-
tr

ansportation by sea.deactivation of the interior
v olumetric and anti-tilt monitoring
F Switch of the ignition and within
t
en seconds, press this button
until the indicator lamp is on
continuously.
F
Ge

t out of the vehicle.
F
Pr

ess the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system. To be effective, this deactivation must
be carried out each time the ignition is
switched off.
F Pr
ess the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.
deactivation
The alarm system is deactivated: the
indicator lamp in the button goes off.

OFF
OFF
65
DS5_en_Chap02_ouvertures_ed02-2015

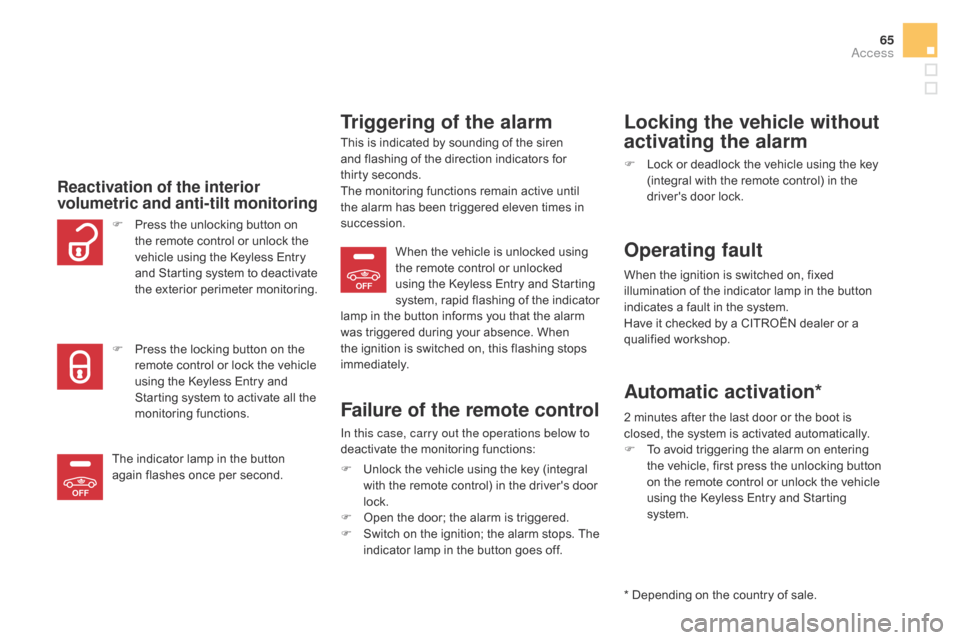

Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty
s
econds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
F
Pr

ess the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
F
Pr

ess the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second. When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
In this case, carry out the operations below to
deactivate the monitoring functions:
F
Un

lock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
F
Op

en the door; the alarm is triggered.
F
Sw

itch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key
( integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
* Depending on the country of sale.
Automatic activation*
2 minutes after the last door or the boot is
closed, the system is activated automatically.
F
To a

void triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
Access

67
DS5_en_Chap02_ouvertures_ed02-2015

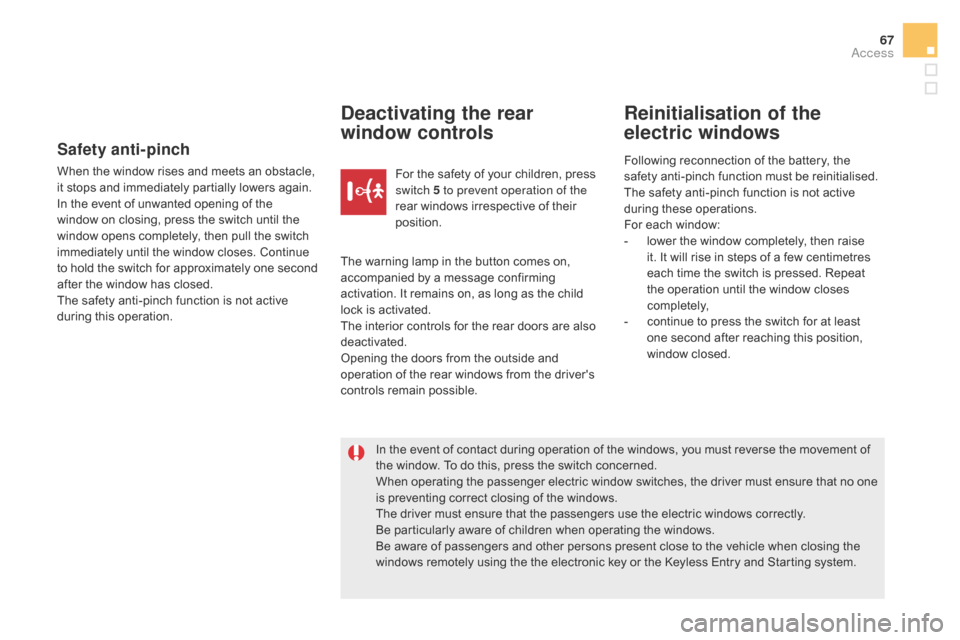

Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
deactivating the rear
w indow controls Reinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the movement of
the window. To do this, press the switch concerned.
When operating the passenger electric window switches, the driver must ensure that no one
is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windows correctly.
Be particularly aware of children when operating the windows.
Be aware of passengers and other persons present close to the vehicle when closing the
windows remotely using the the electronic key or the Keyless Entry and Starting system. Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-
lo

wer the window completely, then raise
it. It will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-
co
ntinue to press the switch for at least
one
s
econd after reaching this position,
window closed.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear windows from the driver's
controls remain possible.
Access

149
DS5_en_Chap05_visibilite_ed02-2015
Exterior welcome lighting
Switching on
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.F
Pr

ess the open padlock on the
remote control or the door handle
with the Keyless Entry and
Starting system.
Door mirror
spotlamps
Switching on
The spotlamps come on:
- wh en you unlock the vehicle,
-
wh

en you switch off the ignition,
-
wh

en you open a door,
-
wh

en you use the remote control to locate
the vehicle.
Switching off
They are timed to go off automatically. To make your approach to the vehicle easier,
these illuminate:
-
th
e zones facing the driver’s and
passenger’s doors,
-
th
e zones for ward of the door mirrors and
rear ward of the front doors.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked. The remote control operation of the lighting makes your approach to the vehicle easier in poor light.
It is activated according to the level of light detected by the sunshine sensor.
The duration of the welcome lighting is
associated with and identical to that of
the automatic guide-me-home lighting.
Programming
The lighting duration is selected via
the vehicle configuration menu.
visibility

223
DS5_en_Chap08_info-pratiques_ed02-2015

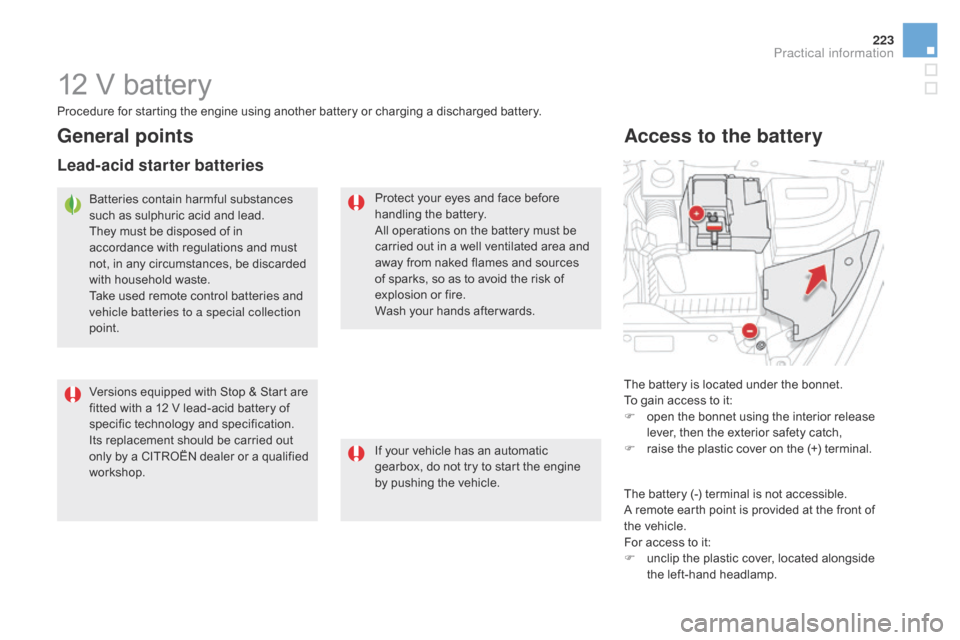

12 V battery
The battery is located under the bonnet.
To gain access to it:
F
op
en the bonnet using the interior release
lever, then the exterior safety catch,
F
ra

ise the plastic cover on the (+) terminal.
Access to the battery
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands after wards.
Procedure for starting the engine using another battery or charging a discharged battery.
General points
Lead-acid starter batteries
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.
The battery (-) terminal is not accessible.
A remote earth point is provided at the front of
the vehicle.
For access to it:
F
un

clip the plastic cover, located alongside
the left-hand headlamp.
Practical information

DS5_en_Chap08_info-pratiques_ed02-2015

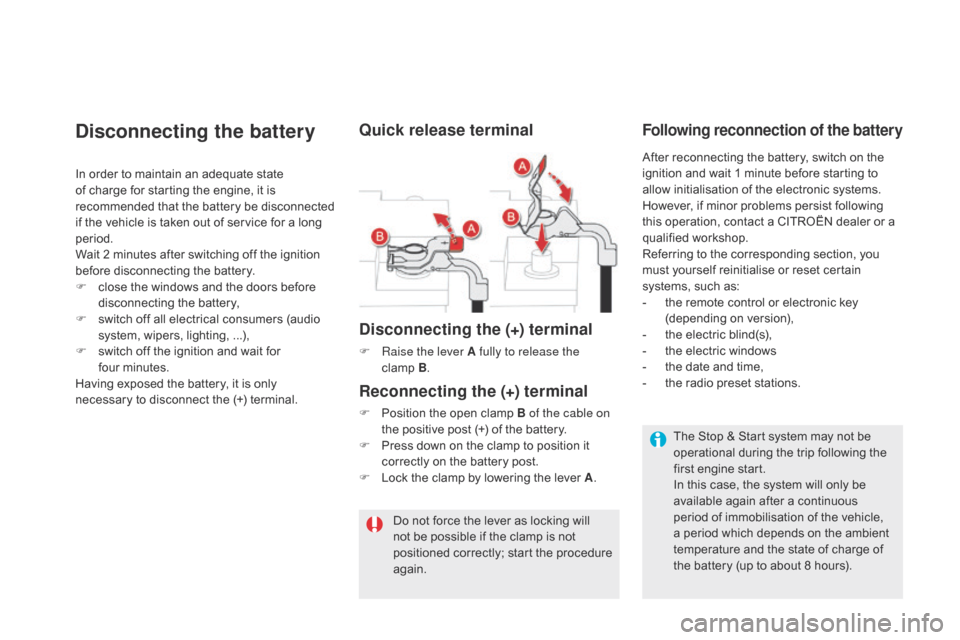

disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
F
cl
ose the windows and the doors before
disconnecting the battery,
F
sw

itch off all electrical consumers (audio
system, wipers, lighting, ...),
F
sw

itch off the ignition and wait for
four
mi

nutes.
Having exposed the battery, it is only
necessary to disconnect the (+) terminal.
Quick release terminal
dis

connecting the (+) terminal
F Raise the lever A fully to release the
c lamp B.
Following reconnection of the battery
Reconnecting the (+) terminal
F Position the open clamp B of the cable on
t
he positive post (+) of the battery.
F
Pr

ess down on the clamp to position it
correctly on the battery post.
F
Lo

ck the clamp by lowering the lever A .
Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again. The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).
After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-
th

e remote control or electronic key
(depending on version),
-
th
e electric blind(s),
-
th
e electric windows
-
th
e date and time,
-
th
e radio preset stations.

313
Pads, brake ...................................................252
P aint colour code .......................................... 2 74
P
arking brake, electric
............ 26
, 103, 107, 252
Parking sensors, front
................................... 137
P

arking sensors, rear.................................... 13 6
Petrol
............................................................. 24

0
Plates, identification ...................................... 2 74
Player, MP3 CD
.....................................

288, 289
Port, USB
................................................85

, 290
Pressures, tyres
.....................................19

7, 274
Pre-tensioning seat belts
.............................. 188
P

riming the fuel system
................................ 246
P

rotecting children
.................16
0 -176, 188, 190
Puncture
........................................................ 19

6Rear screen, demisting
............................. 80

, 95
Recharging the battery
................................. 225
R
eduction of electrical load
..........................
227
R
egeneration of the particle filter
.................
2 51
R
einitialising the remote control
.....................
59
Re
mote control
.................................... 52
-55, 60
Removing a wheel
........................................ 20
6
Removing the mat
........................................... 84
R
eplacing bulbs
.....................................
21
1-218
Replacing fuses
..................................... 2
19-222
Replacing the air filter
................................... 2 51
R
eplacing the oil filter
...................................
2 51
R
eplacing the passenger

compartment filter ...................................... 2 51
R esetting the service indicator .......................35
Re
setting the trip recorder
.................. 37
, 46, 47
Reversing camera
......................................... 13

8
Reversing lamp
............................................. 216
Ro

of bars
.......................................................232
R

oof, Cockpit glass
.........................................68
Ru

nning out of fuel (Diesel)
..........................246
O
P
S
Safety, children ......................16 0 -176, 188, 190
Saturation of the particle filter (Diesel)
............................................... 2 51
S

creen, instrument panel
.......................... 18
, 46
Screen menu map
................................. 30

1, 302
Screen, monochrome
.....................39

, 284, 301
Screenwash reservoir
................................... 249
R

adio
............................................................. 28

5
Range, AdBlue
......................................

254, 255
R
Oil change ..................................................... 2 47
Oil consumption ............................................ 247
O
Il, engine
...............................................
36, 247
Opening the boot
................................

52-54, 62
Opening the doors
....................................

52, 54 Screenwash, front .........................................
15 4
S
creenwash, rear ..........................................15
4
SCR (Selective Catalytic Reduction)
.................. 253
Se

at belts
.......................................16

8, 18 6 -188
Seats, front
................................................. 7

2 -74
Seats, heated
.................................................. 76
S

eats, rear
................................................. 77
, 79
Serial number, vehicle
.................................. 2 74
S

ervice indicator
.............................................33
Ser

vicing
.........................................................14
S

ettings, equipment
.................................. 39
, 45
Sidelamps
.............. 14

2, 145, 148, 211-213, 216
Side repeater
................................................ 2

15
Ski flap
............................................................ 86
S

now chains
..................................................210
S

ocket, 12 V accessory
............................ 82
, 83
Sockets, audio
................................85

, 290, 291
Speed limiter
.........................................

128, 130
Spotlamps, side
.................................... 14

9, 215
Starting the engine
....................... 10

0, 102, 111
Starting using another battery
...................... 224
S

teering mounted controls, audio
................283
S

teering wheel, adjustment
............................81
St

ickers, expressive
......................................233
St

op & Start
..................................2
2, 48, 92, 95,
118, 223, 226, 239, 243, 251
Storage
................................................

82, 85 - 87
Storing driving positions
................................. 74
St

owing rings
..................................................
87
Switching off the engine
............... 10

0, 102, 111
Synchronising the remote control
................... 59
Alphabetical index
