jacking points Citroen DS5 HYBRID 2016 1.G Owner's Manual

207
DS5_en_Chap08_info-pratiques_ed02-2015

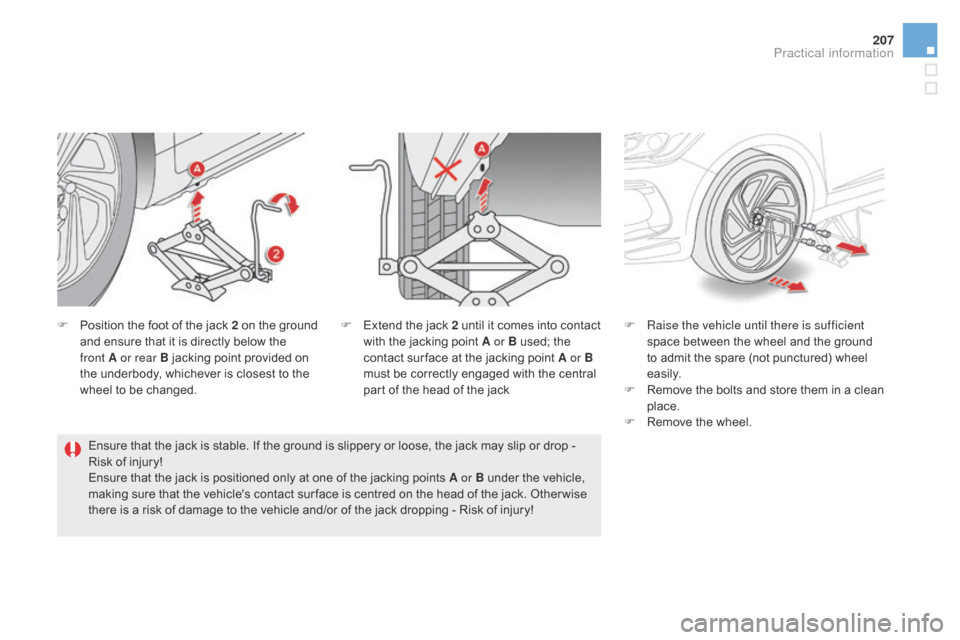

F Position the foot of the jack 2 on the ground
and ensure that it is directly below the
front
A

or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed. F Rai
se the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
F
Re

move the bolts and store them in a clean
place.
F
Re

move the wheel.
F Ex
tend the jack 2 until it comes into contact
with the jacking point A or B used; the
contact sur face at the jacking point A or B
must be correctly engaged with the central
part of the head of the jack
Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
Ensure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact sur face is centred on the head of the jack. Other wise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!
Practical information
