Starting the Hybrid4 system
Activation of the Hybrid4 system
On activation of the Hybrid4 system, the
instrument panel lights up, the power indicator
needle is placed at position " 0
". The steering
column automatically unlocks (perceptible
noise and movement of the steering column).
Depending on certain parameters, such as the
state of charge of the high voltage battery or
the ambient temperature, the Hybrid4 system
itself determines whether it is necessary to
start the HDi Diesel engine.
The mode selector is at the AUTO
position.
In wintry conditions with the
engine cold, the Diesel pre-
heating warning lamp can stay
on for a few seconds; wait until
it goes off before releasing the
brake pedal.
Starting - switching off the Hybrid4 system
Never leave children alone inside the
vehicle when the Hybrid4 system is
active.
)
Place the gear selector at position N
.
)
Insert the electronic key in the reader.
or
)
With Keyless Entry and Starting, simply
having the electronic key inside the vehicle
is sufficient.
)
Press the brake pedal firmly.
)
Make a single short press (about one
second) on the " START/STOP
" button.
)
Maintain pressure on the brake pedal until
the READY
lamp comes on, signalling
activation of the Hybrid4 system, confirmed
by an audible signal.
If the Hybrid4 system does not activate:
)
If N
is flashing in the instrument
panel, move the gear selector to
position A
then to position N
.
)
If the " Foot on the brake
" is
displayed, press the brake pedal
firmly.
The READY
lamp may come on after
a few seconds if there is a demand
for activation of the Hybrid4 system
after energy economy mode has been
entered.
Page 343 of 376
17Hybrid4 system

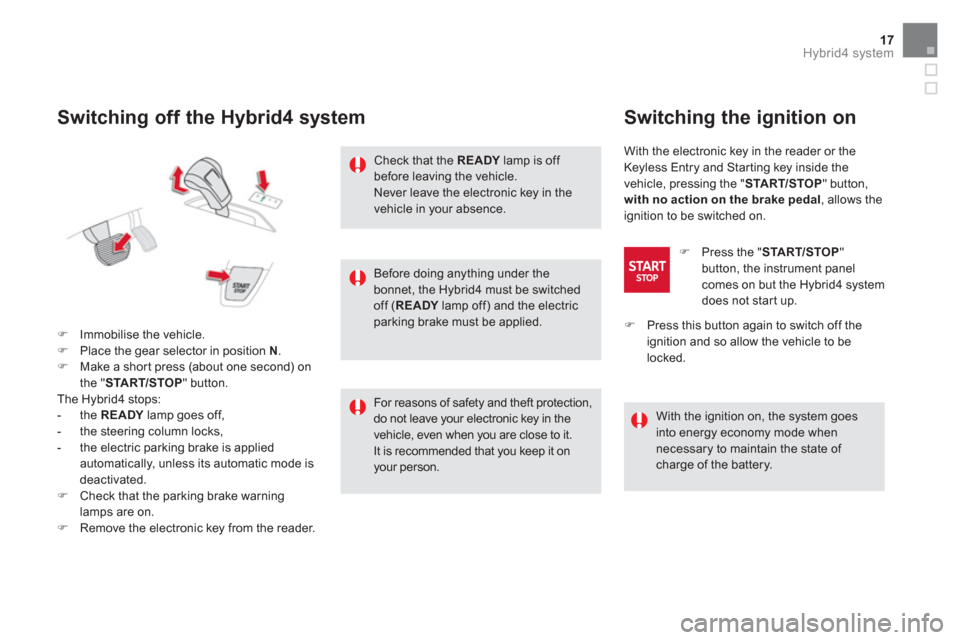

Switching off the Hybrid4 system
)
Immobilise the vehicle.
)
Place the gear selector in position N
.
)
Make a short press (about one second) on
the " START/STOP
" button.
The Hybrid4 stops:
- the READY
lamp goes off,
- the steering column locks,
- the electric parking brake is applied
automatically, unless its automatic mode is
deactivated.
)
Check that the parking brake warning
lamps are on.
)
Remove the electronic key from the reader.
Before doing anything under the
bonnet, the Hybrid4 must be switched
off ( READY
lamp off) and the electric
parking brake must be applied.
Check that the READY
lamp is off
before leaving the vehicle.
Never leave the electronic key in the
vehicle in your absence.
For reasons of safety and theft protection,
do not leave your electronic key in the
vehicle, even when you are close to it.
It is recommended that you keep it on
your person.
Switching the ignition on
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the " START/STOP
" button,
with no action on the brake pedal
, allows the
ignition to be switched on.
)
Press the " START/STOP
"
button, the instrument panel
comes on but the Hybrid4 system
does not start up.
With the ignition on, the system goes
into energy economy mode when
necessary to maintain the state of
charge of the battery.
)
Press this button again to switch off the
ignition and so allow the vehicle to be
locked.
Page 344 of 376

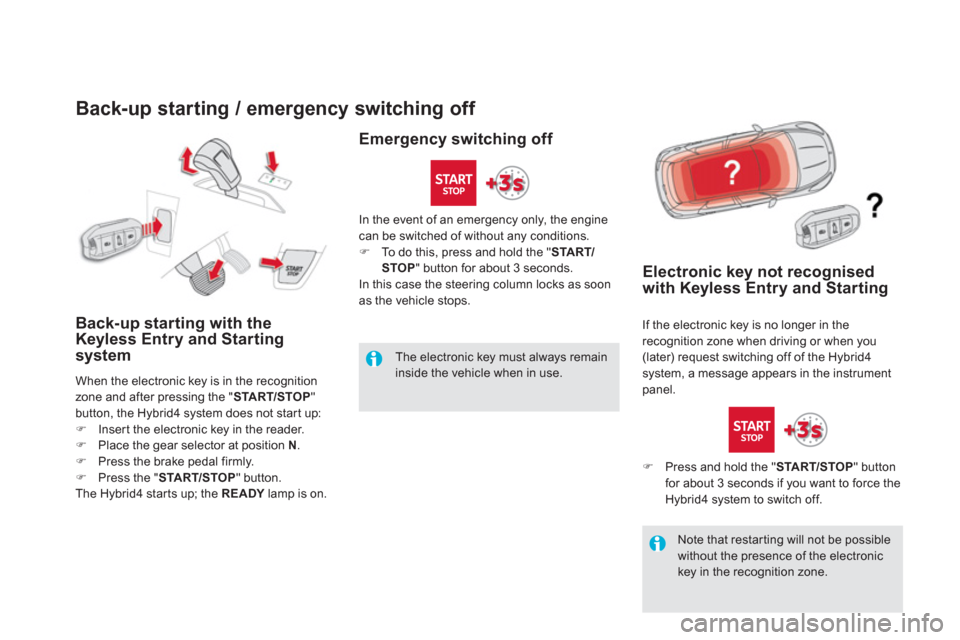

Back-up starting / emergency switching off
Back-up starting with the
Keyless Entry and Starting
system
When the electronic key is in the recognition
zone and after pressing the " START/STOP
"
button, the Hybrid4 system does not start up:
)
Insert the electronic key in the reader.
)
Place the gear selector at position N
.
)
Press the brake pedal firmly.
)
Press the " START/STOP
" button.
The Hybrid4 starts up; the READY
lamp is on.
Electronic key not recognised
with Keyless Entry and Starting
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off of the Hybrid4
system, a message appears in the instrument
panel.
)
Press and hold the " START/STOP
" button
for about 3 seconds if you want to force the
Hybrid4 system to switch off. In the event of an emergency only, the engine
can be switched of without any conditions.
)
To do this, press and hold the " START/
STOP
" button for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
The electronic key must always remain
inside the vehicle when in use.
Emergency switching off
Note that restarting will not be possible
without the presence of the electronic
key in the recognition zone.
Page 348 of 376

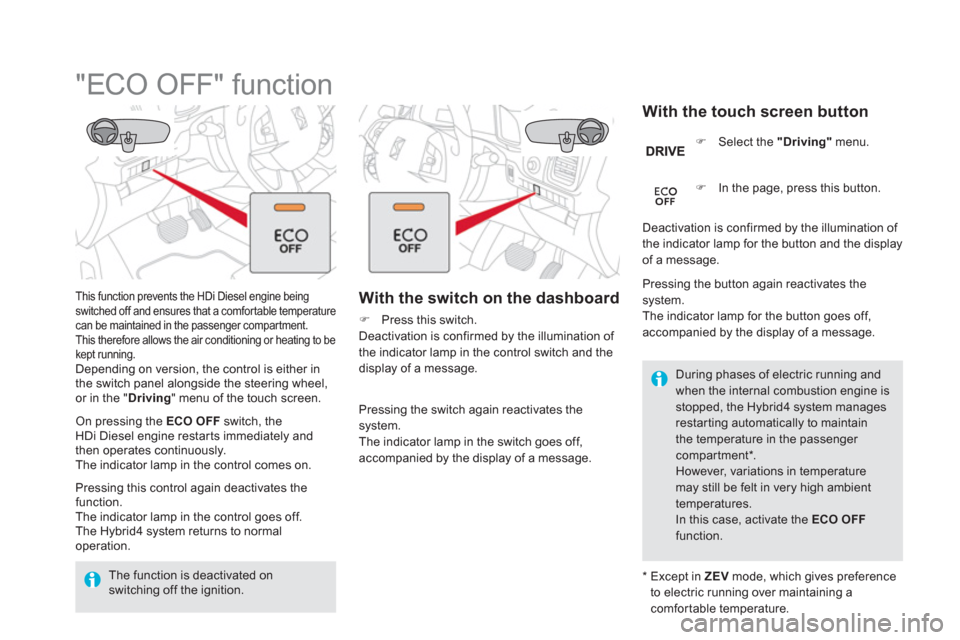

"ECO OFF" function
This function prevents the HDi Diesel engine being
switched off and ensures that a comfortable temperature
can be maintained in the passenger compartment.
This therefore allows the air conditioning or heating to be
kept running.
Depending on version, the control is either in
the switch panel alongside the steering wheel,
or in the " Driving
" menu of the touch screen.
On pressing the ECO OFF
switch, the
HDi Diesel engine restarts immediately and
then operates continuously.
The indicator lamp in the control comes on.
Pressing this control again deactivates the
function.
The indicator lamp in the control goes off.
The Hybrid4 system returns to normal
operation.
*
Except in ZEV mode, which gives preference
to electric running over maintaining a
comfortable temperature.
The function is deactivated on
switching off the ignition.
During phases of electric running and
when the internal combustion engine is
stopped, the Hybrid4 system manages
restarting automatically to maintain
the temperature in the passenger
compartment * .
However, variations in temperature
may still be felt in very high ambient
temperatures.
In this case, activate the ECO OFF
function.
With the switch on the dashboard
)
Press this switch.
Deactivation is confirmed by the illumination of
the indicator lamp in the control switch and the
display of a message.
Pressing the switch again reactivates the
system.
The indicator lamp in the switch goes off,
accompanied by the display of a message.
With the touch screen button
Pressing the button again reactivates the
system.
The indicator lamp for the button goes off,
accompanied by the display of a message.
)
Select the "Driving"
menu.
Deactivation is confirmed by the illumination of
the indicator lamp for the button and the display
of a message.
)
In the page, press this button.
Page 362 of 376

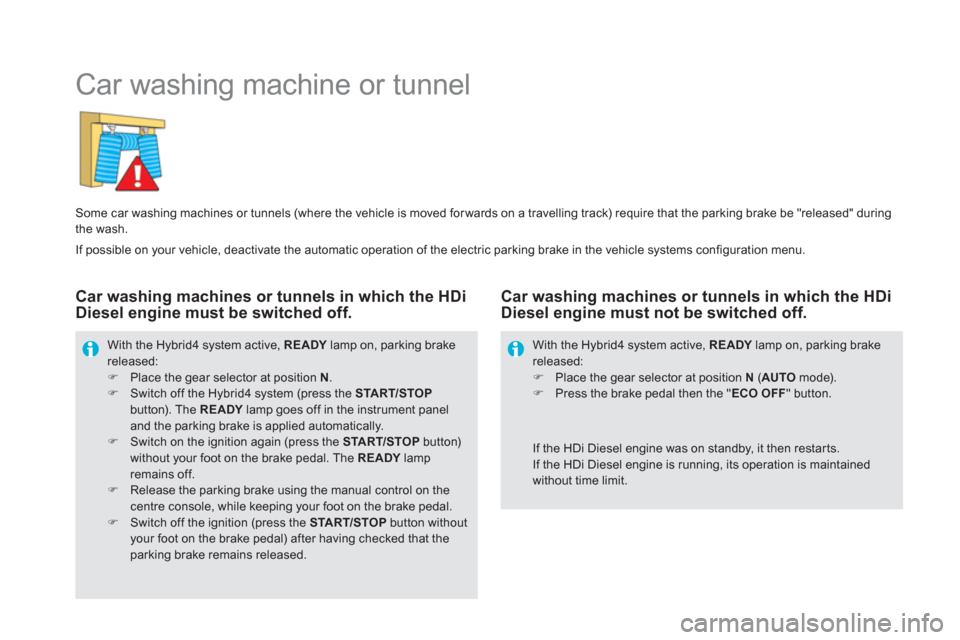

Car washing machine or tunnel
Some car washing machines or tunnels (where the vehicle is moved for wards on a travelling track) require that the parking brake be "released" during
the wash.
With the Hybrid4 system active, READY
lamp on, parking brake
released:
)
Place the gear selector at position N
.
)
Switch off the Hybrid4 system (press the START/STOP
button). The READY
lamp goes off in the instrument panel
and the parking brake is applied automatically.
)
Switch on the ignition again (press the START/STOP
button)
without your foot on the brake pedal. The READY
lamp
remains off.
)
Release the parking brake using the manual control on the
centre console, while keeping your foot on the brake pedal.
)
Switch off the ignition (press the START/STOP
button without
your foot on the brake pedal) after having checked that the
parking brake remains released.
If the HDi Diesel engine was on standby, it then restarts.
If the HDi Diesel engine is running, its operation is maintained
without time limit.
With the Hybrid4 system active, READY
lamp on, parking brake
released:
)
Place the gear selector at position N
( AUTO
mode).
)
Press the brake pedal then the " ECO OFF
" button.
Car washing machines or tunnels in which the HDi
Diesel engine must be switched off.
Car washing machines or tunnels in which the HDi
Diesel engine must not be switched off.
If possible on your vehicle, deactivate the automatic operation of the electric parking brake in the vehicle systems configuration menu.
Page 370 of 376

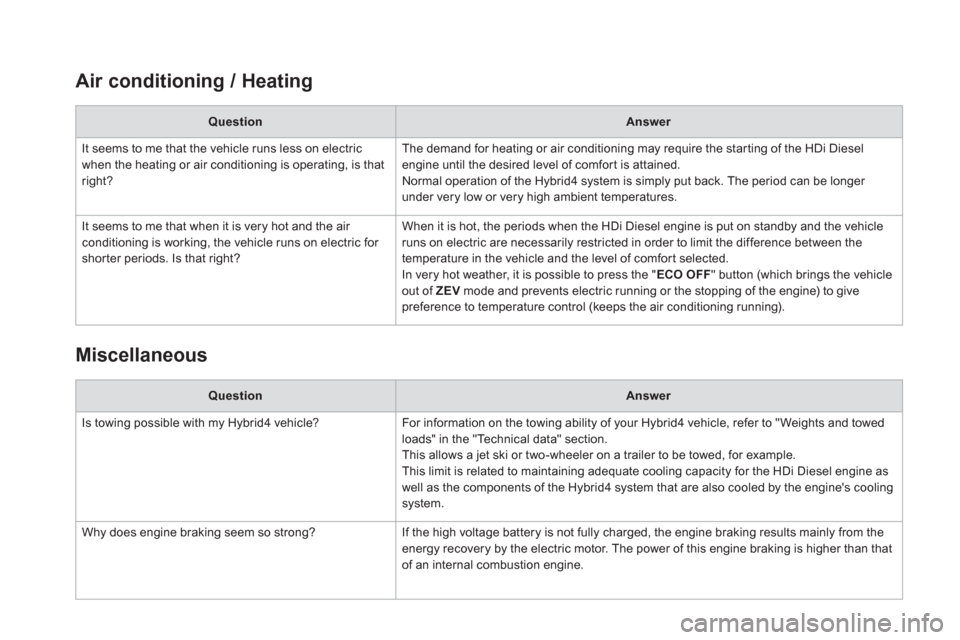

Air conditioning / Heating
Question
Answer
It seems to me that the vehicle runs less on electric
when the heating or air conditioning is operating, is that
right? The demand for heating or air conditioning may require the starting of the HDi Diesel
engine until the desired level of comfort is attained.
Normal operation of the Hybrid4 system is simply put back. The period can be longer
under very low or very high ambient temperatures.
It seems to me that when it is very hot and the air
conditioning is working, the vehicle runs on electric for
shorter periods. Is that right? When it is hot, the periods when the HDi Diesel engine is put on standby and the vehicle
runs on electric are necessarily restricted in order to limit the difference between the
temperature in the vehicle and the level of comfort selected.
In very hot weather, it is possible to press the " ECO OFF
" button (which brings the vehicle
out of ZEV
mode and prevents electric running or the stopping of the engine) to give
preference to temperature control (keeps the air conditioning running).
Miscellaneous
Question
Answer
Is towing possible with my Hybrid4 vehicle? For information on the towing ability of your Hybrid4 vehicle, refer to " Weights and towed
loads" in the "Technical data" section.
This allows a jet ski or two-wheeler on a trailer to be towed, for example.
This limit is related to maintaining adequate cooling capacity for the HDi Diesel engine as
well as the components of the Hybrid4 system that are also cooled by the engine's cooling
system.
Why does engine braking seem so strong? If the high voltage battery is not fully charged, the engine braking results mainly from the
energy recovery by the electric motor. The power of this engine braking is higher than that
of an internal combustion engine.
