Citroen DS5 HYBRID 2016 1.G Owner's Manual

4DconceptDiadeisInterak
08-15

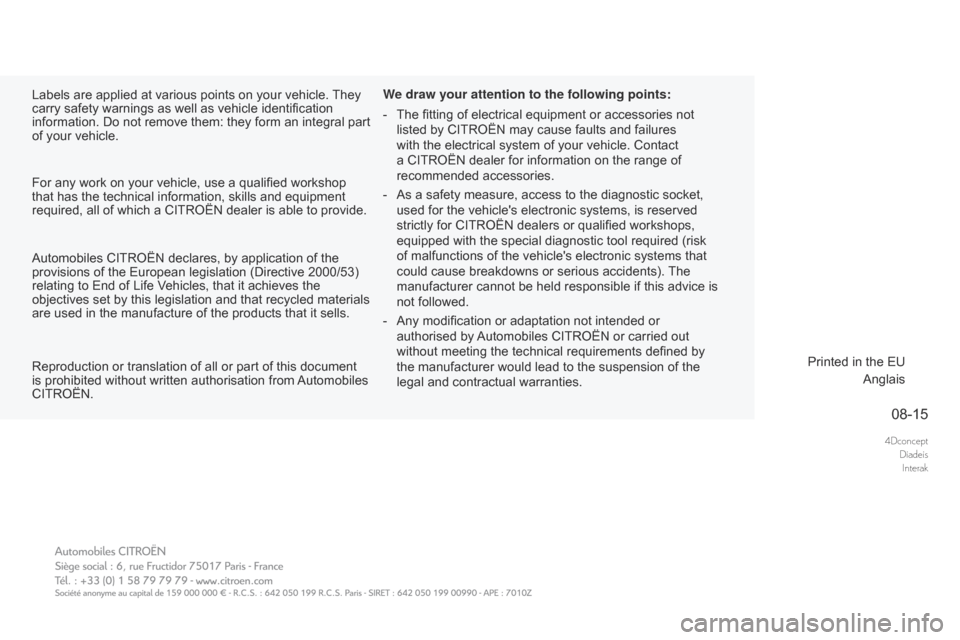

Labels are applied at various points on your vehicle. They
carry safety warnings as well as vehicle identification
information. Do not remove them: they form an integral part
of your vehicle.
Automobiles CITROËN
declares, by application of the
provisions of the European legislation (Directive 2000/53)
relating to End of Life V

ehicles, that it achieves the
objectives set by this legislation and that recycled materials
are used in the manufacture of the products that it sells.
Printed in the EUAnglais
For any work on your vehicle, use a qualified workshop
that has the technical information, skills and equipment
required, all of which a CITROËN dealer is able to provide.
Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN. We draw your attention to the following points:
-
The fitting of electrical equipment or accessories not
listed by CITROËN may cause faults and failures
with the electrical system of your vehicle. Contact
a CITROËN dealer for information on the range of
recommended accessories.
-
As a safety measure, access to the diagnostic socket,
used for the vehicle's electronic systems, is reserved
strictly for CITROËN dealers or qualified workshops,
equipped with the special diagnostic tool required (risk
of malfunctions of the vehicle's electronic systems that
could cause breakdowns or serious accidents). The
manufacturer cannot be held responsible if this advice is
not followed.
-
Any modification or adaptation not intended or
authorised by Automobiles CITROËN or carried out
without meeting the technical requirements defined by
the manufacturer would lead to the suspension of the
legal and contractual warranties.

15DS5.0041Anglais

SUPPLEMENT

On-line handbook


If the "MyCITROËN" function is not available on the CITROËN public website for your country, you
can fi nd your handbook at the following address:
http://service.citroen.com/ddb/
Find your handbook on the CITROËN website, under "MyCITROËN".

Select:
Select one of the following means of access to
view your handbook on-line...


This personal and customisable space allows you to establish direct and special contact with the
manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.
Referring to the handbook on-line also gives you
access to the latest information available, easily
identifi ed by the bookmark, associated with this
symbol:

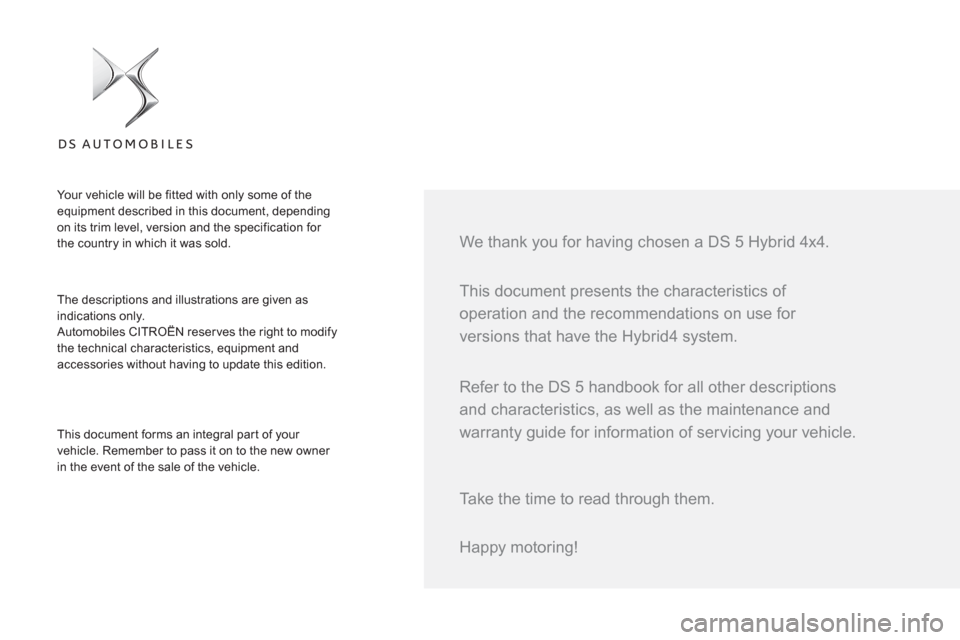

This document presents the characteristics of
operation and the recommendations on use for
versions that have the Hybrid4 system.
We thank you for having chosen a DS 5 Hybrid 4x4.

The descriptions and illustrations are given as
indications only.
Automobiles CITROËN reser ves the right to modify
the technical characteristics, equipment and
accessories without having to update this edition.

This document forms an integral part of your
vehicle. Remember to pass it on to the new owner
in the event of the sale of the vehicle.

Refer to the DS 5 handbook for all other descriptions
and characteristics, as well as the maintenance and
warranty guide for information of servicing your vehicle.
Happy motoring!




Your vehicle will be fitted with only some of the
equipment described in this document, depending
on its trim level, version and the specification for
the country in which it was sold.

Take the time to read through them.

008 003
004
010
ALPHABETICAL INDEX45
4 Presentation
8 Instrument panel
9 READY lamp
9 Power indicator
10 Display of energy fl ows
12 Fuel consumption histogramme
13 Tr i p c o m p u t e r
15 Starting / switching off
19 Mode selector
22 "ECO OFF" function
23 Driving recommendations
24 Eco-driving
25 Special aspects of ZEV mode
27 High voltage battery
30 Underbonnet
HYBRID4 SYSTEM
PRACTICAL INFORMATION COMFORT
DRIVING
36 Car washing machine or tunnel
37 Temporary puncture
repair kit
38 Recovery on a fl at-bed
38 Snow chains
TECHNICAL DATA
39 Electric motor
40 Diesel engine
41 Weights
FREQUENTLY ASKED
QUESTIONS42
31 Boot fi ttings
32 Electronic gearbox

Presentation of the Hybrid4 system



The Hybrid4 technology associates two
sources of power: an HDi Diesel engine, which
drives the front wheels and an electric motor,
which drives the rear wheels.
These two motors can operate alternately
or simultaneously, according to the Hybrid4
operating mode selected and the driving
conditions.
The electric motor alone provides power for
the vehicle in ZEV
(Zero Emissions Vehicle)
mode, and in AUTO
mode when running at
slow speed and under low load. The electric
motor also assists the HDi Diesel engine when
moving off, accelerating and changing gear.
The electric motor is powered by a high
voltage battery that is recharged during phases
of deceleration as well as, up to a certain
threshold, by the HDi Diesel engine.



1.
HDi Diesel engine (driving the front wheel).

2.
Electric motor (driving the rear wheels).

3.
200 V high voltage battery.

4.
Electronic power supervisor.
5.
Alternator-starter motor (Stop & Start).

6.
Electronic gearbox (ETG6).

7.
Electrical flow.

8.
Mode selector.
