Familiarisation
Automatic headlamp dipping
This system automatically changes between
dipped and main beam, depending on the
driving conditions, using a camera located in
the interior rear view mirror.
15 3
Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind thevehicle during parking manoeuvres.
14 3
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant car tridge, to allow
the temporary repair of a tyre.
19
6
Exterior
Reversing camera
This system, available only with satellite
navigation, is activated automatically onengaging reverse gear and provides an imagein the colour screen.
14
5
Page 15 of 358
13Familiarisation
Interior
Head-up display
This system projects speed and cruise control/speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not
need to take their eyes off the road.
Central storage containingvarious systems
It is illuminated, cooled and provides storageand locations for systems and loose items(USB Player, location for a bottle, ...).
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen, auxiliary inputs, Hi-Fi audio system, ...
eMyWay
136
108
311
257
Audio system
Massage function
This system provides a lumbar massage for a
period of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
10
0
Electric parkingbrake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
122
Page 56 of 358
Instrument panel
1.
Energy consumption / generation indicator (available power as a percentage).
For more information refer to the "H
ybrid
system" section.2. Fuel gauge.3.Engine coolant temperaturegauge.4.
Speedometer (mph or km/h).5.
Cruise control or speed limiter
settings.A
.Main lighting and controls dimmer.
B.- Successive shor t presses: under-inflation
detection, recall servicin
g information, alert log.
- Long press: reset the function selected to
zero (service indicator or trip recorder). 6
. Gear engaged.
7.Instrument panel screen: electrical flow,
trip recorder, aler t messa
ges or state of functions (e.g.: oil pressure, battery, door open, ...), trip computer, media, satellite
navigation.8. Digital speedometer (mph orkm/h).9.Ready lamp: indicates that the vehicle is
ready to drive.
Dials and screens
Control buttons
Page 138 of 358
Head-up display
System which projects information onto a
transparent strip in the field of vision of the
driver so that the
y do not have to take their eyes off the road. This system operates when the hybrid system is active and the settings are stored when the
ignition is switched off.
1
.Head-up display on / off.
2. Display height adjustment.3.
Brightness adjustment.
Once the system has been activated, the
information projected in the head-up display is:
A.The speed of your vehicle.
B.Cruise control/speed limiter information.
Displays during operation
C.Navigation information (depending on
version) which appears in blue while in electric mode.
For more information on the navigation system, refer to the "Audio and telematic" section.
Page 232 of 358
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.
Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radio communication transmitters
Before installing any after-market radiocommunication transmitter, you can contact a CITROËN dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/10 4/EC).
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...
"Multimedia":
audio systems, steering mounted audio controls, speakers, Hi-Fi module, Bluetooth hands-free system, por table satellite navigationsystem, semi-integral suppor t bracket for portable navigation system, driving assistancesystems, USB Box, reversing camera, por table
video screen, por table video support bracket,
230 V/50 Hz socket, 230 V/12 V adaptor, Wi-Fion board...
Page 259 of 358
257
The s
ystem is protected in such a way that it will onlyoperate in your vehicle.
eMyWay
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Contacts - ADDR BOOK
08 Radio
09 Music media players
10 Audio settings
11 Configuration
12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
258
260
2
61
263
276
279
287
290
29
3
299
300
30
2
Frequently asked questions p. 305
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM
Page 260 of 358
01 FIRST STEPS
Short press: select a preset
radio station.
Long press: store thecurrent radio station. TA
(Traffi c
Announcement)function On / Off. Displa
y the list of radio stations received, CD/MP3/
Apple® player tracks or folders. ®
Long press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.
Access to "Audio settings":musical ambiences, bass,
treble, loudness, distribution,
left/right balance, front/rear fader, automatic volume
adjustment.
Select FM / DAB waveband * .
Pr
ess and hold: reinitialisethe system.
Select the source: CD
, USB, AUX, Apple®player, Bluetooth®
Streaming, Radio.
Abandon the current
operation, go up one level.
Lon
g press: return topermanent display.
On / Off.
MODEbutton: select the
type of permanent display.
Rotation: adjust
volume (each source is independent, including TA messages and navigation instructions).
Select:
- the previous/next line in a list or menu.
- the previous next media
folder.
- step by step previous
/next radio frequency.
- previous
/next MP3 folder.
Move u
p/down, in " Move the map" mode.
Select:
- automaticall
y the previous/next radio frequency.
- the previous
/next CD, MP3 or media track.
Move le
ft/right, in " Move the map
" mode.
Display black screen.
Short press: mute /
restore sound.
*
Depending on model.
Page 263 of 358
03
261
For a detailed
global view of the menus available, refer to the
"Screen menu map" section.
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. "RADIO
"
"TELEPHONE"
(If conversation in progress)
SETUP: PARAMETER
S
date and time, display confi guration, sound.
Changing the audio source:
RADIO: RADIObroadcasts.
MUSIC: playing MUSIC.
Press the MODE
button several times in succession for access to the following displays:
GENERAL OPERATION
"FULL SCREEN MAP"
"MAP IN WINDOW"
(If navigation guidance in progress)
HYBRID FLOW
For more information, refer to the "Hybrid System" section, then "View
hybrid fl ow information".
HYBRID CONSUMPTION
For more information, refer to the
"Hybrid System" section, then"Consumption of your hybrid".
Page 267 of 358
04
265
SELECTING A DESTINATION
NAVIGATION - GUIDANCE
TO ONE OF THE RECENT DESTINATIONS
Press NAV
to display the"Navigation - guidance" menu.
Select the desired destination and confi rm to start guidance. TOWARD
S A CONTACT IN THE CONTACTS DIRECTORY
Select " Select destination" andconfi rm, then select " Directory
" and confi rm.
Selection the desired destination from your contacts and confi rm "OK
" to start
the guidance.
Press NAVto display the"Navigation - guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.
Page 271 of 358
04
269

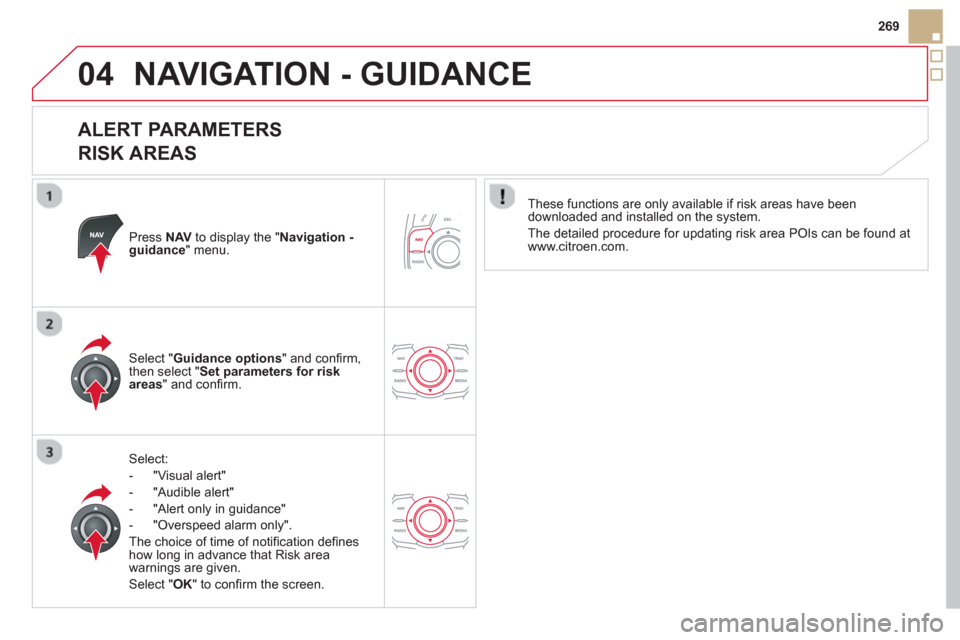

NAVIGATION - GUIDANCE
