169Visibility

006
Child safety

General points relating to child seats
For maximum safety, please obser ve the following recommendations:
- in accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in a
pproved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings * ,-
statistically, the safest seats in your
vehicle for carrying children are the rear seats,-a child weighing less than 9 kg must
travel in the "rearwards-facing" position both in the front and in the rear.
CITROËN recommends that childrenshould travel in the outerrrear seatsof your vehicle:-"rearwards-facing"up to the age of 2, - "forwards-facing"
over the age of 2.
Although one of CITROËN's main criteria when designing your vehicle, the safety of your children
also depends on you.

*

The rules for carrying children are specific to each country. Refer to the legislation in force
in
your country.

173Child safety

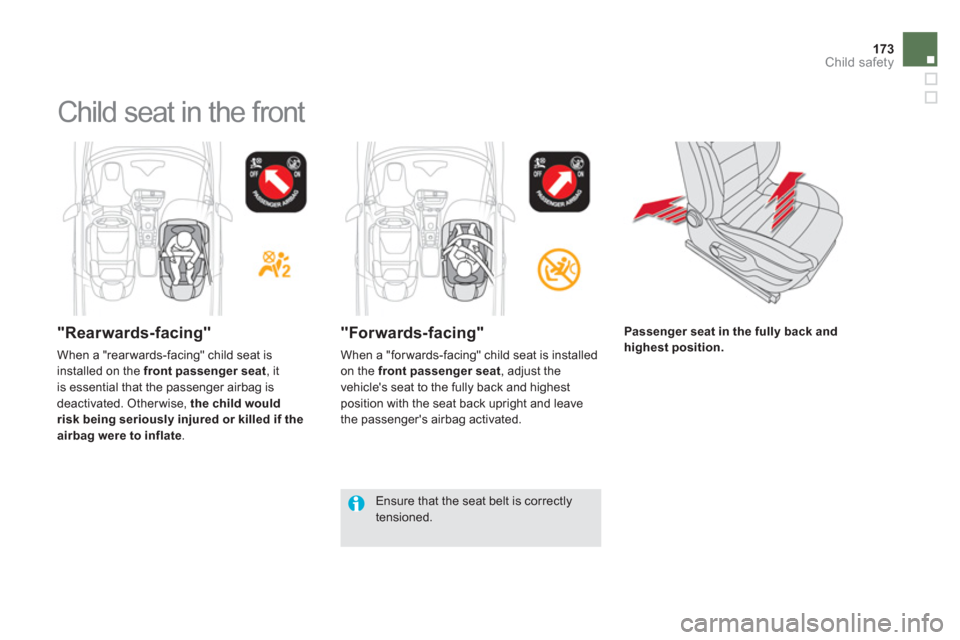

Child seat in the front


"Rearwards-facing"

When a "rear wards-facing" child seat is installed on the front passenger seat
, itis essential that the passenger airbag is
deactivated. Otherwise, the child wouldrisk being seriously injured or killed if the
airbag were to inflate .
"Forwards-facing"
When a "forwards-facing" child seat is installedon the front passenger seat, adjust the
vehicle's seat to the fully back and highest position with the seat back upright and leave
the passenger's airbag activated.
Passenger seat in the fully back and
highest position.
Ensure that the seat belt is correctly tensioned.

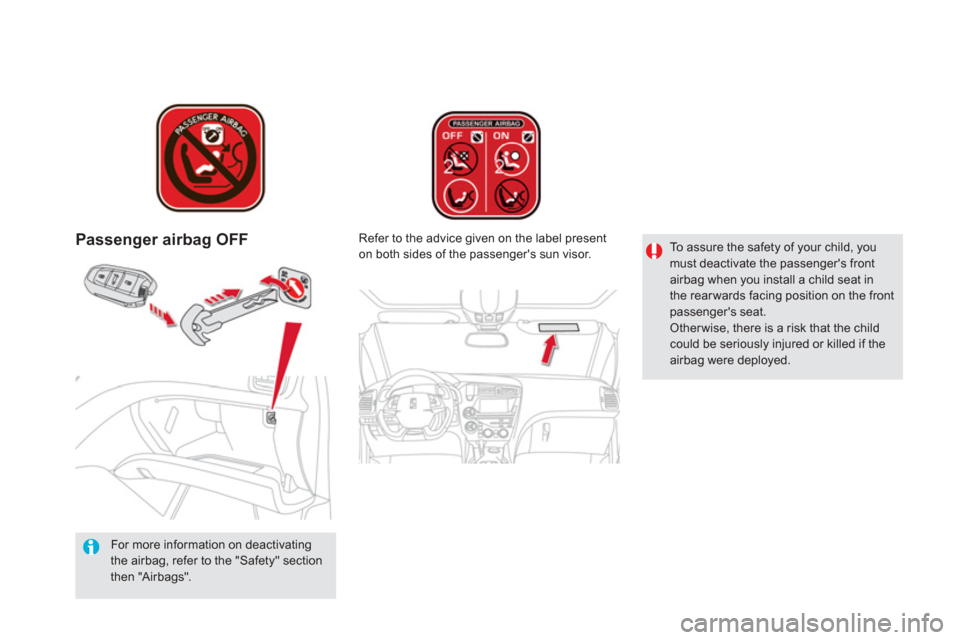

Passenger airbag OFF

For more information on deactivatingthe airbag, refer to the "Safety" section then "Airbags".
Re
fer to the advice given on the label present
on both sides of the passenger's sun visor. To assure the safety of your child, you must deactivate the passenger's front airbag when you install a child seat in the rear wards facing position on the frontpassenger's seat.Otherwise, there is a risk that the child could be seriously injured or killed if the airbag were deployed.

175
Child safety
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg
L1"RÖMER Baby-Safe Plus"
Installed in the rear wards-facing position.
L2"KIDDY Comfor t Pro"
The impact shield must be used for carrying young children(from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4"KLIPPAN Optima"
From the a
ge of 6 years (approximately 22 kg), the booster is used on its own.
L5"RÖMER KIDFIX" Can be fitted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

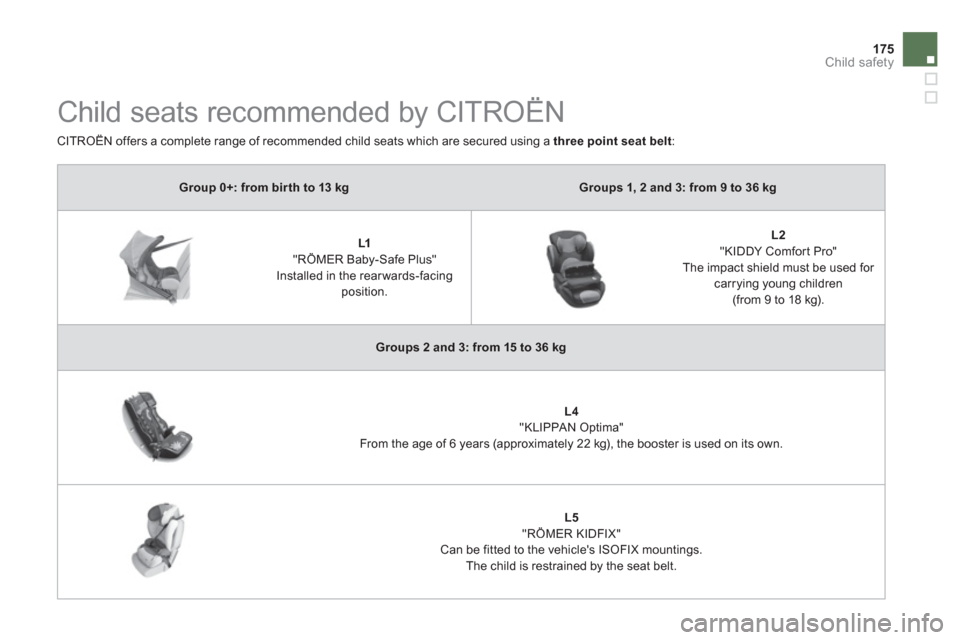

Child seats recommended by CITROËN

CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt
:

Installing child seats attached using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)in accordance with the weight of the child and the seat in the vehicle:
Weight of the child and indicative age
SeatUnder 13 kg
(groups 0(
b ) and 0+)
Up to approx 1 year

From 9 to 18 kg(group 1)1 to 3 years approx
From 15 to 25 kg
(group 2)3 to 6 years approx
From 22 to 36 kg(group 3)
6 to 10 years approx
Front passen
ger seat (
c )with
height adjustment U (R)U (R)U (R)U (R)
Outer rear seats
UUUU
Centre rear seat
XXXX
a:
universal child seat, child seat that can be installed in all vehicles using a seat belt. b:
group 0, from bir th to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat. c:
consult the legislation in force in your country before installing your child on this seat.U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rear wards-facing" and/or "forwards-facing".
U (R):same as U, with the passenger seat adjusted to the highest position and as far back as possible. X:
seat position not suitable for installation of a child seat for the weight class indicated.

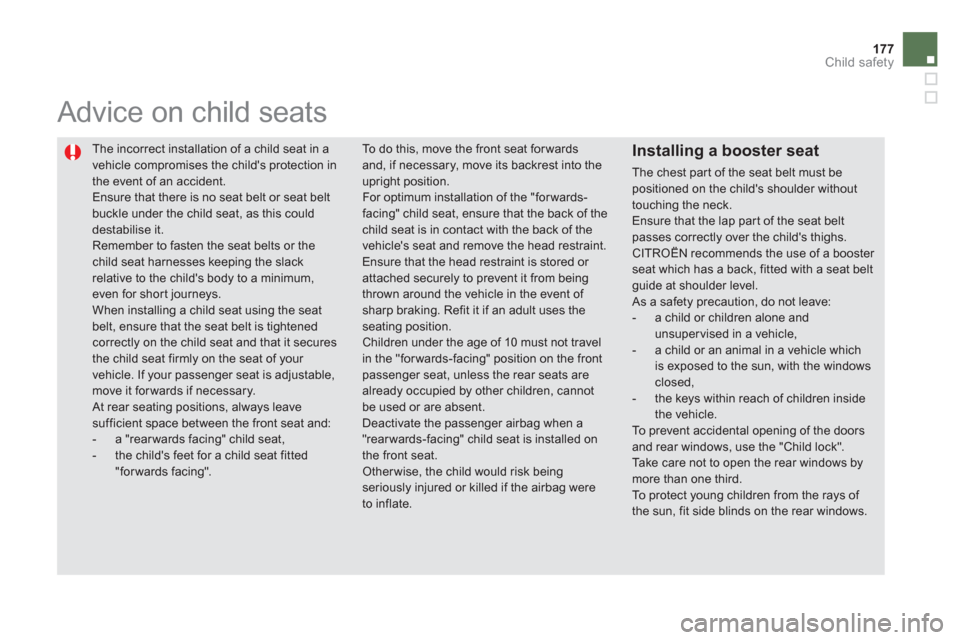

177Child safety
The incorrect installation of a child seat in a
vehicle compromises the child's protection in the event of an accident. Ensure that there is no seat belt or seat beltbuckle under the child seat, as this coulddestabilise it.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for shor t journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary. At rear seating positions, always leavesufficient space between the front seat and:


- a "rear wards facing" child seat,

- the child's feet for a child seat fitted"forwards facing".






Advice on child seats
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.Ensure that the lap part of the seat belt
passes correctly over the child's thighs.CITROËN recommends the use of a booster seat which has a back, fitted with a seat beltguide at shoulder level.
As a safety precaution, do not leave: - a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

To do this, move the front seat for wards
and, if necessary, move its backrest into the upright position.
For optimum installation of the "forwards-facing" child seat, ensure that the back of thechild seat is in contact with the back of the vehicle's seat and remove the head restraint.
Ensure that the head restraint is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking. Refit it if an adult uses the seating position. Children under the age of 10 must not travel in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.

Your vehicle has been approved in accordance
with the latest ISOFIX regulations .
The seats, represented below, are fitted with
regulation ISOFIX mountings.














"ISOFIX" mountings


There are three rings for each seat.


- Two rings A
, located between the vehicleseat back and cushion, indicated by a label.
This IS
OFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seatsare fitted with two latches which are easily secured on the two
rings A.
Some also have an upper strapwhich isattached to ring B.

The incorrect installation of a child seat in a vehicle compromises the child'sprotection in the event of an accident.
For in
formation regarding the ISOFIX childseats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.



- A rin
g B, behind the seat, referred to as the TOP TETHER
for fixing the upper strap.
To attach this strap, raise the vehicle seat's head restraint then pass the hook between its
rods. Then fix the hook on ring Band tighten
the upper strap.
