Page 242 of 364
The various caps and covers allow access for
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.

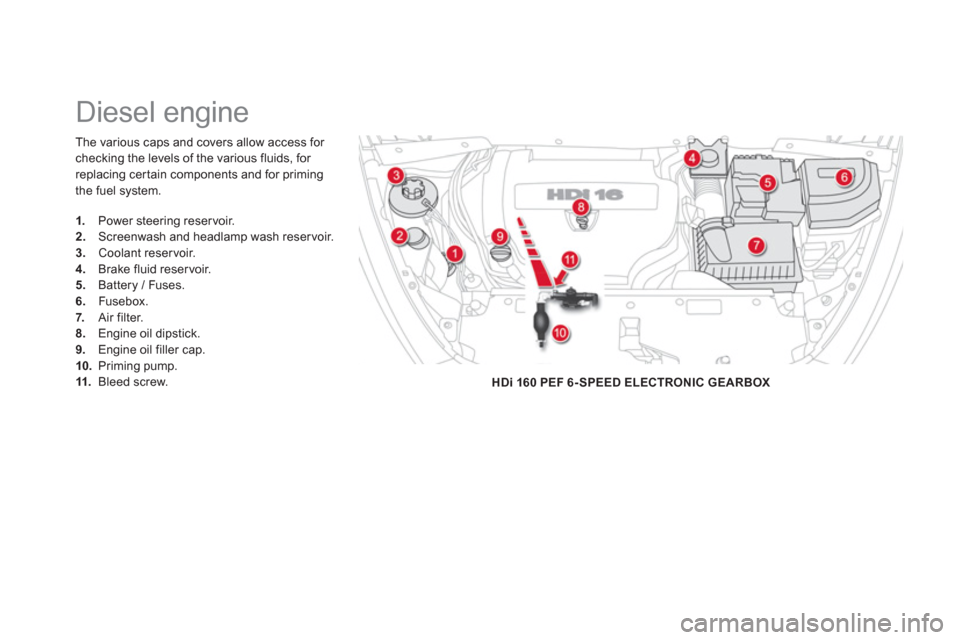

Diesel engine
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump. 11.
Bleed screw.
HDi 160 PEF 6-SPEED ELECTRONIC GEARBOX
Page 245 of 364
243Checks
Before doing anything under the bonnet,switch off the ignition (Ready
lamp off) to avoid any risk of injury resulting fromautomatic operation of the engine. Th
e brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fl uid
Refer to the servicing and warranty booklet for
details of the interval for this operation.
Fluid specifi cation
The brake fluid must conform to themanufacturer's recommendations and meet the
DOT3 or DOT4 standard.
The power steerin
g fluid level should be close to the "MA X" mark. With
the engine cold, unscrew the cap to check the level.
Power steering fluid levelCoolant level
The coolant level should be closeto the "MAX" mark but should never exceed it.
When the en
gine is warm, the temperature of
the coolant is regulated by the fan. This can
operate with the ignition off.
On vehicles which are fitted with a particle
emission filter, the fan may operate after
the vehicle has been switched off, even if
the en
gine is cold.
In addition, as the cooling system ispressurised, wait at least one hour after
switching off the engine before carryingout any work. To avoid any risk of scalding, unscrewthe cap by two turns to allow the pressure to drop. When the pressure has dropped, remove the cap and top upthe level.
Changing the coolant
The coolant does not have to be changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.
Page 359 of 364
357
Visual search
Maintenance - Technical data
Dimensions ......................................... 253
Identifi cation markings ........................ 254
High voltage cables ......................... 52-53
Running out of fuel, Diesel ......... 240, 241
12 V battery ................................. 225-227
Load reduction, economy mode ......... 228
Engine compartment fuses ......... 222, 224
Opening the bonnet ............................ 239
Diesel weights .................................... 252
Checking levels ........................... 242-245
- oil - brake fluid - power steering fluid - coolant- screenwash/headlamp wash fluid
Checking components ................. 245-247
- 12 V battery - air filter - passenger compartment filter - oil filter - particle emissions filter - brake pads / discs - electric parking brake
Under the bonnet, Diesel .................... 240
Diesel engine ...................................... 251
Electric motor...................................... 250
Changing bulbs............................ 214-221
- front
- rear
