9Familiarisation





For economical driving, caring for the environment


The fuel consumptionof a vehicle varies greatly:


- according to the driver's style of driving
(moderate, aggressive, fast, ...),

- accordin
g to the type of journeys
made (urban, main road, motor way, flowing, heavy traffic, …) and the speed.


Main recommendations for driving economically

Hybrid mode selector

To optimise fuel consumption, use the Automodeof the selector whenever possible (the mode is activated
automatically when starting) including for urban journeys.
This mode optimises the use of the energy sources (internal combustion engine and/or electric) contrary to other modes, which are for use in par ticular cases.


Gear lever
Use the automatic
mode A
as much as possible as this optimises gear changes to suit the requirements.


Causes of high consumption and checks
As with any vehicle, limit overloading, wind resistance (windows open above 30 mph (50 km/h), roof bars, loaded or not, …), the use of power consumers (air conditioning, heated seats, heated rear screen, …).
Obser ve the recommendations on checks (regular check of tyre pressures, correct tyre pressures, …) and routine servicing.



Drive smoothly
Stay in the "eco" zone
displayed in the energy consumption / generation indicator: accelerate gently, drive at steadyspeeds using the speed limiter or cruise control as soon as possible.Use the "charge" zone: anticipate the need to slow down by taking your foot off the accelerator rather than braking.
The movement of the energy consumption / generation indicator needle (into the "charge" zone), shows the level of energy recovery.

Consumption history
See the impact of your style of driving and the type of journey by reviewing the history of your energy consumption.Refer to the "Multifunction screens" section.

Electronic key: Keyless Entryand Starting
This system allows you to unlock, lock and star t your vehicle while keeping the key on your person and in the defined zone around the vehicle.
81

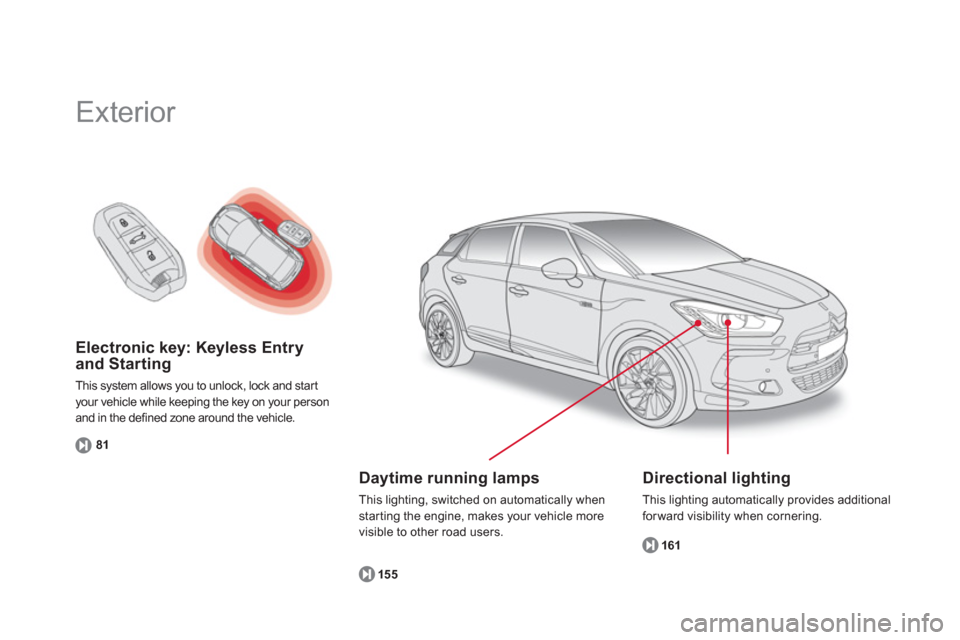

Exterior

Directional lighting
This lighting automatically provides additional forward visibility when cornering.
16
1
Daytime running lamps
This lighting, switched on automatically when
starting the engine, makes your vehicle more
vi
sible to other road users.
155

Familiarisation

Automatic headlamp dipping

This system automatically changes between
dipped and main beam, depending on the
driving conditions, using a camera located in
the interior rear view mirror.
157

Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind thevehicle during parking manoeuvres.
147

Temporary puncture repair kit

This kit is a complete system consisting of a compressor and a sealant car tridge, to allow
the temporary repair of a tyre.
20
0
Exterior
Reversing camera

This system, available only with satellite
navigation, is activated automatically onengaging reverse gear and provides an imagein the colour screen.
14 9

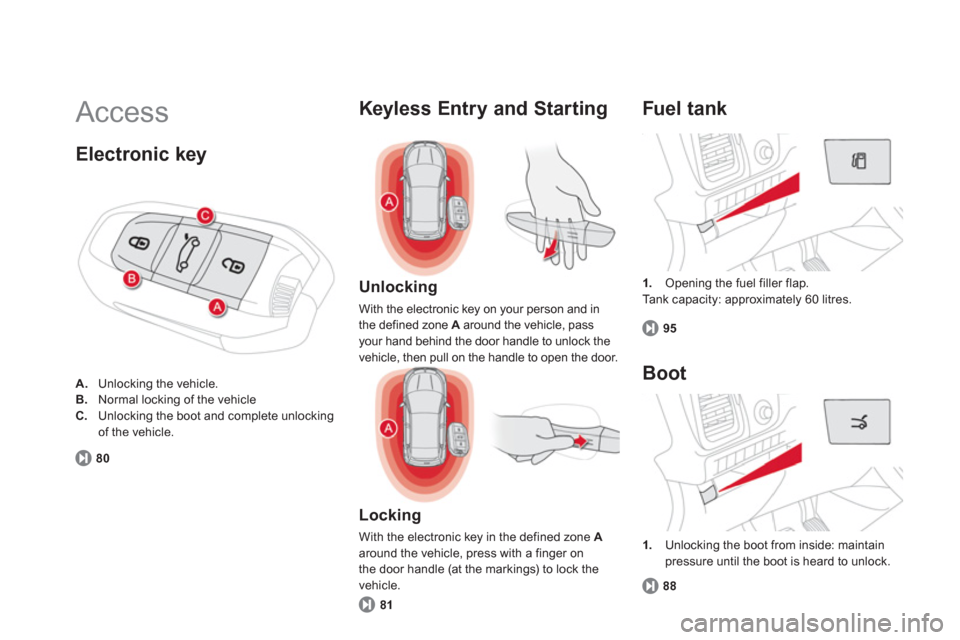

Access
1.
Opening the fuel filler flap.
Ta n k c a p a c i ty: approximately 60 litres.


Fuel t ank
95

Unlocking

With the electronic key on your person and in
the defined zone A around the vehicle, passAyour hand behind the door handle to unlock the
vehicle, then pull on the handle to open the door.

Locking

With the electronic key in the defined zone Aaround the vehicle, press with a finger on
the door handle (at the markings) to lock the
v
ehicle.
Electronic key
80
A.
Unlocking the vehicle.B.Normal locking of the vehicle C.Unlocking the boot and complete unlocking of the vehicle.


Keyless Entry and Starting
81


Boot
1.
Unlocking the boot from inside: maintain pressure until the boot is heard to unlock.
88

13Familiarisation
Interior


Head-up display

This system projects speed and cruise control/speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not need to take their eyes off the road.

Central storage containing
various systems
It is illuminated, cooled and provides storage
and locations for s
ystems and loose items (USB Player, location for a bottle, ...).
Audio and communication
systems
These systems benefit from the latest
technology: MP3 compatible audio systems, USB player, Bluetooth hands-free system, satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ... eMyWay
140
112
315
261
Audio system

Massage function

This system provides a lumbar massage for aperiod of about 60 minutes. The massage is
done in 6 cycles of 10 minutes.
10
4
Electric parking brake
It combines the functions of automatic application on switching off the engine and automatic release when moving off. Manual application and release remains possible.
126

Illumination of the indicator lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.

Opening the boot.
95
89
Deactivation of the alarm.
88


Electric parking brake activated.
126


Push button star ting/stopping.
31, 3
5

Forced operation of the Diesel engine.
46


Deactivation of parking sensors.
148

Electric child lock.
181


Deactivation of the DSC/ASR system.
189


Activation for Automatic headlampdipping.
15713
9
Activation of lane depar ture warningsystem.
87
Lockin
g/unlocking the passenger compartment.

15
Familiarisation

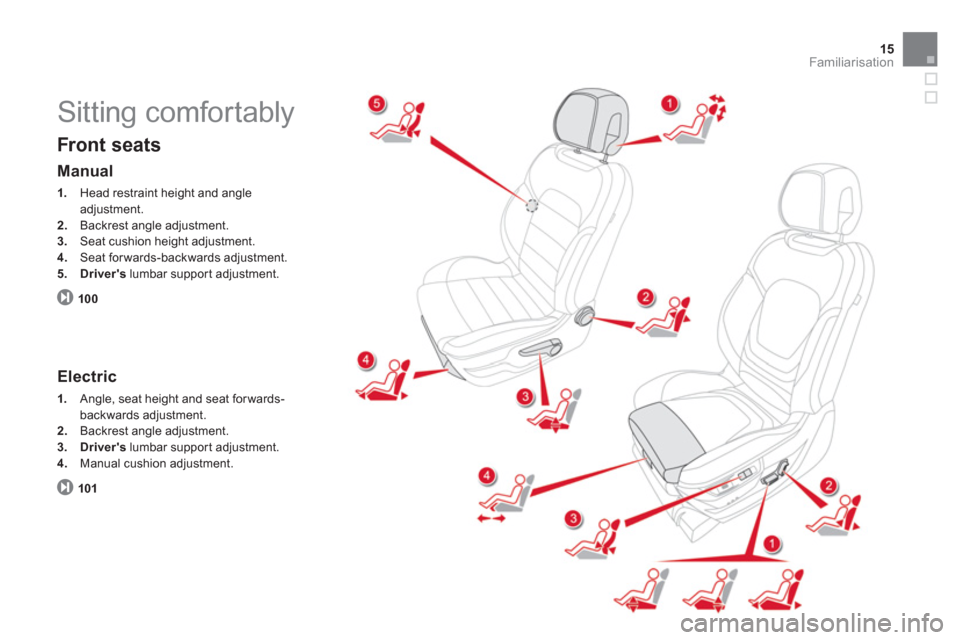

Sitting comfortably


Front seats
100


Manual
1.
Head restraint height and angleadjustment. 2.Backrest angle adjustment.3.Seat cushion height adjustment. 4.
Seat forwards-backwards adjustment.
5.Driver'slumbar suppor t adjustment.


Electric
1.
Angle, seat height and seat for wards-
backwards adjustment. 2.Backrest angle adjustment.3.Driver'slumbar suppor t adjustment.4.
Manual cushion adjustment.
10
1

14 . Controls for electric windows / electric child lock / central locking.
15. eMyWay controls.
16.Gear selector.
17. Hybrid4 mode selector.
18
. Heating / air conditioning controls.
19.Audio system.
20.Hazard warning lamps. 21. Multifunction screen.22.Central adjustable air vents.
23.Clock.
24.Starting with the STA R T/STOP button.
25. Electronic key reader.
26. Wiper / screenwash / trip computer stalk.






Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box / Passenger's airbag deactivation inside. 10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t / auxiliary socket. 13.Electric parking brake.
27. Audio equipment steering mountedcontrols. 28.
Driver's airbag.
Horn. 29. Cruise control / speed limiter controls.
30.
Switch panel (see previous page).31.Door mirror adjustment.32.
Lighting and direction indicator stalk33.
Instrument panel. 34.Seat belt and airbag warning lamps. 35.Cour tesy lamp. 36.Head-up display controls. 37.
Controls for cockpit glass roof blind. 38.CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

17Familiarisation

Sitting comfortably
Head restraint adjustment
103
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.


Steering wheel adjustment
109

For reasons of safety, these operationsmust only be carried out with the vehicle stationary. To lower it, simultaneousl
y press button A andpush down on the head restraint.
To raise it, guide the head restraint upwards to
the desired position. To incline it, swivel the lower part backwards or forwards.
