19Familiarisation
Sitting comfortably


Door mirrors

Adjustment
1.
Selection of the left or right mirror.2.Adjusting the position of the mirror glass. 3.Deselection of the mirror.
4.
Folding the mirror.
10
8
Rear view mirror
109
1.Automatic detection of day/night mode.
2. Rear view mirror adjustment.


Front seat belts
190
1.
Fastening.2.Adjusting for height.

Seeing clearly
Ring A
Ring B


Wipers
15 3


Control stalk A: windscreen
wipers
2. Fast wipe.1.Normal wipe. Int.Intermittent wipe.
0
. Park.
AUTOAutomatic wiping.
È Single wipe: Brief pull on the stalk towards.
Screenwash: Long pull on stalk towards you.
163


Switching on "AUTO" mode
)Briefly push the stalk downwards.


Switching off "AUTO" mode
)Briefly push the stalk downwards or place
the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
165
16
4
Lighting off.
Automatic illumination o
f headlamps.

Sidelamps.
Dipped
/ main beam headlamps.
Front and rear
foglamps.
Park.
Intermittent wipe.
Screenwash.

21Familiarisation
Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0.
A.With the ignition on, the bars indicate the
fuel remaining.

Instrument panel
1.
With the ignition on, the orange and redwarning lamps come on. 2.With the hybrid system active, these
warning lamps should go off.
If a warning lamp remains on, refer to thecorresponding section.


Warning lamps
59
B.
With the ignition on, the instrument panelscreen should indicate the oil level.
If the levels are not correct, top up the level which is low.
58

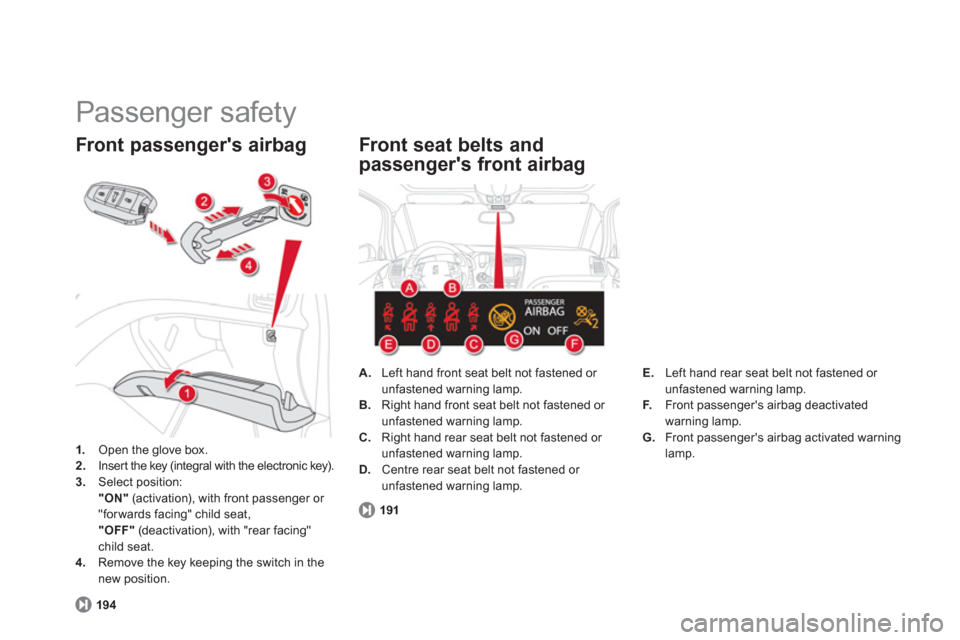

Passenger safety
1.
Open the glove box.2.
Inser t the key (integral with the electronic key).3.Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.4.
Remove the key keeping the switch in the new position.
Front passenger's airbag
194


Front seat belts and
passenger's front airbag
A.
Left hand front seat belt not fastened or unfastened warning lamp.B.
Right hand front seat belt not fastened or unfastened warning lamp.C.
Right hand rear seat belt not fastened or unfastened warning lamp.D.Centre rear seat belt not fastened or unfastened warning lamp.
191
E.
Left hand rear seat belt not fastened or
unfastened warning lamp. F.Front passenger's airbag deactivatedwarning lamp.G. Front passenger's airbag activated warninglamp.

23Familiarisation

Starting - stopping the engine

Driving safely


Before starting
31
Starting




- The instrument panel and the Ready
lampcome on, confirmed by an audible signal.

- The dial in the centre console is in AUTO
mode.


- Place the
gear selector in position N.

- Inser t the electronic key in the reader or keep the electronic key inside the vehicle.- Press the brake pedal.
- Make single shor t press (about 1 second) on the START/STOP
button.



Moving off




- While maintaining pressure on the brakepedal, move the gear selector to position Ato go forwards or Rfor reverse.

- Ta k e your foot off the brake pedal, you can
then move off.

If this warning lamp comes on in
the instrument panel, automatic application / release is
deactivated. The parking brake must
be applied and released manually. y


Before leaving the vehicle, check that
the the brake warning lamp and the Pwarning lamp in the control lever Aare on fixed (not flashing).
126


If towing a trailer or caravan or if theslope might vary (transpor t by boat or lorry, recovery of the vehicle...) make a maximum application of the parking brake - by making a long pull on the
control lever A
- to immobilise thevehicle.

Driving safely
Electric parking brake
Manual Application/Release
Manual applicationof the parking brake is possible by pulling
the control lever A.With the ignition on, manual release
of the parking brake is possible by pressing the brake pedal
and pulling
then releasing
the control lever A
.


If an audible signal is heard on opening the driver's door with the hybrid system active, apply the parking brake
manually. Do not leave a child alone in the vehiclewith the ignition on; they might releasethe parking brake.


Automatic Application / Release

Press the accelerator pedal, the parking brake
is released automatically and progressively as you move off.
With the vehicle stationary, the parking brake
is applied automatically on switching off the
ignition (Readylamp off).

25
Familiarisation
Driving safely


Speed limiter "LIMIT"
1.
Selecting speed limiter mode.2.Decrease the programmed value.3.Increase the programmed value.4.
Pause/resume speed limiter.
5. Display of the memorised speeds (by theaudio system memory).
These values must be set with the hybrid system active.
14 3
145
Cruise control "CRUISE"
1.Selecting cruise control mode.
2. Programming a speed / Decrease the
programmed value.3. Programming a speed / Increase the
programmed value.4. Pause/resume cruise control.
5. Display of the memorised speeds (by the
audio system memory). In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 2 nd gear engaged.


Display in the instrument panel
Cruise control
Speed limiter The cruise control or s
peed limiter mode
appears in the instrument panel when selected.

Hybrid system


Hybrid system

Presentation
The Hybrid4 technology allows two sources of energy to be associated in an effective manner:
the Diesel HDi engine, which drives the front
wheels and the electric motor, which drives the
rear wheels.
These two motors can operate alternately or simultaneously, according to the hybrid modeselected and the driving conditions.
The electric motor alone provides power for
the vehicle in "ZEV" (Zero Emissions Vehicle) mode, and in "Auto" mode for running at slowspeed and low load. It also assists the Dieselengine when moving off, accelerating and changing gear.
The battery that powers the electric motor is recharged during phases of deceleration andstores the energy for subsequent use.
1
.Diesel HDi engine (front wheel drive).
2. Electric motor (rear wheel drive).3.
200 V battery.
4.Electronic power supervisor.
5.Stop & Star t system. 6
.6 -speed electronic gearbox.
7. Electrical flow. 8.Hybrid4 mode selector.
