Page 155 of 364
153Visibility

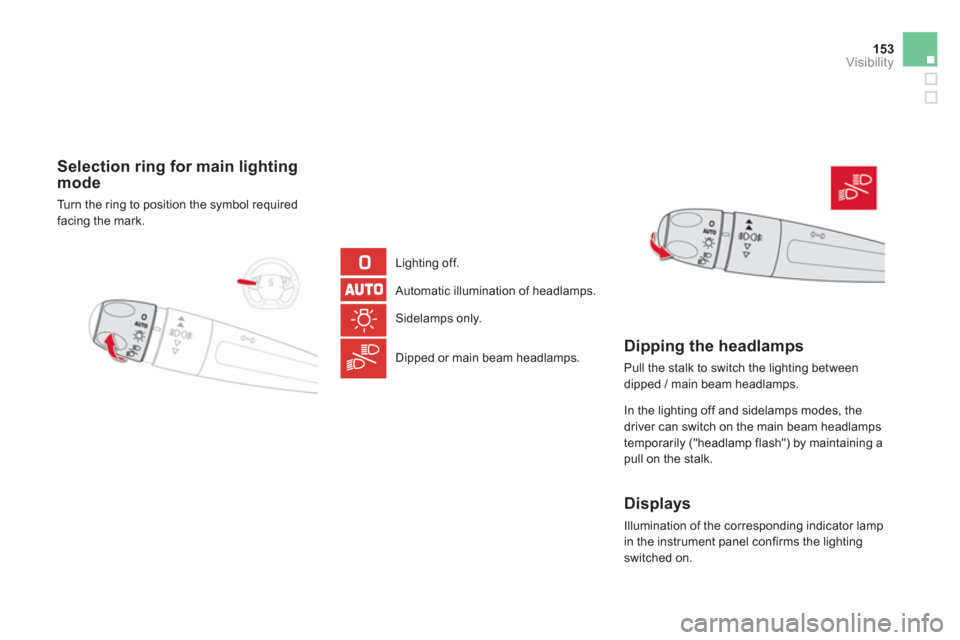

Selection ring for main lighting mode
Turn the ring to position the symbol required
facing the mark.
Lighting o
ff.
Automatic illumination of headlamps.
Sidelamps onl
y.
Dipped or main beam headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between
dipped / main beam headlamps.
In the li
ghting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
Displays
Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting switched on.
