headlamp Citroen DS5 HYBRID4 2013 1.G Owner's Guide

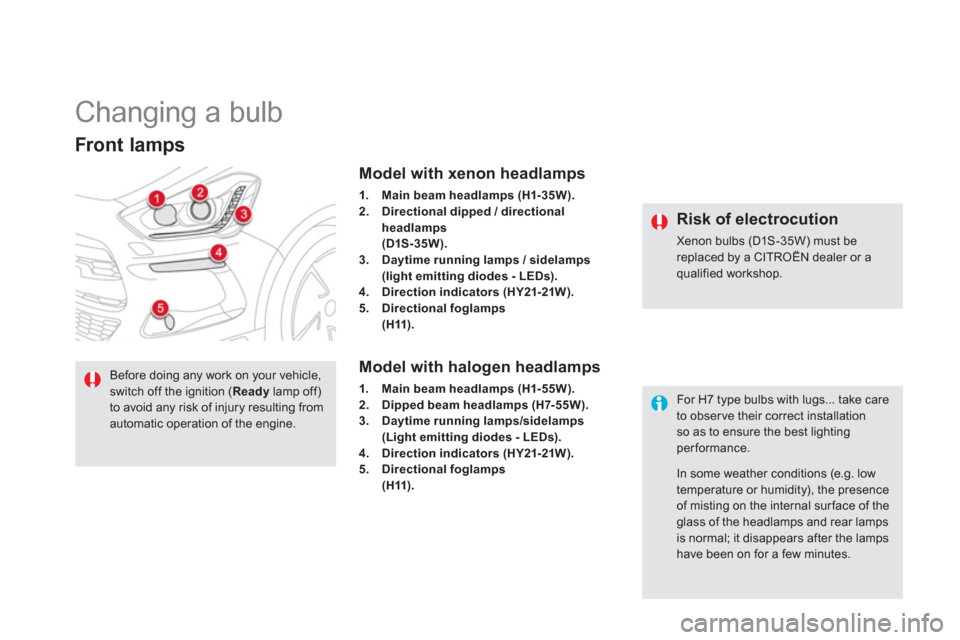

Changing a bulb
Front lamps
Model with xenon headlamps
1.Main beam headlamps (H1- 35W).2.Directional dipped / directionalheadlamps(D1S-35W).3.Daytime running lamps / sidelamps(light emitting diodes - LEDs).4.Direction indicators (HY21-21W).5.Directional foglamps (H11).
Model with halogen headlamps
1.Main beam headlamps (H1- 55W).2.
Dipped beam headlamps (H7-55W).3.Daytime running lamps/sidelamps
(Light emitting diodes - LEDs).4.Direction indicators (HY21-21W).5.Directional foglamps(H11).
For H7 type bulbs with lugs... take careto observe their correct installationso as to ensure the best lighting performance.

In some weather conditions (e.g. low
temperature or humidity), the presence of misting on the internal surface of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.



Risk of electrocution

Xenon bulbs (D1S-35W) must be replaced by a CITROËN dealer or aqualified workshop.



Before doing any work on your vehicle, switch off the ignition (Readylamp off) to avoid any risk of injury resulting from automatic operation of the engine.

215
Practical information

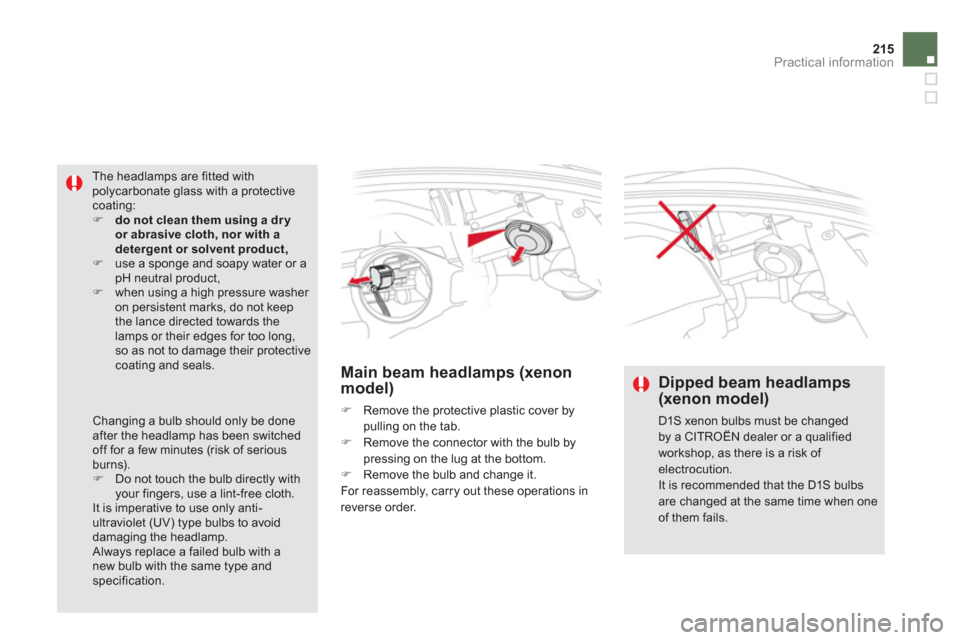

Main beam headlamps (xenonmodel)
) Remove the protective plastic cover by
pulling on the tab. ) Remove the connector with the bulb bypressing on the lug at the bottom.)
Remove the bulb and change it.For reassembly, carry out these operations in reverse order.


The headlamps are fitted with polycarbonate glass with a protectivecoating:)do not clean them using a dry or abrasive cloth, nor with a detergent or solvent product,)
use a sponge and soapy water or apH neutral product,)
when using a high pressure washer on persistent marks, do not keep the lance directed towards thelamps or their edges for too long, so as not to damage their protectivecoating and seals.
Dipped beam headlamps (xenon model)

D1S xenon bulbs must be changedby a CITROËN dealer or a qualifiedworkshop, as there is a risk of electrocution.
It is recommended that the D1S bulbsare changed at the same time when oneof them fails.
Changing a bulb should only be doneafter the headlamp has been switched off for a few minutes (risk of serious burns). )Do not touch the bulb directly withyour fingers, use a lint-free cloth. It is imperative to use only anti-ultraviolet (UV) type bulbs to avoid damaging the headlamp. Always replace a failed bulb with a new bulb with the same type andspecification.

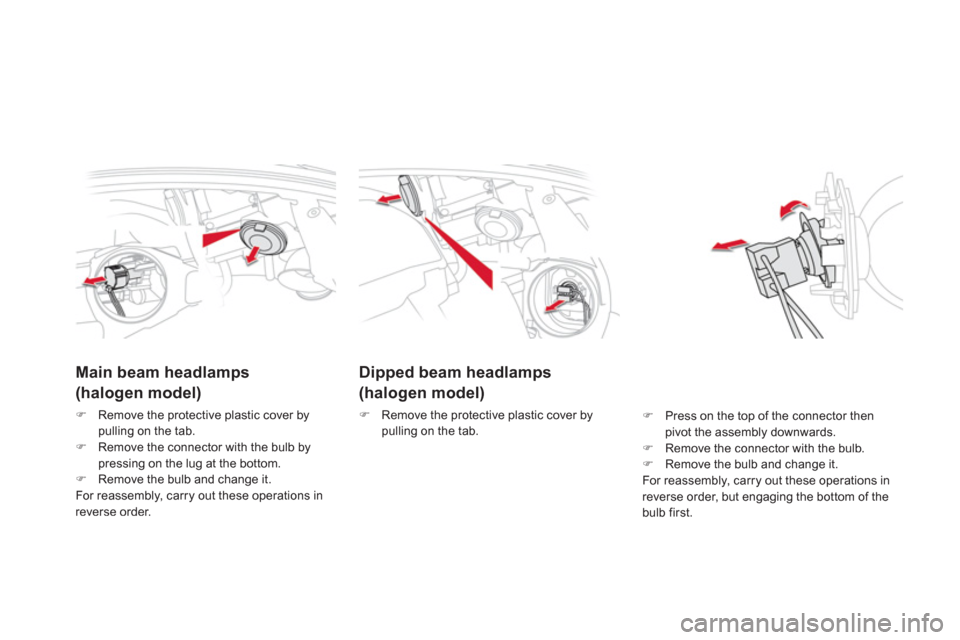

Dipped beam headlamps
(halogen model)
)
Remove the protective plastic cover by
pulling on the tab.
Main beam headlamps
(halogen model)
)Remove the protective plastic cover bypulling on the tab. )Remove the connector with the bulb by pressing on the lug at the bottom.)Remove the bulb and change it.For reassembly, carry out these operations in reverse order.

)Press on the top of the connector then pivot the assembly downwards.)Remove the connector with the bulb. )Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of thebulb first.

Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph). )When you have finished, close the cover carefully to ensure correct sealing of the
f
usebox.




Fuse N°

Rating (A)Functions
F20
15 Front / rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

System which manages the duration of use of cer tain functions to conser ve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, cour tesy lamps, etc. for a maximumcombined duration of about for ty minutes.

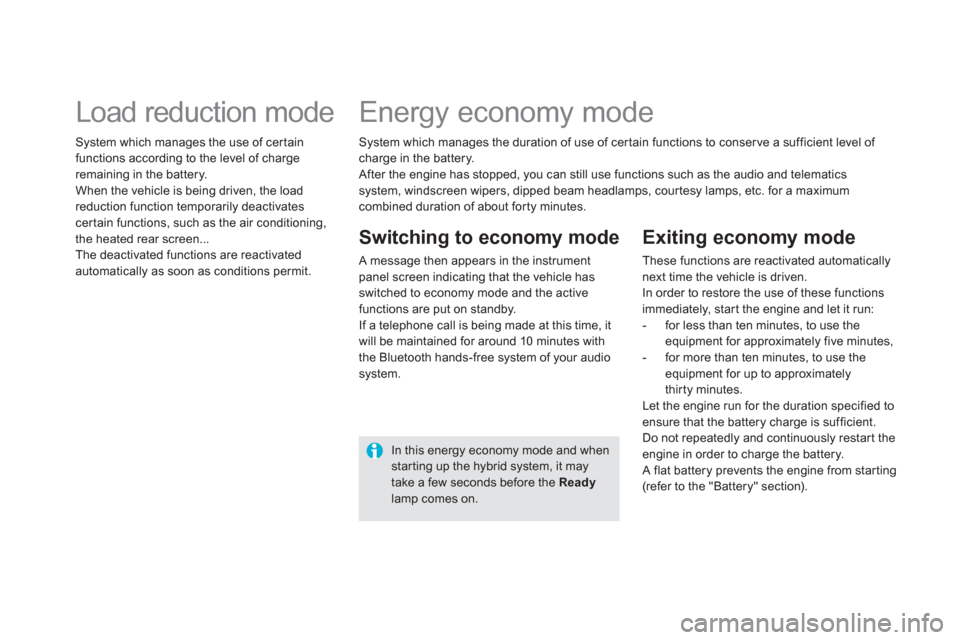

Energy economy mode


Switching to economy mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to econom
y mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 1
0 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automaticallynext time the vehicle is driven.
In order to restore the use of these functionsimmediately, star t the engine and let it run:


- for less than ten minutes, to use the
equipment for approximately five minutes,

- for more than ten minutes, to use theequipment for up to approximatelythirty minutes.
Let the engine run for the duration specified toensure that the battery charge is sufficient.
Do not repeatedly and continuously restar t theengine in order to charge the battery.
A flat battery prevents the engine from star ting (refer to the "Battery" section).
In this energy economy mode and whenstarting up the hybrid system, it maytake a few seconds before the Readylamp comes on.









Load reduction mode
System which manages the use of certainfunctions according to the level of chargeremaining in the battery.
When the vehicle is being driven, the loadreduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated automatically as soon as conditions permit.

The various caps and covers allow access for
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.














Diesel engine
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump. 11.
Bleed screw.
HDi 160 PEF 6-SPEED ELECTRONIC GEARBOX

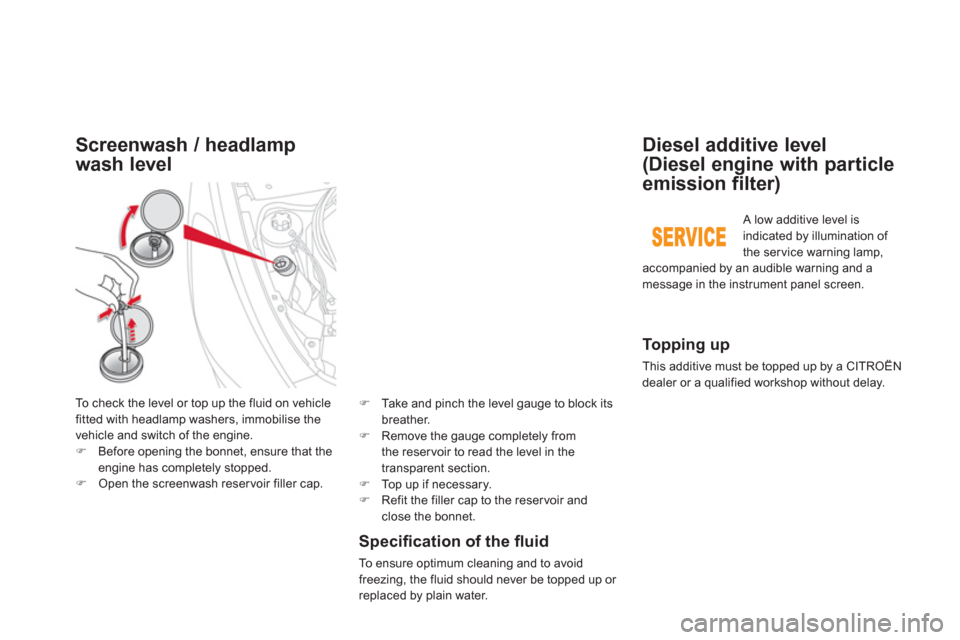

Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle
fitted with headlamp washers, immobilise the
vehicle and switch of the en
gine. )Before opening the bonnet, ensure that the
engine has completely stopped. )Open the screenwash reser voir filler cap.

To p p i ng up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is
indicated by illumination of
the ser vice warning lamp,
accompanied by an audible warning and amessage in the instrument panel screen.

Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or
replaced by plain water.

)
Take and pinch the level gauge to block itsbreather.)
Remove the gauge completely from
the reservoir to read the level in thetransparent section.) To p u p i f n e c e s s a ry. )
Refit the filler cap to the reser voir and close the bonnet.

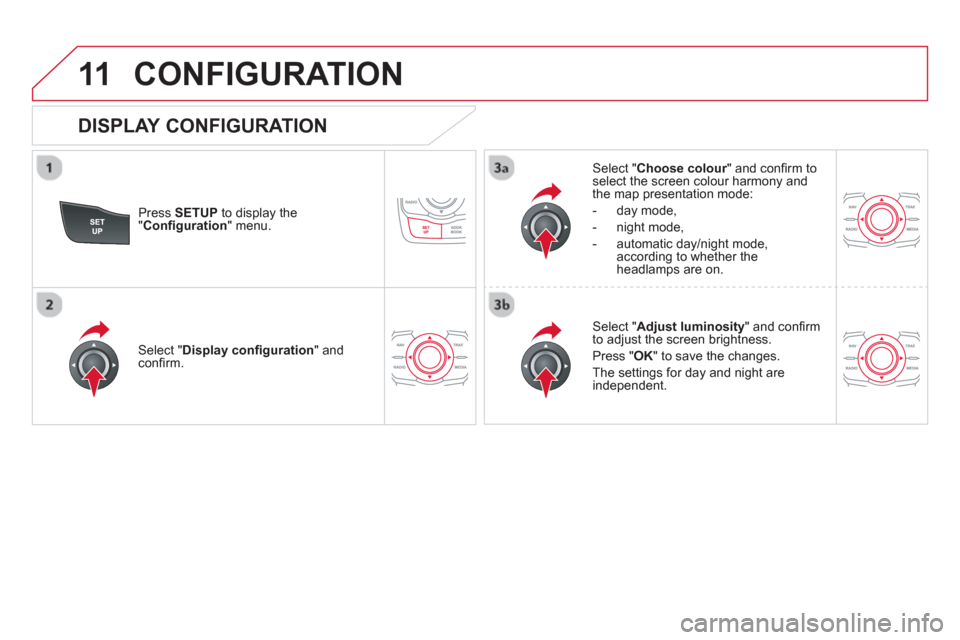

11CONFIGURATION

DISPLAY CONFIGURATION
Press SETUP
to display the"Confi guration
" menu.
Select " Choose colour" and confi rm torselect the screen colour harmony and
the map presentation mode:
-
day mode,
- n
ight mode,
- automatic day
/night mode,according to whether the
headlamps are on.
Select " Adjust luminosity" and confi rm
to adjust the screen brightness.
Pr
ess " OK" to save the changes.
The settings
for day and night are independent.

Select " Display confi guration" and confi rm.

11
305
Pr
ess SETUP
to display the"Confi guration " menu.

Adjust the settings one by one.
Th
en select "OK" on the screen and confi rm to save the settings.

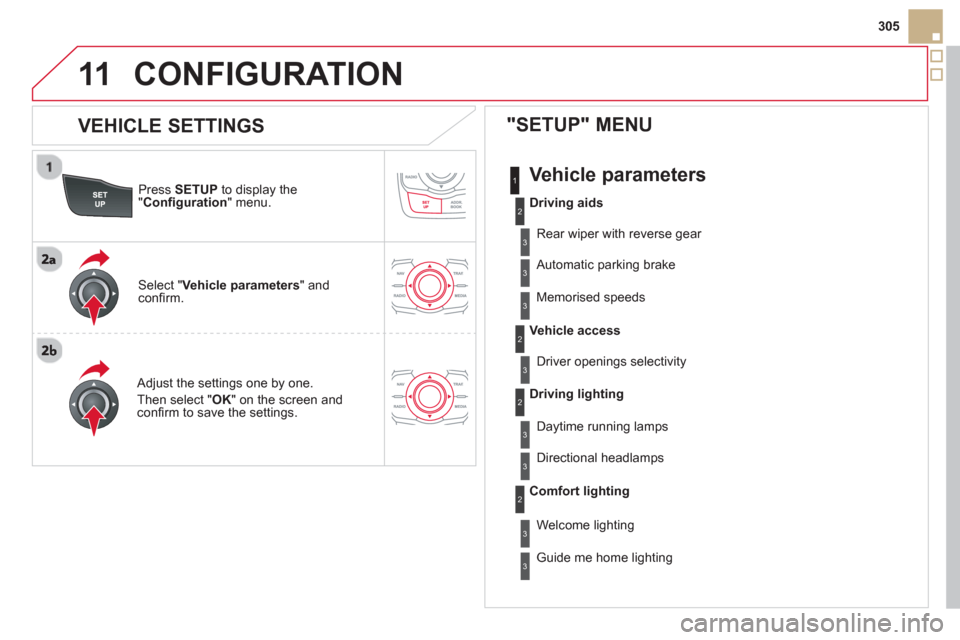

Select " Vehicle parameters
" and confi rm.
















VEHICLE SETTINGS
CONFIGURATION


"SETUP" MENU
Vehicle parameters
Driving aids
Rear wiper with reverse
gear
Automatic parkin
g brake
1
2

Memorised speeds
3
3
3
Vehicle access2
Driver openings selectivity3
Driving lighting2
Daytime running lamps 3

Directional headlamps3
Comfort lighting2
Welcome lighting 3
Guide me home lighting3

07
339
SCREEN MENU MAP






PERSONALISATION-
CONFIGURATION
Define the vehicle parameters
Access to the vehicle

Plip action
Drivin
g position setting

Unlocking boot only
Driving assistance
Rear wipe in reverse gear
Parkin
g brake automatic

Speeds memorised
Vehicle lighting
Daytime lights
Directional headlampsInterior li
ghting
Welcome lighting
Follow-me-home headlamps

Choice of language Display configuration
Choice of units
Date and time adjustment
Display parameters
Brightness


Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1
