service indicator Citroen DS5 HYBRID4 2014 1.G Owner's Manual

DS5-HYBRID_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Instrument panel
1. Energy consumption / generation indicator (available power as a percentage). For more information refer to the "Hybrid system" section. 2. Fuel gauge. 3. Engine coolant temperature gauge. 4. Speedometer (mph or km/h). 5. Cruise control or speed limiter settings.
A. Main lighting and controls dimmer. B. - Successive short presses: under-inflation detection, recall servicing information, alert log. - Long press: reset the function selected to zero (service indicator or trip recorder).
6. Gear engaged. 7. Instrument panel screen: electrical flow, trip recorder, alert messages or state of functions (e.g.: oil pressure, battery, door open, ...), trip computer, media, satellite navigation. 8. Digital speedometer (mph or km/h). 9. Ready lamp: indicates that the vehicle is ready to drive.
Dials and screens Control buttons

65Monitoring
DS5-HYBRID_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Service on temporarily. A minor fault has occurred for which there is no specific warning lamp. Identify the fault by reading the message shown in the screen, such as, for example: - opening of the doors, boot or bonnet, - engine oil low level, - screenwash low level, - flat remote control battery, - saturation of the particle emission filter (Diesel) As soon as the traffic conditions permit, regenerate the filter by driving at a speed of at least 40 mph (60 km/h) until the service warning lamp goes off. - a fault with the tyre under-inflation detection system, - ... For any other faults, contact a CITROËN dealer or a qualified workshop.
fixed. A major fault has occurred for which there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a CITROËN dealer or a qualified workshop.
fixed, associated with the flashing and then fixed display of the service indicator spanner.
The servicing interval has been exceeded. Only on Blue HDi Diesel versions. Your vehicle must be serviced as soon as possible.
Warning / indicator lampStateCauseAction / Observations

DS5-HYBRID_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Low fuel level fixed with the two last bars flashing, accompanied by a message and an audible signal.
When it first comes on there remains approximately 6 litres of approximately 6 litres of approximately 6 litres offuel in the tank.
You must refuel as soon as possible to avoid running out of fuel. This warning lamp will come on every time the ignition is switched on, accompanied by a message and an audible signal, until a sufficient addition of fuel is
made. This audible signal and message are repeated with increasing frequency as the fuel level drops and approaches "0". Fuel tank capacity: approximately 60 litres. Never continue to drive until you run out of fuel as this could damage the emission control and injection systems.
Warning / indicator lampStateCauseAction / Observations
Under-inflation fixed. The pressure in one or more wheels is too low. Check the pressure of the tyres as soon as possible. This check should preferably be carried out when the tyres are cold.
+ flashing then fixed, accompanied by the Service warning lamp.
The tyre pressure monitoring system has a fault or no sensor is detected on one of the wheels.
Under-inflation detection is not assured. Have the system checked by a CITROËN dealer or a qualified workshop.

71Monitoring
DS5-HYBRID_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Service indicator
More than 1 800 miles (3 000 km) remain before the next service is due
When the ignition is switched on, no service information appears in the screen.
System which informs the driver when the next service is due, in accordance with the manufacturer's servicing schedule. The point at which the service is due is calculated from the last indicator zero reset. It is determined by two parameters: - the distance travelled, - the time elapsed since the last service. Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the spanner symbolising the service operations comes on. The distance recorder display line indicates the distance remaining before the next service is due. Example: 1 700 miles (2 800 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the spanner goes off ; the distance recorder the spanner goes off ; the distance recorder the spanner goes offresumes its normal operation. The screen then indicates the total and trip distances.
Less than 600 miles (1 000 km) remain before the next service is due
Example: 560 miles (900 km) remain before the next service is due. For 5 seconds after the ignition is switched on, the screen indicates:
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on to indicate that a service must be carried out soon.
Illumination of the key is accompanied by a message in the instrument panel screen.

DS5-HYBRID_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Service overdue
Every time the ignition is switched on, an overdue service is immediately signaled by flashing of the spanner and the fixed illumination of the Service warning lamp.
The distance remaining may be weighted by the time factor, depending on the driving conditions. Therefore, the spanner may also come on if you have exceeded the period since the last service, indicated in the maintenance and warranty guide .
Following this operation, if you wish to disconnect the battery, lock the vehicle and wait at least five minutes for the zero reset to be taken into account.
5 seconds after the ignition is switched on, the distance recorder resumes its normal operation. The spanner remains on .
Service indicator zero reset
After each service, the service indicator must be reset to zero. The procedure for resetting to zero is as follows:  switch off the ignition,  press and hold the trip distance recorder
zero reset button,  switch on the ignition; the distance recorder display begins a countdown,  when the display indicates "=0" , release the button; the spanner disappears.
Retrieving the service information
You can access the service information at any time.  Press the trip distance recorder zero reset button. The service information is displayed for a few seconds, then disappears.

73Monitoring
DS5-HYBRID_EN_CHAP01_CONTROLE DE MARCHE_ED02-2013
Engine oil level indicator
Lack of oil
This is indicated by the flashing of " O I L" or an alert message in the instrument panel, accompanied by illumination of the service warning lamp and an audible signal. If the lack of oil is confirmed by a check using the dipstick, it is essential that the level is topped up to prevent damage to the engine. Refer to the "Checking levels" section.
Indicator fault
This is indicated by the flashing of "OIL- -" or the appearance of an alert message in the instrument panel. Contact a CITROËN dealer or a qualified workshop. In the event of a fault with the electric gauge, the oil level is no longer monitored. If the system is faulty, you should check the engine oil level using the dipstick under the bonnet. Refer to the "Checking levels" section.
This information is displayed for a few seconds when the ignition is switched on, at the same time as the service information.
The check of this level is only valid if the vehicle is on a level sur face, with the engine having been off for more than 30 minutes.
Oil level correct

OFF

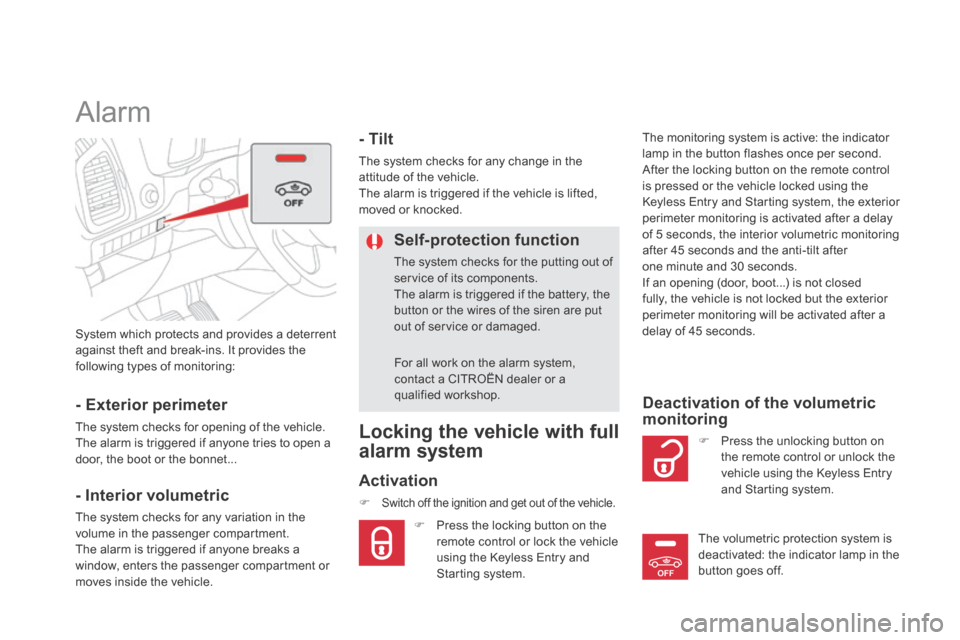

DS5-HYBRID_EN_CHAP02_OUVERTURES_ED02-2013
System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:

Alarm
- Exterior perimeter
The system checks for opening of the vehicle. The alarm is triggered if anyone tries to open a door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window, enters the passenger compartment or moves inside the vehicle.
- Tilt
The system checks for any change in the attitude of the vehicle. The alarm is triggered if the vehicle is lifted, moved or knocked.
Self-protection function
The system checks for the putting out of service of its components. The alarm is triggered if the battery, the button or the wires of the siren are put out of service or damaged.
For all work on the alarm system, contact a CITROËN dealer or a qualified workshop.
Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out of the vehicle.
 Press the locking button on the remote control or lock the vehicle using the Keyless Entry and Starting system.
The monitoring system is active: the indicator lamp in the button flashes once per second. After the locking button on the remote control is pressed or the vehicle locked using the Keyless Entry and Starting system, the exterior perimeter monitoring is activated after a delay of 5 seconds, the interior volumetric monitoring after 45 seconds and the anti-tilt after one minute and 30 seconds. If an opening (door, boot...) is not closed fully, the vehicle is not locked but the exterior perimeter monitoring will be activated after a delay of 45 seconds.
 Press the unlocking button on the remote control or unlock the vehicle using the Keyless Entry and Starting system.
Deactivation of the volumetric monitoring
The volumetric protection system is deactivated: the indicator lamp in the button goes off.

DS5-HYBRID_EN_CHAP09_VERIFICATIONS_ED02-2013
Checking levels
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at any time (even with the ignition off).
Engine oil level
The check is carried out either when the ignition is switched on using the oil level indicator in the instrument panel for vehicles with and electric oil level gauge, or using the dipstick.
To ensure that the reading is correct, your vehicle must be parked on a level sur face and the engine having been off for more than 30 minutes.
Check all of these levels regularly, in line with the maintenance and warranty guide. Top them up if necessary, unless other wise indicated. If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Before doing anything under the bonnet, switch off the ignition ( Readylamp off) to avoid any risk of injury resulting from automatic operation of the engine.
It is normal to top up the oil level between two services (or oil changes). CITROËN recommends that you check the level, and top up if necessary, every 3 000 miles (5 000 kms).
Checking using the dipstick
Refer to the "Diesel engine" section for the location of the dipstick in the engine compartment of your vehicle.
 Take the dipstick by its coloured grip and remove it completely.  Wipe the end of the dipstick using a clean non-fluffy cloth.  Refit the dipstick and push fully down, then pull it out again to make the visual check: the correct level is between the marks Aand B .
