Citroen DS5 HYBRID4 2015 1.G Owner's Manual

229
DS5_en_Chap08_info-pratiques_ed01-2015
General recommendations
Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
-
v
ehicle broken down on a motor way or fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the gearbox into neutral, unlock the steering, or release
the parking brake,
-

t
owing with only two wheels on the ground,
-

w
here there is no approved towing arm available...

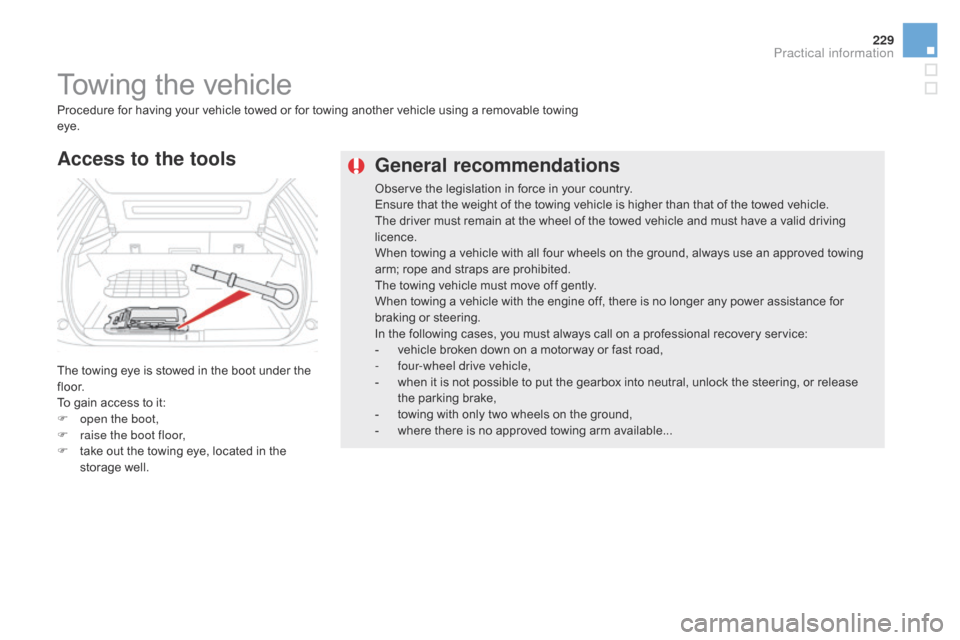

Towing the vehicle
Access to the tools
The towing eye is stowed in the boot under the
f l o o r.
To gain access to it:
F
o
pen the boot,
F

r
aise the boot floor,
F

t
ake out the towing eye, located in the
storage well.
Procedure for having your vehicle towed or for towing another vehicle using a removable towing
eye.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Towing your vehicleTowing another vehicle
F On the front bumper, unclip the cover
by pressing at the top to disengage the
securing lugs.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm. F
O n the rear bumper, unclip the cover by
levering at the left with the point of the
towing eye.
F

S
crew the towing eye in fully.
F

I
nstall the towing arm.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and drive at low speed and
for a short distance only.
F

P
lace the gear lever in neutral
(position N with an electronic or
automatic gearbox).
F
ailure to follow this advice could
result in damage to certain systems
(braking, transmission...) and the
absence of braking assistance the
next time the engine is started.
F U nlock the steering and release the
parking brake.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently and drive at low speed and
for a short distance only.

231
DS5_en_Chap08_info-pratiques_ed01-2015

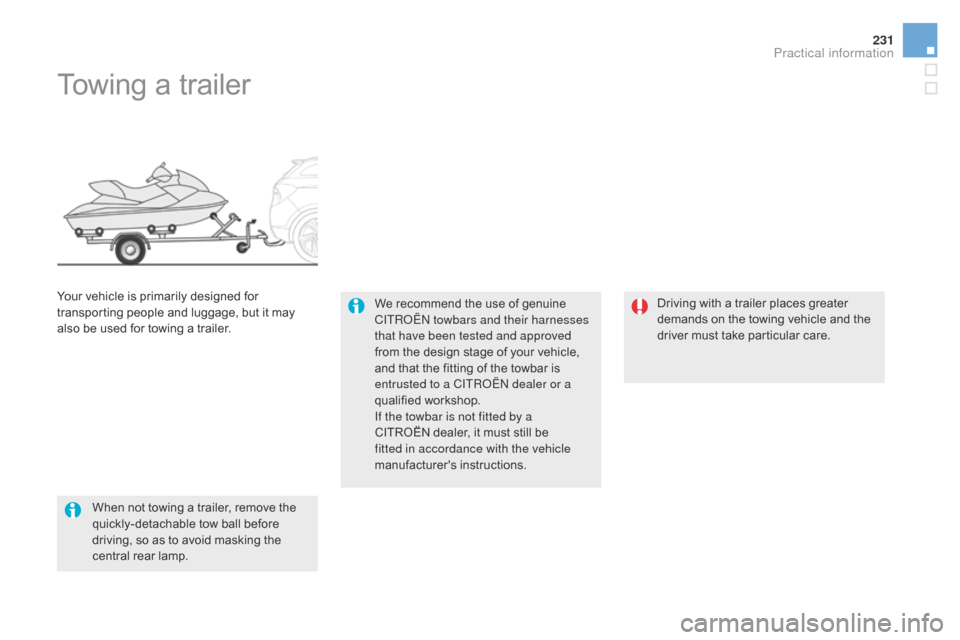

Towing a trailer
We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.
Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
When not towing a trailer, remove the
quickly-detachable tow ball before
driving, so as to avoid masking the
central rear lamp. Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
driving advice
distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding
it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.
cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and
the
STOP warning lamp come
on, stop the vehicle and switch
off the engine as soon as
possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.

233
DS5_en_Chap08_info-pratiques_ed01-2015

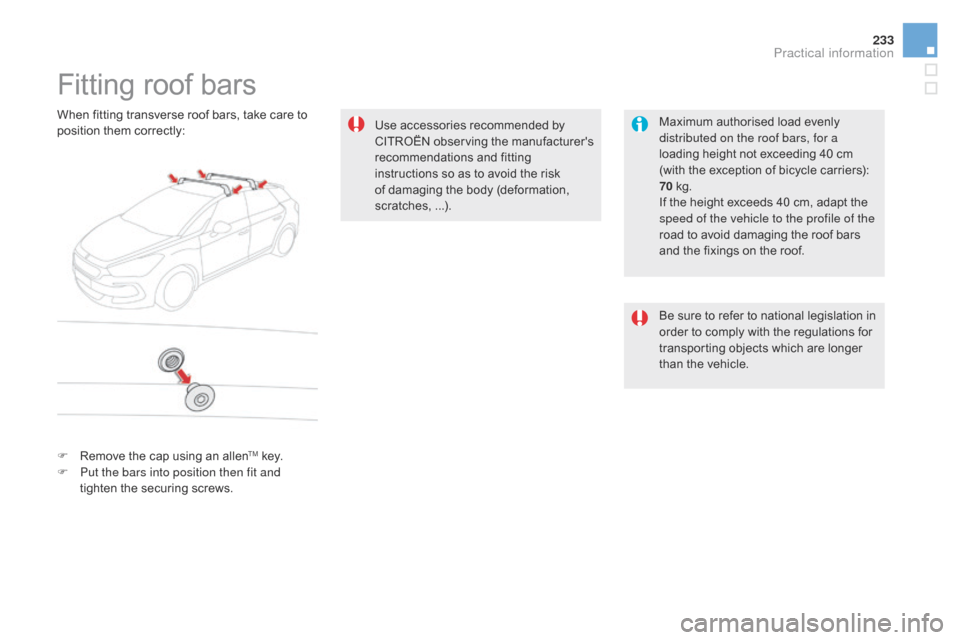

Fitting roof bars
Maximum authorised load evenly
distributed on the roof bars, for a
loading height not exceeding 40 cm
(with the exception of bicycle carriers):
70 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the roof.
When fitting transverse roof bars, take care to
position them correctly:
Use accessories recommended by
CITROËN

observing the manufacturer's
recommendations and fitting
instructions so as to avoid the risk
of damaging the body (deformation,
scratches, ...).
F

R

emove the cap using an allen
TM key.
F
P
ut the bars into position then fit and
tighten the securing screws. Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015

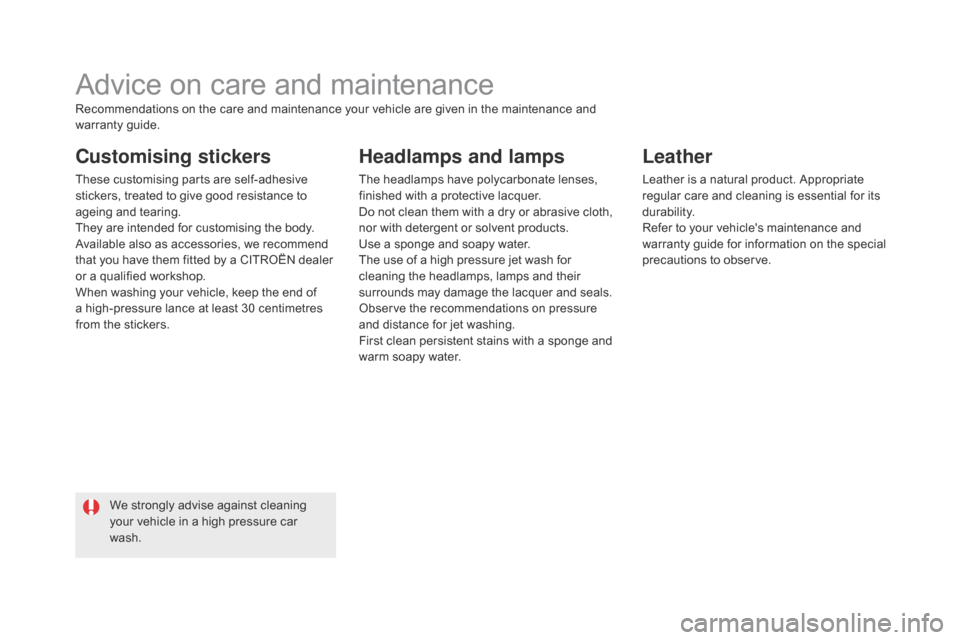

Advice on care and maintenance
customising stickers
These customising parts are self-adhesive
stickers, treated to give good resistance to
ageing and tearing.
They are intended for customising the body.
Available also as accessories, we recommend
that you have them fitted by a CITROËN dealer
or a qualified workshop.
When washing your vehicle, keep the end of
a high-pressure lance at least 30 centimetres
from the stickers.We strongly advise against cleaning
your vehicle in a high pressure car
wash.
Headlamps and lamps
The headlamps have polycarbonate lenses,
finished with a protective lacquer.
Do not clean them with a dry or abrasive cloth,
nor with detergent or solvent products.
Use a sponge and soapy water.
The use of a high pressure jet wash for
cleaning the headlamps, lamps and their
surrounds may damage the lacquer and seals.
Observe the recommendations on pressure
and distance for jet washing.
First clean persistent stains with a sponge and
warm soapy water.
Recommendations on the care and maintenance your vehicle are given in the maintenance and
warranty guide.
Leather
Leather is a natural product. Appropriate
regular care and cleaning is essential for its
durability.
Refer to your vehicle's maintenance and
warranty guide for information on the special
precautions to observe.

235
DS5_en_Chap08_info-pratiques_ed01-2015
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...*

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of
your vehicle's electronic system and
excessive electrical consumption.
Contact a CITROËN dealer
for information on the range of
recommended equipment and
accessories.Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC). Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
fire extinguisher, first aid kit, mud flaps
at the rear of the vehicle.
By visiting a CITROËN
dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...), ...
"Multimedia":
Bluetooth hands-free system, portable satellite
navigation system, mapping update CD, driving
assistance systems, portable video screen,
portable video support bracket, multimedia
system support, 230 V/50 Hz socket,
230
V/12 V adaptor, mobile phone charger
compatible with iPhone
®, Wi-Fi on board, ...

237
DS5_en_Chap08_info-pratiques_ed01-2015
Practical information

DS5_en_Chap09_verifications_ed01-2015
Checks
