49Hybrid system

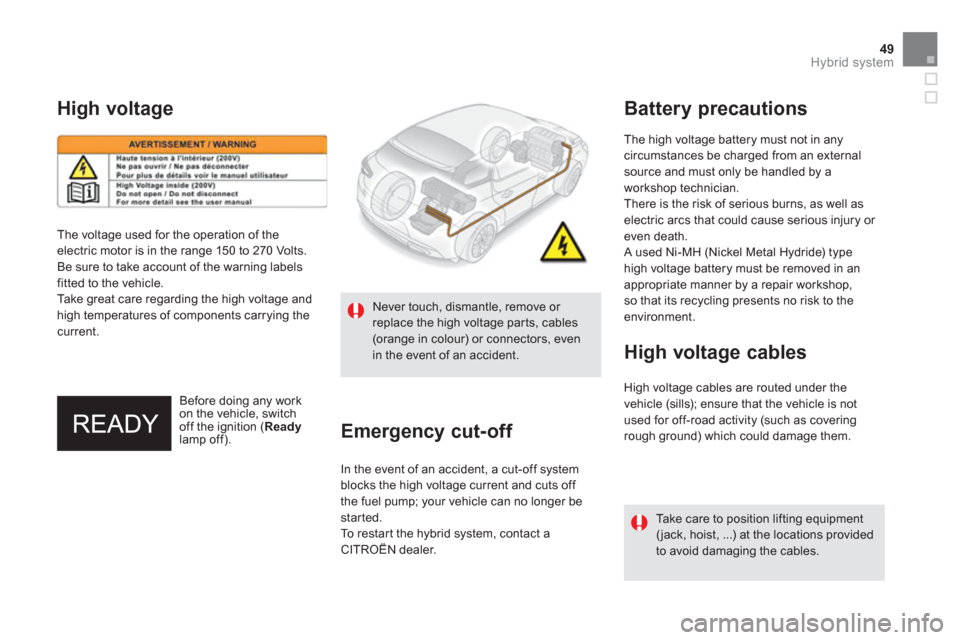

The high voltage battery must not in anycircumstances be charged from an externalsource and must only be handled by a
workshop technician.
There is the risk o
f serious burns, as well as electric arcs that could cause serious injury or
even death.
A used Ni-MH (Nickel Metal Hydride) type
high voltage battery must be removed in an
appropriate manner by a repair workshop,so that its recycling presents no risk to the environment.

High voltage


The voltage used for the operation of theelectric motor is in the range 150 to 270 Volts.
Be sure to take account of the warning labels
fitted to the vehicle.
Ta k e great care regarding the high voltage and high temperatures of components carrying thecurrent.
Emergency cut-off
In the event of an accident, a cut-off system
blocks the high voltage current and cuts off
the fuel pump; your vehicle can no longer be started.To restar t the hybrid system, contact aCITROËN dealer.
Hi
gh voltage cables are routed under the
vehicle (sills); ensure that the vehicle is not
used for off-road activity (such as coveringrough ground) which could damage them.
Be
fore doing any work on the vehicle, switch off the ignition (Readylamp off).



Battery precautions

Hi
gh voltage cables
Take care to position lifting equipment (jack, hoist, ...) at the locations provided to avoid damaging the cables.

Never touch, dismantle, remove or replace the high voltage par ts, cables (orange in colour) or connectors, even in the event of an accident.

Underbonnet precautions/warnings
The alternator-star ter motor of your hybrid
vehicle is also supplied at high voltage. If the
vehicle ignition has not been switched off, there
is a risk of the engine restar ting at any time.
Alwa
ys ensure that theignition is switched off ( Readylamp off) before
opening the bonnet.
Also ensure that the ignition is switchedoff when refuelling to avoid the enginerestarting.

51Hybrid system

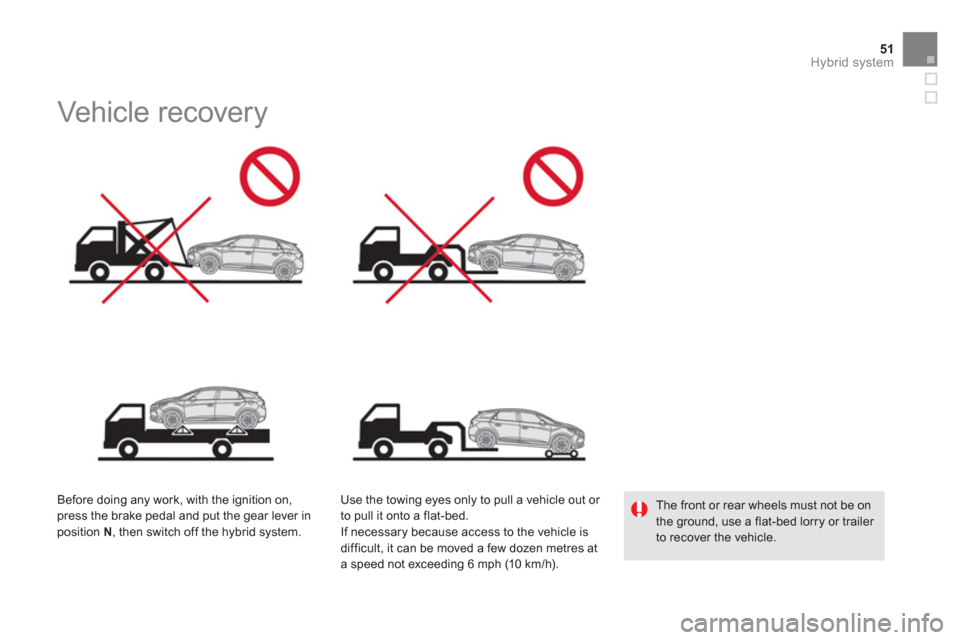

Vehicle recovery


Before doing any work, with the ignition on,press the brake pedal and put the gear lever in position N, then switch off the hybrid system.
Use the towing eyes only to pull a vehicle out or
to pull it onto a flat-bed.
If necessary because access to the vehicle is
difficult, it can be moved a few dozen metres ata speed not exceeding 6 mph (10 km/h).
The front or rear wheels must not be on the ground, use a flat-bed lorry or trailer to recover the vehicle.

001
Instruments and controls

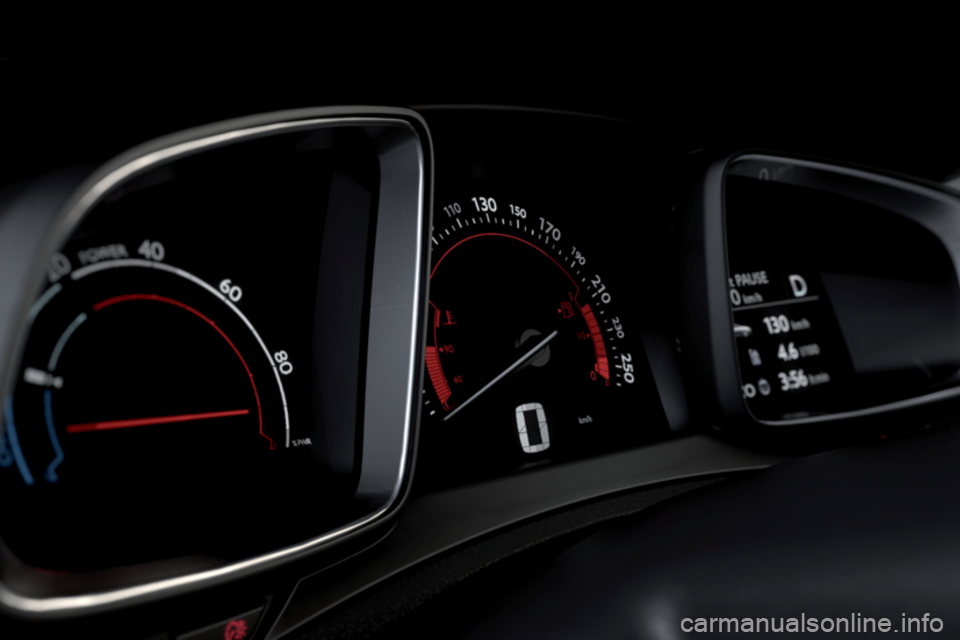

Instrument panel
1.
Energy consumption/generation indicator (available power as a percentage).
For more information refer to the "H
ybrid
system" section.2. Fuel gauge.3.Engine coolant temperature gauge. 4.
Speedometer (mph or km/h).5.
Cruise control or speed limiter settings.A
.Main lighting and controls dimmer.
B.- Successive shor t presses: under-inflation
detection, recall servicin
g information, alert log.
- Long press: reset the function selected to
zero (service indicator or trip recorder). 6
. Gear engaged.
7.Instrument panel screen: electrical flow,
trip recorder, aler t messa
ges or state of functions (e.g.: oil pressure, battery, door open, ...), trip computer, media, satellite
navigation.8. Digital speedometer (mph or km/h). 9.Ready lamp: indicates that the vehicle is
ready to drive.
Dials and screens
Control buttons

Monitoring
Indicator and warning lamps
When the engine is star ted, these same warning lamps should go off.
If they remain on, before moving off, refer to
the information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps
may be accompanied by an audible signal and
a message in the instrument panel screen.
The warning lamps may come on continuously (fixed) or flash.

Certain warning lamps may come on inone of two modes: fixed (continuous) or flashing.
Only by relating the type of illumination to the operation of the vehicle can itbe determined whether the situation is normal or a fault has occurred.
Refer to the tables on the following pages for more information. Visual indicators in
forming the driver that
a system is in operation, switched off or has a fault.
When the ignition is switched on
Certain warning lamps come on for a few seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.

Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning/indicator lampStateCauseAction/Observations




Left-handdirection indicatorflashing with buzzer. The lighting stalk is pushed down.





Right-handdirection indicatorflashing with buzzer. The lighting stalk is pushed up.





Sidelampsfixed.The lighting stalk is in the
"Sidelamps" position.



Dipped beamheadlampsfixed.The lighting stalk is in the "Dipped
beam headlamps" position.




Main beam headlampsfixed. The lighting stalk is pulled towardsyou. Pull the stalk to return to dipped beam headlamps.



Front foglampsfixed.The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.

For more information on the lighting controls, refer to the "Visibility" section.




Automatic headlamp dipping
fixed.The lighting stalk has been pulledtowards you and the button (to the right of the steering wheel) has beenpressed.
Its warning lamp is on.
The camera, located in the interior rear view mirror,
authorises or not switching between main and dipped beam, depending on the exterior lighting and the
driving conditions.
Pull the li
ghting stalk to return to dipped beam.
Readyfixed. The vehicle is ready to move off; you can press the accelerator. It comes on once high voltage is established in the
vehicle.

57
Monitoring



Rear foglamps

fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.
Warning/indicator lampStateCauseAction/Observations



Diesel engine pre-heating fixed. The STA R T/STOP
switch has been pressed (ignition on). Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the "Driving" section.

Deactivation of the automatic functions of the electric parkingbrake


fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic application/
re
lease is not possible.
The parking brake can be released manually usingthe emergency release procedure.
For more in
formation on the electric parking brake,
refer to the "Driving" section.

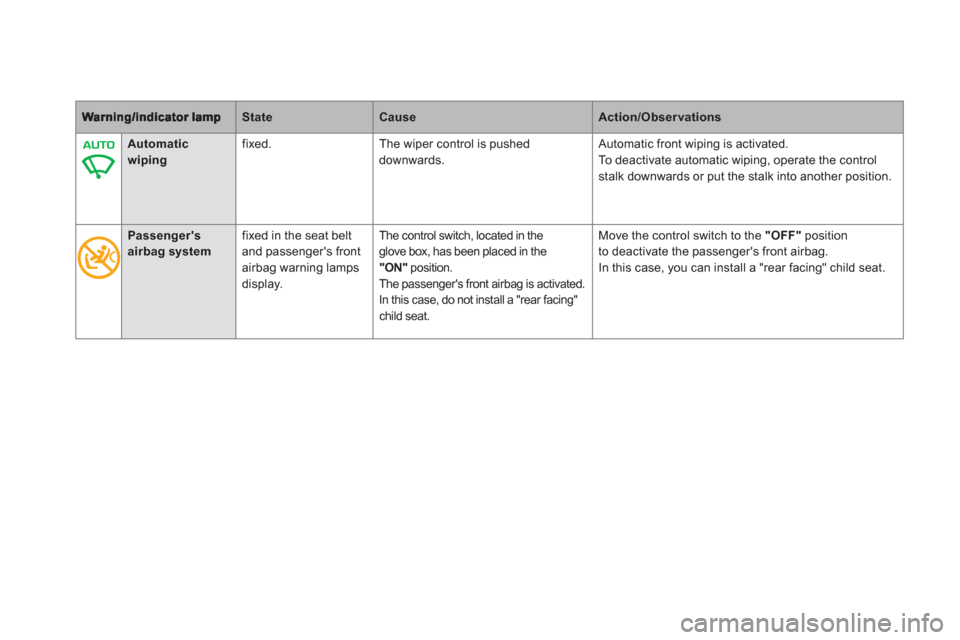

StateCauseAction/Observations



Automatic
wiping
fixed. The wiper control is pushed
downwards.
Automatic front wiping is activated.
To deactivate automatic wipin
g, operate the controlstalk downwards or put the stalk into another position.



Passenger's airbag systemfixed in the seat beltand passenger's front airbag warning lamps
display.
The control switch, located in the glove box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing" child seat.
Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.
