Citroen DS5 HYBRID4 RHD 2011.5 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2011.5, Model line: DS5 HYBRID4 RHD, Model: Citroen DS5 HYBRID4 RHD 2011.5 1.GPages: 358, PDF Size: 10.77 MB
Page 1 of 358
Page 2 of 358

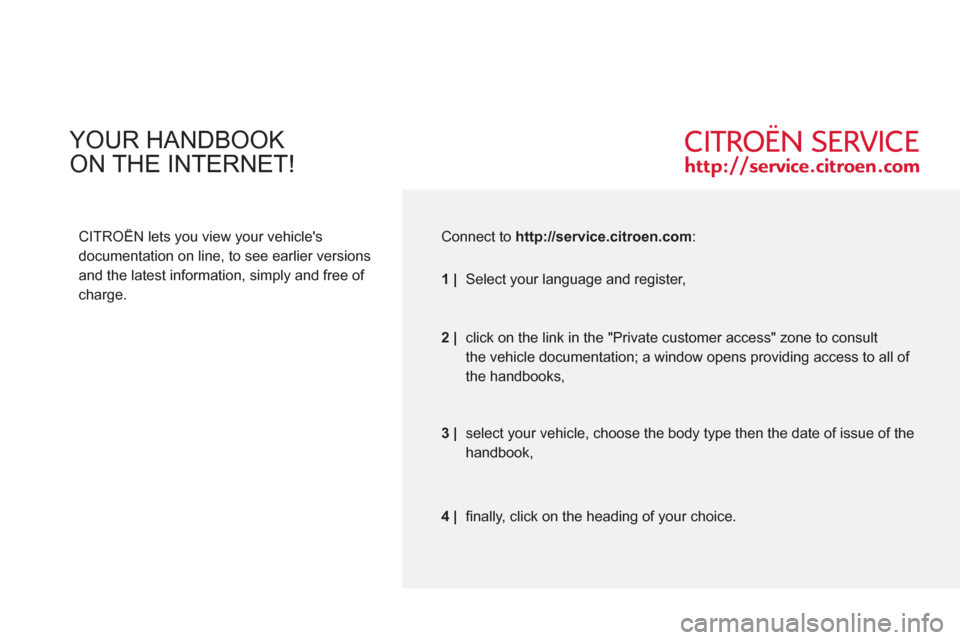

YOUR HANDBOOK
ON THE INTERNET!
CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com
:
1|
Select your language and register,
click on the link in the "Private customer access" zone to consult
the vehicle documentation; a window opens providing access to all of
the handbooks,
select your vehicle, choose the body type then the date of issue of the
handbook,
fi nally, click on the heading of your choice.
2|
3 |
4 |
Page 3 of 358

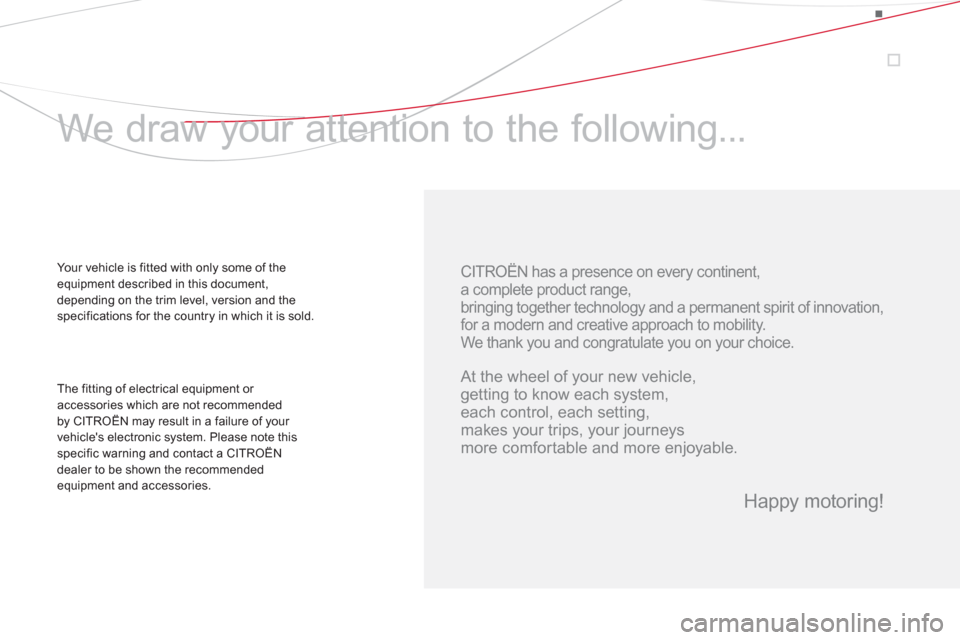

CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Your vehicle is fitted with only some of theequipment described in this document,
depending on the trim level, version and thespecifications for the country in which it is sold.
The
fitting of electrical equipment or accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic s
ystem. Please note thisspecific warning and contact a CITROËNdealer to be shown the recommendedequipment and accessories.
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Happy motoring!
We draw your attention to the following...
Page 4 of 358
Contents
Contents
6 FA M I L I A R I SAT I O N
34
2 ALPHABETICAL
INDEX
347 VISUAL
SEARCH
Key
sa
fety warning
additional information
contributes to the protection of the environment
pro
gramming a function with
the configuration menu
re
fer to the page indicated
Page 5 of 358
54Instrument panel
55Indicator and warning lamps
64 Gauges and indicators
68Adjustment buttons
69 Clock
70 Tr i p c o m p u ter
74 Electronic key - remote control
82Boot
83Alarm
85Electric windows
87Cockpit glass roof
89 Fuel tank
90 Misfuel prevention (Diesel)
94 Front seats
99Rear seats
102Mirrors
103 Steering wheel adjustment
104Interior fi ttings
108Boot fi ttings
109Tr i a ngle (stowing)
110Heating and Ventilation
112 Dual-zone digital air conditioning
116 Rear screen demist - defrost
28 Presentation
31 Starting/switching off your
vehicle
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption/generation indicator
40Display of hybrid power fl ow
43 Eco off
44Eco-driving
46 Consumption
47High voltage battery
51 Vehicle recovery
001001002002003003COMFORT ACCESS MONITORING HYBRID SYSTEM
Page 6 of 358
SAFETY CHILD SAFETY VISIBILITY
146 Lighting controls
149Daytime running lamps
150Automatic illumination of headlamps
151 Automatic headlamp dipping
154Headlamp adjustment
155 Directional lighting
157 Wiper controls
159 Automatic rain sensitivewipers
161Courtesy lamps
162Interior mood lighting
166Child seats
172 ISOFIX child seats
175Child lock
178Direction indicators
179 Emergency or assistance call
179 Horn
180 Tyre under-infl ation detection
181ESP system
184 Seat belts
187 Airbags
DRIVING
120 Electric parking brake
128Hill start assist
1296 -speed electronic gear control gearbox
133 Lane depar ture warningsystem
134Head-up display
137Speed limiter
139 Cruise control
141Parking sensors
143 Reversing camera
005005006006007007004004
Page 7 of 358
CHECKS PR ACTICAL
INFORMATIONTECHNICAL
DATAAUDIO AND
TELEMATICS
194 Te m p o r a ry puncture repair
kit
200 Changing a wheel
207 Changing a bulb
215Changing a fuse
218 12 V battery
221Energy economy mode
222Changing a wiper blade
222Recovering the vehicle
224Vehic le recovery
224Towing a trailer
226 Fitting roof bars
227 Accessories
233Opening the bonnet
234 Diesel engine
235 Running out of fuel (Diesel)
236 Checking levels
239Checks
244Electric motor
245Diesel engine
246 Diesel weights
247Dimensions
248 Identifi cation markings
252Emergency or assistance
255 eMyWay
309 Audio system
008008009009010010011011
Page 8 of 358
Familiarisation
Familiarisation
Page 9 of 358
Page 10 of 358
Presentation of the Hybrid4 system
Thank you for choosing a DS5 Hybrid4; this
vehicle has characteristics that are different from conventional vehicles.
Study this handbook to learn about the specific hybrid functions and for more information, refer
to the "Hybrid System" section.
1.Diesel HDi engine (front wheel drive).
2. Electric motor (rear wheel drive).3.
200 V battery.4.Electronic power supervisor.5
. Stop & Start system.
6.6 -speed electronic gearbox.
7. Electrical flow.
26
The Hybrid4 technology allows two sources of energy to be associated in an effective manner:
the Diesel HDi engine, which drives the front
wheels and the electric motor, which drives the
rear wheels.
These two motors can operate alternately or simultaneously, according to the hybrid modeselected and the driving conditions.
The electric motor alone provides power for
the vehicle in "ZEV"
(Zero Emissions Vehicle) mode, and in "Auto" mode for running at slowspeed and low load. It also assists the Dieselengine when moving off, accelerating and changing gear.
The battery that powers the electric motor is recharged during phases of deceleration andstores the energy for subsequent use.
