269Technical data

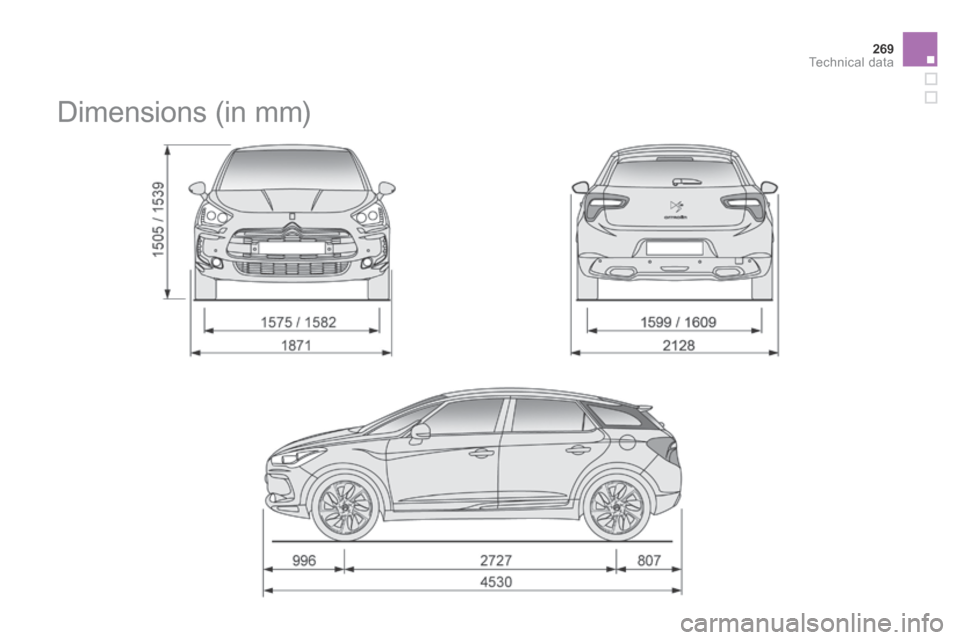

Dimensions (in mm)

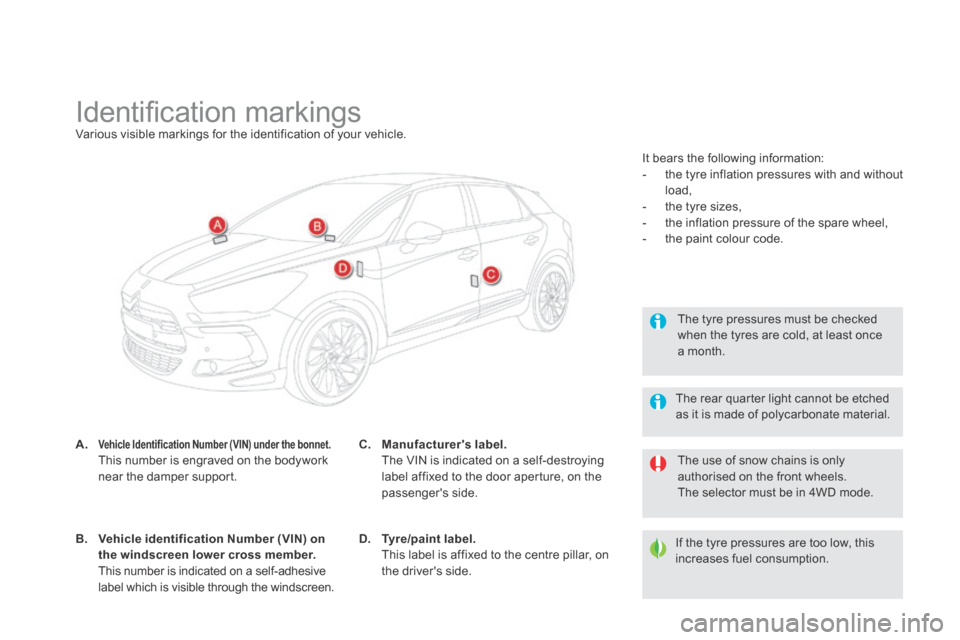

Identifi cation markings Various visible markings for the identification of your vehicle.
A.Vehicle Identification Number (VIN) under the bonnet. This number is engraved on the bodywork near the damper support.
The tyre pressures must be checked when the tyres are cold, at least once a month.
The rear quarter light cannot be etched as it is made of polycarbonate material.
B. Vehicle identification Number (VIN) on the windscreen lower cross member. This number is indicated on a self-adhesive label which is visible through the windscreen.
C. Manufacturer's label. The VIN is indicated on a self-destroying label affixed to the door aperture, on the passenger's side.
D. Tyre/paint label. This label is affixed to the centre pillar, on the driver's side.
It bears the following information: - the tyre inflation pressures with and without load, - the tyre sizes, - the inflation pressure of the spare wheel, - the paint colour code.
The use of snow chains is only authorised on the front wheels. The selector must be in 4WD mode.
If the tyre pressures are too low, this increases fuel consumption.

271Technical data

Audio and telematics

EMERGENCY OR ASSISTANCE CALL

275

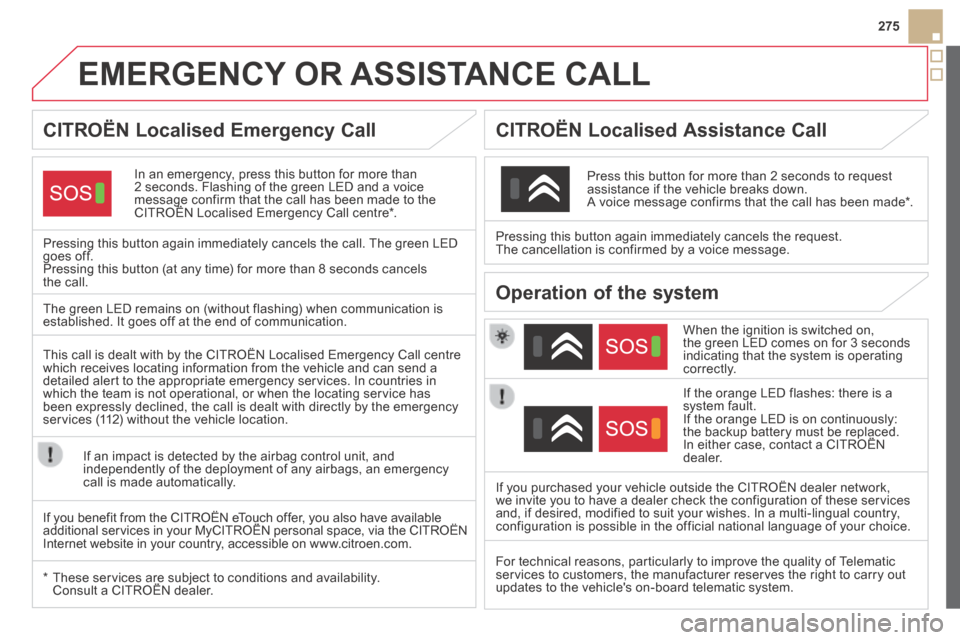

EMERGENCY OR ASSISTANCE CALL
CITROËN Localised Emergency Call
In an emergency, press this button for more than 2 seconds. Flashing of the green LED and a voice message confirm that the call has been made to the CITROËN Localised Emergency Call centre * . message confirm that the call has been made to the CITROËN Localised Emergency Call centre * . message confirm that the call has been made to the
Pressing this button again immediately cancels the call. The green LED goes off. Pressing this button (at any time) for more than 8 seconds cancels the call.
CITROËN Localised Assistance Call
When the ignition is switched on, the green LED comes on for 3 seconds indicating that the system is operating c o r r e c t l y.
If the orange LED flashes: there is a system fault. If the orange LED is on continuously: the backup battery must be replaced. In either case, contact a CITROËN the backup battery must be replaced. In either case, contact a CITROËN the backup battery must be replaced.
dealer.
Pressing this button again immediately cancels the request. The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down. A voice message confirms that the call has been made * .
Operation of the system The green LED remains on (without flashing) when communication is established. It goes off at the end of communication.
If you purchased your vehicle outside the CITROËN dealer network, we invite you to have a dealer check the configuration of these services and, if desired, modified to suit your wishes. In a multi-lingual country, configuration is possible in the official national language of your choice.
This call is dealt with by the CITROËN Localised Emergency Call centre which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is not operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
* These services are subject to conditions and availability. Consult a CITROËN dealer. * These services are subject to conditions and availability. Consult a CITROËN dealer. * These services are subject to conditions and availability.
If you benefit from the CITROËN eTouch offer, you also have available additional services in your MyCITROËN personal space, via the CITROËN If you benefit from the CITROËN eTouch offer, you also have available additional services in your MyCITROËN personal space, via the CITROËN If you benefit from the CITROËN eTouch offer, you also have available
Internet website in your country, accessible on www.citroen.com.
For technical reasons, particularly to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic system.

277
The system is protected in such a way that it will only operate in your vehicle.
eMyWay

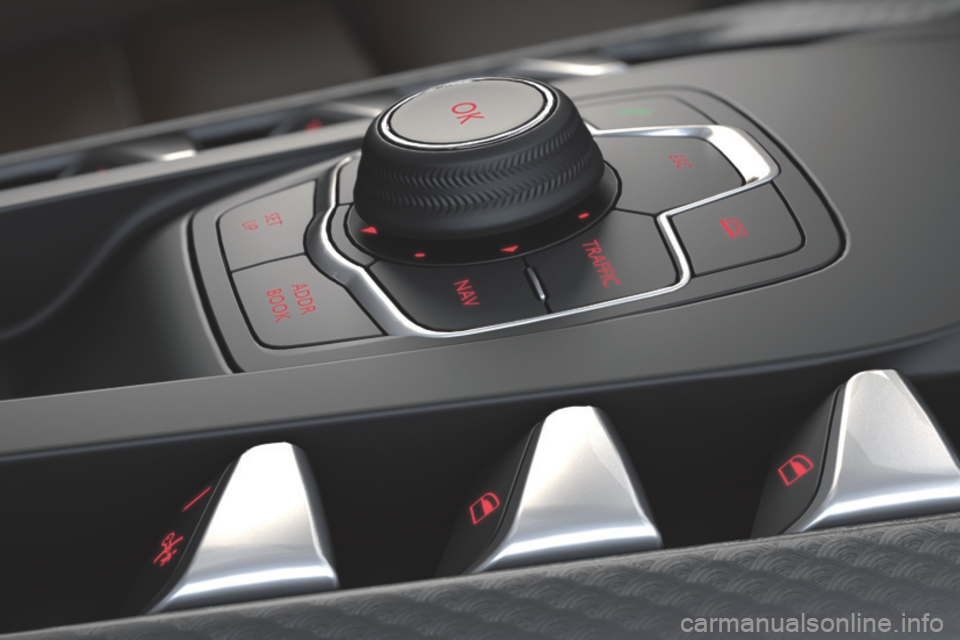

01 First steps - Control panel
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Contacts - ADDR BOOK
08 Radio
09 Music media players
10 Audio settings
11 Configuration
12 Screen menu map
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
278
280
281
283
296
299
307
310
313
319
320
322
Frequently asked questions p. 325
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

01 FIRST STEPS
Short press: select a preset radio station.
Long press: store the current radio station. TA (Traffi c Announcement) function On / Off.
Display the list of radio stations received, CD/MP3/Apple ® player tracks or folders. ® player tracks or folders. ®
Long press: management of the classifi cation of MP3/WMA fi les/update the list of stations received.
Access to " Audio settings ": musical ambiences, bass, treble, loudness, distribution, left/right balance, front/rear fader, automatic volume adjustment.
Select the FM waveband (AM not available on Hybrid vehicles).
Press and hold: reinitialise the system.
Select the source: CD, USB, AUX, Apple ® player, ® player, ®
Bluetooth Streaming, Radio.
Abandon the current operation, go up one level.
Long press: return to permanent display.
On / Off.
MODE button: select the type of permanent display.
Rotation: adjust volume (each source is independent, including TA messages and navigation instructions).
Select:
- the previous/next line in a list or menu.
- the previous next media folder.
- step by step previous/next radio frequency.
- previous/next MP3 folder.
Move up/down, in " Move the map " mode.
Select:
- automatically the previous/next radio frequency.
- the previous/next CD, MP3 or media track.
Move left/right, in " Move the map " mode.
Display black screen.
Short press: mute / restore sound.
