OWNER'S HANDBOOK

On-line owner's handbook
Referring to the owner's handbook on-line also gives you
access to the latest information available, easily identifi ed by
the bookmark, associated with this symbol:
If the "MyCitroën" function is not available on the CITROËN public
website for your country, you can fi nd your handbook at the following
address:
http://service.citroen.com Select:
You can fi nd your handbook on the
CITROËN website, under
"MyCitroën".
This personal and customisable space allows you to establish direct
and special contact with CITROËN.
The Vehicle documentation link in the home page (no registration is
needed),
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registrat\
ion
of your vehicle.
You have access to your handbook on line, together with the latest
information, identifi ed by the symbol:

CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice. The "Familiarisation" section at the start of this document is intended as a quick way of getting to know your vehicle. Reading the detailed sections is essential to make the most of your vehicle, in complete safety. Your vehicle is fitted with only some of the equipment described in this document, depending on the trim level, version and the specifications for the country in which it is sold.
The fitting of electrical equipment or accessories which are not recommended by CITROËN may result in a failure of your vehicle's electronic system. Please note this specific warning and contact a CITROËN
dealer to be shown the recommended equipment and accessories.
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Happy motoring!
We draw your attention to the following...

Contents
6 FAMILIARISATION
364 ALPHABETICAL INDEX
369 VISUAL SEARCH
Key
safety warning
additional information
contributes to the protection of the environment
programming a function with the configuration menu
refer to the page indicated

58 Instrument panel
59 Indicator and warning lamps
70 Gauges and indicators
74 Adjustment buttons
76 Setting the date and time
76 Clock
78 Trip computer
82 Electronic key - remote control
84 "Keyless Entry and Starting"
93 Boot
94 Alarm
97 Electric windows
99 Cockpit glass roof
101 Fuel tank
102 Misfuel prevention (Diesel)
106 Front seats
111 Rear seats
114 Mirrors
115 Steering wheel adjustment
116 Interior fi ttings
120 Boot fi ttings
121 Triangle (stowing)
122 Heating and Ventilation
124 Dual-zone digital air conditioning
128 Rear screen demist - defrost
28 Presentation
31 Starting / switching off
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption / generation indicator
40 Display of hybrid power fl ow
43 Hybrid4 frequently asked questions
46 Eco off
47 Eco-driving
49 Consumption
50 High voltage battery
54 Car washing machine or tunnel
55 Recovery on a fl at-bed
001002003COMFORT
ACCESS
MONITORING
HYBRID SYSTEM

SAFETY
CHILD SAFETY
VISIBILITY
160 Lighting controls
163 Daytime running lamps
164 Automatic illumination of headlamps
165 Automatic headlamp dipping
168 Headlamp adjustment
169 Directional lighting
171 Wiper controls
173 Automatic rain sensitive wipers
175 Courtesy lamps
176 Interior mood lighting
180 Child seats
182 Deactivating the passenger's front airbag
188 ISOFIX mountings
193 Child lock
196 Direction indicators
197 Emergency or assistance call
197 Horn
198 ESC system
202 Seat belts
205 Airbags

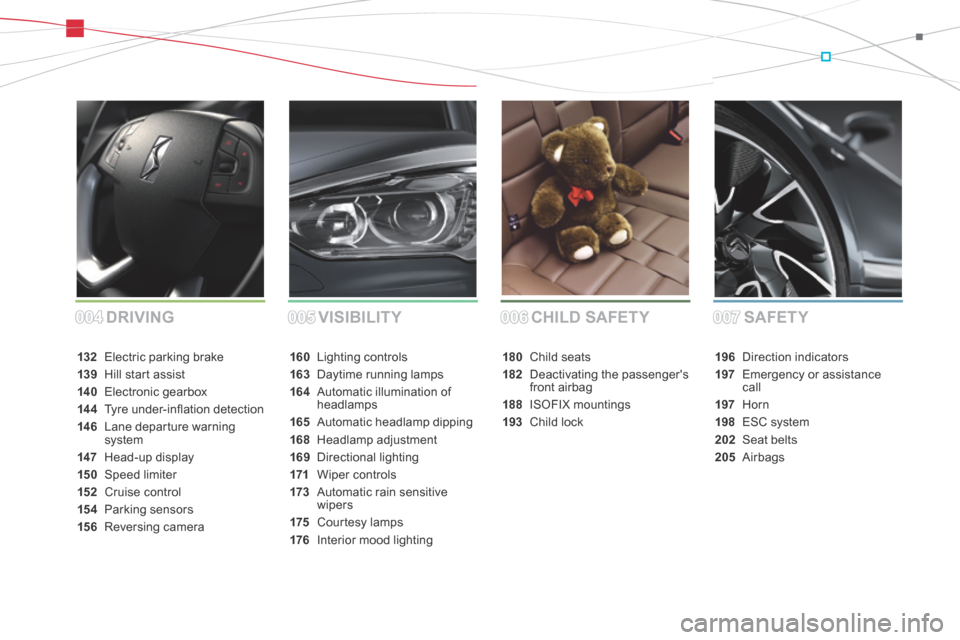

DRIVING
132 Electric parking brake
139 Hill start assist
14 0 Electronic gearbox
14 4 Tyre under-infl ation detection
14 6 Lane departure warning system
147 Head-up display
15 0 Speed limiter
152 Cruise control
15 4 Parking sensors
15 6 Reversing camera
005006007004

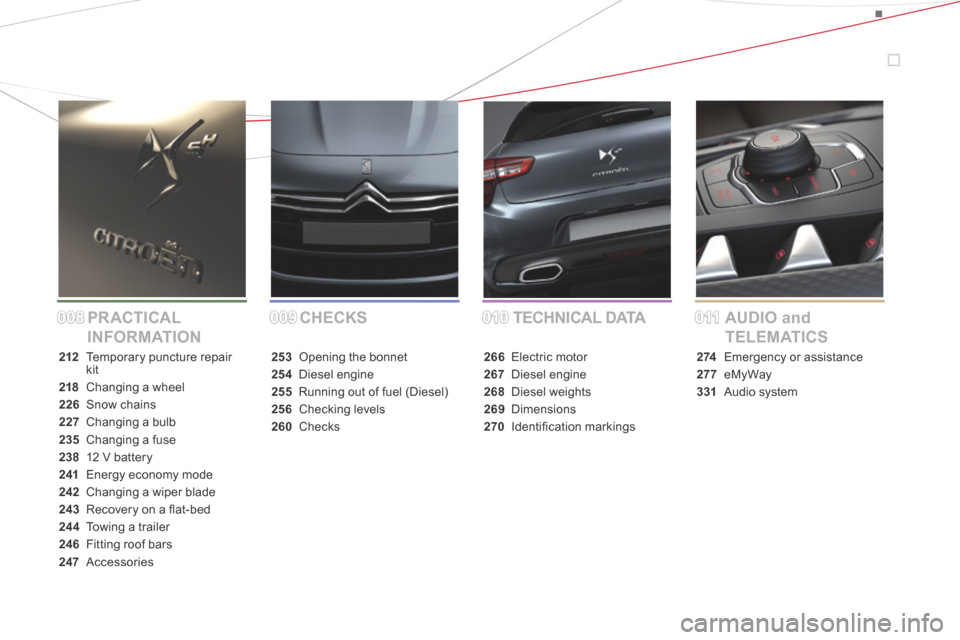

CHECKS
PR ACTICAL
INFORMATION TECHNICAL DATA
AUDIO and
TELEMATICS
212 Temporary puncture repair kit
218 Changing a wheel
226 Snow chains
227 Changing a bulb
235 Changing a fuse
238 12 V battery
241 Energy economy mode
242 Changing a wiper blade
243 Recovery on a fl at-bed
244 Towing a trailer
246 Fitting roof bars
247 Accessories
253 Opening the bonnet
254 Diesel engine
255 Running out of fuel (Diesel)
256 Checking levels
260 Checks
266 Electric motor
267 Diesel engine
268 Diesel weights
269 Dimensions
270 Identifi cation markings
2 74 Emergency or assistance
277 eMyWay
331 Audio system
0080090100 11

Familiarisation

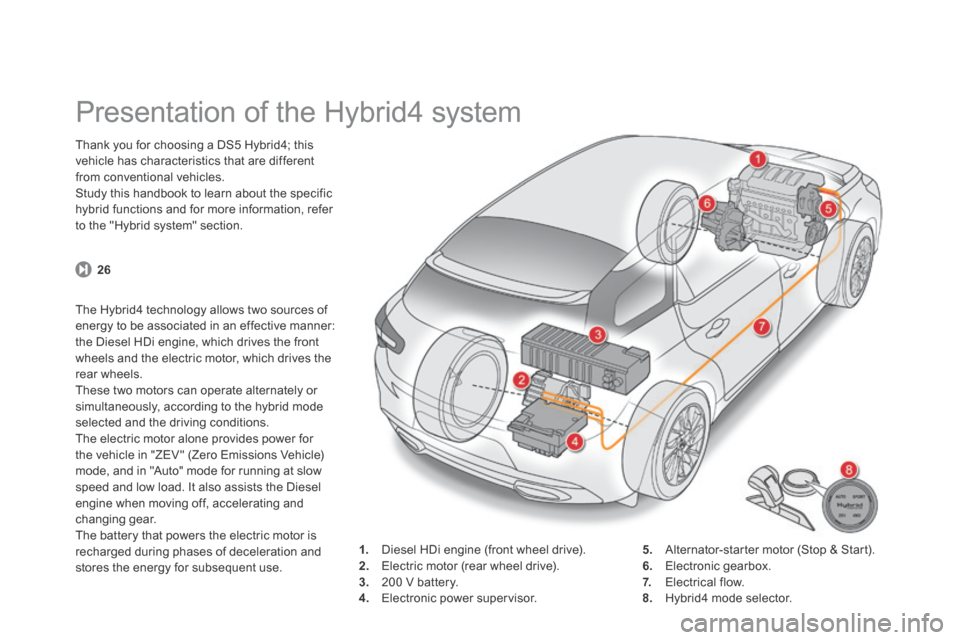

Presentation of the Hybrid4 system
Thank you for choosing a DS5 Hybrid4; this vehicle has characteristics that are different from conventional vehicles. Study this handbook to learn about the specific hybrid functions and for more information, refer to the "Hybrid system" section.
1. Diesel HDi engine (front wheel drive). 2. Electric motor (rear wheel drive). 3. 200 V battery. 4. Electronic power supervisor.
5. Alternator-starter motor (Stop & Start). 6. Electronic gearbox. 7. Electrical flow. 8. Hybrid4 mode selector.
26
The Hybrid4 technology allows two sources of energy to be associated in an effective manner: the Diesel HDi engine, which drives the front wheels and the electric motor, which drives the rear wheels. These two motors can operate alternately or simultaneously, according to the hybrid mode selected and the driving conditions. The electric motor alone provides power for the vehicle in "ZEV " (Zero Emissions Vehicle) mode, and in "Auto" mode for running at slow speed and low load. It also assists the Diesel engine when moving off, accelerating and changing gear. The battery that powers the electric motor is recharged during phases of deceleration and stores the energy for subsequent use.
