headlamp Citroen DS5 HYBRID4 RHD 2014 1.G Owner's Guide

227Practical information

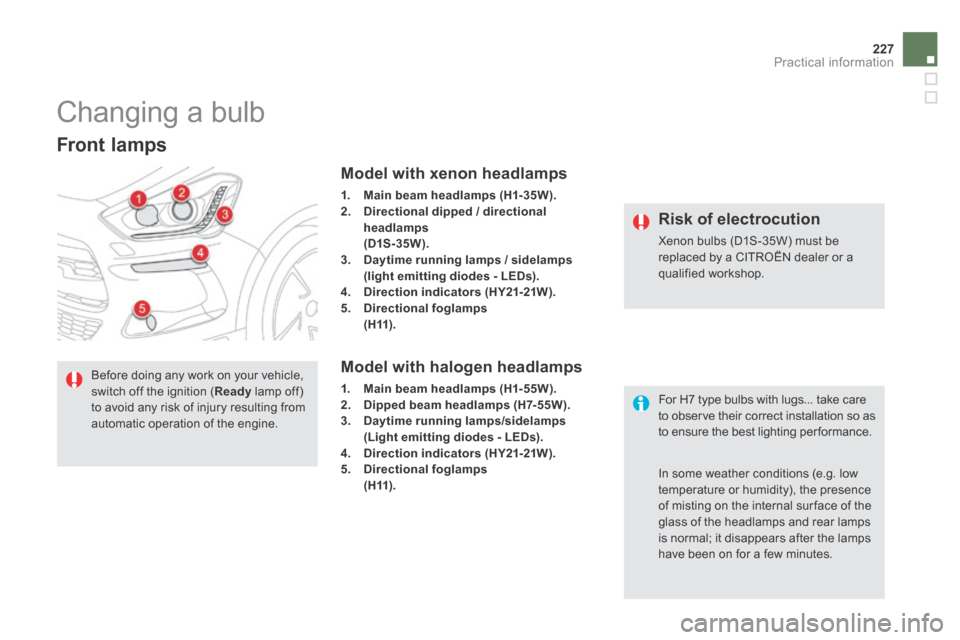

Changing a bulb
Front lamps
Model with xenon headlamps
1. Main beam headlamps (H1-35W).2. Directional dipped / directional
headlamps (D1S - 35 W ).3. Daytime running lamps / sidelamps (light emitting diodes - LEDs).4. Direction indicators (HY21-21W).5. Directional foglamps ( H11) .
Model with halogen headlamps
1. Main beam headlamps (H1-55W).2. Dipped beam headlamps (H7-55W).3. Daytime running lamps/sidelamps (Light emitting diodes - LEDs).4. Direction indicators (HY21-21W).5. Directional foglamps ( H11) .
For H7 type bulbs with lugs... take care to observe their correct installation so as to ensure the best lighting per formance.
In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lamps have been on for a few minutes.
Risk of electrocution
Xenon bulbs (D1S-35W) must be replaced by a CITROËN dealer or a qualified workshop.
Before doing any work on your vehicle, switch off the ignition ( Ready lamp off) to avoid any risk of injury resulting from automatic operation of the engine.

Main beam headlamps (xenon model)
 Remove the protective plastic cover by pulling on the tab.  Remove the connector with the bulb by pressing on the lug at the bottom.  Remove the bulb and change it. For reassembly, carry out these operations in reverse order.
The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water or a pH neutral product,  when using a high pressure washer on persistent marks, do not keep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals.
Dipped beam headlamps (xenon model)
D1S xenon bulbs must be changed by a CITROËN dealer or a qualified workshop, as there is a risk of electrocution. It is recommended that the D1S bulbs are changed at the same time when one of them fails.
Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns).  Do not touch the bulb directly with your fingers, use a lint-free cloth. It is imperative to use only anti-ultraviolet (UV) type bulbs to avoid damaging the headlamp. Always replace a failed bulb with a new bulb with the same type and specification.

229Practical information

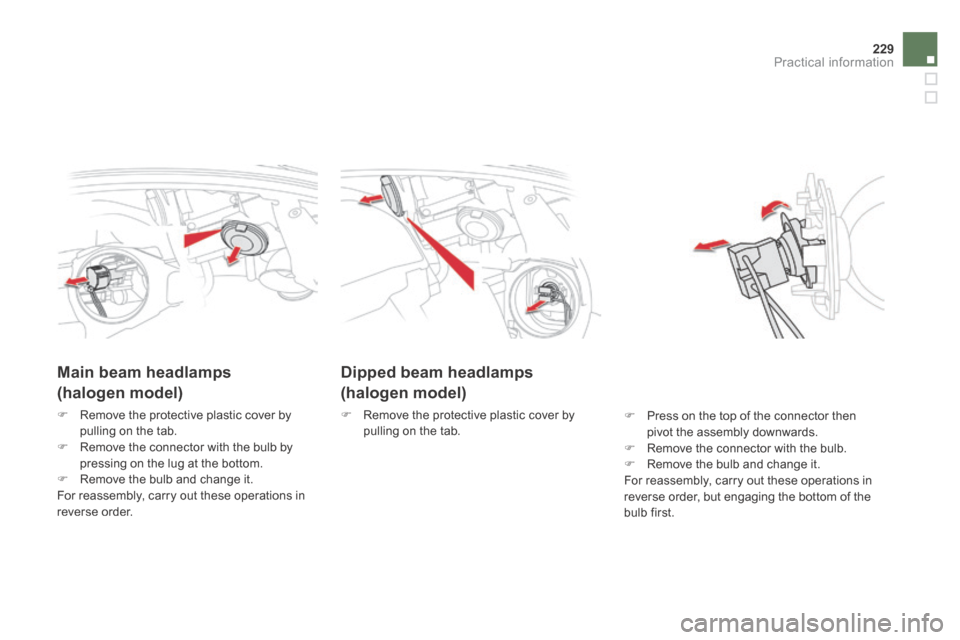

Dipped beam headlamps
(halogen model)
 Remove the protective plastic cover by pulling on the tab.
Main beam headlamps
(halogen model)
 Remove the protective plastic cover by pulling on the tab.  Remove the connector with the bulb by pressing on the lug at the bottom.  Remove the bulb and change it. For reassembly, carry out these operations in reverse order.
 Press on the top of the connector then pivot the assembly downwards.  Remove the connector with the bulb.  Remove the bulb and change it. For reassembly, carry out these operations in reverse order, but engaging the bottom of the bulb first.

237Practical information

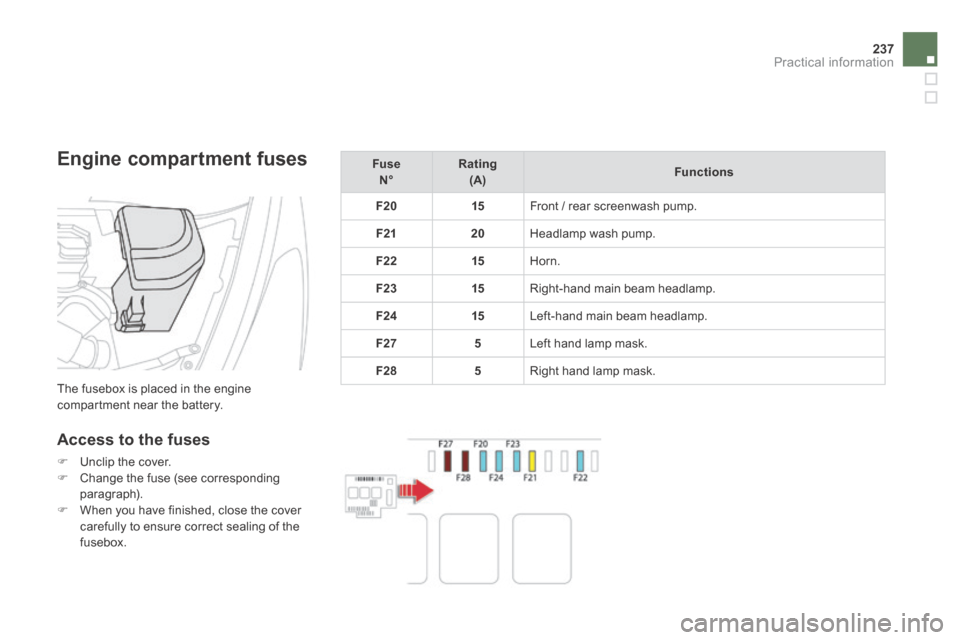

Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
Access to the fuses
 Unclip the cover.  Change the fuse (see corresponding paragraph).  When you have finished, close the cover carefully to ensure correct sealing of the fusebox.
Fuse N° Rating (A)Functions
F2015 Front / rear screenwash pump.
F2120 Headlamp wash pump.
F2215 Horn.
F2315 Right-hand main beam headlamp.
F2415 Left-hand main beam headlamp.
F275 Left hand lamp mask.
F285 Right hand lamp mask.

241Practical information

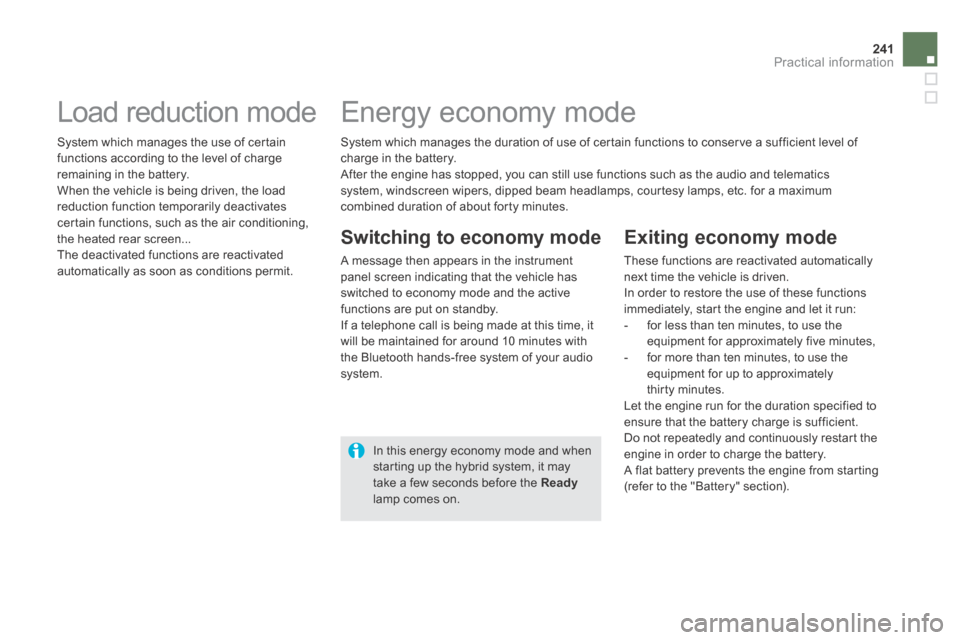

System which manages the duration of use of certain functions to conserve a sufficient level of charge in the battery. After the engine has stopped, you can still use functions such as the audio and telematics system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined duration of about forty minutes.
Energy economy mode
Switching to economy mode
A message then appears in the instrument panel screen indicating that the vehicle has switched to economy mode and the active functions are put on standby. If a telephone call is being made at this time, it
will be maintained for around 10 minutes with the Bluetooth hands-free system of your audio system.
Exiting economy mode
These functions are reactivated automatically next time the vehicle is driven. In order to restore the use of these functions immediately, start the engine and let it run: - for less than ten minutes, to use the equipment for approximately five minutes, - for more than ten minutes, to use the equipment for up to approximately thirty minutes. Let the engine run for the duration specified to ensure that the battery charge is sufficient. Do not repeatedly and continuously restart the engine in order to charge the battery. A flat battery prevents the engine from starting (refer to the "Battery" section).
In this energy economy mode and when starting up the hybrid system, it may take a few seconds before the Readylamp comes on.
Load reduction mode
System which manages the use of certain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air conditioning, the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.

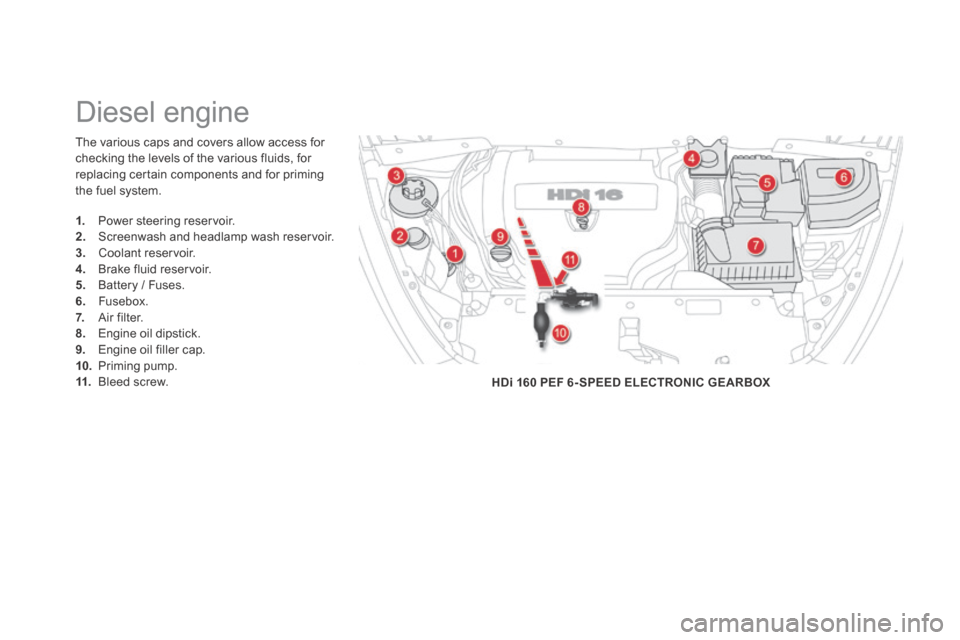

The various caps and covers allow access for checking the levels of the various fluids, for replacing certain components and for priming the fuel system.
Diesel engine
1. Power steering reservoir. 2. Screenwash and headlamp wash reservoir. 3. Coolant reservoir. 4. Brake fluid reservoir. 5. Battery / Fuses. 6. Fusebox. 7. Air filter. 8. Engine oil dipstick. 9. Engine oil filler cap. 10. Priming pump. 11. Bleed screw. HDi 160 PEF 6- SPEED ELECTRONIC GEARBOX

259Checks
Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle fitted with headlamp washers, immobilise the
vehicle and switch of the engine.  Before opening the bonnet, ensure that the engine has completely stopped.  Open the screenwash reservoir filler cap.
Topping up
This additive must be topped up by a CITROËN dealer or a qualified workshop without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by illumination of the service warning lamp, accompanied by an audible warning and a message in the instrument panel screen.
Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or replaced by plain water. In wintry conditions, the use of an ethyl alcohol or methanol base fluid is recommended.
 Take and pinch the level gauge to block its breather.  Remove the gauge completely from the reservoir to read the level in the transparent section.  Top up if necessary.  Refit the filler cap to the reservoir and close the bonnet.

11 CONFIGURATION
Display configuration
Press SETUP to display the " Confi guration " menu.
Select " Choose colour " and confi rm to Choose colour " and confi rm to Choose colourselect the screen colour harmony and the map presentation mode:
- day mode,
- night mode,
- automatic day/night mode, according to whether the headlamps are on.
Select " Adjust luminosity " and confi rm to adjust the screen brightness.
Press " OK " to save the changes.
The settings for day and night are independent.
Select " Display confi guration " and confi rm.

11
321

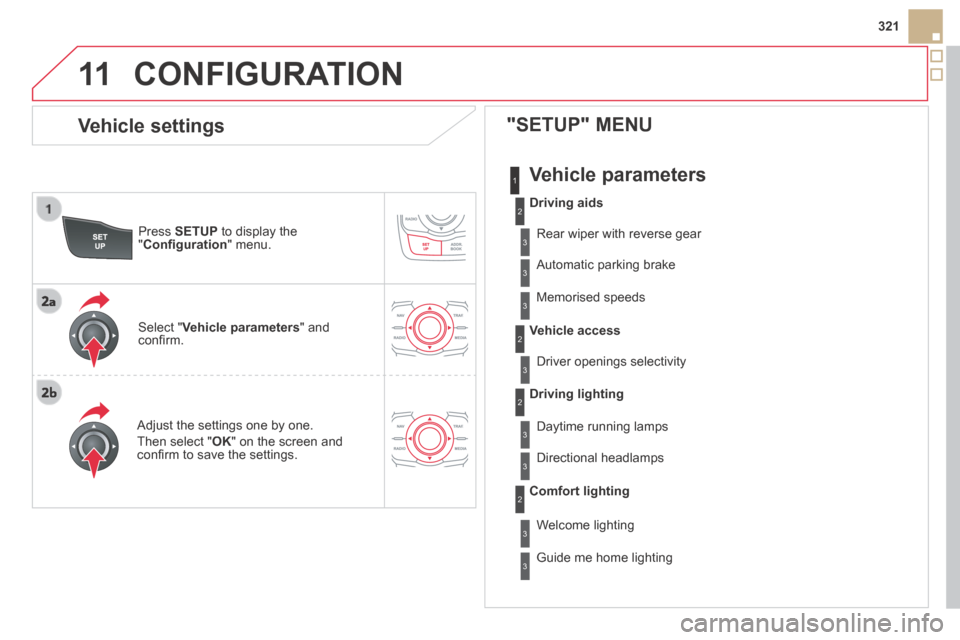

Press SETUP to display the " Confi guration " menu.
Adjust the settings one by one.
Then select " OK " on the screen and confi rm to save the settings.
Select " Vehicle parameters " and confi rm.
Vehicle settings
CONFIGURATION
"SETUP" MENU
Vehicle parameters
Driving aids
Rear wiper with reverse gear
Automatic parking brake
1
2
Memorised speeds
3
3
3
Vehicle access2
Driver openings selectivity 3
Driving lighting2
Daytime running lamps 3
Directional headlamps 3
Comfort lighting2
Welcome lighting 3
Guide me home lighting 3

07
355

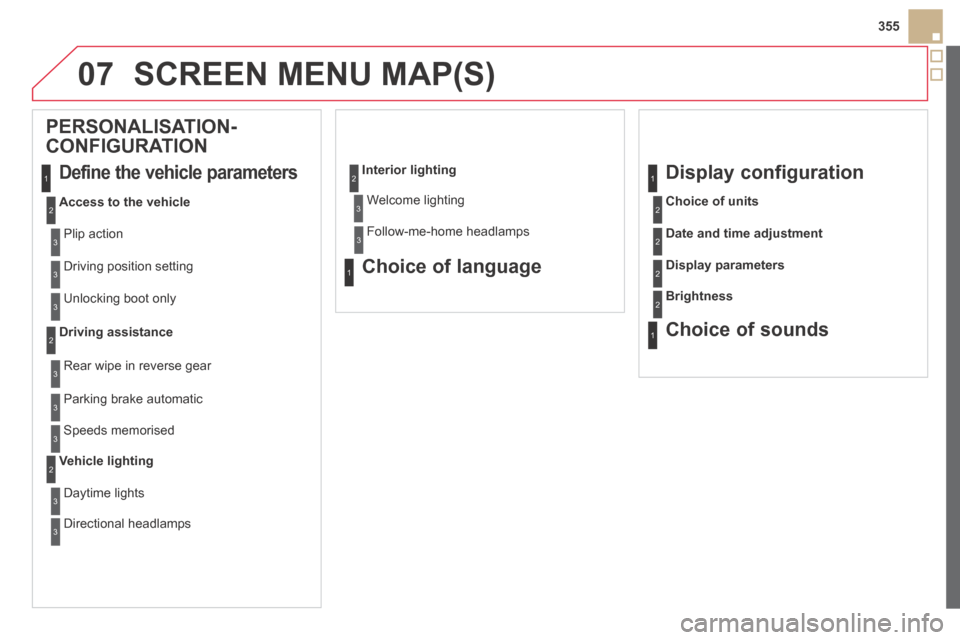

SCREEN MENU MAP(S)
PERSONALISATION-
CONFIGURATION
Define the vehicle parameters
Access to the vehicle
Plip action
Driving position setting
Unlocking boot only
Driving assistance
Rear wipe in reverse gear
Parking brake automatic
Speeds memorised
Vehicle lighting
Daytime lights
Directional headlamps
Interior lighting
Welcome lighting
Follow-me-home headlamps
Choice of language
Display configuration
Choice of units
Date and time adjustment
Display parameters
Brightness
Choice of sounds
1
2
3
3
3
2
3
3
3
2
3
3
2
3
3
1
1
2
2
2
2
1
