67Monitoring
Warning / indicator lampStateCauseAction / Observations
Dynamic stability control (DSC/ASR)
flashing. The DSC/ASR regulation is operating. The system optimises traction and improves the directional stability of the vehicle in the event of loss of grip or trajectory.
fixed. The DSC/ASR system has a fault. Have it checked by a CITROËN dealer or a qualified workshop.

Engine autodiagnosis system
flashing. The engine management system has a fault. Risk of destruction of the catalytic converter. Have it checked by a CITROËN dealer or a qualified workshop.
fixed. The emission control system has a fault. The warning lamp should go off when the engine is started. If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.

Anti-lock Braking System (ABS)
fixed. The anti-lock braking system has a fault. The vehicle retains conventional braking. Drive carefully at reduced speed and contact a CITROËN dealer or a qualified workshop without d e l ay.

Braking fixed. The braking system fluid level has dropped significantly. You must stop as soon as it is safe to do so. Top up with brake fluid listed by CITROËN. If the problem persists, have the system checked by a CITROËN dealer or a qualified workshop.
+ fixed, associated with the ABS warning lamp.
The electronic brake force distribution (EBFD) system has a fault. You must stop as soon as it is safe to do so. Have it checked by a CITROËN dealer or a qualified workshop.

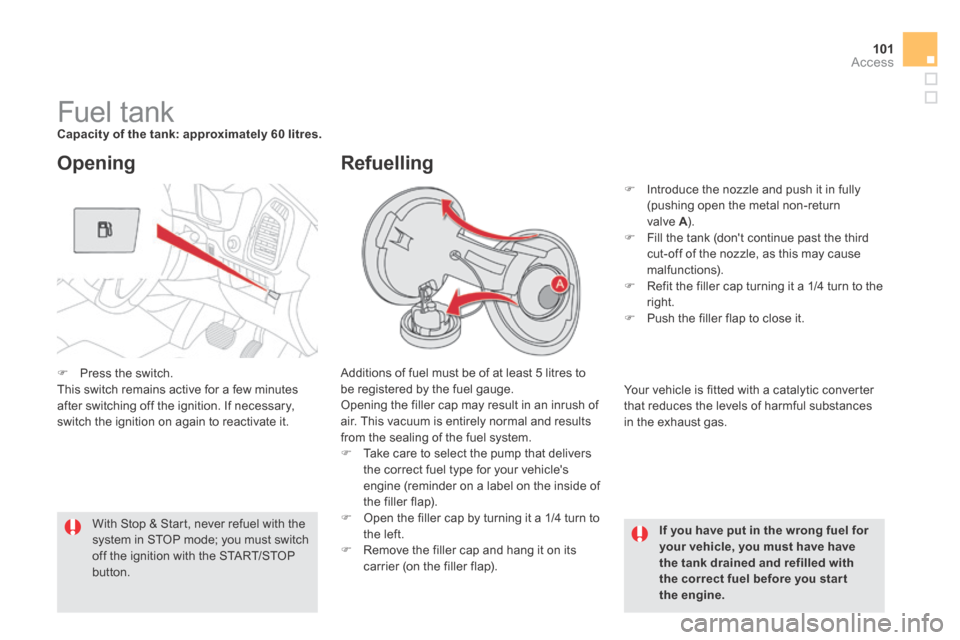

101Access
Fuel tank Capacity of the tank: approximately 60 litres.
Additions of fuel must be of at least 5 litres to be registered by the fuel gauge. Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.  Take care to select the pump that delivers the correct fuel type for your vehicle's engine (reminder on a label on the inside of the filler flap).  Open the filler cap by turning it a 1/4 turn to the left.  Remove the filler cap and hang it on its carrier (on the filler flap).
Opening
If you have put in the wrong fuel for your vehicle, you must have have the tank drained and refilled with the correct fuel before you star t
the engine.
With Stop & Start, never refuel with the system in STOP mode; you must switch off the ignition with the START/STOP button.
Refuelling
 Introduce the nozzle and push it in fully (pushing open the metal non-return valve A ). A ). A
 Fill the tank (don't continue past the third cut-off of the nozzle, as this may cause malfunctions).  Refit the filler cap turning it a 1/4 turn to the right.  Push the filler flap to close it.
Your vehicle is fitted with a catalytic converter that reduces the levels of harmful substances in the exhaust gas.
 Press the switch . This switch remains active for a few minutes after switching off the ignition. If necessary, switch the ignition on again to reactivate it.

267Technical data
Engine and gearbox
Diesel engineHDi 160 PEF
Gearbox Electronic (6-speed)
Model code RHC
Cubic capacity (cc) 1 997
Bore x stroke (mm) 85 x 88
Max power: EU standard (kW) * 120
Max power engine speed (rpm) 3 850
Max torque: EU standard (Nm) 300
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter yes
Particle emission filter yes
Engine oil capacity with filter replacement (in litres) -
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation (directive 1999/99/EC).
