Front and rear parking sensors Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind the vehicle during parking manoeuvres.
15 4
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
Exterior expressive stickers
Do not have your vehicle washed in a high pressure car wash.
212
Exterior Reversing camera
This system, available only with satellite navigation, is activated automatically on engaging reverse gear and provides an image in the colour screen.
15 6

Illumination of the indicator lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.
Opening the boot.
Deactivation of the alarm.
Electric parking brake activated.
Push button starting/stopping.
Forced operation of the Diesel engine.
Deactivation of parking sensors.
Electric child lock.
Deactivation of the DSC/ASR systems.
Activation for Automatic headlamp
dipping.
Activation of lane departure warning system.
Locking/unlocking the passenger compartment.
101
94
93
132
31, 35
46
155
193
200
165
14 6
91

This system indicates the proximity of an obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensors located in the bumper. Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to the presence of blind spots.

Parking sensors
This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
Rear parking
sensors
The system is switched on by engaging reverse gear. This is accompanied by an audible signal. The system is switched off when you come out of reverse gear.
Audible assistance
The proximity information is given by an intermittent audible signal, the frequency of which increases as the vehicle approaches the obstacle. The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located.
When the distance between the vehicle and the obstacle becomes less than approximately thirty centimetres, the audible signal becomes continuous.
Visual assistance
This supplements the audible signal by displaying bars in the multifunction screen
which move progressively nearer to the vehicle. When the obstacle is near, the "Danger" symbol is displayed in the screen.

155Driving
In bad weather or in winter, ensure
that the sensors are not covered with mud, ice or snow. When reverse gear is engaged, an audible signal (long beep) indicates that the sensors may be dirty. Certain sound sources (motorcycle, lorry, pneumatic drill, etc.) may trigger the audible signals of the parking sensor system.
In the event of a malfunction of the system, when reverse gear is engaged this warning lamp is displayed in the instrument panel and/or a message appears in the screen, accompanied by an audible signal (short beep). Contact a CITROËN dealer or a qualified workshop.
Operating fault
In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle is detected in front and the speed of the vehicle is still below 6 mph (10 km/h). The front parking sensors are interrupted if the vehicle stops for more than three seconds in for ward gear, if no further obstacles are detected or when the speed of the vehicle exceeds 6 mph (10 km/h).
Front parking sensors
The function will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).
Deactivation / Activation of the front and rear parking sensors
The function is deactivated by pressing this button. The indicator lamp in the button comes on. Pressing this button again reactivates the
function. The indicator lamp in the button goes off.
The sound emitted by the speaker (front or rear) indicates whether the obstacle is in front or behind.

245Practical information
We recommend the use of genuine CITROËN towbars and their harnesses that have been tested and approved from the design stage of your vehicle, and that the fitting of the towbar is
entrusted to a CITROËN dealer or a qualified workshop. If the towbar is not fitted by a CITROËN dealer, it is imperative that it is fitted in accordance with the vehicle manufacturer's instructions.
Driving advice
Distribution of loads
 Distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted without exceeding it. Air density decreases with altitude, thus
reducing engine performance. Above 1 000 metres, the maximum towed load must be reduced by 10 % for every 1 000 metres of altitude.
Side wind
 Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.  To lower the engine speed, reduce your speed.
 If the warning lamp and the STOP warning lamp come on, stop the vehicle and switch off the engine as soon as possible.
Braking
Towing a trailer increases the braking distance. To avoid overheating of the brakes on a long mountain type of descent, the use of engine braking is recommended.
Ty r e s
 Check the tyre pressures of the towing vehicle and of the trailer, observing the recommended pressures.
Lighting
 Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be deactivated automatically if a genuine CITROËN towbar is used.
Driving with a trailer places greater demands on the towing vehicle and the driver must take particular care.
The maximum towed load on a long incline depends on the gradient and the ambient temperature. In all cases, keep a check on the coolant temperature.
Refer to the "Technical data" section for details of the weights and towed loads which apply to your vehicle.

247Practical information

Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network. These accessories and parts have been tested and approved for reliability and safety. They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors, scented air freshener, cigarette lighter...
"Transport systems":
child seats and booster cushions, boot carpet, boot liner, boot net, boot spacers, transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, wiring harnesses... If a towbar and wiring harness are fitted outside the CITROËN dealer network, the installation must be done using the vehicle's electrical pre-equipment and fitted following the
manufacturer's recommendations.
"Styling":
aluminium pedals, aluminium foot rest, alloy wheels, chrome mirror shells, ...
* To avoid any risk of jamming the pedals: - ensure that mats are correctly positioned and secured, - never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle tracking system, child seats and booster cushions, dog guard, breathalyser, first aid kit, fire extinguisher, warning triangle, belt cutter/glass breaker, high visibility vest, wheel security bolts, snow chains, non-slip covers...
"Protection":
mats * , mud flaps, bumper protection strips, boot sill protector, vehicle cover... The rear bodywork has been designed to avoid s p r ay.

367Alphabetical index
Radio .............................................310, 311, 335Ready ..............................................................35Ready lamp .....................................................35Rear foglamp .................................................232Rear screen (demisting) ........................114, 128Recharging the battery ...........................238-240Reduction of electrical load ...........................241Regeneration of the particle emissions fi lter .............................................emissions fi lter .............................................emissions fi lter261Reinitialising the remote control ......................89Remote control ...............................82-84, 86, 90Removing a wheel .........................................222Removing the mat .........................................11 7Repair kit, puncture .......................................212
Safety for children..................................187, 193Screen, colour and mapping..........................281Screen, instrument panel.................................78Screen menu map .........................322, 354, 355Screen, monochrome ............................334, 354Screen, multifunction (with audio equipment) ................................334Screenwash ...................................................259Screenwash fl uid level ...................................259Screenwash, front..........................................172Seat adjustment.....................................106, 107Seat belts........................................186, 202-204
Replacing bulbs .............................227, 232, 234Replacing fuses .............................................235Replacing the air fi lter ....................................Replacing the air fi lter ....................................Replacing the air fi lter261Replacing the oil fi lter ....................................Replacing the oil fi lter ....................................Replacing the oil fi lter261Replacing the passenger compartment fi lter ..............................................................fi lter ..............................................................fi lter261Replacing wiper blades .........................174, 242Reset history....................................................49Resetting the service indicator ........................Resetting the service indicator ........................Resetting the service indicator72Resetting the trip recorder ...............................Resetting the trip recorder ...............................Resetting the trip recorder74Reversing camera .........................................156Reversing lamp..............................................232Risk areas (update) .......................................288Roof bars .......................................................246Routine checks .......................................260-262Running out of fuel (Diesel) ........................................................255
Seat, rear bench .....................................111 , 11 3Seats, rear ...............................................Seats, rear ...............................................Seats, rear111 - 11 3Selector lever, electronic gearbox system ...........................140Serial number, vehicle ...................................270Service indicator ..............................................Service indicator ..............................................Service indicator71Service warning light .......................................65Servicing ..........................................................47Setting the clock ................................76, 77, 321Short-cut menus ............................................282Sidelamps ...............160, 163, 166, 227, 229-232Side repeater .................................................Side repeater .................................................Side repeater231Ski fl ap ...........................................................11 9Snow chains ..........................................226, 270Spare wheel...................................................218Speed limiter..........................................149, 150Speedometer .............................................Speedometer .............................................Speedometer38, 58Spotlamps, side .....................................167, 231Start .........................................................31, 239Starting the engine ..........................................42Starting the vehicle ............................31, 34, 140Steering mounted controls, audio ....................................................280, 333Stopping the vehicle ..........................31, 34, 140Stop & Start ..................................101, 125, 128, 238, 253, 255, 256, 258, 260Storage ...........................................116, 118-120Storing a speed .....................................150, 152Storing driving positions ................................108Switching off the engine ............................31, 34Synchronising the remote control ............................................................89Synthesiser, voice..........................................294System, navigation ........................................284
Paint colour code ...........................................270Parking brake ................................................262Parking brake, electric ...............62, 66, 132, 136Parking lamps ................................................166Parking sensors, front....................................155Parking sensors, rear ....................................Parking sensors, rear ....................................Parking sensors, rear154Particle emission fi lter....................258, 259, 261Passenger compartment fi lter........................261Player, CD MP3 .....................................339, 340Port, USB...............................................118, 341Power ..............................................................Power ..............................................................Power38Priming the fuel system .................................255Protecting children ........180, 181, 185, 187, 189, 190, 205Puncture ........................................................212

369Visual search

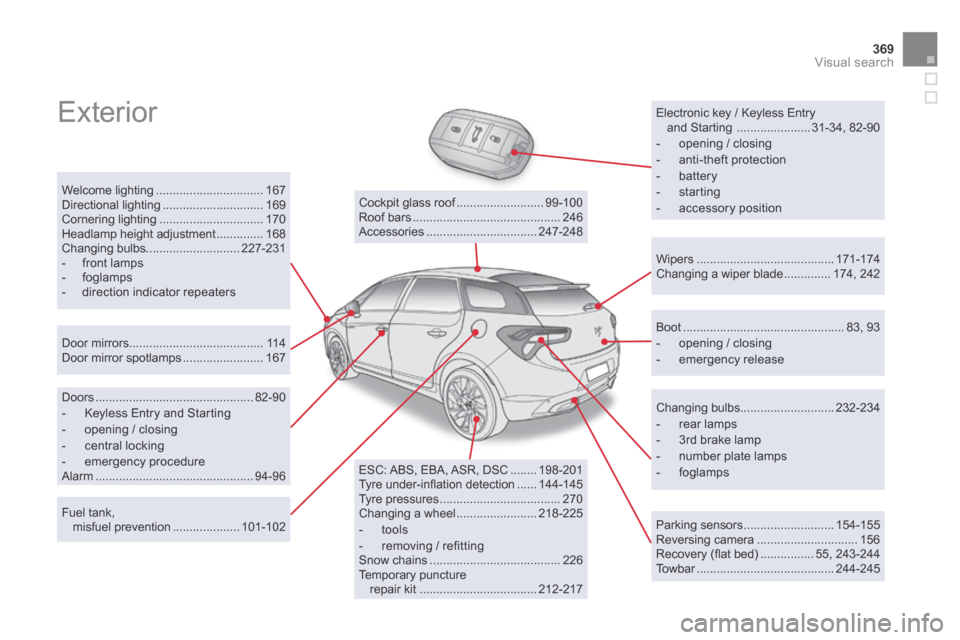

Exterior Electronic key / Keyless Entry and Starting ...................... 31-34, 82-90
