Automatic headlamp dipping
This system automatically switches between dipped and main beam, depending on the lighting and driving conditions, using a camera placed in the interior rear view mirror. placed in the interior rear view mirror.
165
Front and rear parking sensors Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind the vehicle during parking manoeuvres.
15 4
Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant cartridge, to allow
the temporary repair of a tyre.
Exterior expressive stickers
Do not have your vehicle washed in a high pressure car wash.
212
Exterior Reversing camera
This system, available only with satellite navigation, is activated automatically on engaging reverse gear and provides an image in the colour screen.
15 6

Illumination of the indicator lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.
Opening the boot.
Deactivation of the alarm.
Electric parking brake activated.
Push button starting/stopping.
Forced operation of the Diesel engine.
Deactivation of parking sensors.
Electric child lock.
Deactivation of the DSC/ASR systems.
Activation for Automatic headlamp
dipping.
Activation of lane departure warning system.
Locking/unlocking the passenger compartment.
101
94
93
132
31, 35
46
155
193
200
165
14 6
91

Low fuel level fixed with the two last bars flashing, accompanied by a message and an audible signal.
When it first comes on there remains approximately 6 litres of approximately 6 litres of approximately 6 litres offuel in the tank.
You must refuel as soon as possible to avoid running out of fuel. This warning lamp will come on every time the ignition is switched on, accompanied by a message and an audible signal, until a sufficient addition of fuel is
made. This audible signal and message are repeated with increasing frequency as the fuel level drops and approaches "0". Fuel tank capacity: approximately 60 litres. Never continue to drive until you run out of fuel as this could damage the emission control and injection systems.
Warning / indicator lampStateCauseAction / Observations
Under-inflation fixed. The pressure in one or more wheels is too low. Check the pressure of the tyres as soon as possible. This check should preferably be carried out when the tyres are cold.
+ flashing then fixed, accompanied by the Service warning lamp.
The tyre pressure monitoring system has a fault or no sensor is detected on one of the wheels.
Under-inflation detection is not assured. Have the system checked by a CITROËN dealer or a qualified workshop.

11 5Comfort
Automatic day/night model
By means of a sensor, which measures the light from the rear of the vehicle, this system automatically and progressively changes between the day and night uses.
Adjustable mirror providing a central rearward view. Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlamps from other vehicles...
Rear view mirror
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.
Steering wheel adjustment
 When stationary , pull the control lever to When stationary , pull the control lever to When stationaryrelease the adjustment mechanism.  Adjust the height and reach to suit your driving position.  Push the control lever to lock the adjustment mechanism.
As a safety precaution, these operations should only be carried out with the vehicle stationary.
As a safety measure, the mirrors should be adjusted to reduce the "blind spot".
Seeing clearly
For better rear vision, align the bottom of the rear view mirror with the bottom of the rear screen.

123Comfort
In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system.  Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).  To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the maintenance and warranty guide.  If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop. You can switch off the air conditioning (AC button) and stay in Automatic mode in order to limit fuel consumption. If misting appears while in this mode, you can switch the air conditioning back on temporarily to improve the situation. When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.

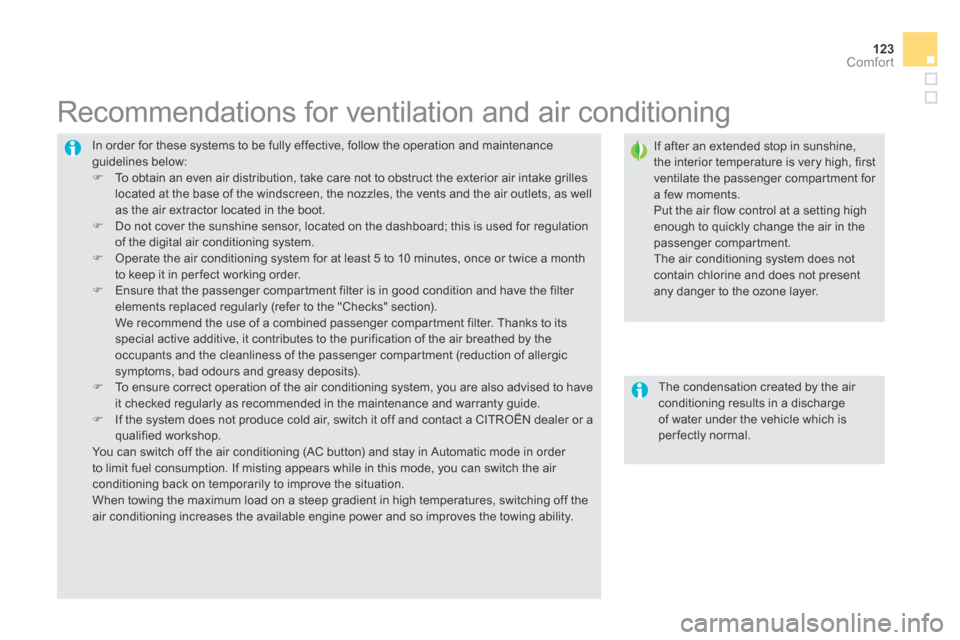

Recommendations for ventilation and air conditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.

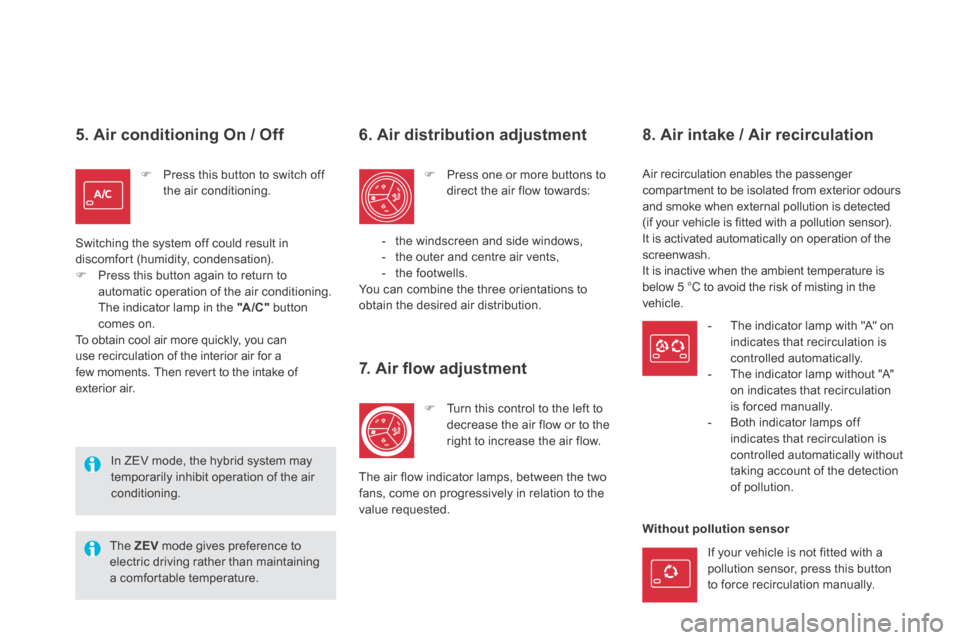

5. Air conditioning On / Off
 Press this button to switch off the air conditioning.
Switching the system off could result in discomfort (humidity, condensation).  Press this button again to return to automatic operation of the air conditioning. The indicator lamp in the "A /C " button comes on. To obtain cool air more quickly, you can use recirculation of the interior air for a few moments. Then revert to the intake of exterior air.
6. Air distribution adjustment
 Press one or more buttons to direct the air flow towards:
- the windscreen and side windows, - the outer and centre air vents, - the footwells. You can combine the three orientations to obtain the desired air distribution.
7. Air fl ow adjustment
 Turn this control to the left to decrease the air flow or to the right to increase the air flow.
The air flow indicator lamps, between the two fans, come on progressively in relation to the value requested.
8. Air intake / Air recirculation
Air recirculation enables the passenger compartment to be isolated from exterior odours and smoke when external pollution is detected (if your vehicle is fitted with a pollution sensor).
It is activated automatically on operation of the screenwash. It is inactive when the ambient temperature is below 5 °C to avoid the risk of misting in the vehicle.
- The indicator lamp with "A" on indicates that recirculation is controlled automatically. - The indicator lamp without "A" on indicates that recirculation is forced manually. - Both indicator lamps off indicates that recirculation is controlled automatically without taking account of the detection of pollution.
Without pollution sensor
If your vehicle is not fitted with a pollution sensor, press this button to force recirculation manually.
In ZEV mode, the hybrid system may temporarily inhibit operation of the air conditioning.
The ZEV mode gives preference to electric driving rather than maintaining a comfortable temperature.

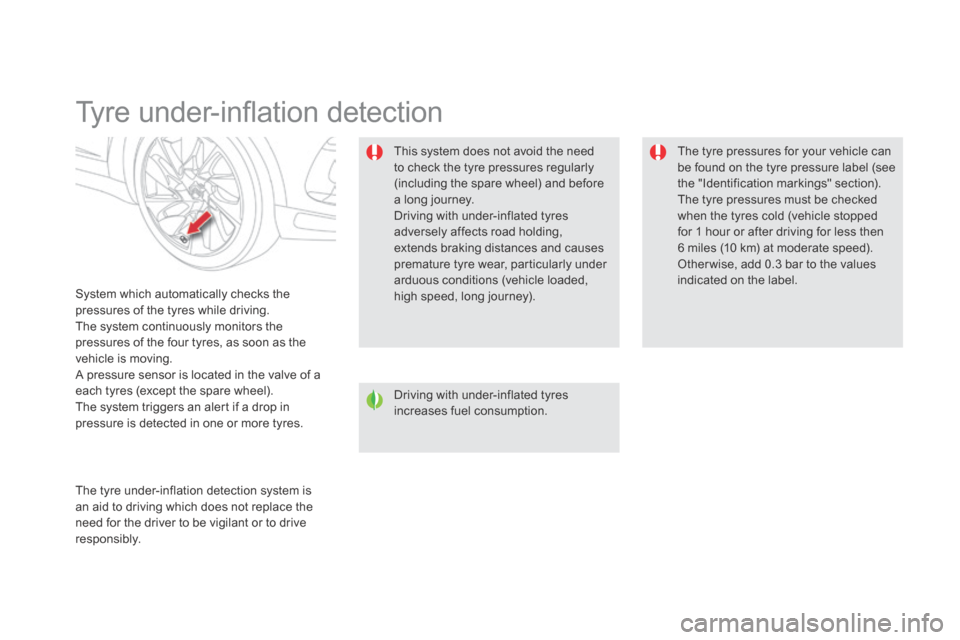

Tyre under-infl ation detection
System which automatically checks the pressures of the tyres while driving. The system continuously monitors the pressures of the four tyres, as soon as the vehicle is moving. A pressure sensor is located in the valve of a each tyres (except the spare wheel). The system triggers an alert if a drop in pressure is detected in one or more tyres.
This system does not avoid the need to check the tyre pressures regularly (including the spare wheel) and before a long journey. Driving with under-inflated tyres
adversely affects road holding, extends braking distances and causes premature tyre wear, particularly under arduous conditions (vehicle loaded, high speed, long journey).
The tyre pressures for your vehicle can be found on the tyre pressure label (see the "Identification markings" section). The tyre pressures must be checked when the tyres cold (vehicle stopped
for 1 hour or after driving for less then 6 miles (10 km) at moderate speed). Other wise, add 0.3 bar to the values indicated on the label.
Driving with under-inflated tyres increases fuel consumption.
The tyre under-inflation detection system is an aid to driving which does not replace the need for the driver to be vigilant or to drive responsibly.

145Driving

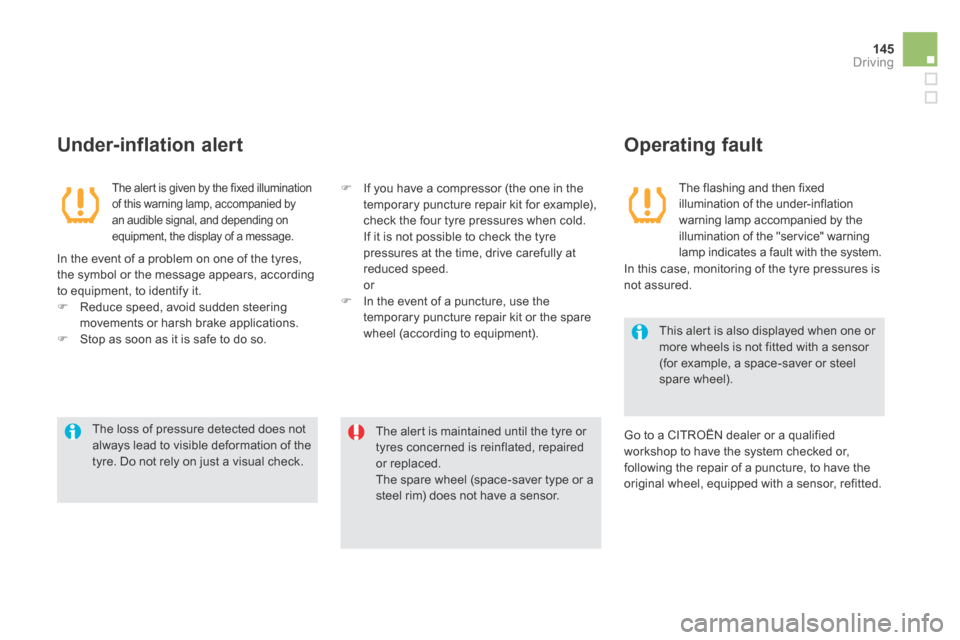

The alert is maintained until the tyre or tyres concerned is reinflated, repaired or replaced. The spare wheel (space-saver type or a steel rim) does not have a sensor.
The loss of pressure detected does not
always lead to visible deformation of the tyre. Do not rely on just a visual check.
This alert is also displayed when one or more wheels is not fitted with a sensor (for example, a space-saver or steel spare wheel).
The alert is given by the fixed illumination of this warning lamp, accompanied by an audible signal, and depending on equipment, the display of a message.
The flashing and then fixed illumination of the under-inflation warning lamp accompanied by the illumination of the "service" warning lamp indicates a fault with the system.
Under-inflation alert Operating fault
In the event of a problem on one of the tyres, the symbol or the message appears, according to equipment, to identify it.  Reduce speed, avoid sudden steering movements or harsh brake applications.  Stop as soon as it is safe to do so.
Go to a CITROËN dealer or a qualified workshop to have the system checked or, following the repair of a puncture, to have the original wheel, equipped with a sensor, refitted.
In this case, monitoring of the tyre pressures is not assured.
 If you have a compressor (the one in the temporary puncture repair kit for example), check the four tyre pressures when cold. If it is not possible to check the tyre pressures at the time, drive carefully at reduced speed. or  In the event of a puncture, use the temporary puncture repair kit or the spare wheel (according to equipment).

This system indicates the proximity of an obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensors located in the bumper. Certain types of obstacle (stake, roadworks cone, etc.) detected initially will no longer be detected at the end of the manoeuvre due to the presence of blind spots.

Parking sensors
This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
Rear parking
sensors
The system is switched on by engaging reverse gear. This is accompanied by an audible signal. The system is switched off when you come out of reverse gear.
Audible assistance
The proximity information is given by an intermittent audible signal, the frequency of which increases as the vehicle approaches the obstacle. The sound emitted by the speaker (right or left) indicates the side on which the obstacle is located.
When the distance between the vehicle and the obstacle becomes less than approximately thirty centimetres, the audible signal becomes continuous.
Visual assistance
This supplements the audible signal by displaying bars in the multifunction screen
which move progressively nearer to the vehicle. When the obstacle is near, the "Danger" symbol is displayed in the screen.
