tailgate Citroen DS5 HYBRID4 RHD 2014 1.G Owner's Manual

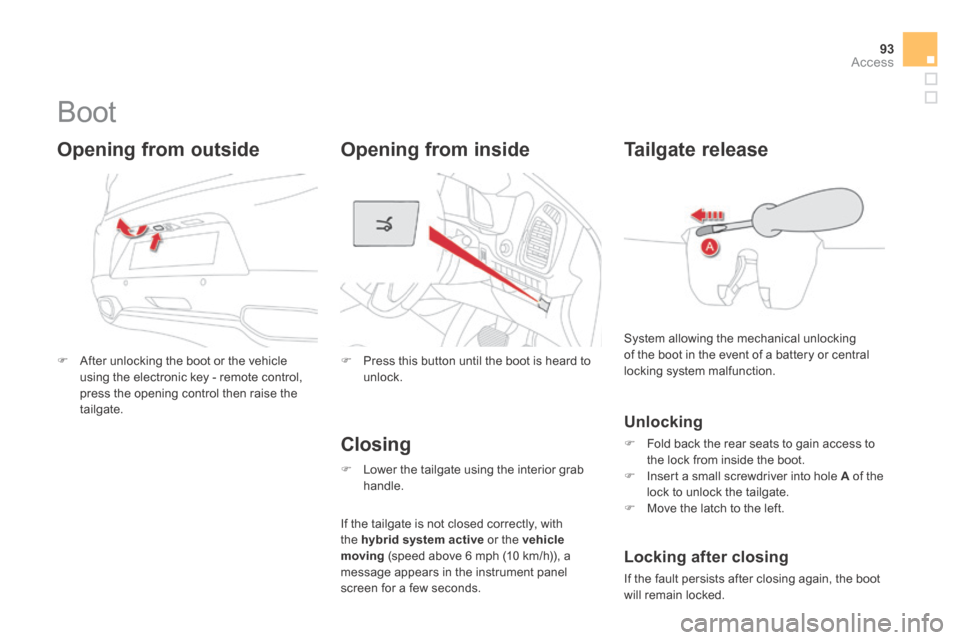

93Access
Boot
 After unlocking the boot or the vehicle using the electronic key - remote control, press the opening control then raise the tailgate.
Opening from outside
 Press this button until the boot is heard to unlock.
Tailgate release
System allowing the mechanical unlocking of the boot in the event of a battery or central locking system malfunction.
If the tailgate is not closed correctly, with the hybrid system active or the vehicle moving (speed above 6 mph (10 km/h)), a message appears in the instrument panel screen for a few seconds.
Locking after closing
If the fault persists after closing again, the boot will remain locked.
Unlocking
 Fold back the rear seats to gain access to the lock from inside the boot.  Insert a small screwdriver into hole A of the lock to unlock the tailgate.  Move the latch to the left.
Closing
 Lower the tailgate using the interior grab handle.
Opening from inside

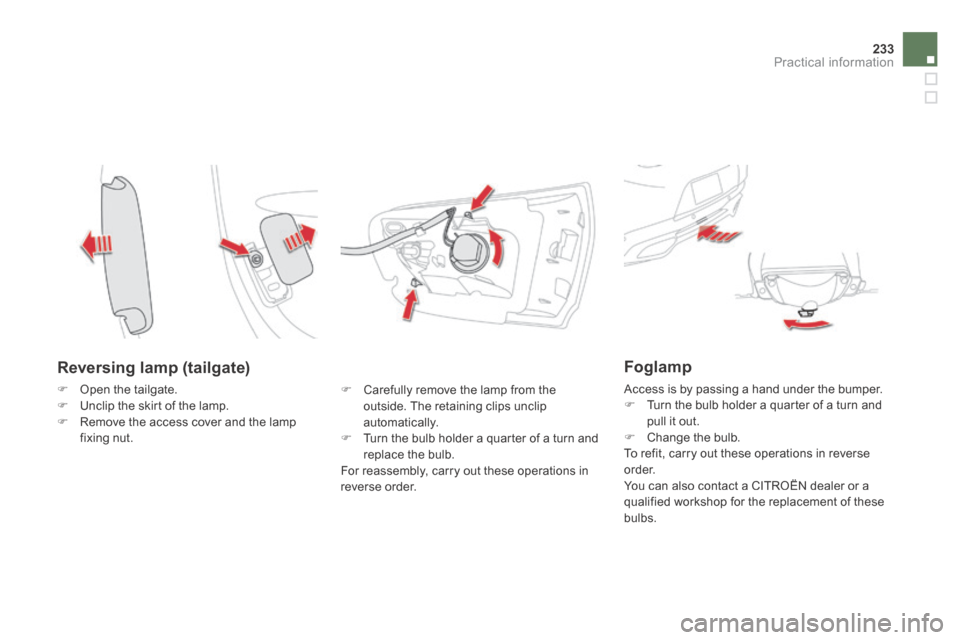

233Practical information
Reversing lamp (tailgate)
 Open the tailgate.  Unclip the skirt of the lamp.  Remove the access cover and the lamp
fixing nut.
 Carefully remove the lamp from the outside. The retaining clips unclip automatically.
 Turn the bulb holder a quarter of a turn and replace the bulb. For reassembly, carry out these operations in reverse order.
Foglamp
Access is by passing a hand under the bumper.  Turn the bulb holder a quarter of a turn and pull it out.  Change the bulb. To refit, carry out these operations in reverse o r d e r. You can also contact a CITROËN dealer or a qualified workshop for the replacement of these bulbs.

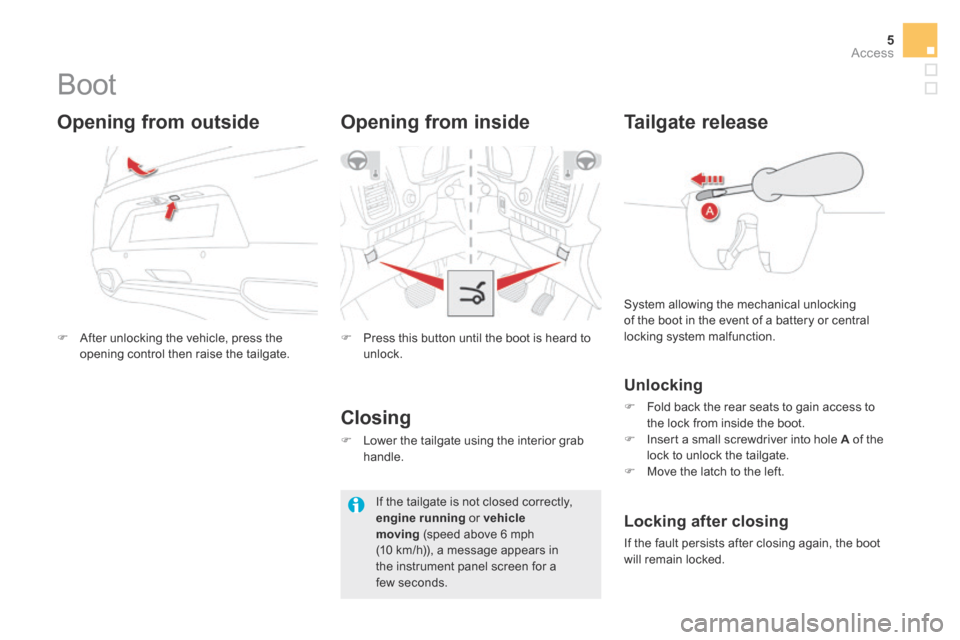

5Access
DS5_ Additif_en_Chap02_ouvertures_ed03-2015
Boot
 After unlocking the vehicle, press the opening control then raise the tailgate.
Opening from outside
 Press this button until the boot is heard to unlock.
Tailgate release
Unlocking
 Fold back the rear seats to gain access to the lock from inside the boot.  Insert a small screwdriver into hole A of the lock to unlock the tailgate.  Move the latch to the left.
System allowing the mechanical unlocking of the boot in the event of a battery or central locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot will remain locked.
Closing
 Lower the tailgate using the interior grab handle.
Opening from inside
If the tailgate is not closed correctly, engine running or vehicle moving (speed above 6 mph (10 km/h)), a message appears in the instrument panel screen for a few seconds.
