Citroen DS5 RHD 2011.5 1.G Owner's Manual

239Technical data























Identifi cation markings
Various visible markings for the identification of your vehicle.
A.Vehicle Identification Number (VIN) under the bonnet. This number is engraved on the bodyworknear the damper support.


The tyre pressures must be checked when the tyres are cold, at least oncea month. The rear quar ter light cannot be etchedas it is made of polycarbonate material.


If the tyre pressures are too low,this increases fuel consumption. B.Vehicle identification Number (VIN) on
the windscreen lower cross member. This number is indicated on a self-adhesive
label which is visible through the windscreen.
C.Manufacturer's label.The VIN is indicated on a self-destroyinglabel affixed to the door aper ture, on the
passenger's side.
D.Tyre/paint label.This label is affixed to the centre pillar,on the driver's side. It bears the followin
g information:


- the tyre inflation pressures with and without
load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by themanufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.

011
Audio and telematics

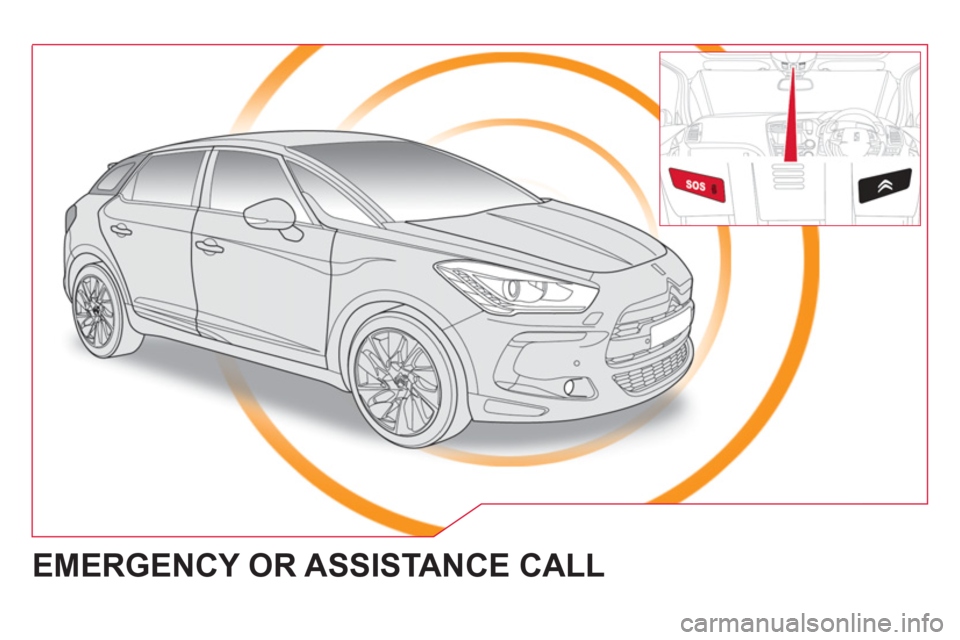

EMERGENCY OR ASSISTANCE CALL

243














EMERGENCY OR ASSISTANCE CALL
CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than 2 seconds.
Flashing of the green LED and a voice message confirm that
the call has been made to the CITROËN Emergency team * .
Pressin
g this button again immediately cancels the request. The green LEDgoes off.
A press (at any time) of more than 8 seconds on this button, cancels the request.
CITROËN LOCALISED ASSISTANCE CALL

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.

If the oran
ge LED flashes: there is a system fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a CITROËN.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.A voice message confirms that the call has been made * .
OPERATION OF THE SYSTEM The green LED remains on (without flashing) when communication is
established. It goes off at the end of communication.
If
you purchased your vehicle outside the CITROËN dealer network, we
invite you to have a dealer check the configuration of these ser vices and, if
desired, modified to suit your wishes. In a multi-lingual country, configuration
is possible in the official national language of your choice. This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed aler t to theappropriate emergency services. In countries in which the team is not
operational, or when the locating ser vice has been expressly declined, the
call is dealt with directly by the emergency services (112) without the vehicle location.

I
f an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made
automatically.
*
These ser vices are sub
ject to conditions and availability.Consult a CITROËN dealer. If
you benefit from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN
Internet website www.citroen.co.uk.
For technical reasons, par ticularly to improve the quality of Telematic ser vices
to customers, the manufacturer reser ves the right to carry out updates to the
vehicle's on-board telematic system.

245

The s
ystem is protected in such a way that it will onlyoperate in your vehicle.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
246
248
249
251
264
267
275
27
8
281
287
288
290

Frequently asked questions p. 293


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM

01 FIRST STEPS
Short press: select a preset
radio station.
Long press: store thecurrent radio station.
TA
(Traffi c Announcement) function On/Off.
Displa
y the list of radio stations received, CD/MP3/Apple®
player tracks or folders. ®

Long press: management of the classifi cation of MP3/WMA fi les/update
the list of stations received.

Access to " Audio settings":musical ambiences, bass,
treble, loudness, distribution,
left/ri
ght balance, front/rear
fader, automatic volume
adjustment.

Selection of AM/FM
wavebands.

Press and hold: reinitialisethe system.

Select the source: CD
,
USB, AUX, Apple ® player,
Bluetooth Streaming, Radio.
A
bandon the current operation, go up one level.

Long press: return to
permanent display.
On/Off.
MODE
button: select the
type of permanent display.
Rotation: adjust
volume (each source is
independent, including TA
messages and navigation
instructions).
Select:
- the previous/next line in a list or menu.
- the previous next media
folder.
- step by step previous
/next radio frequency.
- previous
/next MP3 folder.
Move u
p/down, in "Move the map
" mode.
Select:


- automaticall
y the previous/next radio frequency.

- the previous
/next CD, MP3 or media track.
Move le
ft/right, in " Move the map" mode.
Displa
y black screen.

Short press: mute/
r
estore sound.

01
247

Access to the "Telephone " menuand display the list of recent calls
or accept an incoming call.


Access to the "Navigation -guidance" menu and display therecent destinations.
Radio source, access to the "FM
/AM band
" menu and display the list of stations received.

A
ccess to the "Confi guration"menu.
Long press: access to theGPS coverage and navigationdemonstration mode. Re
ject an incoming call or end a call in progress.

Access to the "Traffi c information
" menu and display of current traffi c alerts.
Displa
y the list of contacts/Access
to the "Directory of contacts"menu.
Media source, access to "MEDI
A" menu and display the list of
tracks.

Abandon the current operation, go upone level.
Long press: return to permanent display.

Selection and OK confi rmation dial:

Select an item on the screen or in a list or
a menu, then confi rm with a short press.

Other than for menus and lists, a short press calls up a contextual memory,
according to the display in the screen.
Rotation with the map displa
yed: zoom
in/out in the map.
FIRST STEPS

SRC

02


-
+


- Rotation.
Radio -automatic selection o
f next/previous frequency.
Media: previous
/next track.

- Pr
ess then rotation: access to6 preset stations.


-
Change the audio source.


- TEL button
(short press):
Accept an incomin
g call.
Call in pro
gress: access to telephone
menu: hang up, secret mode, hands-
free mode.


- TEL button
(long press):

Reject an incoming call or end a callin progress.
When not making a call, access to
the telephone menu
(Dial, Contacts, Calls log, Voice mailbox).


-
Increase volume.

-
Decrease volume.


- Radio: displa
y the list of stations.
Media: displa
y the list of tracks.
