Visibility

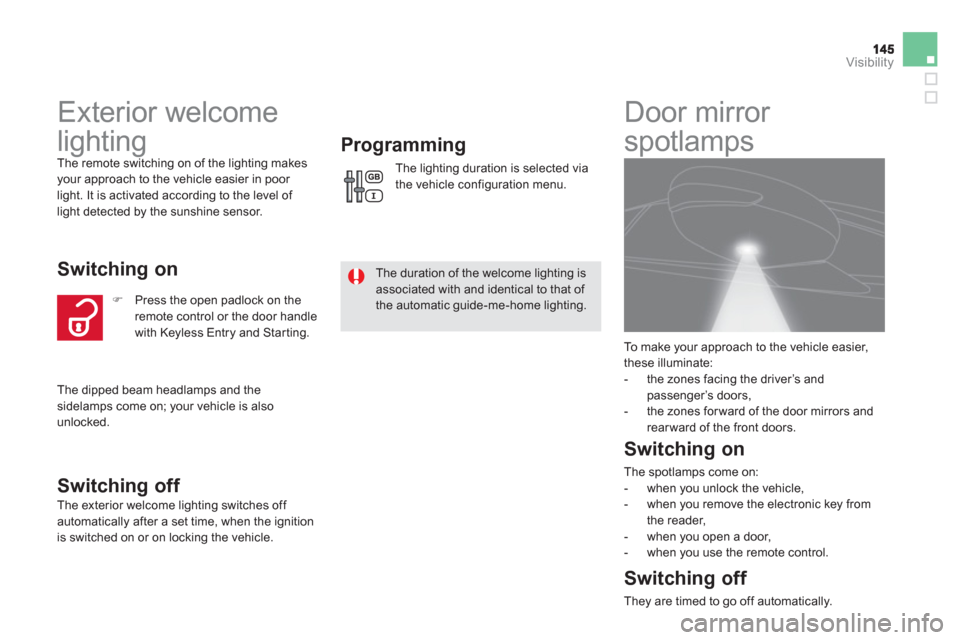

Exterior welcome
lighting
The remote switching on of the lighting makesyour approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.

Switching on

Switchin
g off


The exterior welcome lighting switches off
automatically after a set time, when the ignitionis switched on or on locking the vehicle.
Programming

The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting isassociated with and identical to that of the automatic guide-me-home lighting.) Press the open padlock on the
remote control or the door handlewith Keyless Entry and Starting.







Door mirror
spotlamps

Switching on
The spotlamps come on:


- when you unlock the vehicle,

- when
you remove the electronic key from
the reader,

- when
you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically. To m a k e
your approach to the vehicle easier,
these illuminate:


- the zones facing the driver’s andpassenger’s doors,

- the zones forward of the door mirrors and
rearward of the front doors.
The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.

151Visibility

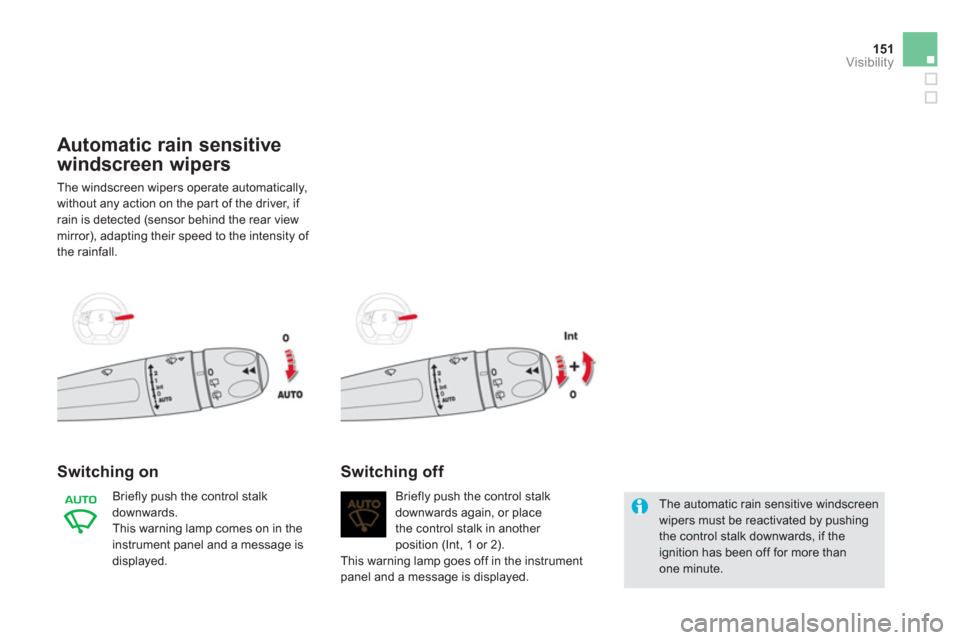

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the par t of the driver, if
rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of
the rainfall.

Switching on

Briefly push the control stalkdownwards.
This warning lamp comes on in the
instrument panel and a messa
ge is
displayed. Brie
fly push the control stalkdownwards again, or place
the control stalk in another
position
(Int, 1 or 2).
This warning lamp goes off in the instrumentpanel and a message is displayed.
Switching off


The automatic rain sensitive windscreenwipers must be reactivated by pushing the control stalk downwards, if theignition has been off for more than one minute.

Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic rain sensitive wipers when using an automatic car wash.
In winter, it is advisable to wait until thewindscreen is completely clear of ice before activating the automatic rainsensitive wipers.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.

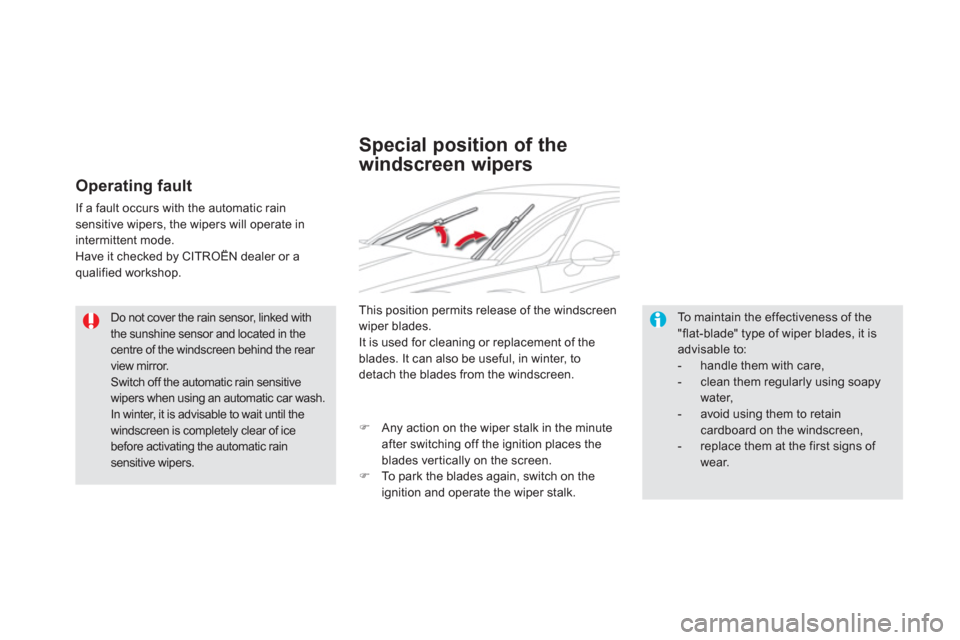

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the blades. It can also be useful, in winter, todetach the blades from the windscreen.


To maintain the effectiveness of the "flat-blade" type of wiper blades, it is advisable to:


- handle them with care,

- clean them regularly using soapywater,

- avoid using them to retain cardboard on the windscreen,

- replace them at the first signs of wear.


)
Any action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.) To park the blades again, switch on theignition and operate the wiper stalk.

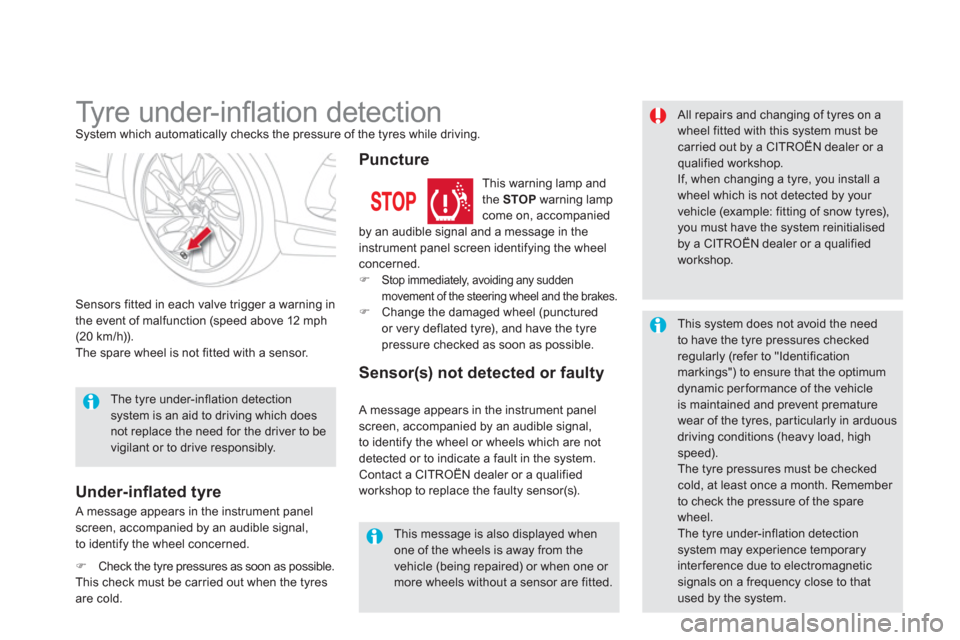

Ty r e u n d e r - i nfl ation detection System which automatically checks the pressure of the tyres while driving.
Sensors fitted in each valve trigger a warning in
the event of malfunction (speed above 12 mph(20 km/h)).
The spare wheel is not fitted with a sensor.

All repairs and changing of tyres on a wheel fitted with this system must becarried out by a CITROËN dealer or a
qualified workshop.
If, when changing a tyre, you install a wheel which is not detected by your vehicle (example: fitting of snow tyres),you must have the system reinitialised by a CITROËN dealer or a qualifiedworkshop.
This message is also displayed whenone of the wheels is away from thevehicle (being repaired) or when one or more wheels without a sensor are fitted.


The tyre under-inflation detectionsystem is an aid to driving which doesnot replace the need for the driver to bevigilant or to drive responsibly.

This system does not avoid the needto have the tyre pressures checkedregularly (refer to "Identification markings") to ensure that the optimumdynamic per formance of the vehicle is maintained and prevent premature wear of the tyres, particularly in arduousdriving conditions (heavy load, highspeed). The tyre pressures must be checked cold, at least once a month. Remember to check the pressure of the spare wheel.

The tyre under-inflation detectionsystem may experience temporary inter ference due to electromagnetic signals on a frequency close to thatused by the system.
A message appears in the instrument panel screen, accompanied by an audible signal,
to identify the wheel concerned.
Under-infl ated tyre
This warning lamp andthe STOPwarning lamp come on, accompanied by an audible signal and a message in the
instrument panel screen identifying the wheelconcerned. )Stop immediately, avoiding any sudden
movement of the steering wheel and the brakes.) Change the damaged wheel (puncturedor very deflated tyre), and have the tyre
pressure checked as soon as possible.


Puncture

A message appears in the instrument panel
screen, accompanied by an audible signal,
to identi
fy the wheel or wheels which are not
detected or to indicate a fault in the system.
Contact a CITROËN dealer or a qualified
workshop to replace the faulty sensor(s).


Sensor(s) not detected or faulty
)Check the tyre pressures as soon as possible. This check must be carried out when the tyres are cold.

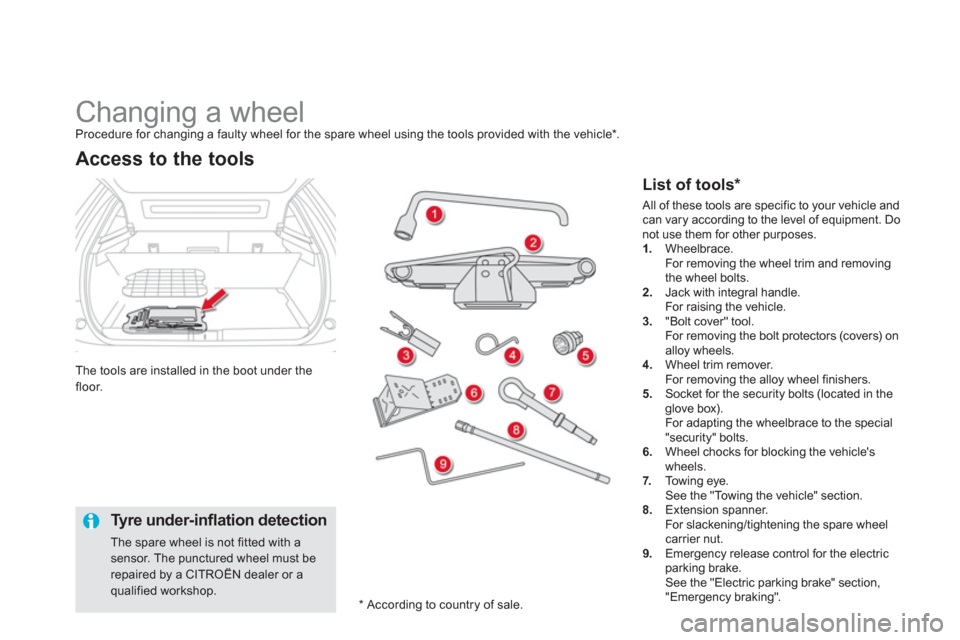

Changing a wheel Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle *
.
Th
e tools are installed in the boot under the floor.
Access to the tools

List of tools *



Tyre under-infl ation detection

The spare wheel is not fitted with a sensor. The punctured wheel must berepaired by a CITROËN dealer or a
qualified workshop.

All of these tools are specific to your vehicle and can vary according to the level of equipment. Do not use them for other purposes. 1.Wheelbrace.
For removing the wheel trim and removingthe wheel bolts. 2.Jack with integral handle.
For raising the vehicle. 3. "Bolt cover" tool.
For removing the bolt protectors (covers) onalloy wheels. 4.Wheel trim remover.
For removing the alloy wheel finishers.
5.Socket for the security bolts (located in theglove box).
For adapting the wheelbrace to the special
"security" bolts.
6. Wheel chocks for blocking the vehicle's
wheels.
7.To w i ng eye.
See the "Towing the vehicle" section.8. Extension spanner.
For slackening/tightening the spare wheel carrier nut.9.Emergency release control for the electric parking brake.
See the "Electric parking brake" section,
"Emergency braking".


*
According to country of sale.

217Practical information

Driving advice


Distribution of loads
)Distribute the load in the trailer so that
the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted
without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced b
y 10 % for every 1 000 metres of altitude.

Side wind
)Take into account the increased sensitivity
to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed. )
To lower the engine speed, reduce your speed. The maximum towed load on a long inclinedepends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
) If the warning lamp and theSTOPwarning lamp come on, stop the vehicle and switch off
the engine as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.


Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting
)
Check the electrical lighting and signalling on the trailer.



The rear parking sensors will be deactivated automatically if a genuineCITROËN towbar is used.

R
efer to the "Technical Data" section for detailsof the weights and towed loads which apply to your vehicle.

219Practical information





Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.



"Comfort":

door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...


"Transport systems":

child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bic
ycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, theinstallation must be done using the vehicle's electrical pre-equipment and fitted following the manufacturer's recommendations.
"Styling":
gear lever knobs, aluminium foot rest, alloy wheels, chrome mirror shells, chrome door aperture finishers...

*
To avoid an
y risk of jamming the pedals:
- ensure that mats are correctly positionedand secured,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats and
booster cushions, breathalyser, first aid kit, fire
extinguisher, warning triangle, high visibility
vest, wheel security bolts, snow chains, non-
slip covers...

"Protection":

mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings,bumper protection strips, vehicle cover...
The rear bodywork has been designedto avoid spray.
