stop start Citroen DS5 RHD 2012.5 1.G Owner's Guide

Stop & Start
Operation
Going into engine STOP mode
The "ECO"warning lamp comes on
in the instrument panel and the engine
goes into standby automatically:
- with the electronic
gearbox system,
at
speeds below 5 mph (8 km/h), press the brake pedal or put the gear lever in position N.
If your vehicle is fitted with the system, a timecounter calculates the sum of the periods in STOP mode during a journey. It resets itself to
zero every time the ignition is switched on with
the STA R T/STOP button.
Never refuel with the engine in STOPmode; you must switch off the ignition with the STA R T/STOP button.
For your comfor t, during parkingmaoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...


Special cases: STOP mode not available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine start usingthe START/STOP button,

- the electric parking brake is applied or
being applied,

- the engine is needed to maintain acomfor table temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.
In this case, the "ECO"
warning lamp
flashes for a few seconds then goesoff. The
Stop & Star t system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
This operation is per fectly normal.

123Driving

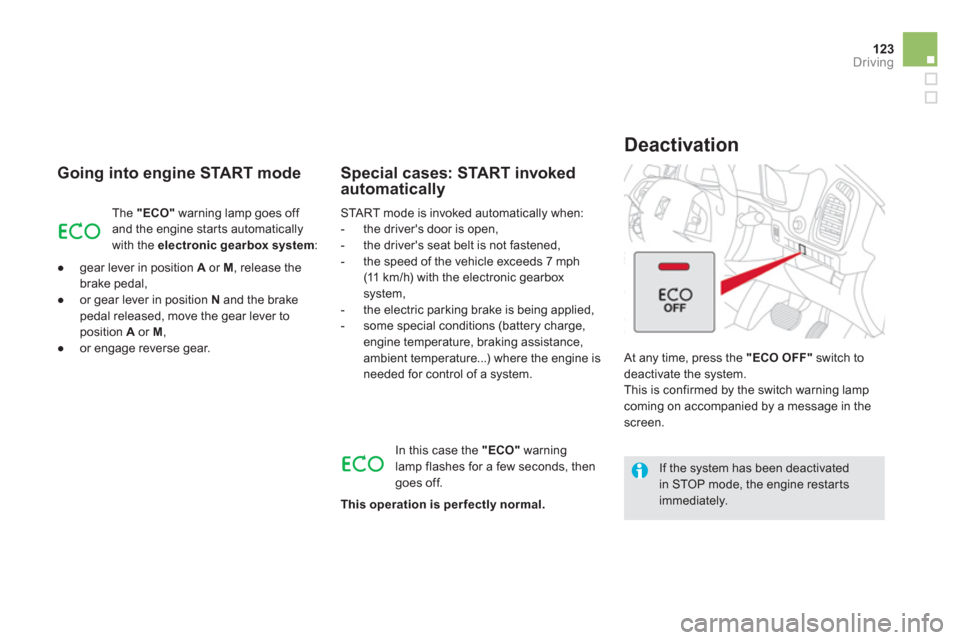

Going into engine START mode
The "ECO"warning lamp goes off and the engine star ts automatically with the electronic gearbox system
:


●

gear lever in position Aor M
, release the
brake pedal,

●
or
gear lever in position N
and the brake pedal released, move the gear lever to position A
or M,

●
or engage reverse gear.
START mode is invoked automatically when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the speed of the vehicle exceeds 7 mph
(11 k m / h) with the electronic gearbox system,
- the electric parking brake is being applied,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
Special cases: START invoked automatically

If the system has been deactivatedin STOP mode, the engine restar ts immediately.

At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in the screen.


Deactivation
In this case the "ECO"
warning
lamp flashes for a few seconds, then goes off.
This operation is per fectly normal.

The system is reactivated automaticallyat every new star t using the STA R T/STOP button.

Reactivation
Press the "ECO OFF"switch again.
The system is active again; this is confirmed
by the switch warning lamp going off and a
message in the screen.

Operating fault

In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a CITROËN dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall.
All of the instrument panel warning lamps come on.
Depending on version, an alert message mayalso be displayed, asking you to place the gear lever in position Nand put your foot on the brake pedal.
It is then necessary to switch off the ignition
and star t the engine again using the "STA R T/STOP" button.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting from automatic operation of START mode.
This s
ystem requires a 12 V battery with a special specification and technology (reference numbers available from CITROËN dealers).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the system.
For charging, use a 12 V charger and do not
reverse the polarity.

Maintenance


The Stop & Star t system makes use of advanced technology. For any work onthe system go to a qualified workshop with the skills and equipment required, which a CITROËN dealer is able toprovide.

127Driving
)With the engine running, press button 1.The activated/deactivated status when theengine was switched off is retained when
the engine is switched on again.
The strip retracts automatically 3 seconds after switching off the engine except in STOP mode
of Stop & Start.

Activation / Deactivation
)
With the engine running, adjust the brightness of the information usingbutton 3:


- towards the rear to increase thebrightness,

- towards the front to decrease the
brightness.
Brightness adjustment
We recommend that adjustments areonly made using these buttons whenthe vehicle is stationary.
When stationary or while driving, no objects should be placed around thetransparent strip (or on its cover) toavoid blocking the strip output and preventing its correct operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...)the head-up display may not be legibleor may suffer temporary inter ference.
Some sunglasses may hamper readingof the information. To clean the transparent strip, use aclean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not usea dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.



Height adjustment
)With the engine running, adjust the display
to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display down.

211Practical information

After refitting the battery, the Stop &Start system will only be active after several hours depending on the climaticconditions and the state of charge of the battery (up to about 8 hours).


The Stop & Start battery does not have to be disconnected for charging.
Starting using another
battery


First check that the slave battery has a nominal voltage of 12 V and a capacity at least equal to that of the discharged battery.
Do not try to star t the engine byconnecting a battery charger.
Do not disconnect the (+) terminal when the engine is running.
)Connect the red cable to the positive
terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B.)Connect one end of the green or blackcable to the negative terminal (-) of the slave battery B
(or ear th point on the other
vehicle).)Connect the other end of the green or black cable to the ear th point Con the broken
down vehicle (or on the engine mounting).)Star t the engine of the vehicle with the good battery and leave it running for a
few minutes.
) Operate the star ter on the broken down
vehicle and let the engine run
If the engine does not star t straight away, switch off the ignition and wait a few
moments before trying again.) Wait until the engine returns to idle thendisconnect the jump lead cables in the reverse order.
)
Disconnect the battery from the vehicle.)
Follow the instructions for use provided by
the manufacturer of the charger. ) Connect the battery star ting with the negative terminal (-).)
Check that the terminals and connectors
are clean. If they are covered with sulphate (whitish or greenish deposit), remove themand clean them.

Charging the battery using
a battery charger

When your vehicle's battery is discharged,
the engine can be star ted using a slave battery (external or on another vehicle) and jump leadcables.

Checks
12 V battery
The battery does not require any maintenance.
However, check that the terminals
are clean and correctly tightened,particularly in summer and winter.
The presence o
f this label, in particular with
the Stop & Start system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification. The involvement
of a CITROËN dealer or a qualified workshop is
essential when replacing or disconnecting the
battery.
Unless otherwise indicated, check these
components in accordance with the servicing
booklet and according to your engine.
Other wise, have them checked by a CITROËN
dealer or a qualified workshop.
When carr
ying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnectingthe battery and following its reconnection.

333
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
A telephone connects
automatically,
disconnecting another
telephone. A
utomatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

The Apple® player is ®
not recognised whenconnecting to the USB port.
The Apple ®player is of a generation that is not compatible with the USB. Connect the Apple ®player to the AUX Jack socket using a suitable cable (not supplied).

The hard disk or deviceis not recognised whenconnecting to the USBport.
Some hard disks and devices need a power supply greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V socket or an external power supply.
Caution
:
ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streamin
g, the sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le to
improve streaming.
In "Random all" pla
y,not all of the tracks areplayed.In "Random all" pla
y, the system can only take into account up to 999 tracks.
With the en
gine off, the
audio system switches off after a few minutes of use. When the en
gine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio s
ystem switches to economy mode and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.

The message "the audio system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is toohigh, the audio system switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes to
allow the system to cool.
