display Citroen DS5 RHD 2012.5 1.G Repair Manual

05
271
TRAFFIC INFORMATION

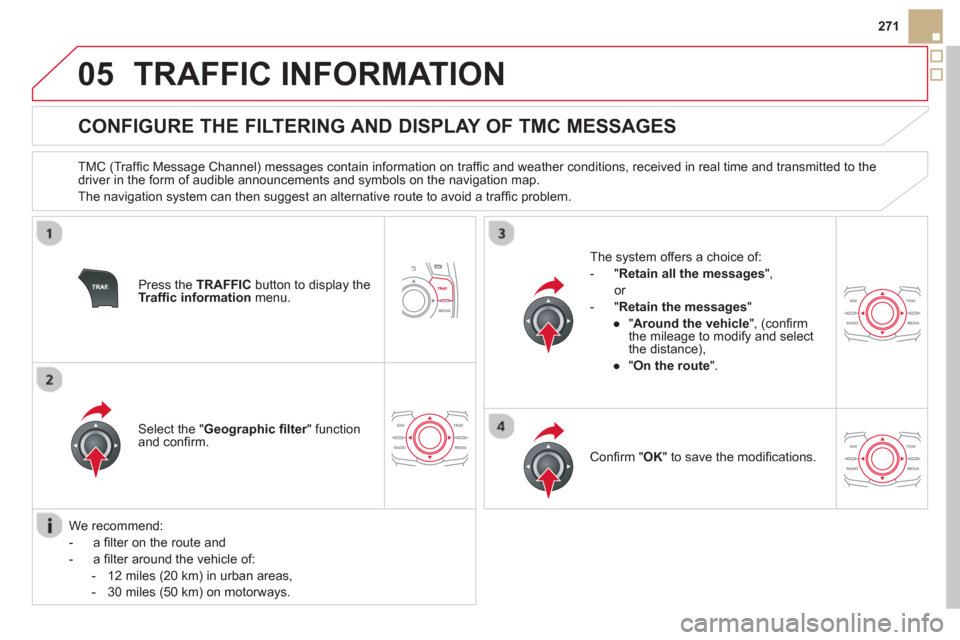

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-"Retain the messa
ges"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

05TRAFFIC INFORMATION






PRINCIPAL TMC SYMBOLS


Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:







RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, ...) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO
to display the "FM / AM
band
" menu.
Select " Guidance options " then confi rm.
Select " Activate / Deactivate TA" thenconfi rm.

The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.

Activate or deactivate the function at any time by pressingthe button.
During a message, press the button to interrupt it.

06
273

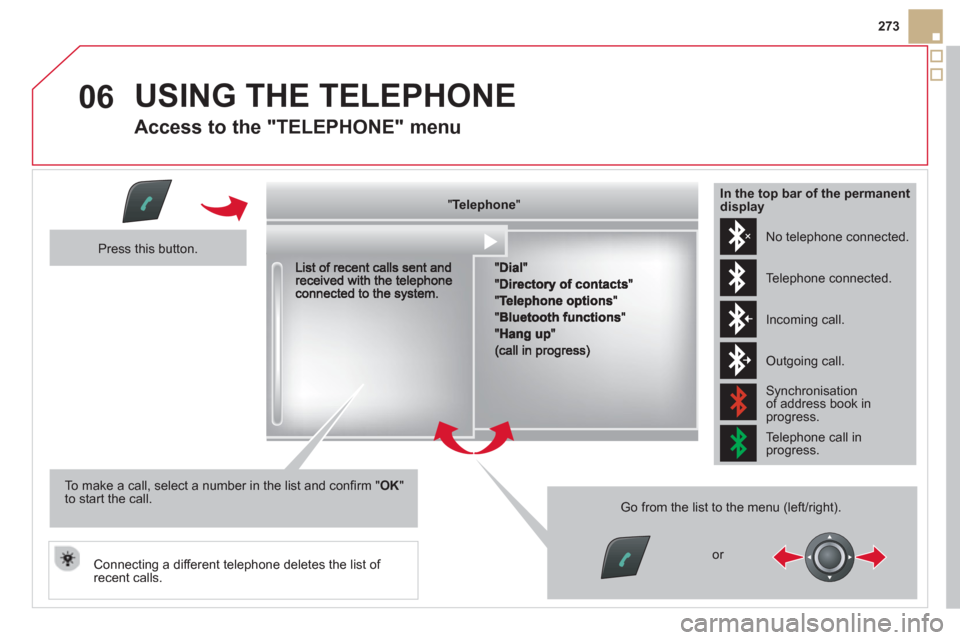

USING THE TELEPHONE


Access to the "TELEPHONE" menu
""""""""pppppTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTl hTl hTl hTl hTl h""""""""

Press this button.
To make a call, select a number in the list and confi rm " OK"to start the call.
Connecting a different telephone deletes the list of
recent calls.
No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of address book in progress.
Telephone call in progress.

In the top bar of the permanentdisplay


Go from the list to the menu (left/right).
or

06















PAIRING A BLUETOOTH TELEPHONE
FIRST CONNECTION
For reasons of safety and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must becarried out with the vehicle stationary.

Activate the tele
phone's Bluetoothfunction and ensure that it is "shown to all" (telephone confi guration).
Pr
ess this button.
Select the name of the desired
peripheral from the list of devices detected then select "Connect
" and confi rm.
The s
ystem offers to connect the
telephone:
-
in"Hands-free mode" (telephoneonly),
-
in "Audio" mode (streaming: playingmusic fi les on the telephone),
-
or " All
" (for selection of both modes).
Select " OK
" and confi rm. Select " Bluetooth functions " and confi rm.
Select "Peripherals search" andconfi rm.
The list of
peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE

Visit www.citroen.co.uk for more information (compatibility,
additional help, ...).

06
SR
C
SR
C
USING THE TELEPHONE

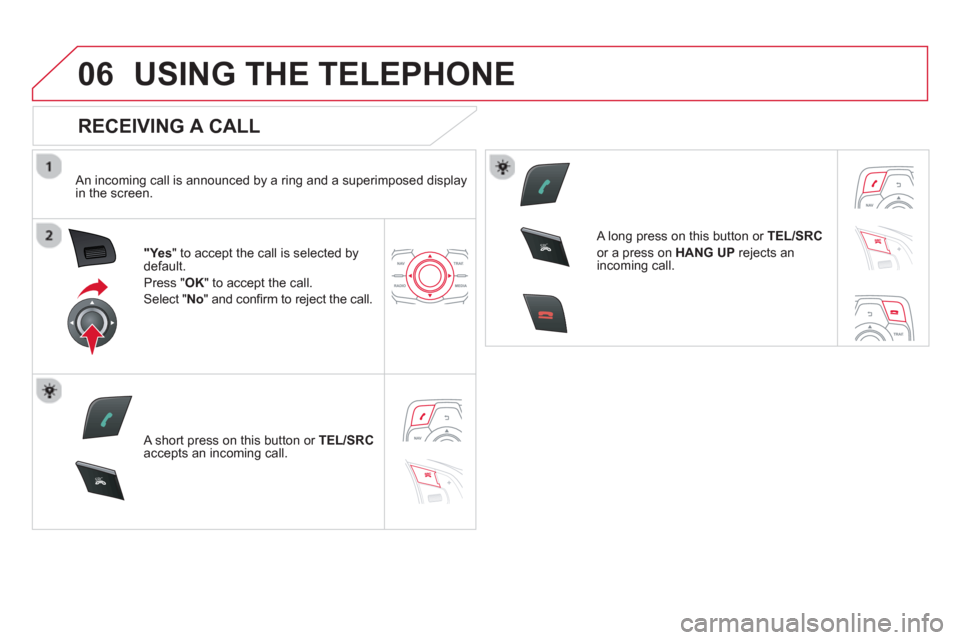

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed displayin the screen.
"Ye s" to accept the call is selected bydefault.
Press "
OK" to accept the call.
Select " No" and confi rm to reject the call.

A short press on this button or TEL/SRC
accepts an incoming call.
A long press on this button or TEL/SRC
or a press on HANG UPrejects an
incoming call.

06
SRC
SR
C
279
USING THE TELEPHONE

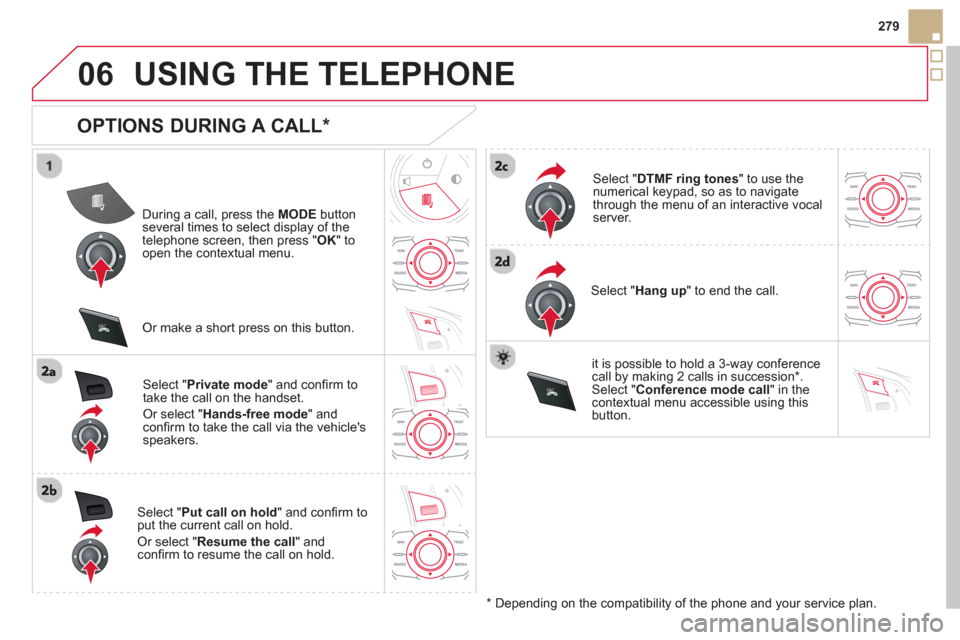

OPTIONS DURING A CALL *


During a call, press the MODE
button several times to select display of the
telephone screen, then press "OK " toopen the contextual menu.
Select " Private mode
" and confi rm totake the call on the handset.
Or select " Hands-free mode" andconfi rm to take the call via the vehicle's
speakers.
Select " Put call on hold" and confi rm to
put the current call on hold.
Or select " Resume the call" andconfi rm to resume the call on hold.
Select " DTMF ring tones
" to use thenumerical keypad, so as to navigate
through the menu of an interactive vocal server.

Select " Hang up " to end the call.
*

Depending on the compatibility of the phone and your service plan. it is possible to hold a 3-wa
y conference call by making 2 calls in succession*.Select " Conferencemode call " in thecontextual menu accessible using this button.
Or make a short press on this button.

07
281
DIRECTORY - ADDR BOOK


Access to the "CONTACTS" menu
""""""""""pypypypypypypysp ay co tactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDisplay contactsDi l t tDi l t tDi l t tDi l t tDi l t tDi l t tDi l(((((((( ( (((((((((((((((("(""(""(""(""(""(""(""(""(""("pppppppOpeOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOpenOOOOOOO,,,,, , ,,,""""""""""""""ItItItIt""""""""DltDltDltDlt")")")"))
Destination:
- from the contacts in the mobile telephone and the SIMcard (depending on the synchronization options in the Bluetooth menu and the compatibility of the telephone),
- saved in the system.

Select a contact and confi rm.
Then select "Guide
" and confi rm.
Telephone contacts:
- from the mobile telephone and the SIM card(depending on the synchronization options in the Bluetooth menu and the compatibility of the telephone),
- saved in the system.


Press ADDR BOOK.
Select a telephone contact and confi rm to start the call.
The sortin
g of the list of contacts depends on the
telephone used.
""""""""yyyyyDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDirectory of contactsDi t f t tDi t f t tDi t f t tDi t f t tDi f""""""""

07

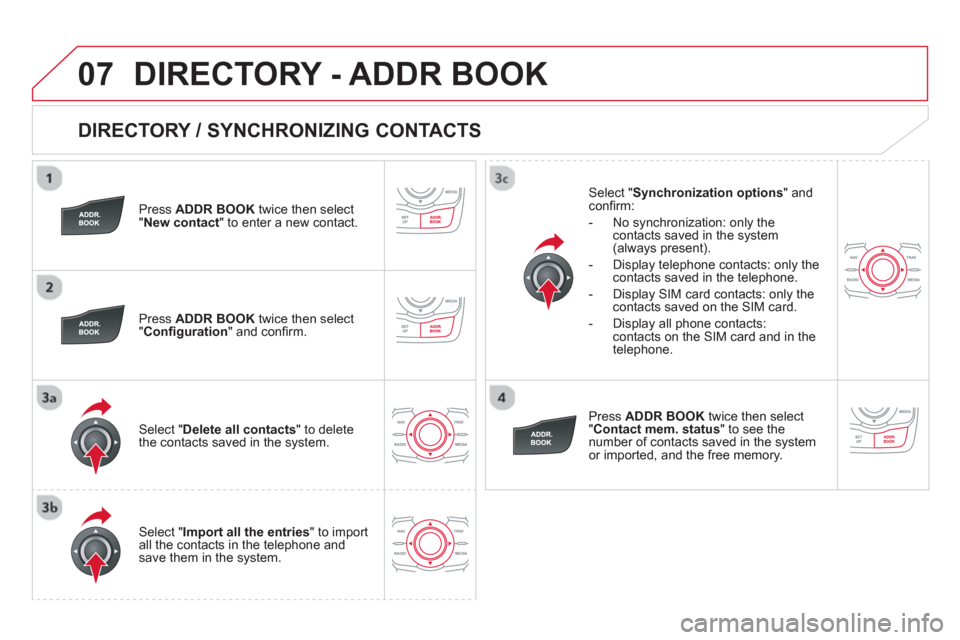

DIRECTORY / SYNCHRONIZING CONTACTS

Press ADDR BOOKtwice then select " New contact" to enter a new contact.

Pr
ess ADDR BOOKtwice then select
"Confi guration" and confi rm.

Select "Delete all contacts" to delete
the contacts saved in the system.

Select "Import all the entries
" to import
all the contacts in the telephone andsave them in the system.
Select "Synchronization options
" and confi rm:


-
No synchronization: only the contacts saved in the system (always present).

- Display telephone contacts: only the
contacts saved in the telephone.

- Displa
y SIM card contacts: only thecontacts saved on the SIM card.

- Displa
y all phone contacts: contacts on the SIM card and in the
telephone.




Press ADDR BOOKtwice then select " Contact mem. status " to see the number of contacts saved in the systemor imported, and the free memory.
DIRECTORY - ADDR BOOK

07
283

MANAGING CONTACTS
Press ADDR BOOK
twice then select
"Display contacts
" and confi rm.
Select the desired contact and confi rm.
Select " Import" to copy one contact to
the system.
Select " Open
" to view an external contact
or modify a contact saved in the system.
Select OK
Select " Delete" to delete a contact savedin the system.
It is necessar
y to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete contacts in the telephone or the SIM card via the Bluetoothconnection.
DIRECTORY - ADDR BOOK
or
press this button to exit this menu.

08


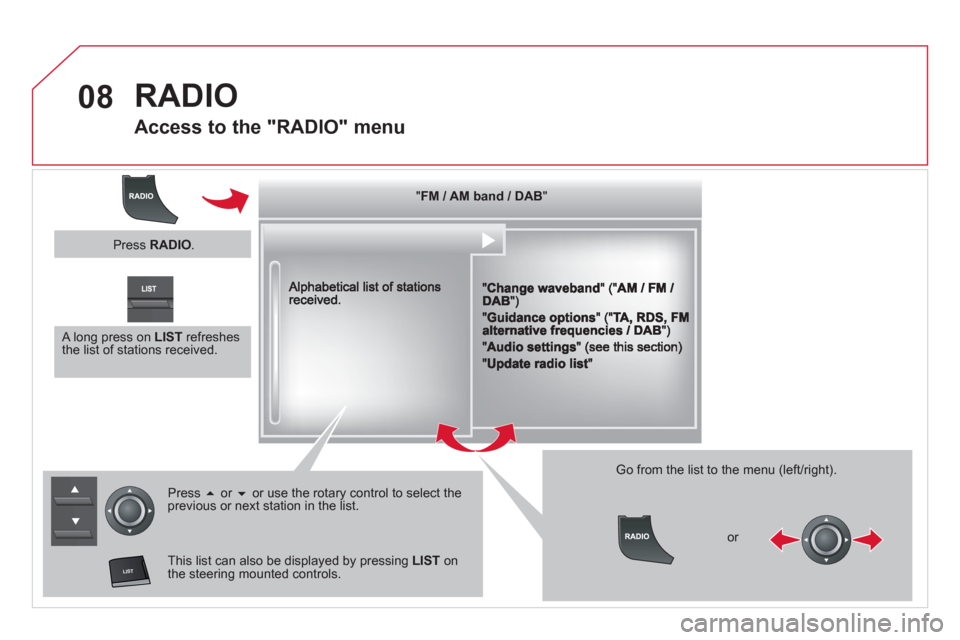

RADIO







Access to the "RADIO" menu
""""""""FM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM band / DABFM / AM b d / DABFM / AM b d / DABFM / AM b d / DABFM / AM b d / DABFM / AM b d / DAB""""""""
Press or or use the rotary control to select the previous or next station in the list.
This list can also be displayed by pressing LIST
onthe steering mounted controls.

Go from the list to the menu (left/right).
or




A long press on LIST
refreshesthe list of stations received.


Press RADIO.
