Head-up display
System which projects information onto a
transparent strip in the field of vision of the
driver so that the
y do not have to take their eyes off the road.
This system operates when the engine is running and the settings are stored when the
ignition is switched off.

1
.Head-up display on / off.
2. Display height adjustment.3.
Brightness adjustment.

Once the system has been activated,
the information projected in the head-up
display is:
A.The speed of your vehicle.
B.Cruise control/speed limiter information.

Displays during operation
C.Navigation information (according to
version).
For more information on the navigation system, refer to the "Audio and telematic" section.

127Driving
)With the engine running, press button 1.The activated/deactivated status when theengine was switched off is retained when
the engine is switched on again.
The strip retracts automatically 3 seconds after switching off the engine except in STOP mode
of Stop & Start.

Activation / Deactivation
)
With the engine running, adjust the brightness of the information usingbutton 3:


- towards the rear to increase thebrightness,

- towards the front to decrease the
brightness.
Brightness adjustment
We recommend that adjustments areonly made using these buttons whenthe vehicle is stationary.
When stationary or while driving, no objects should be placed around thetransparent strip (or on its cover) toavoid blocking the strip output and preventing its correct operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...)the head-up display may not be legibleor may suffer temporary inter ference.
Some sunglasses may hamper readingof the information. To clean the transparent strip, use aclean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not usea dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.



Height adjustment
)With the engine running, adjust the display
to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display down.

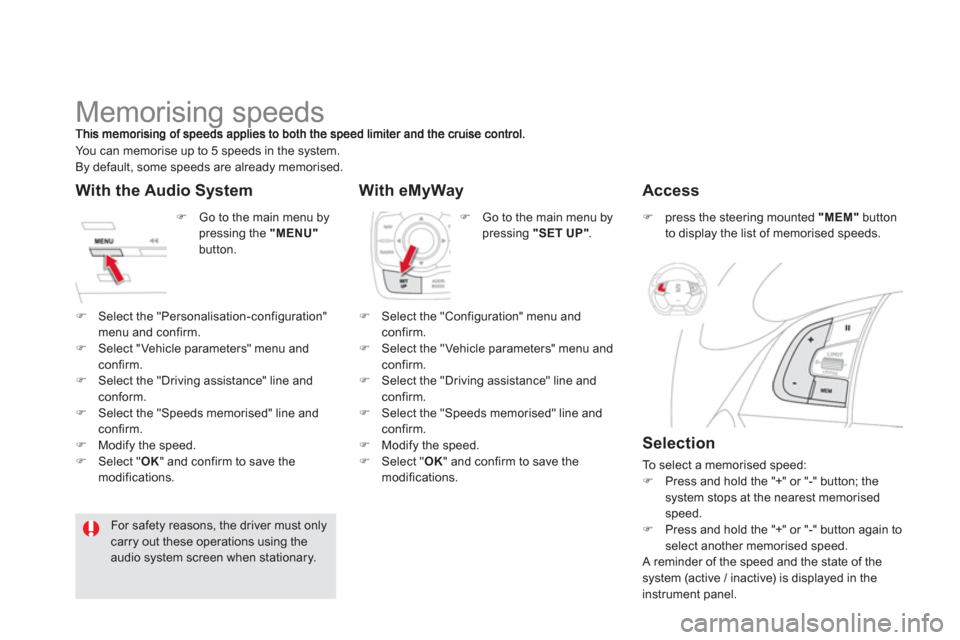

Memorising speeds
)Select the "Personalisation-configuration" menu and confirm. )Select "Vehicle parameters" menu andconfirm. )Select the "Driving assistance" line and conform.)Select the "Speeds memorised" line andconfirm.
)Modify the speed. )Select "OK
" and confirm to save themodifications.



For safety reasons, the driver must only carry out these operations using the audio system screen when stationary. You can memorise up to 5 speeds in the s
ystem.
By default, some speeds are already memorised.
) Select the "Configuration" menu andconfirm.)
Select the "Vehicle parameters" menu andconfirm.)
Select the "Driving assistance" line and confirm.)
Select the "Speeds memorised" line and confirm.
)
Modify the speed.)
Select " OK" and confirm to save the
modifications.
With the Audio System
With eMyWay
)Go to the main menu by pressing the "MENU"button.
)
Go to the main menu bypressing "SET UP"
.


Access
)press the steering mounted "MEM"button
to display the list of memorised speeds.

Selection

To select a memorised speed:)Press and hold the "+" or "-" button; thesystem stops at the nearest memorised speed. )Press and hold the "+" or "-" button again to select another memorised speed.
A reminder of the speed and the state of thesystem (active / inactive) is displayed in the
instrument panel.

129Driving
The programmed information is grouped
together in the instrument panel screen.
6. Speed limiter on / off indication. 7. Speed limiter mode selection indication. 8.
Programmed speed value.9. Selection of a memorised speed.
(see "Memorising speeds")


Displays in the instrument panel

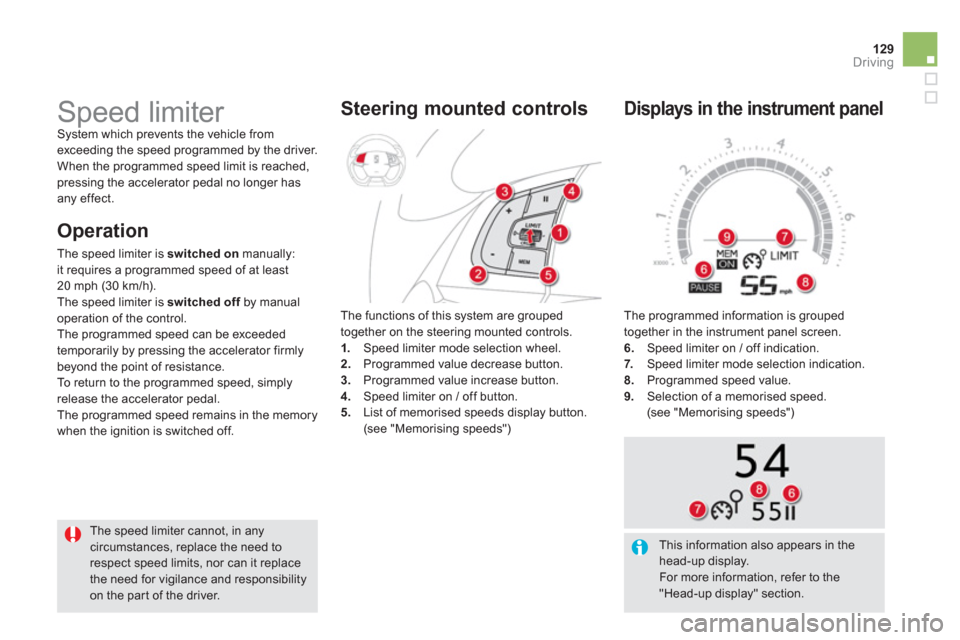

Speed limiter System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has
any effect.
The speed limiter cannot, in any
circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.The functions of this s
ystem are grouped
together on the steering mounted controls. 1.Speed limiter mode selection wheel. 2. Programmed value decrease button. 3.
Programmed value increase button.
4. Speed limiter on / off button.
5. List of memorised speeds display button. (see "Memorising speeds")
Steering mounted controls

O
peration

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched offby manual foperation of the control.
The programmed speed can be exceeded
temporaril
y by pressing the accelerator firmlybeyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The pro
grammed speed remains in the memory
when the i
gnition is switched off.
This information also appears in thehead-up display.
For more information, refer to the "Head-up display" section.

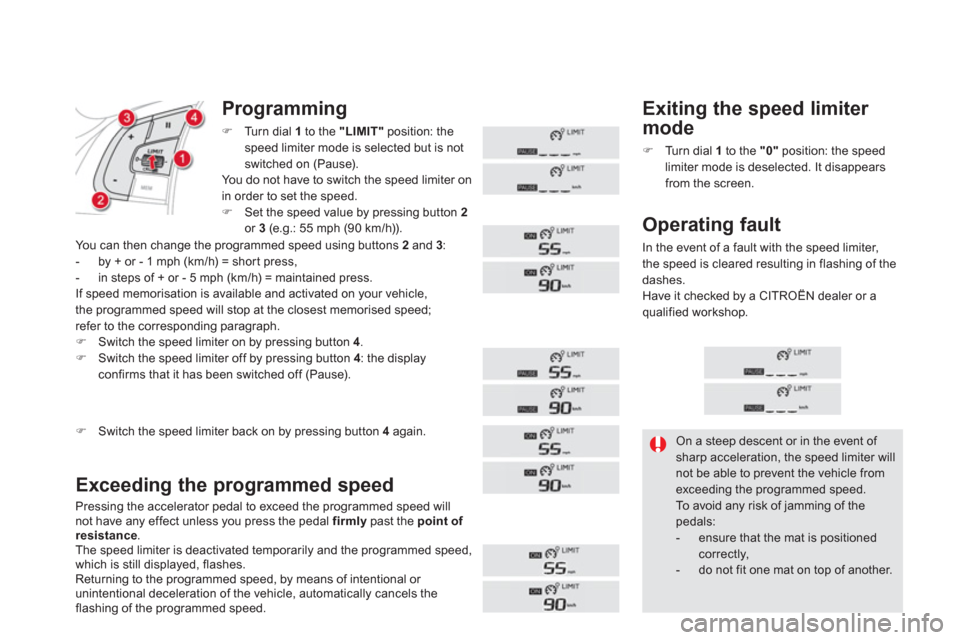

Programming
)Turn dial 1 to the "LIMIT"
position: the
speed limiter mode is selected but is not
switched on
(Pause). You do not have to switch the speed limiter onin order to set the speed.)Set the speed value by pressing button 2or 3(e.g.: 55 mph (90 km/h)).
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed speed willnot have any effect unless you press the pedal firmlypast the point of resistance
.
The speed limiter is deactivated temporarily and the programmed speed,
which is still displayed, flashes.
Returning to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels theflashing of the programmed speed.


Exiting the speed limiter
mode
)Turn dial 1to the "0"
position: the speed limiter mode is deselected. It disappears from the screen.



Operating fault

In the event of a fault with the speed limiter,
the speed is cleared resulting in flashing of the dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
On a steep descent or in the event of sharp acceleration, the speed limiter willnot be able to prevent the vehicle from exceeding the programmed speed.
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- do not fit one mat on top of another.

)Switch the speed limiter back on by pressing button 4
again.
You can then chan
ge the programmed speed using buttons 2 and 3
:
- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If speed memorisation is available and activated on your vehicle,
the programmed speed will stop at the closest memorised speed;refer to the corresponding paragraph.)Switch the speed limiter on by pressing button 4.)Switch the speed limiter off by pressing button 4: the display confirms that it has been switched off (Pause).

131Driving
The cruise control system cannot, in any circumstances, replace the need to respect speed limits, nor can it replacethe need for vigilance and responsibility on the par t of the driver.
You are advised to keep your feet near the pedals at all times.

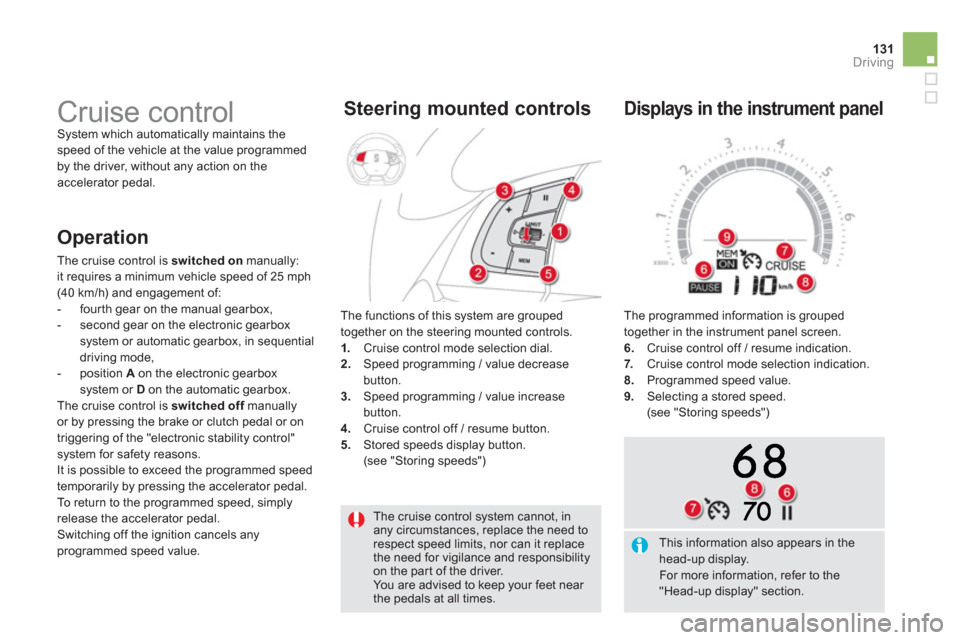

Cruise control System which automatically maintains thespeed of the vehicle at the value programmed
by the driver, without any action on the
accelerator pedal.
The functions of this s
ystem are grouped
together on the steering mounted controls. 1.Cruise control mode selection dial.2. Speed programming / value decreasebutton.3.
Speed programming / value increasebutton.4.
Cruise control off / resume button.
5
. Stored speeds display button.(see "Storing speeds")

Steering mounted controls

The programmed information is grouped
together in the instrument panel screen.
6. Cruise control off / resume indication. 7. Cruise control mode selection indication. 8.
Programmed speed value.9. Selecting a stored speed.
(see "Storing speeds")

Displays in the instrument panel


Operation
The cruise control is switched on
manually:
it requires a minimum vehicle speed of 25 mph(40 km/h) and engagement of:


- fourth gear on the manual gearbox,

- second gear on the electronic gearbox system or automatic gearbox, in sequential
driving mode,

- position A
on the electronic gearboxsystem or Don the automatic gearbox.
The cruise control is switched off manually for by pressing the brake or clutch pedal or on
triggering of the "electronic stability control" system for safety reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.

Switching off the ignition cancels any programmed speed value. This information also appears in thehead-up display.
For more information, refer to the "Head-up display" section.

133Driving
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.
Certain types of obstacle (stake, roadworkscone, etc.) detected initially will no longer bedetected at the end of the manoeuvre due to
the presence of blind spots.






Parking sensors


This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
Rear parking sensors
The system is switched on by engaging reversegear. This is accompanied by an audible signal.
The system is switched off when you exit reverse gear.
Audible assistance
The proximity information is given by anintermittent audible signal, the frequency of which increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left) indicates the side on which the obstacle islocated. When the distance between the vehicle andthe obstacle becomes less than approximately
thirty centimetres, the audible signal becomescontinuous.



Visual assistance

This supplements the audible signal bydisplaying bars in the multifunction screen
w
hich move progressively nearer to the vehicle.When the obstacle is near, the "Danger" symbol is also displayed in the screen.

In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)indicates that the sensors may be dirty. Cer tain sound sources (motorcycle,lorry, pneumatic drill, etc.) may trigger the audible signals of the parkingsensor system.
In th
e event of a malfunctionof the system, when reverse gear is engaged this warning
lamp is displayed in the instrument paneland/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a CITROËN dealer or a qualified
workshop.

Operating fault
In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph
(10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no fur ther obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).



Deactivation / Activation of thefront and rear parking sensors

The function is deactivated by pressing this button.The indicator lamp in the button comes on.
Pressing this button again reactivates the function. The indicator lamp in the button goes off.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle is in front or behind.

139Visibility

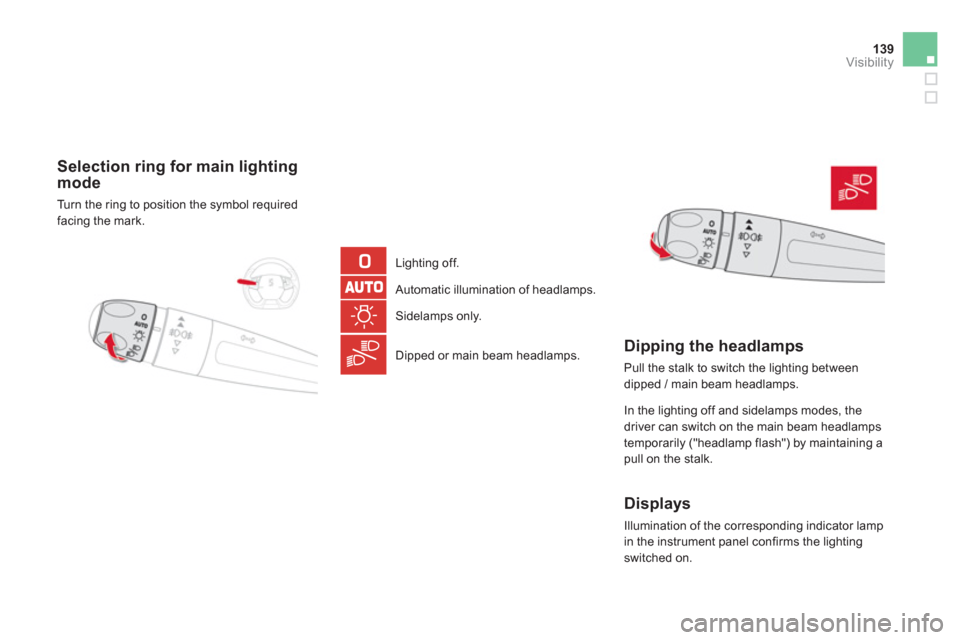

Selection ring for main lighting mode

Turn the ring to position the symbol required
facing the mark.

Lighting o
ff.
Automatic illumination of headlamps.


Sidelamps only.

Dipped or main beam headlamps.

Dipping the headlamps

Pull the stalk to switch the lighting between
dipped / main beam headlamps.

In the li
ghting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting switched on.

switched on automatically, without any action on
the par t of the driver, when a low level of external
li
ght is detected or in certain cases of activation of
the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automaticall
y.
Automatic illumination of headlamps
Activation
)Turn the ring to the "AU TO "position,automatic illumination of headlamps is activated and a message is displayed in the screen.
Deactivation
)Turn the ring to another position. Deactivation is accompanied by a message in the screen.


Association with the automatic "Guide-me-home" lighting

Association with the automatic lighting provides
the "guide-me-home" lighting with the following
additional options after the ignition is switchedoff:


- selection of the lighting duration of 15, 30or 60 seconds in the vehicle parameters in
the vehicle configuration menu,

- automatic activation of "guide-me-home"lighting when automatic illumination of
headlamps is in operation.



Operating fault

In the event of a malfunctionof the sunshine sensor,
the lighting comes on, this
warning lamp is displayed in the instrumentpanel and/or a message appears in the screen,
accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
wor
kshop.
In fog or snow, the sunshine sensor may detect sufficient light. In this case, thelighting will not come on automatically. Do not cover the sunshine sensor,coupled with the rain sensor andlocated in the centre of the windscreen behind the rear view mirror; theassociated functions would no longer be controlled.
