Citroen DS5 RHD 2014 1.G Owner's Manual

259Te c h n i c a l d a t a

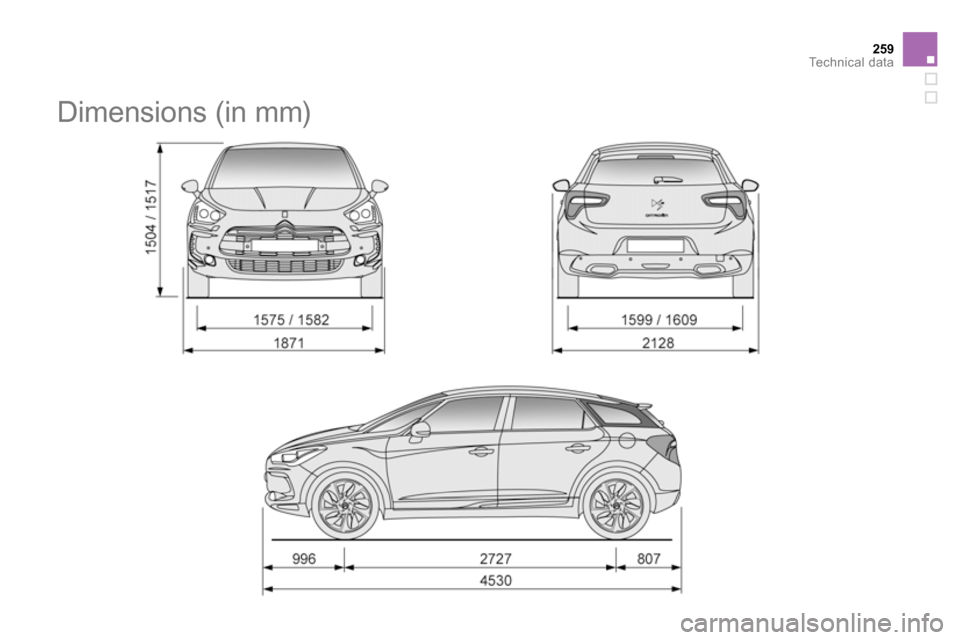

Dimensions (in mm)

Identifi cation markings
Various visible markings for the identification of your vehicle.



A.
Vehicle Identification Number (VIN)
under the bonnet.

This number is engraved on the bodywork
near the damper support.
The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.

B.
Vehicle identification Number (VIN) on
the windscreen lower cross member.

This number is indicated on a self-adhesive
label which is visible through the windscreen.
C.
Manufacturer's label.

The VIN is indicated on a self-destroying
label affixed to the door aperture, on the
passenger's side.

D.
Ty r e / p a i n t l a b e l .

This label is affixed to the centre pillar, on
the driver's side. It bears the following information:


- the tyre inflation pressures with and without
load,

- the tyre sizes,

- the inflation pressure of the spare wheel,

- the paint colour code.


The rear quarter light cannot be etched
as it is made of polycarbonate material.

261Te c h n i c a l d a t a

011
Audio and telematics

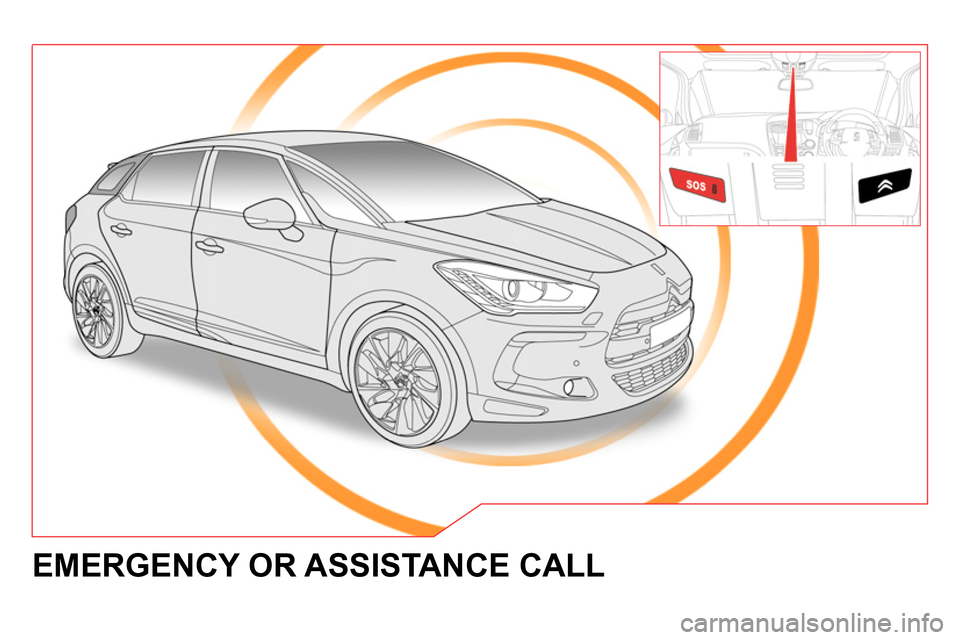

EMERGENCY OR ASSISTANCE CALL

265

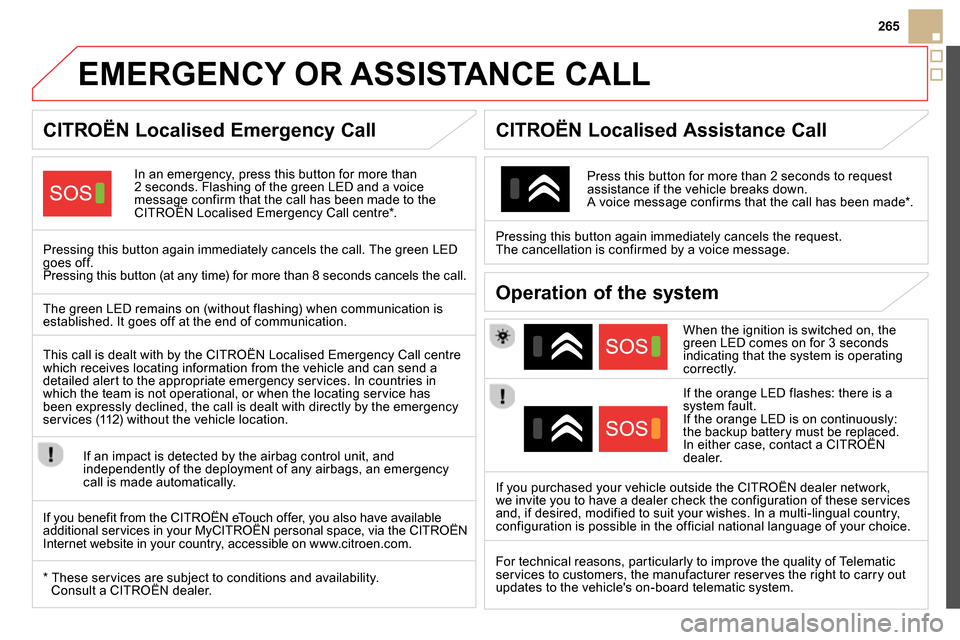

EMERGENCY OR ASSISTANCE CALL








CITROËN Localised Emergency Call


In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confirm that the call has been made to the
CITROËN Localised Emergency Call centre * .

Pressing this button again immediately cancels the call. The green LED
goes off.
Pressing this button (at any time) for more than 8 seconds cancels the call.


CITROËN Localised Assistance Call


When the ignition is switched on, the
green LED comes on for 3 seconds
indicating that the system is operating
correctly.

If the orange LED flashes: there is a
system fault.
If the orange LED is on continuously:
the backup battery must be replaced.
In either case, contact a CITROËN
dealer.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confirms that the call has been made * .


Operation of the system

The green LED remains on (without flashing) when communication is
established. It goes off at the end of communication.

If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the configuration of these services
and, if desired, modified to suit your wishes. In a multi-lingual country,
configuration is possible in the official national language of your choice.
This call is dealt with by the CITROËN Localised Emergency Call centre
which receives locating information from the vehicle and can send a
detailed alert to the appropriate emergency services. In countries in
which the team is not operational, or when the locating service has
been expressly declined, the call is dealt with directly by the emergency
services (112) without the vehicle location.

If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency
call is made automatically.



*
These services are subject to conditions and availability.
Consult a CITROËN dealer.
If you benefit from the CITROËN eTouch offer, you also have available
additional services in your MyCITROËN personal space, via the CITROËN
Internet website in your country, accessible on www.citroen.com.

For technical reasons, particularly to improve the quality of Telematic
services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.

267

The system is protected in such a way that it will only
operate in your vehicle.

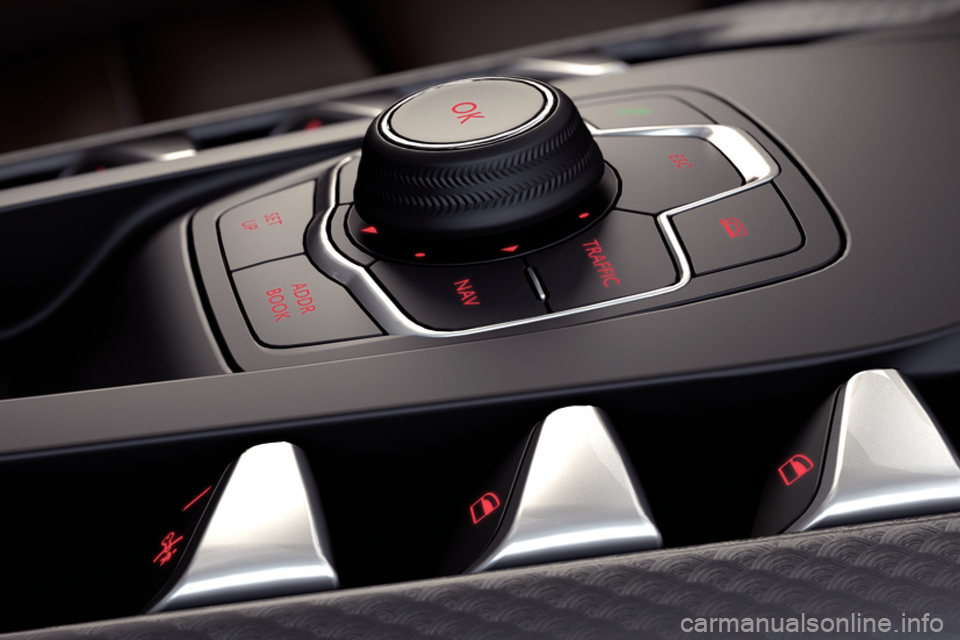

eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Contacts - ADDR BOOK

08 Radio

09 Music media players

10 Audio settings

11 Configuration

12 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
268
270
271
273
286
289
297
300
304
310
311
313

Frequently asked questions p. 316


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM

01 FIRST STEPS


Short press: select a preset
radio station.
Long press: store the
current radio station.
TA (Traffi c Announcement)
function On / Off.
Display the list of radio stations received, CD/MP3/
Apple ® player tracks or folders.
Long press: management of the classifi cation of
MP3/WMA fi les/update the list of stations received.


Access to " Audio settings
":
musical ambiences, bass,
treble, loudness, distribution,
left/right balance, front/rear
fader, automatic volume
adjustment.


Selection of AM / FM / DAB *
wavebands.

Press and hold: reinitialise
the system.

Select the source: CD,
USB, AUX, Apple
® player,
Bluetooth Streaming,
Radio.
Abandon the current
operation, go up one level.
Long press: return to
permanent display.
On / Off.


MODE
button: select the type
of permanent display.

Rotation: adjust volume
(each source is independent,
including TA messages and
navigation instructions).

Select:


- the previous/next line in a list or menu.

- the previous next media folder.

- step by step previous/next radio frequency.

- previous/next MP3 folder.
Move up/down, in " Move the map
" mode.
Select:


- automatically the previous/next radio frequency.

- the previous/next CD, MP3 or media track.
Move left/right, in " Move the map
" mode.
Display black screen.

Short press: mute /
restore sound.

*

Depending on model.
