219Practical information




















Changing a fuse
Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:



remove the cover completely,


remove the tweezer.



Access to tooling

Before changing a fuse, the cause
of the failure must be identified and
rectified.



Identify the failed fuse by checking
the condition of its filament.


Changing a fuse


Good

Failed




Use the special tweezer to extract the fuse
from its housing.


Always replace the failed fuse with a fuse
of the same rating.


Check that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.



Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer
or a qualified workshop.

Dashboard fuses

The fusebox is placed in the lower dashboard
(left-hand side).

Access to the fuses




Remove the cover.


Fuse
N°

Rating
(A)


Functions




F6 A or B



15

Audio system.


F8



3

Alarm.


F13



10

Front cigarette lighter, front 12 V socket.


F14



10

Rear 12 V socket.


F16



3

Rear map reading lamps.


F17



3

Courtesy mirror.


F28 A or B



15

Audio system.


F30



20

Rear wiper.


F32



10

Audio amplifier.

221Practical information

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses




Unclip the cover.


Change the fuse (see corresponding
paragraph).


When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.


Fuse
N°

Rating
(A)


Functions




F20



15

Front / rear screenwash pump.


F21



20

Headlamp wash pump.


F22



15

Horn.


F23



15

Right-hand main beam headlamp.


F24



15

Left-hand main beam headlamp.


F27



5

Left hand lamp mask.


F28



5

Right hand lamp mask.

12 V battery







The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery. The battery is located under the bonnet.
To gain access to it:



open the bonnet using the interior release
lever, then the exterior safety catch,


remove the plastic cover on
the (+) terminal,


if necessary, unclip the fusebox to remove
the battery.








Access to the battery



Disconnecting the (+) cable




Raise the locking tab D
fully to release the
cable terminal clamp E
.



Reconnecting the (+) cable




Position the open clamp E
of the cable on
the positive post (+) of the battery.


Press vertically on the clamp E
to position
it correctly on the battery.


Lock the clamp by spreading the
positioning lug and then lowering the tab D
.
Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.

Procedure for starting the engine using another battery or charging a discharged battery.

223Practical information

After refitting the battery, the Stop &
Start system will only be active after a
continuous period of immobilisation of the
vehicle, a period which depends on the
climatic conditions and the state of charge
of the battery (up to about 8 hours).
With Stop & Start, the battery does not
have to be disconnected for charging.












Starting using another
battery

First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the (+) terminal when
the engine is running.



Connect the red cable to the positive
terminal (+) of the flat battery A
, then to the
positive terminal (+) of the slave battery B
.


Connect one end of the green or black
cable to the negative terminal (-) of the
slave battery B
(or earth point on the other
vehicle).


Connect the other end of the green or black
cable to the earth point C
on the broken
down vehicle (or on the engine mounting).


Start the engine of the vehicle with the
good battery and leave it running for a
few minutes.

Operate the starter on the broken down
vehicle and let the engine run
If the engine does not star t straight away,
switch off the ignition and wait a few
moments before trying again.


Wait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.



Disconnect the battery from the vehicle.


Follow the instructions for use provided by
the manufacturer of the charger.


Connect the battery starting with the
negative terminal (-).


Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.













Charging the battery using
a battery charger
When your vehicle's battery is discharged,
the engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables.

The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.


It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.









Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.








Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise (depending on
version):


- the remote control key,

- the electric blind(s),

- ...


Some functions are not available if the
battery is not sufficiently charged.

225Practical information








Load reduction mode

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
System which manages the duration of use of
certain functions to conser ve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, courtesy lamps, etc. for
a maximum combined duration of about
forty minutes.









Energy economy mode


Switching to economy mode

A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,
it will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:


- for less than ten minutes, to use the
equipment for approximately five minutes,

- for more than ten minutes, to use the
equipment for up to approximately
thirty minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from starting
(refer to the "Battery" section).

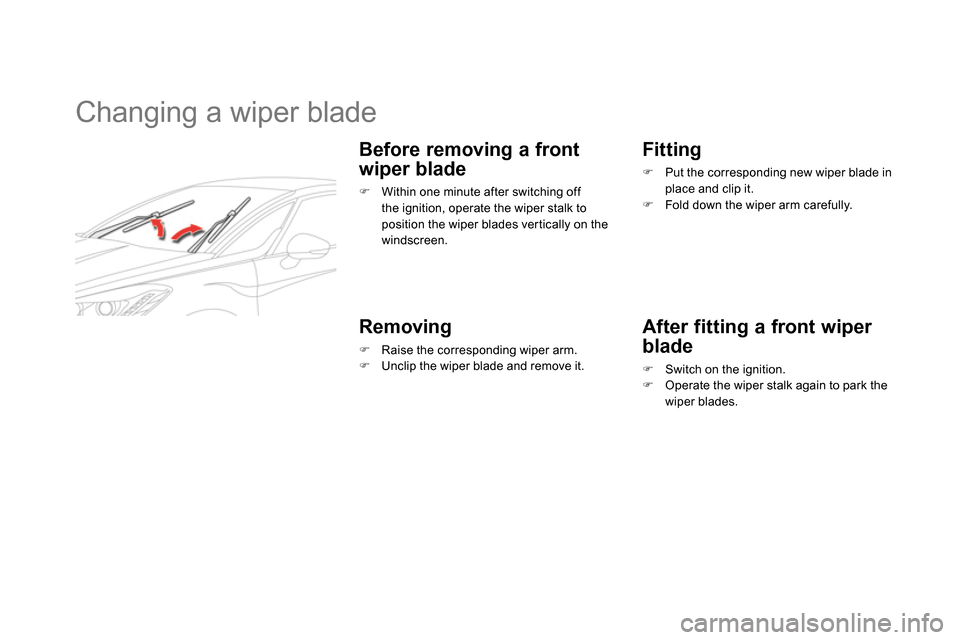

Changing a wiper blade


Before removing a front
wiper blade



Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.



Removing




Raise the corresponding wiper arm.


Unclip the wiper blade and remove it.



Fitting




Put the corresponding new wiper blade in
place and clip it.


Fold down the wiper arm carefully.



After fitting a front wiper
blade



Switch on the ignition.


Operate the wiper stalk again to park the
wiper blades.

227Practical information




Towing the vehicle
Procedure for having your vehicle towed or
for towing another vehicle using a removable
towing eye.

Towing your vehicle
Towing another vehicle






Access to the tools

The towing eye is installed in the boot under
the floor.
To gain access to it:



open the boot,


remove the towing eye, located in the tool
box.



On the front bumper, unclip the cover by
pressing at the bottom to disengage the
securing lugs.


Screw the towing eye in fully.


Install the towing bar.


Switch on the hazard warning lamps on the
towed vehicle.


On the rear bumper, unclip the cover by
levering at the left with the point of the
towing eye.


Screw the towing eye in fully.


Install the towing bar.


Switch on the hazard warning lamps on the
towed vehicle.

When towing with all four wheels on the
ground, always use a towing bar.
When towing with only two wheels on
the ground, always use professional
lifting equipment.
When towing with the engine off, there
is no longer any braking or steering
assistance.


Place the gear lever in neutral
(position N
with an electronic or
automatic gearbox).
Failure to follow this advice could
result in damage to certain braking
components and the absence of
braking assistance the next time
the engine is started.

Towing a trailer


We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a CITROËN
dealer, it is imperative that it is
fitted in accordance with the vehicle
manufacturer's instructions.
Towbar suitable for the attachment of a trailer
or installation of a bicycle carrier,
with additional lighting and signalling.

When not towing a trailer, remove the
quickly-detachable tow ball before
driving, so as to avoid masking the
central rear lamp.
Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.


Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.
