59Access
Back-up mechanical key
Unlocking/locking using the integral key
The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
- cell battery flat, vehicle battery discharged
or disconnected, ...
- vehicle located in an area with strong
electromagnetic signals.
Maintain a pull on button 1
, to extract the
integral key 2
.
Complete unlocking
Turn the key towards the front of the
vehicle to unlock the vehicle.
Normal locking
Turn the key towards the rear of the vehicle
to lock the vehicle completely.
Deadlocking
Turn the key towards the rear in the driver's
door lock to lock the vehicle completely.
Turn the key towards the rear again within
five seconds to deadlock the vehicle.
If the alarm is activated, the audible signal on
opening a door with the key (integral with the
remote control) will stop on starting the engine.
Page 62 of 400
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Changing the battery of
the electronic key
Battery ref.: CR2032 / 3 volts.
This replacement battery is available from a
CITROËN dealer or a qualified workshop.
A message appears in the instrument panel
screen when replacement of the battery is
needed.
Unclip the cover using a small screwdriver
at the cutout.
Lift off the cover.
Remove the flat battery from its location.
Fit the new battery into its location
obser ving the original direction of fitment.
Clip the cover onto the casing.
Remote control problem -
reinitialisation
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
Place the mechanical key (integral with the
remote control) in the lock to unlock your
vehicle.
Place the electronic key in the reader.
Switch on the ignition by pressing
START/STOP.
The electronic key is fully operational again.
If the problem persists, contact a CITROËN
dealer or a qualified workshop as soon as
possible.
Page 63 of 400
61Access
Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency ser vices more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, even for a very short time.
In all cases, take the remote control or electronic key (if Keyless Entry and Starting) with you when leaving the vehicle.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, s t r o n g
magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and
started.
Page 64 of 400
Central locking control
Automatic central locking of the
doors
(anti-intrusion security)
The doors and boot can lock automatically
while driving (speed above 6 mph (10 km/h)).
To activate or deactivate this function (activated
by default:
If the vehicle is deadlocked or locked
from the outside, the button is not
active. In this case, use the remote
control to unlock the vehicle or pull an
interior door handle to open a door.
If one of the doors is open, central
locking from the inside does not take
place.
Driving with the doors locked may make
access to the passenger compartment
by the emergency ser vices more
difficult in an emergency.
Operate the button.
This allows the doors and the boot to be locked
or unlocked.
Operate this button until a
message appears in the
instrument panel screen.
Transporting long or voluminous
objects
If you want to drive with the boot open,
press the central locking control button
to lock the doors.
Emergency control
System allowing the doors to be locked and
unlocked manually in the event of a malfunction
of the central locking system or battery failure.
Locking the driver's door
Insert the key in the door lock, then turn it
to the rear.
You can also apply the procedure described for
the passenger doors.
Unlocking the driver's door
Insert the key in the door lock, then turn it
to the front.
Page 65 of 400
63Access

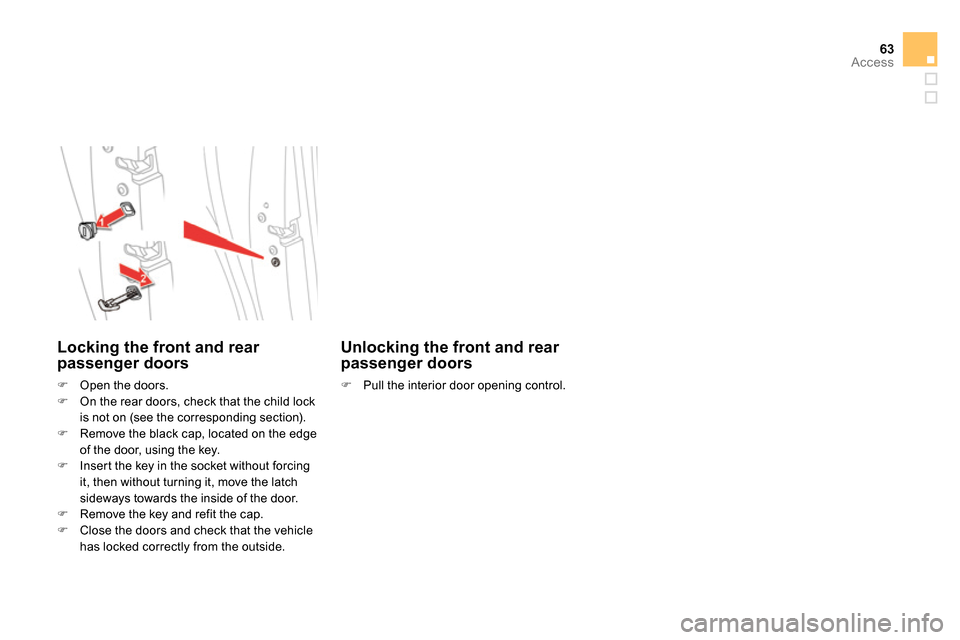

Locking the front and rear
passenger doors
Open the doors.
On the rear doors, check that the child lock
is not on (see the corresponding section).
Remove the black cap, located on the edge
of the door, using the key.
Insert the key in the socket without forcing
it, then without turning it, move the latch
sideways towards the inside of the door.
Remove the key and refit the cap.
Close the doors and check that the vehicle
has locked correctly from the outside.
Unlocking the front and rear
passenger doors
Pull the interior door opening control.
Page 66 of 400
Boot
After unlocking the boot or the vehicle
using the electronic key - remote control,
press the opening control then raise the
tailgate.
Opening from outside
Press this button until the boot is heard to
unlock.
Ta i l g a t e r e l e a s e
Unlocking
Fold back the rear seats to gain access to
the lock from inside the boot.
Insert a small screwdriver into hole A
of the
lock to unlock the tailgate.
Move the latch to the left.
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
Closing
Lower the tailgate using the interior grab
handle.
If the tailgate is not closed correctly, engine
running
or vehicle moving
(speed above
6 mph (10 km/h)), a message appears in the
instrument panel screen for a few seconds.
Opening from inside
Page 67 of 400
OFF
65Access
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the
button or the wires of the siren are put
out of service or damaged.
For all work on the alarm system,
contact a CITROËN dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
Switch off the ignition and get out of the vehicle.
Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system. The monitoring system is active: the indicator
lamp in the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless Entry and Starting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and the anti-tilt after
one minute and 30 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after
a delay of 45 seconds.
Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system.
Deactivation of the volumetric
monitoring
The volumetric protection system is
deactivated: the indicator lamp in the
button goes off.
Page 68 of 400
OFF
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-lift
monitoring to avoid unwanted triggering of the
alarm in certain cases such as:
- leaving a window partially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transpor tation by sea.
Deactivation of the interior
volumetric and anti-tilt monitoring
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.
Get out of the vehicle.
Press the locking button on
the remote control immediately
or lock the vehicle using the
Keyless Entry and Starting
system.
The exterior perimeter monitoring alone is
activated: the indicator lamp in the button
flashes once per second.
To be effective, this deactivation must be carried
out each time the ignition is switched off.
Where the vehicle locks itself again
automatically (occurs 30 seconds after
unlocking, if a door or the boot is not
opened), the monitoring system is not
reactivated automatically.
To reactivate it, the vehicle must be
unlocked and locked again, using the
remote control or the "Keyless Entry
and Starting" system.
Page 69 of 400
OFF
OFF
67Access
Reactivation of the interior
volumetric and anti-tilt monitoring
Triggering of the alarm
This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entry
and Starting system to deactivate
the exterior perimeter monitoring.
Press the locking button on the
remote control or lock the vehicle
using the Keyless Entry and
Starting system to activate all the
monitoring functions.
The indicator lamp in the button
again flashes once per second.
When the vehicle is unlocked using
the remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator
lamp in the button informs you that the alarm
was triggered during your absence. When
the ignition is switched on, this flashing stops
immediately.
Failure of the remote control
To deactivate the monitoring functions:
Unlock the vehicle using the key (integral
with the remote control) in the driver's door
lock.
Open the door; the alarm is triggered.
Switch on the ignition; the alarm stops. The
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using the key
(integral with the remote control) in the
driver's door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.
*
According to country.
Automatic activation *
2 minutes after the last door or the boot is
closed, the system is activated automatically.
To avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the Keyless Entry and Starting
system.
Page 70 of 400
Electric windows
1.
Left hand front electric window switch.
2.
Right hand front electric window switch.
3.
Right hand rear electric window switch.
Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
Automatic operation
To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing the switch again stops the movement
of the window.
The electric window switches remain
operational for approximately 45 seconds after
switching off the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again.
4.
Left hand rear electric window switch.
5.
Deactivating the rear electric window
switches,
locking the rear doors
(child lock).
