245Checks






Checks













12 V battery


The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.






The presence of this label, in particular with
the Stop & Start system, indicates the use of
a specific 12 V lead-acid battery with special
technology and specification. The involvement
of a CITROËN dealer or a qualified workshop
is essential when replacing or disconnecting
the battery.
Unless other wise indicated, check these
components in accordance with the
maintenance and warranty guide and according
to your engine.
Other wise, have them checked by a CITROËN
dealer or a qualified workshop.

When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.

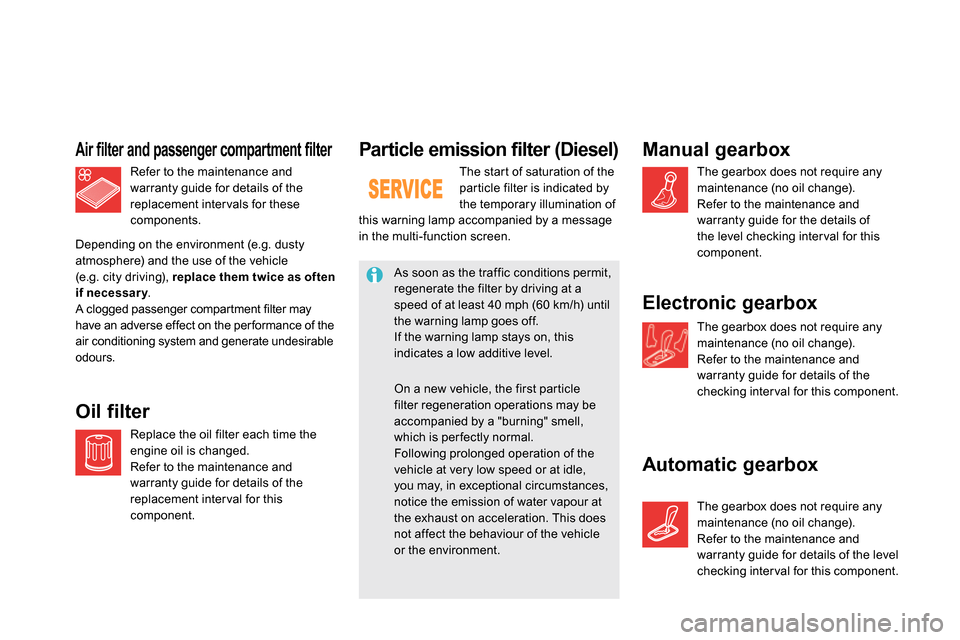

Particle emission filter (Diesel)

The start of saturation of the
par ticle filter is indicated by
the temporary illumination of
this warning lamp accompanied by a message
in the multi-function screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, this
indicates a low additive level.

On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.

Refer to the maintenance and
warranty guide for details of the
replacement inter vals for these
components.



















Air filter and passenger compartment filter

Replace the oil filter each time the
engine oil is changed.
Refer to the maintenance and
warranty guide for details of the
replacement inter val for this
component.














Oil filter

Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance of the
air conditioning system and generate undesirable
odours.








Manual gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for the details of
the level checking inter val for this
component.







Electronic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for details of the
checking inter val for this component.







Automatic gearbox

The gearbox does not require any
maintenance (no oil change).
Refer to the maintenance and
warranty guide for details of the level
checking inter val for this component.

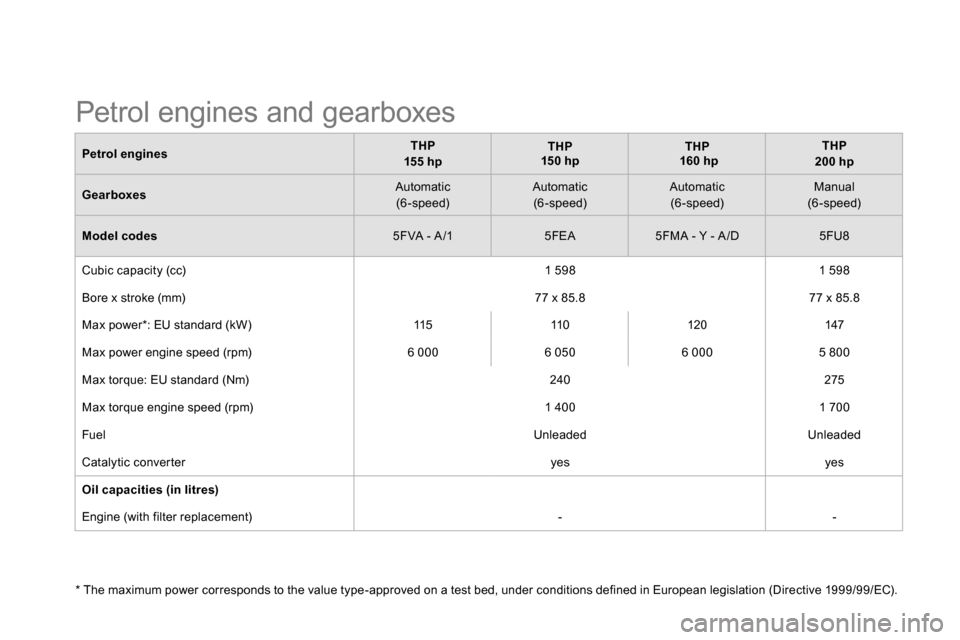

Petrol engines


THP

155 hp



THP
15 0 hp



THP

160
hp



THP
200 hp



Gearboxes

Automatic
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)

Model codes

5FVA - A /1
5FEA
5FMA - Y - A /D
5FU8
Cubic capacity (cc)
1 598
1 598
Bore x stroke (mm)
77 x 85.8
77 x 85.8
Max power * : EU standard (kW)
115
11 0
120
147
Max power engine speed (rpm)
6 000
6 050
6 000
5 800
Max torque: EU standard (Nm)
240

275
Max torque engine speed (rpm)
1 400
1 700
Fuel

Unleaded
Unleaded
Catalytic conver ter
yes
yes

Oil capacities (in litres)




Engine (with filter replacement)
-
-















Petrol engines and gearboxes


*
The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

251Te c h n i c a l d a t a

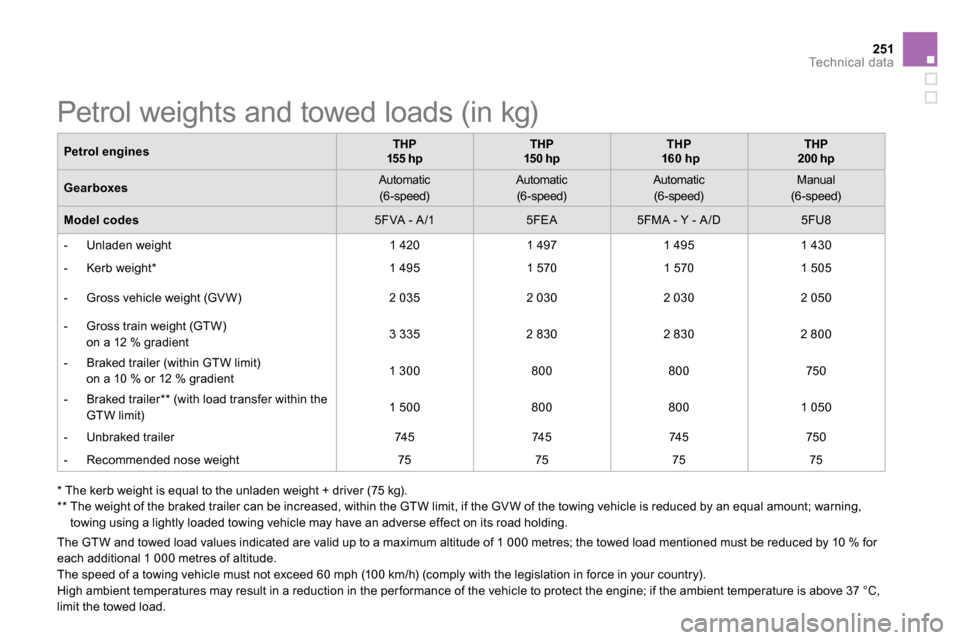

Petrol weights and towed loads (in kg)


Petrol engines


THP
1

55 hp


THP
15 0 hp


THP

160
hp



THP
200 hp


Gearbox

es

Automatic
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)

Model codes

5FVA - A /1
5FEA
5FMA - Y - A /D
5FU8


- Unladen weight
1 420
1 497
1 495
1 430


- Kerb weight *

1 495
1 570
1 570
1 505


- Gross vehicle weight (GV W)
2 035
2 030

2 030
2 050


- Gross train weight (GTW)
on a 12 % gradient
3 335
2 830
2 830
2 800


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 300
800
800
750


- Braked trailer ** (with load transfer within the
GTW limit)
1 500
800
800
1 050


- Unbraked trailer
74 5
74 5
74 5
750


- Recommended nose weight
75
75
75
75

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).

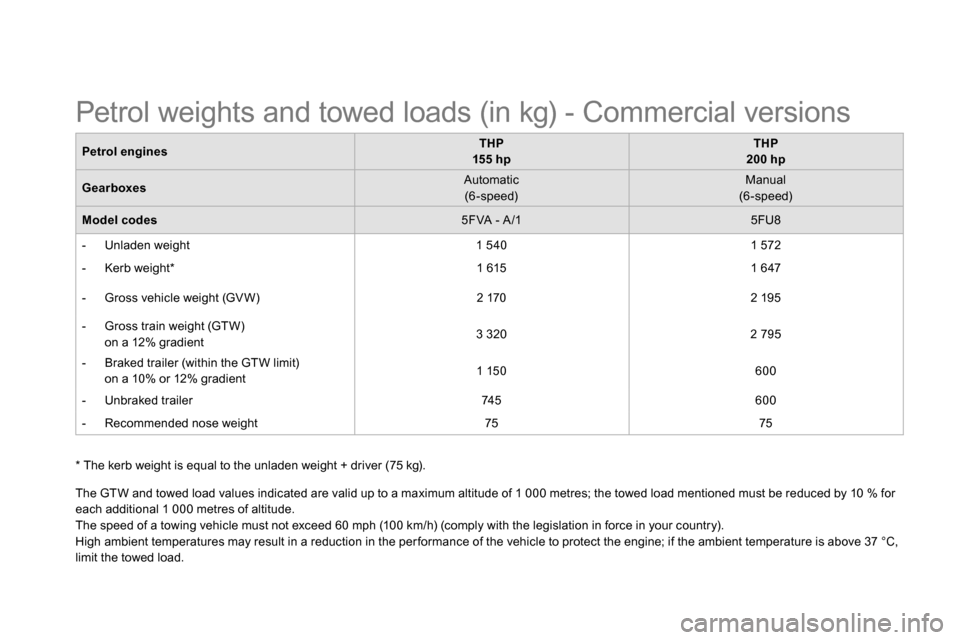

Petrol engines


THP
155 hp



THP
200 hp



Gearboxes

Automatic
(6-speed)
Manual
(6-speed)

Model codes

5FVA - A /1
5FU8


- Unladen weight
1 540
1 572


- Kerb weight *

1 615
1 647


- Gross vehicle weight (GV W)
2 170
2 195


- Gross train weight (GTW)
on a 12% gradient
3 320
2 795


- Braked trailer (within the GTW limit)
on a 10% or 12% gradient
1 150
600


- Unbraked trailer
74 5
600


- Recommended nose weight
75
75

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.


Petrol weights and towed loads (in kg) - Commercial versions

253Te c h n i c a l d a t a

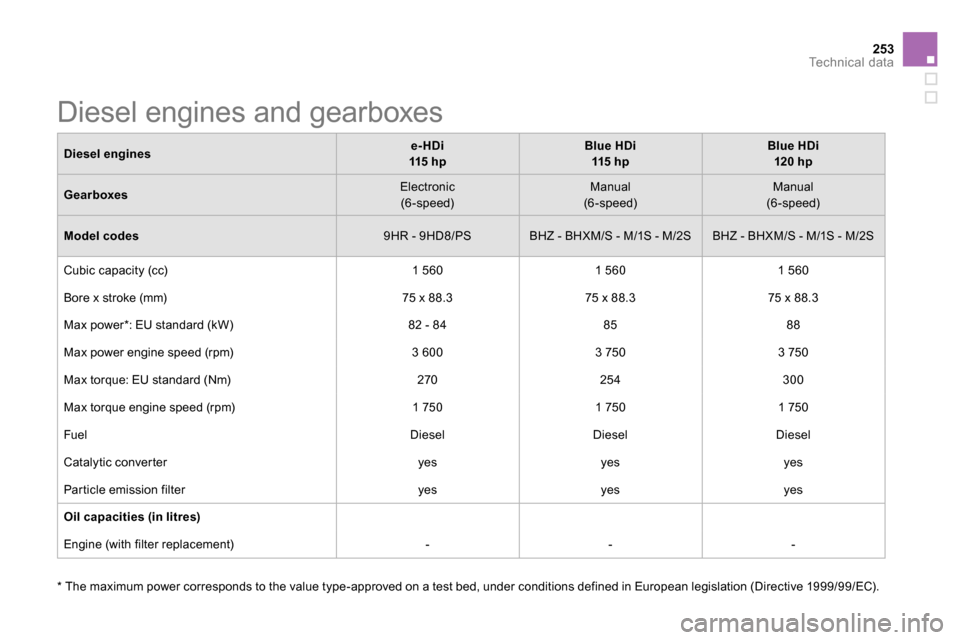

Diesel engines


e-HDi
115 h p



Blue HDi
115 h p



Blue HDi
120 hp



Gearboxes

Electronic
(6-speed)
Manual
(6-speed)
Manual
(6-speed)

Model codes

9HR - 9HD8/PS
BHZ - BHXM/S - M/1S - M/2S
BHZ - BHXM/S - M/1S - M/2S
Cubic capacity (cc)
1 560
1 560
1 560
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
Max power * : EU standard (kW)
82 - 84
85
88
Max power engine speed (rpm)
3 600
3 750
3 750
Max torque: EU standard (Nm)
270
254
300
Max torque engine speed (rpm)
1 750
1 750
1 750
Fuel
Diesel
Diesel

Diesel
Catalytic conver ter
yes
yes
yes
Particle emission filter
yes
yes
yes

Oil capacities (in litres)




Engine (with filter replacement)
-
-
-















Diesel engines and gearboxes


*
The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Diesel engines and gearboxes


* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

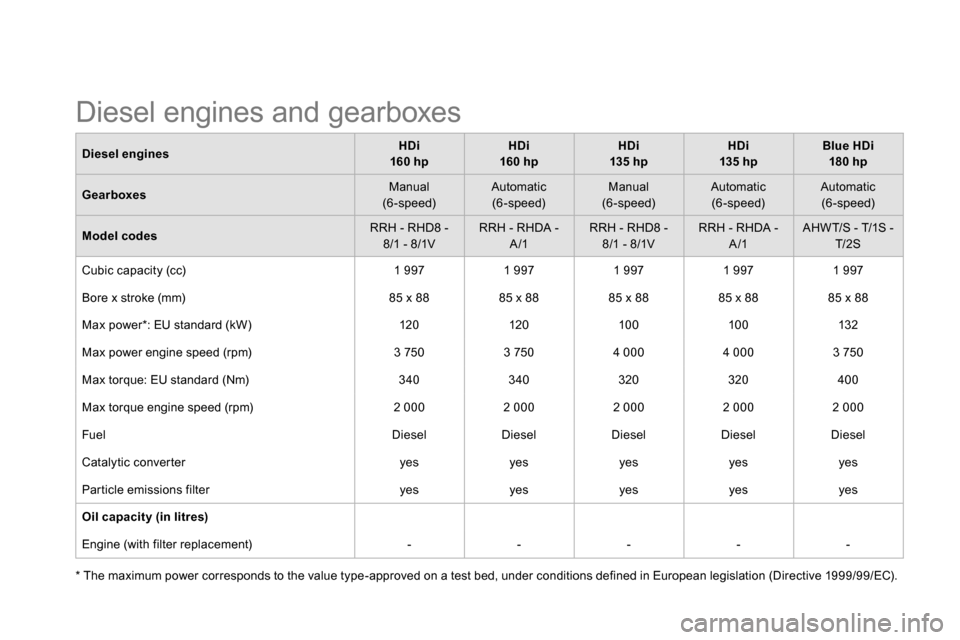

Diesel engines


HDi
160 hp



HDi
160 hp



HDi
135 hp



HDi
135 hp



Blue HDi
180 hp



Gearboxes

Manual
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)

Model codes

RRH - RHD8 -
8/1 - 8/1V
RRH - RHDA -
A/1
RRH - RHD8 -
8/1 - 8/1V
RRH - RHDA -
A/1
AHWT/S - T/1S -
T/2S
Cubic capacity (cc)
1 997
1 997
1 997
1 997
1 997
Bore x stroke (mm)
85 x 88
85 x 88
85 x 88
85 x 88
85 x 88
Max power * : EU standard (kW)
120
120
10 0
10 0
132
Max power engine speed (rpm)
3 750
3 750
4 000
4 000
3 750
Max torque: EU standard (Nm)
340
340
320
320
400
Max torque engine speed (rpm)
2 000
2 000
2 000
2 000
2 000
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Catalytic conver ter
yes
yes
yes
yes
yes
Particle emissions filter
yes
yes
yes
yes
yes

Oil capacity (in litres)




Engine (with filter replacement)
-
-
-
-
-

255Te c h n i c a l d a t a

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

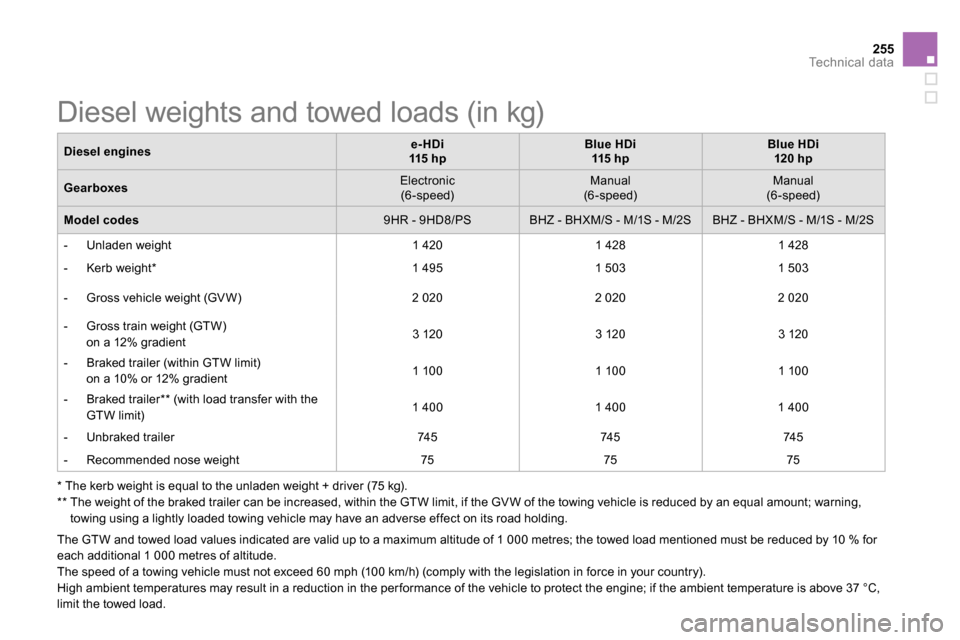

Diesel engines


e-HDi
115 h p



Blue HDi
115 h p



Blue HDi
120 hp



Gearboxes

Electronic
(6-speed)
Manual
(6-speed)
Manual
(6-speed)

Model codes

9HR - 9HD8/PS
BHZ - BHXM/S - M/1S - M/2S
BHZ - BHXM/S - M/1S - M/2S


- Unladen weight
1 420
1 428
1 428


- Kerb weight *

1 495
1 503
1 503


- Gross vehicle weight (GV W)
2 020
2 020
2 020


- Gross train weight (GTW)
on a 12% gradient
3 120
3 120
3 120


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100
1 100
1 100


- Braked trailer ** (with load transfer with the
GTW limit)
1 400
1 400
1 400


- Unbraked trailer
74 5
74 5
74 5


- Recommended nose weight
75
75
75

















Diesel weights and towed loads (in kg)

* The kerb weight is equal to the unladen weight + driver (75 kg).
**

The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

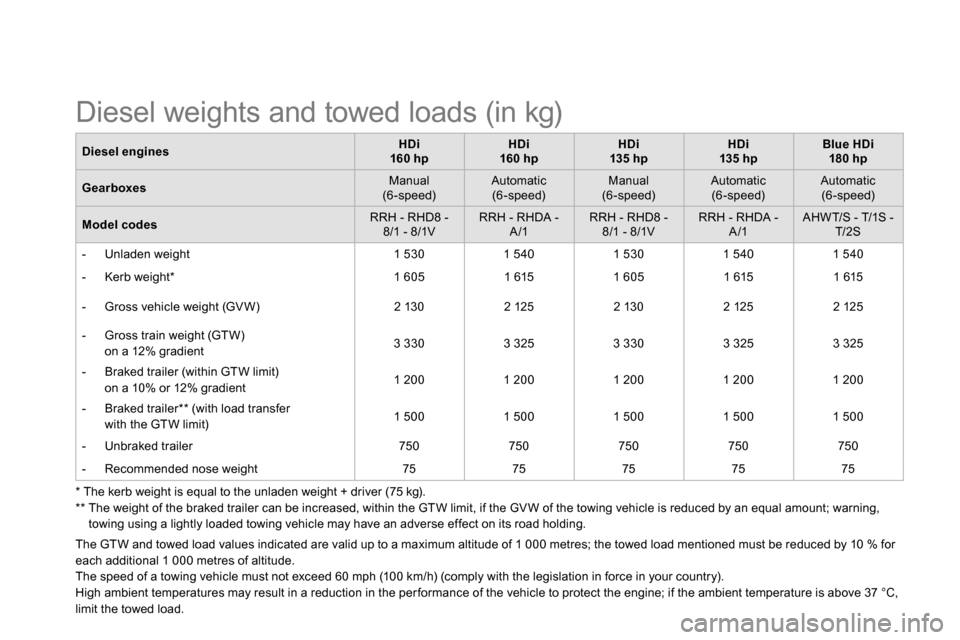

Diesel engines


HDi
160 hp



HDi
160 hp



HDi
135 hp



HDi
135 hp



Blue HDi
180 hp



Gearboxes

Manual
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)

Model codes

RRH - RHD8 -
8/1 - 8/1V
RRH - RHDA -
A/1
RRH - RHD8 -
8/1 - 8/1V
RRH - RHDA -
A/1
AHWT/S - T/1S -
T/2S


- Unladen weight

1 530
1 540
1 530
1 540
1 540


- Kerb weight *

1 605
1 615
1 605
1 615
1 615


- Gross vehicle weight (GV W)
2 130
2 125
2 130
2 125
2 125


- Gross train weight (GTW)
on a 12% gradient
3 330
3 325
3 330
3 325
3 325


- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 200
1 200
1 200
1 200
1 200


- Braked trailer ** (with load transfer
with the GTW limit)
1 500
1 500
1 500
1 500
1 500


- Unbraked trailer
750
750
750

750
750


- Recommended nose weight
75
75
75
75
75

Diesel weights and towed loads (in kg)

257Te c h n i c a l d a t a

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The kerb weight is equal to the unladen weight + driver (75 kg).
Diesel engines


e-HDi


115
hp



HDi
160 hp PEF



HDi
160 hp PEF



Gearboxes

Electronic
(6 speed)
Manual
(6-speed)
Automatic
(6-speed)

Model codes

9HR - 9HD8/PS
RHH8 - 8/1V
RHHA - A /1


- Unladen weight
1 528
1 643
1 634


- Kerb weight *

1 603
1 718
1 709


- Gross vehicle weight (GV W)
2 150
2 265
2 255


- Gross train weight (GTW)
on a 12% gradient
3 150
3 315
3 305


- Braked trailer (within the GTW limit)
on a 10% or 12% gradient
1 000
1 050
1 050


- Unbraked trailer
74 5
750


- Recommended nose weight
75

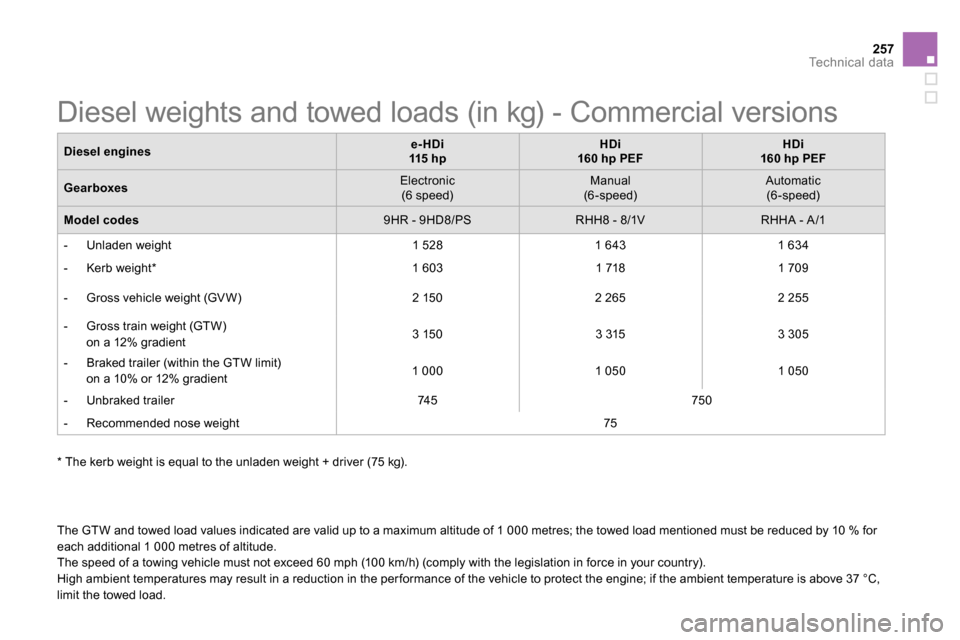

Diesel weights and towed loads (in kg) - Commercial versions
