Page 66 of 400
Boot
After unlocking the boot or the vehicle
using the electronic key - remote control,
press the opening control then raise the
tailgate.
Opening from outside
Press this button until the boot is heard to
unlock.
Ta i l g a t e r e l e a s e
Unlocking
Fold back the rear seats to gain access to
the lock from inside the boot.
Insert a small screwdriver into hole A
of the
lock to unlock the tailgate.
Move the latch to the left.
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
Closing
Lower the tailgate using the interior grab
handle.
If the tailgate is not closed correctly, engine
running
or vehicle moving
(speed above
6 mph (10 km/h)), a message appears in the
instrument panel screen for a few seconds.
Opening from inside

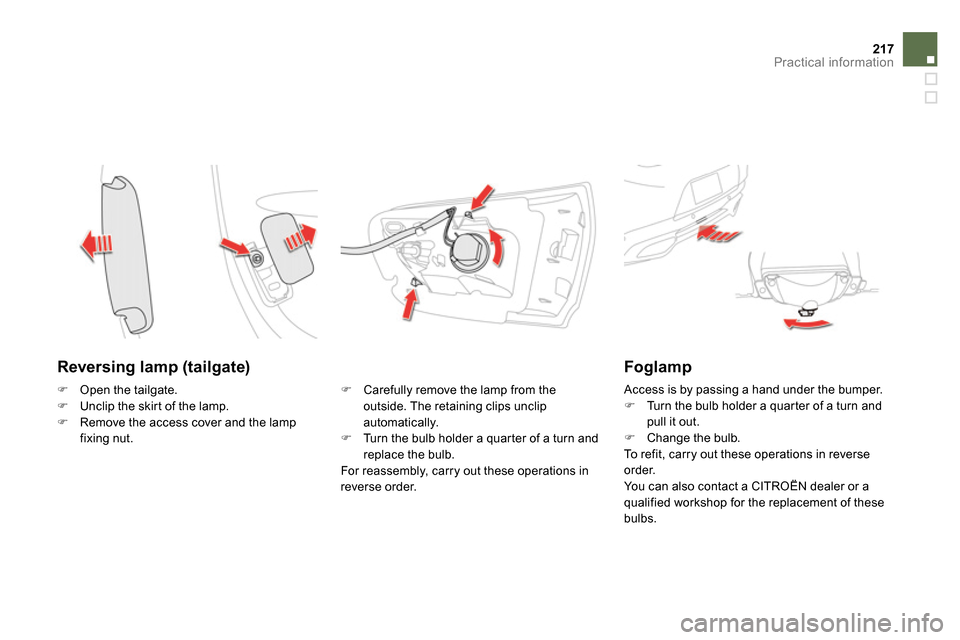

Page 219 of 400
217Practical information
Reversing lamp (tailgate)
Carefully remove the lamp from the
outside. The retaining clips unclip
automatically.
Turn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp
Open the tailgate.
Unclip the skirt of the lamp.
Remove the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.
Turn the bulb holder a quarter of a turn and
pull it out.
Change the bulb.
To refit, carry out these operations in reverse
order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Page 397 of 400
11Practical information
After emptying the bottle, wipe away any
spillage around the tank filler using a damp cloth.
Refit the blue cap to the tank and turn it a 6 th of a turn clockwise, to its stop. Refit the black plastic blanking plug, clipping it in place. Lower the boot floor and close the tailgate.
Important: if your vehicle's AdBlue ®
tank is completely empty - which is confirmed by the alert messages and the impossibility of starting the engine - you must add at least 3.8 litres, so two 1.89 litre bottles. If any additive is split or splashed, wash immediately with cold water or wipe with a damp cloth. If the additive has crystallised, clean it off using a sponge and hot water.
Important: when topping up after running out of additive , signalled by the message "Top up emissions additive: Starting prevented", you must wait for approximately 5 minutes before switching on the ignition, without opening the driver's door, unlocking the vehicle, placing the key of the "Keyless Entr y and Star ting" system inside the vehicle or inser ting the electronic key in the reader. Switch on the ignition, wait for 10 seconds, then start the engine.
Never dispose of AdBlue ® additive ® additive ®
bottles in the household waste. Place them in a special container provided this purpose or take them to your dealer.
Page 399 of 400
5Access
DS5_ Additif_en_Chap02_ouvertures_ed03-2015
Boot
After unlocking the vehicle, press the opening control then raise the tailgate.
Opening from outside
Press this button until the boot is heard to unlock.
Tailgate release
Unlocking
Fold back the rear seats to gain access to the lock from inside the boot. Insert a small screwdriver into hole A of the lock to unlock the tailgate. Move the latch to the left.
System allowing the mechanical unlocking of the boot in the event of a battery or central locking system malfunction.
Locking after closing
If the fault persists after closing again, the boot will remain locked.
Closing
Lower the tailgate using the interior grab handle.
Opening from inside
If the tailgate is not closed correctly, engine running or vehicle moving (speed above 6 mph (10 km/h)), a message appears in the instrument panel screen for a few seconds.
