ESP Citroen DS5 RHD 2015.5 1.G Workshop Manual

255
When switching on the ignition, the
UREA warning lamp comes on, accompanied
by an audible signal and the display of a
message (e.g.: "Top up emissions additive:
Starting prevented in 900 miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the additive tank has
been topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of a message (e.g. "Top
up emissions additive: Starting prevented in
350 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the additive tank has been
topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
Other wise you will not be able to restart your
engine.
Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of the message "Top up
emissions additive: Starting prevented".
The AdBlue
® tank is empty: the system required
by regulations prevents engine starting.
Breakdown related to a lack of AdBlue® additive
To be able to start the engine,
we recommend that you call on
a CITROËN dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue
® to the tank.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
checks

Petrol engineTHP 15 0THP 160 THP 165 S&S THP 210 S&S
ge

arbox Automatic

(6- speed) Automatic

(6- speed) EAT6 automatic

(6- speed) Manual
(6- speed)
Model code 5FEA5FMA -Y -A /
d5gZ

T/S -T/1S -T/2S5
gMM/

S
Cubic capacity (cc) 1 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 11 0120 121155
Max power engine speed (rpm) 6 0506 000 6 0006 000
Max torque: EU standard (Nm) 240240240285
Max torque engine speed (rpm) 1 4001 4001 400 1 750
Fuel UnleadedUnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe sYe s
Engine oil capacity
(with filter replacement) (in litres) 4.25
4.254.254.25
Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

267
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
BlueH d i 115
S&S BlueH d i 120 S&S
ge

arbox
Manual

(6- speed) EAT6 automatic
(6- speed) Manual

(6- speed) EAT6 automatic
(6- speed)
Model code BHXM/S -M/1S -M/2SBHX T/S -T/1S -T/2SBHZM/S -M/1S -M/2S BHZT/S -T/1S -T/2S
Cubic capacity (cc) 1 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.3
Max power*: EU standard (kW) 8588
Max power engine speed (rpm) 3 7503 750
Max torque: EU standard (Nm) 300300
Max torque engine speed (rpm) 1 7501 750
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter Ye sYe s
Engine oil capacity
(with filter replacement) (in litres) 3.75
3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
BlueH d i 135 S&S
BlueH d i 150 S&S
BlueH d i 180 S&S
ge

arbox
Manual

(6- speed) Manual

(6- speed) EAT6 automatic
(6- speed)
Model code AHV AHSM/S - M/1S - M/2SAHX AHRM/S -M/1S -M/2S AHW T/S -T/1S -T/2S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Max power*: EU standard (kW) 10 011 0132
Max power engine speed (rpm) 4 0004 000 3 750
Max torque: EU standard (Nm) 320370400
Max torque engine speed (rpm) 2 0002 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity
(with filter replacement) (in litres) 6 .1
6 .15 .1
Diesel engines and gearboxes
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

RdS
Select " Rd S" and confirm to save.
" Rd
S" is displayed in the screen.
When the radio is displayed on the
screen, press OK
to display the
contextual menu.
Select or deselect categories to
activate or deactivate the reception of
the corresponding messages. Make a long press on TA I
nF
O
to
display the list of categories.
Press TA I
nF
O
to activate or
deactivate the reception of traffic
messages.
RDS, if displayed, enables you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the country as radio stations
do not cover 100
% of the territory. This
explains the loss of reception of the station
during a journey.
Receiving TA messages
The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
transmitting this type of message.
When a traffic report is transmitted,
the current audio source (Radio, CD,
USB,
...) is interrupted automatically to
play the TA message. Normal playback
of the audio source resumes at the end
of the transmission of the message. The INFO function gives priority to
TA alert messages. To be active, this
function needs good reception of a
radio station that transmits this type
of message. When a message is
transmitted, the current audio source
(Radio, CD, USB, ...) is interrupted
automatically to receive the INFO
message. Normal play resumes at the
end of the message transmission.
Receiving InF
O messages

(so that the caller cannot hear)
In the contextual menu:
-
s
elect " Micro OFF " to switch off
the microphone.
-

d
eselect " Micro OFF " to switch
the microphone on. In the contextual menu:
-

s
elect "Telephone mode " to
transfer the call to the telephone.
-

d
eselect "Telephone mode " to
transfer the call to the vehicle. From the contextual menu, select
"dT
MF tones" and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
" Switch " and conform to return to a
call left on hold.
Secret - Muteco mbined mode
(to leave the vehicle without ending the call)
Interactive voice response
co

nsultation call
In certain cases, the combined mode has to
activated from the telephone.
If the contact has been cut off, when you
reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically (depending on the compatibility of
the telephone).

Audio settings
Screen c
The Ambience, Treble and Bass audio
se ttings are different and independent
for each sound source.
On-board audio: Arkamys
© Sound
Staging optimises sound distribution in
the the passenger compartment. The distribution (or spatialisation using
the Arkamys
© system), is an audio
process which allows the sound quality
to be improved according to the setting
chosen, corresponding to the position
of the listeners in the vehicle.
Press ¯ to display the audio settings
menu.
The settings available are:
-
A

mbience,
-

B

ass,
-
T

reble,
-
L

oudness,
-

D

istribution: Personalised or Driver,
-

L

eft / right balance,
-

F

ader (front / rear balance),
-

A

uto. volume. Select and confirm "
Other
settings… " to display the next
setting in the list.

4DconceptDiadeisInterak
08-15

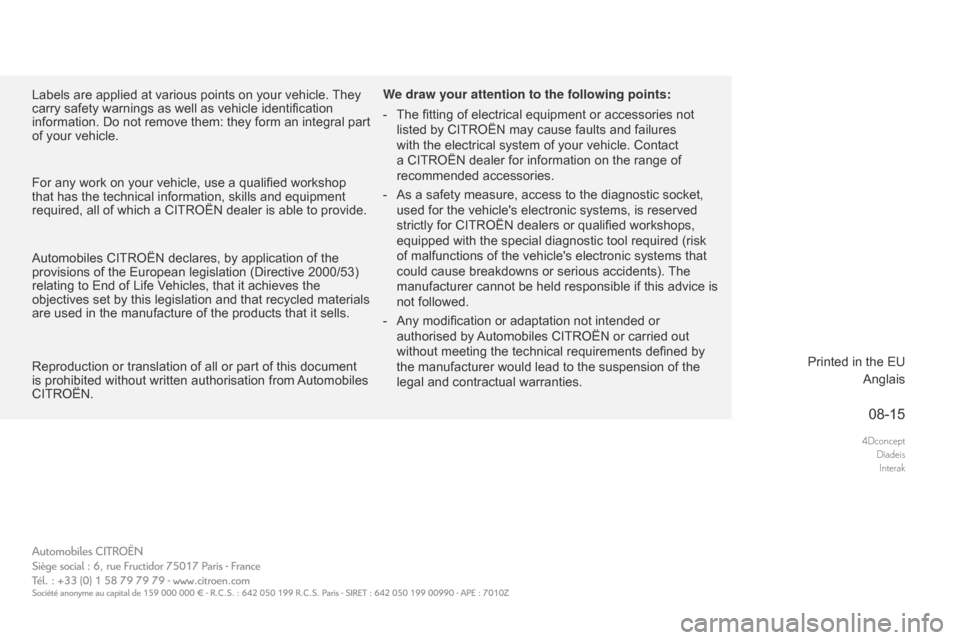

Labels are applied at various points on your vehicle. They
carry safety warnings as well as vehicle identification
information. Do not remove them: they form an integral part
of your vehicle.
Automobiles CITROËN
declares, by application of the
provisions of the European legislation (Directive 2000/53)
relating to End of Life Vehicles, that it achieves the
objectives set by this legislation and that recycled materials
are used in the manufacture of the products that it sells.
Printed in the EUAnglais
For any work on your vehicle, use a qualified workshop
that has the technical information, skills and equipment
required, all of which a CITROËN dealer is able to provide.
Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN. We draw your attention to the following points:
-

The fitting of electrical equipment or accessories not
listed by CITROËN

may cause faults and failures
with the electrical system of your vehicle. Contact
a CITROËN dealer for information on the range of
recommended accessories.
-

As a safety measure, access to the diagnostic socket,
used for the vehicle's electronic systems, is reserved
strictly for CITROËN dealers or qualified workshops,
equipped with the special diagnostic tool required (risk
of malfunctions of the vehicle's electronic systems that
could cause breakdowns or serious accidents).

The
manufacturer cannot be held responsible if this advice is
not followed.
-

Any modification or adaptation not intended or
authorised by

Automobiles CITROËN or carried out
without meeting the technical requirements defined by
the manufacturer would lead to the suspension of the
legal and contractual warranties.

1
1
20
5
4
2
7
27 Audio and Telematics


Select a radio station or frequency (refer to the
corresponding section).
Press on Radio Media
to display the
primary page.

Press on the secondary page.

Select " Settings
".

Select " Radio
".

Activate/deactivate " RDS
options
".
Press on Radio Media
to display the
primary page.

Press on the secondary page.
Press on " Save
" (preset).

Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.
Press on Frequency
.

Enter the frequency in full
(e.g.: 92.10 MHz) using the keypad
then " Confirm
".


Changing radio station

Pressing the name of the current radio station
brings up a list.
To change radio station press the name of the
desired station.

Or

Press on Radio Media
to display the
primary page.

Select " Save
" (preset).








Preset a station











Activate/ Deactivate RDS



OR




THEN



A press on this button presets all of
the stations one after the other.


Recall pre-set stations


RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as radio
stations do not cover 100 % of the
territory. This explains the loss of
reception of the station during a journey.

31
20
29 Audio and Telematics


Select change of source.
Press on Radio Media
to display the
primary page.

Select " DAB Radio
".

Select " List
" in the primary page.

Select the radio station from the list offered.

Press on Radio Media
to display the
primary page.

Press on the secondary page.

Select " Settings
".

Select " Radio
".

Select " Digital/FM auto
tracking
" then " Confirm
".










DAB / FM auto tracking







Digital radio


"DAB" does not cover 100% of the
territory.
When the digital radio signal is poor,
"DAB/FM station tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).
If "DAB/FM station tracking" is
activated, there is a difference of a few
seconds when the system switches to
"FM" analogue radio with sometimes a
variation in volume.
When the digital signal is restored, the
system automatically changes back to
"DAB".
Digital radio provides higher quality
reception and also the graphical display
of current information on the radio
station being listened to. Select "List" in
the primary page.
The range of multiplexes available is
displayed in alphabetical order.

If the "DAB" station being listened to
is not available on "FM" (" DAB/FM
"
option greyed out), or "DAB/FM station
tracking" is not activated, the sound
will cut out while the digital signal is too
weak.


or

Select " Radio list
" in the secondary
page.
