Citroen GRAND C4 PICASSO RHD 2017 2.G Owner's Guide

19
This instrument panel can be personalised. Depending on the display mode selected, some information can be hidden.

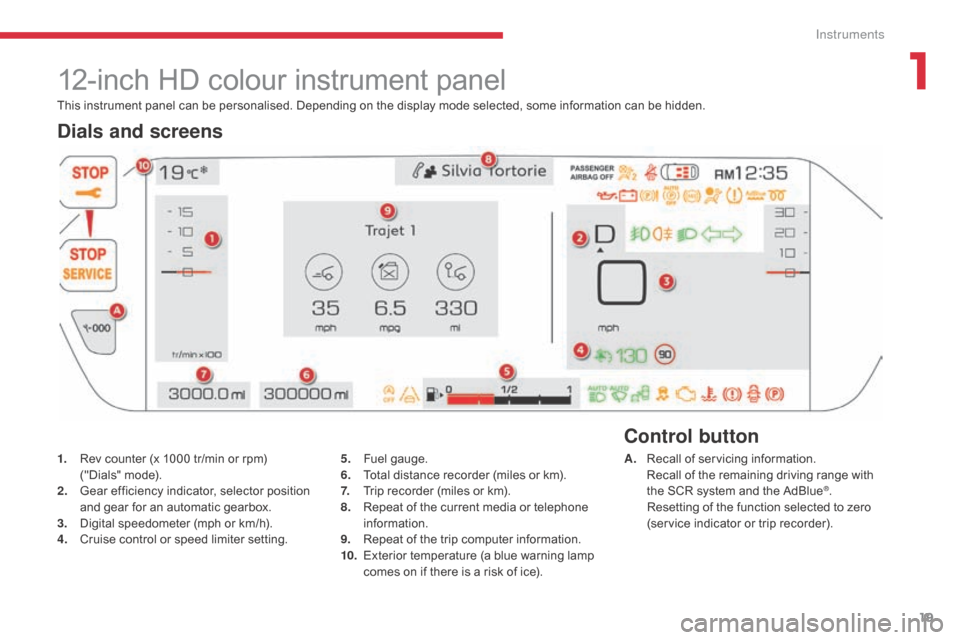

12-inch HD colour instrument panel
1. Rev counter (x 1000 tr/min or rpm) ("Dials" m ode).
2.
G

ear efficiency indicator, selector position
and gear for an automatic gearbox.
3.
D

igital speedometer (mph or km/h).
4.
C

ruise control or speed limiter setting. A. R
ecall of servicing information. R
ecall of the remaining driving range with
the SCR system and the AdBlue
®. R
esetting of the function selected to zero
(service indicator or trip recorder).
Control button
Dials and screens
5. Fuel gauge.
6. T
otal distance recorder (miles or km).
7.
T

rip recorder (miles or km).
8.
R

epeat of the current media or telephone
information.
9.
R

epeat of the trip computer information.
10.
E

xterior temperature (a blue warning lamp
comes on if there is a risk of ice).
1
Instruments

20
You can modify the appearance of the
instrument panel, by choosing:
-
a c
olour scheme,
-

a d
isplay mode.
Choosing the language
This depends on the setting in the touch
screen.
Certain languages are not available for this
instrument panel; English is selected by default. Each mode corresponds to the type of
information displayed in the configurable area.
F

T
urn the thumbwheel on the left of the
steering wheel to display and run through
the different modes in the right-hand part
of the instrument panel,
F

O
nce the display mode required has been
selected, press the thumbwheel to confirm.
Personalisation of the 12 inch colour instrument panel
Choice of display mode
or
Display zones
Whatever the display mode or colour scheme
chosen, the instrument panel contains:
-

a f
ixed display zone A with:
●

t
he speedometer,
●

t
he warning lamps,
●

t
he fuel gauge,
●

t
he various repeated information and
alert messages.
-

a c
onfigurable display zone B .
Most of the warning lamps do not have a fixed
position.
The warning and indicator lamps are displayed
from left to right in order of importance.
For certain functions that have indicator lamps
for both on and off, there is just one dedicated
location.
Choosing the colour scheme
To modify it, with the vehicle stationary:
F
P
ress the end of the lighting control stalk
to display and run through the different
modes in the right-hand part of the
instrument panel,
F

O
nce the display mode required has been
selected, it is applied automatically after
a few moments without any action on the
control.
F

P
ress this button in the
" Configuration " menu of the
touch screen.
The system restarts to take account of the
modifications to the touch screen and the
instrument panel.
Instruments

21

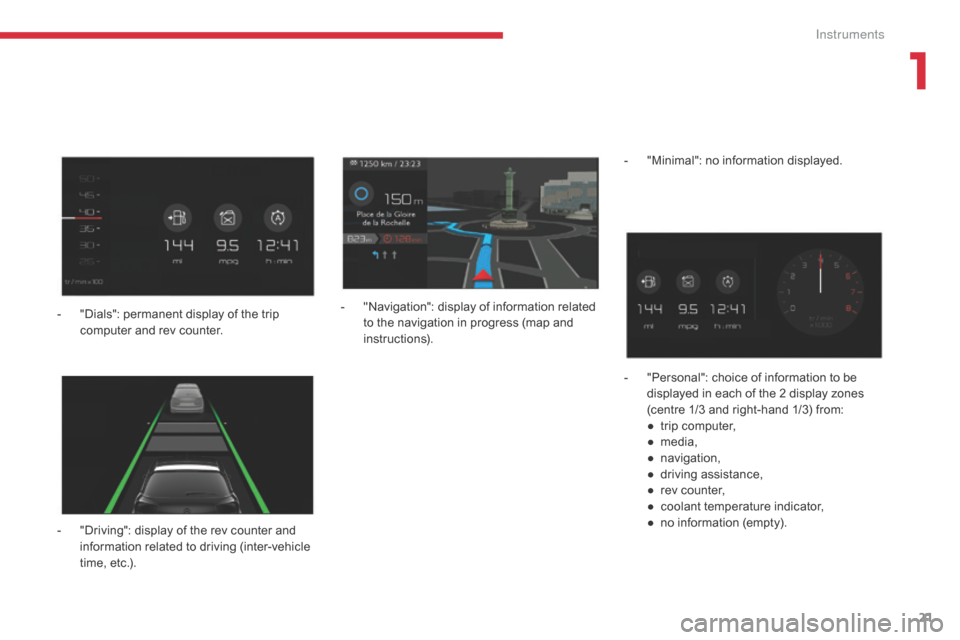

- "Driving": display of the rev counter and information related to driving (inter-vehicle
time, etc.). -

"
Navigation": display of information related
to the navigation in progress (map and
instructions). -
"
Minimal": no information displayed.
-
"
Personal": choice of information to be
displayed in each of the 2 display zones
(centre 1/3 and right-hand 1/3) from:
●
t
rip computer,
●
m
edia,
●
n
avigation,
●
d
riving assistance,
●
r
ev counter,
●
c
oolant temperature indicator,
● n o information (empty).
-
"
Dials": permanent display of the trip
computer and rev counter.
1
In

22
Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred. In the
event of a fault, the illumination of the
warning lamp may be accompanied by
a message.
Refer to the tables on the following
pages for more information.
Visual indicators informing the driver of the status of a system (operation or deactivation indicator
lamp) or the existence of a fault (warning lamp).When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
The illumination of certain warning lamps may
be accompanied by an audible signal and a
message.
The warning lamps may come on continuously
(fixed) or flash.
Instruments

23
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.Warning / indicator lamp StateCause Action / Observations
Left-hand
direction indicatorflashing with buzzer.The lighting stalk has been pushed
down.
Right-hand
direction indicatorflashing with buzzer.The lighting stalk has been pushed
up.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fixed.
The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
1
Instruments

24
Automatic
headlamp
dippingfixed.
The lighting control stalk is in the
"AUTO" position, pulled towards you,
and the function is activated ( Driving
m e n u).
The system is in dipped beam mode
as there is sufficient ambient light
and/or the traffic conditions do not
allow illumination of main beams. The camera, located at the top of the windscreen,
authorises or prohibits the switch between dipped
beams and main beams, depending on the ambient
lighting and driving conditions.
Pull the lighting stalk again to deactivate.
For more information on Automatic headlamp
dipping
, refer to the corresponding section.
fixed. The lighting control stalk is in the
"AUTO" position, pulled towards you,
and the function is activated ( Driving
m e n u).
The system is in main beam mode
as the ambient lighting and traffic
conditions allow it.
Warning / indicator lamp
StateCause Action / Observations
Rear foglamps fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the rear foglamps.
Front foglamps
fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
once to switch off the front foglamps.
For more information on the Lighting control stalk , refer to the corresponding section.
Instruments

25
Warning / indicator lampStateCause Action / Observations
Electric parking
brake fixed.
The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal,
briefly push the electric parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake ,
refer to the corresponding section.
Diesel engine
pre-heating
fixed.
The "START/STOP " switch has been
pressed (ignition on). Wait until the indicator lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that you maintain pressure on the brake pedal for an
automatic gearbox, or the clutch pedal is pressed fully
down for a manual gearbox.
The period of illumination of the indicator lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Blind Spot
Monitoring
System fixed.
The system has been activated. For more information on the Blind Spot Monitoring
System, refer to the corresponding section.
Park Assist fixed. The Park Assist function has been
activated. For more information on Park Assist
, refer to the
corresponding section.
1
Instruments

26
Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
The wiper control stalk has been
pushed down.
Automatic front wiping is activated. To deactivate automatic wiping, push the wiper control
stalk down again or put the wiper control stalk in
another position.
Passenger 's
airbag system fixed.
The control switch, located at the
passenger's end of the dashboard, is at
the "
ON" position.
The passenger's front airbag is activated.In this case, do not install a rear ward
facing child seat on the front
passenger seat. Turn the control switch to the "OFF
" position to
deactivate the passenger's front airbag.
You can install a rear ward facing child seat, unless there
is a fault with the airbags (airbag warning lamp on).
Stop & Star t fixed. When the vehicle stops (red lights,
traffic jams,
...) the Stop & Start system
has put the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes off. STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Instruments

27
Warning / indicator lampStateCause Action / Observations
Passenger's
airbag system fixed.
The control switch, located at the
right-hand end of the dashboard is
set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rear ward facing
child seat, unless there is an
operating fault with the airbags
(Airbag warning lamp on). Turn the control switch to the "
ON" position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear ward
facing position on the front passenger seat.
Collision Risk
Alert / Active
Safety Brake fixed, accompanied by
a message.
The system has been deactivated,
via the vehicle configuration menu in
the screen. For more information on the Collision Risk
Alert
/ Active Safety Brake system, refer to the
corresponding section.
Stop & Star t fixed. The Stop & Start
has been
deactivated. Reactivate the function in the Driving
menu.
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and the display of a message.
1
Instruments

28
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated message.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.Warning / indicator lamp StateCause Action / Observations
STOP fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message. Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.
