Citroen GRAND C4 PICASSO RHD 2017 2.G Owner's Manual

299

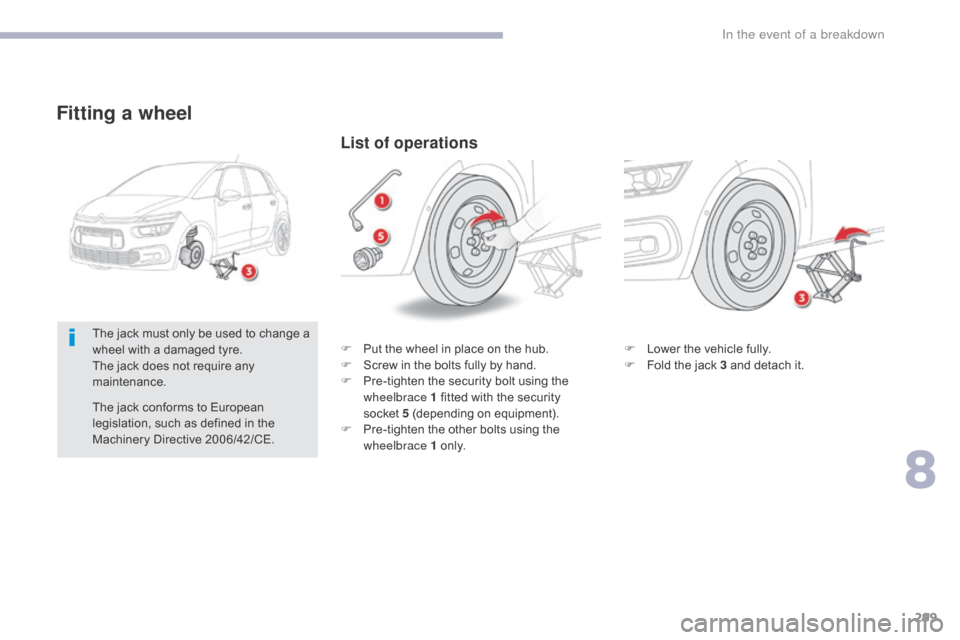

Fitting a wheel
F Lower the vehicle fully.
F F old the jack 3 and detach it.
List of operations
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F

P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5

(depending on equipment).
F

P
re-tighten the other bolts using the
wheelbrace 1 o n l y.
The jack must only be used to change a
wheel with a damaged tyre.
The jack does not require any
maintenance.
The jack conforms to European
legislation, such as defined in the
Machinery Directive 2006/42/CE.
8
In the event of a breakdown

300

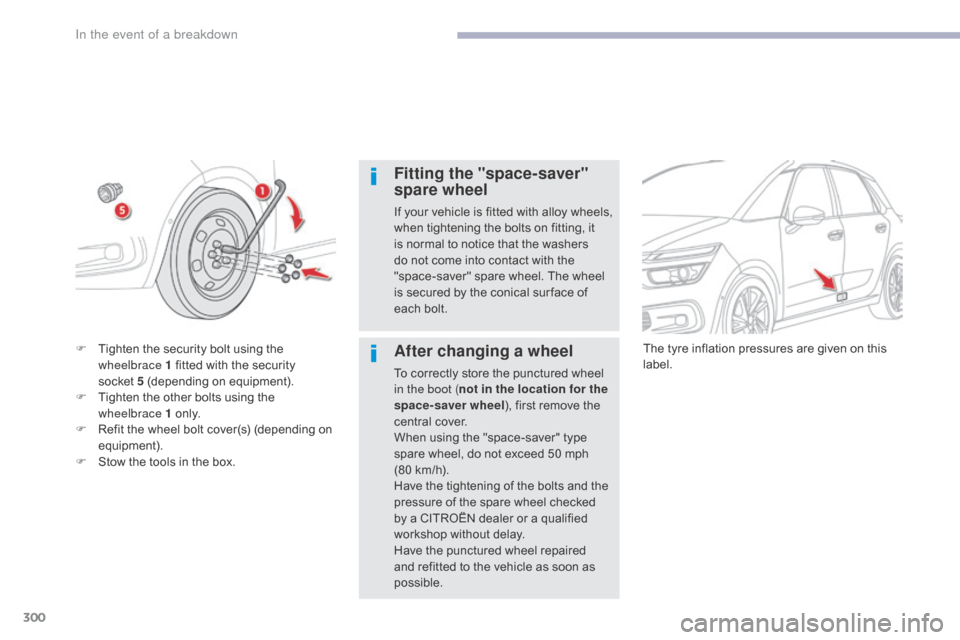

Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical sur face of
each bolt.
After changing a wheel
To correctly store the punctured wheel
in the boot (not in the location for the
space-saver wheel ), first remove the
central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80
km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a CITROËN dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
F

T

ighten the security bolt using the
wheelbrace 1 fitted with the security
socket 5
(depending on equipment).
F

T

ighten the other bolts using the
wheelbrace 1 o n l y.
F

R

efit the wheel bolt cover(s) (depending on
equipment).
F

S

tow the tools in the box. The tyre inflation pressures are given on this
label.
In the event of a breakdown

301

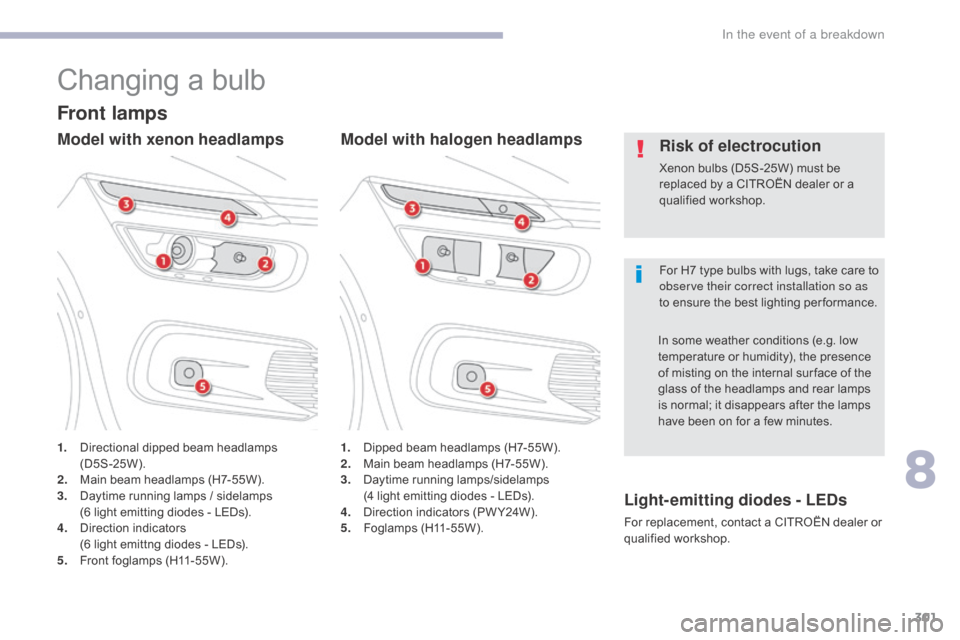

Changing a bulb
For H7 type bulbs with lugs, take care to
observe their correct installation so as
to ensure the best lighting per formance.
Risk of electrocution
Xenon bulbs (D5S-25W) must be
replaced by a CITROËN dealer or a
qualified workshop.
Front lamps
1. Directional dipped beam headlamps (D5S-25W).
2.
M

ain beam headlamps (H7-55W).
3.
D

aytime running lamps / sidelamps
(

6 light emitting diodes - LEDs).
4.
D

irection indicators
(

6 light emittng diodes - LEDs).
5.
F

ront foglamps (H11-55W). 1. D
ipped beam headlamps (H7-55W).
2. M ain beam headlamps (H7-55W).
3.
D

aytime running lamps/sidelamps
(

4 light emitting diodes - LEDs).
4.
D

irection indicators (PW Y24W).
5.
F

oglamps (H11-55W).In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Light- emitting diodes - LEDs
For replacement, contact a CITROËN dealer or
qualified workshop.
Model with xenon headlamps Model with halogen headlamps
8
In the event of a breakdown

302

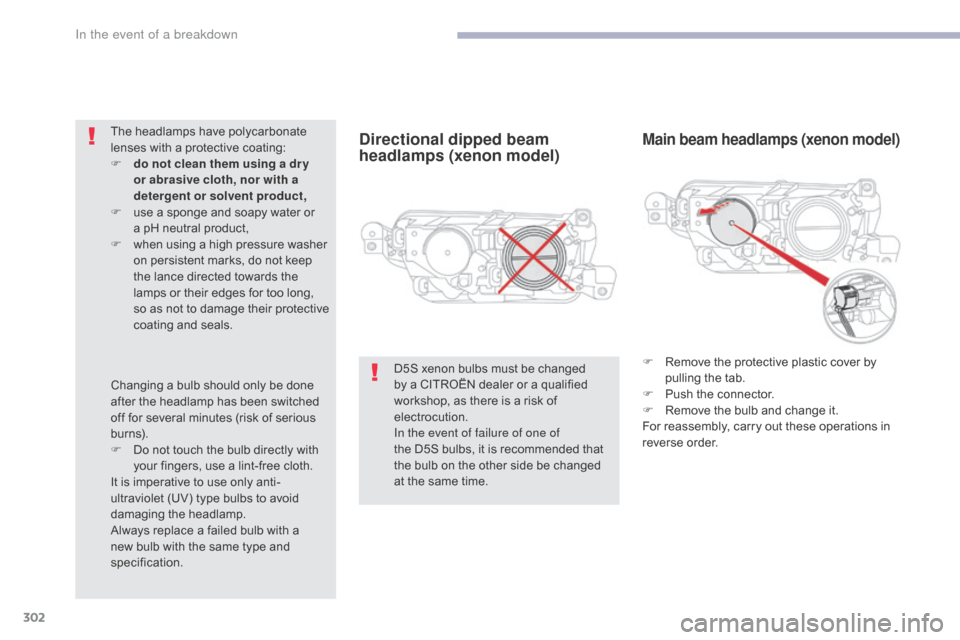

Directional dipped beam
headlamps (xenon model)Main beam headlamps (xenon model)
F Remove the protective plastic cover by pulling the tab.
F

P
ush the connector.
F

R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
D5S xenon bulbs must be changed
by a CITROËN dealer or a qualified
workshop, as there is a risk of
electrocution.
In the event of failure of one of
the D5S bulbs, it is recommended that
the bulb on the other side be changed
at the same time.
The headlamps have polycarbonate
lenses with a protective coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water or
a

pH neutral product,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D

o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
In the event of a breakdown

303

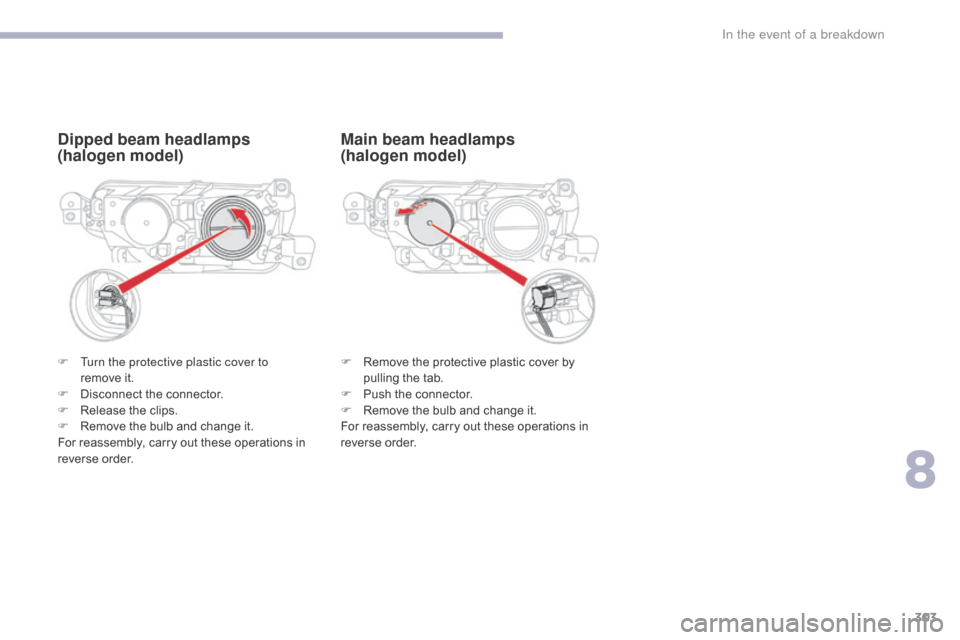

Dipped beam headlamps
(halogen model)
F Remove the protective plastic cover by pulling the tab.
F

P
ush the connector.
F

R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Main beam headlamps
(halogen model)
F Turn the protective plastic cover to remove it.
F

D
isconnect the connector.
F

R
elease the clips.
F

R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
8
In the event of a breakdown

304

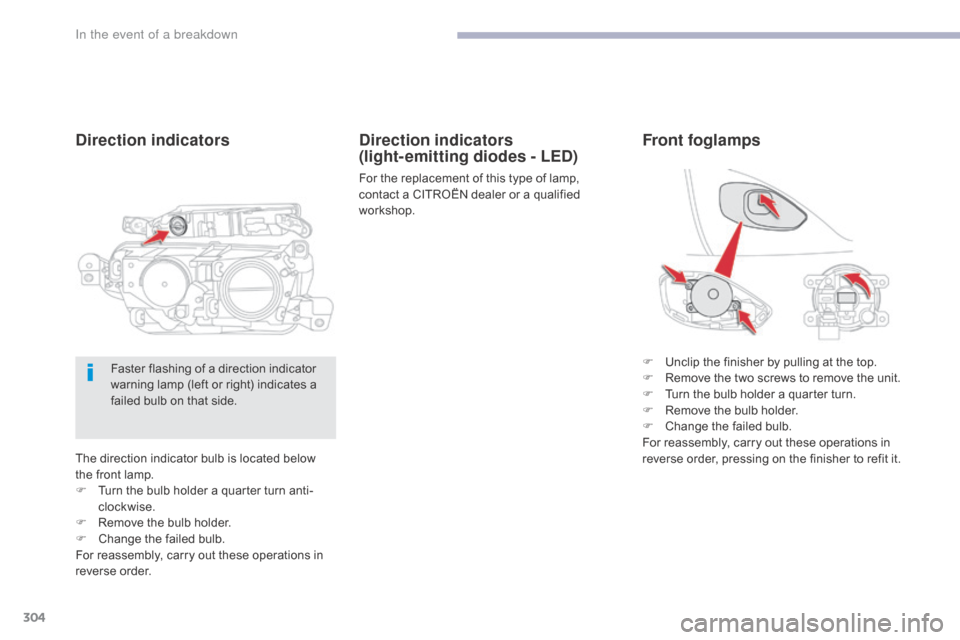

The direction indicator bulb is located below
the front lamp.
F
T
urn the bulb holder a quarter turn anti-
clockwise.
F

R
emove the bulb holder.
F

C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order.
Direction indicators Front foglamps
F Unclip the finisher by pulling at the top.
F
R emove the two screws to remove the unit.
F

T
urn the bulb holder a quarter turn.
F

R
emove the bulb holder.
F

C
hange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
Direction indicators
(light- emitting diodes - LED)
For the replacement of this type of lamp,
contact a CITROËN dealer or a qualified
workshop.
In the event of a breakdown

305
You should contact a CITROËN dealer or a
qualified workshop for the replacement of the
light-emitting diode - LED.

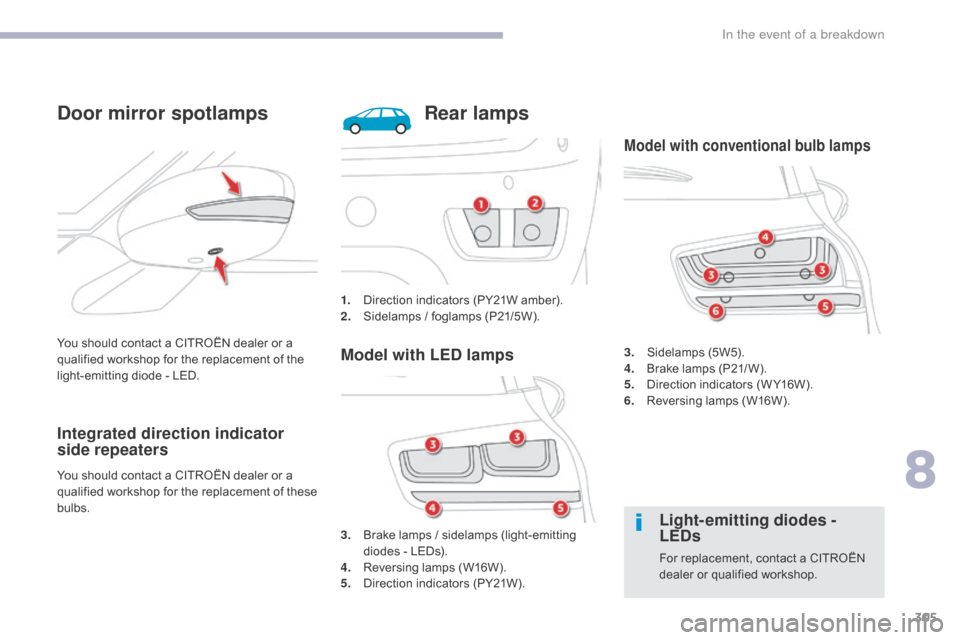

Door mirror spotlamps
Integrated direction indicator
side repeaters
You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.1.
D

irection indicators (PY21W amber).
2.
S
idelamps / foglamps (P21/5W).
Rear lamps
Light-emitting diodes -
LEDs
For replacement, contact a CITROËN
dealer or qualified workshop.
3.
B

rake lamps / sidelamps (light-emitting
diodes - LEDs).
4. R
eversing lamps (W16W).
5.
D

irection indicators (PY21W).
Model with LED lamps3. Sidelamps (5W5).
4. B rake lamps (P21/ W).
5.
D

irection indicators (W Y16W).
6.
R

eversing lamps (W16W).
Model with conventional bulb lamps
8
In the event of a breakdown

306

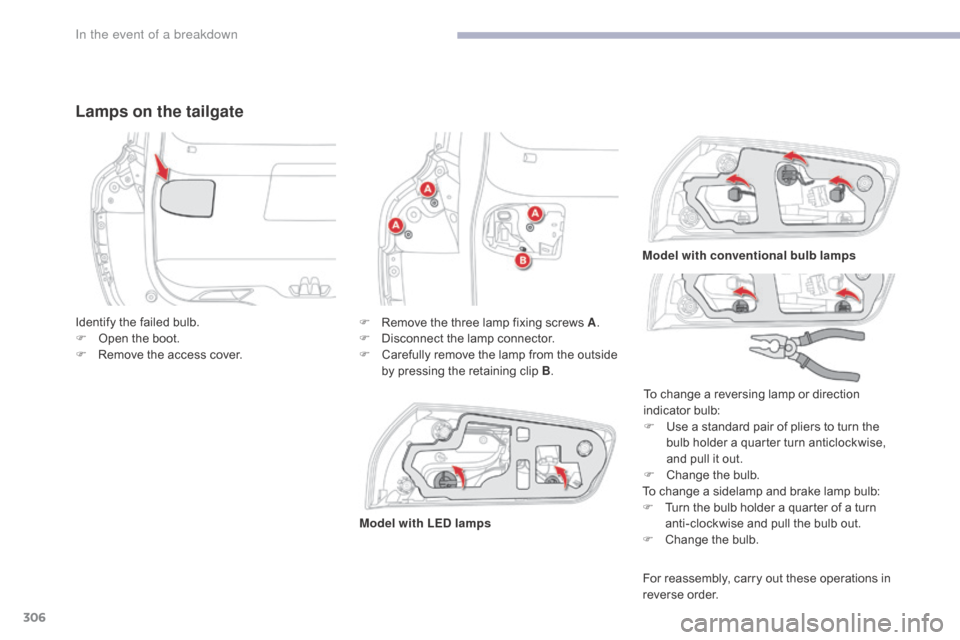

Lamps on the tailgate
To change a sidelamp and brake lamp bulb:
F T urn the bulb holder a quarter of a turn
anti-clockwise and pull the bulb out.
F

C
hange the bulb.
Identify the failed bulb.
F

O

pen the boot.
F

R

emove the access cover.
F

R

emove the three lamp fixing screws A
.
F

D

isconnect the lamp connector.
F

C

arefully remove the lamp from the outside
by pressing the retaining clip B .
To change a reversing lamp or direction
indicator bulb:
F
U
se a standard pair of pliers to turn the
bulb holder a quarter turn anticlockwise,
and pull it out.
F
C
hange the bulb.
For reassembly, carry out these operations in
reverse order.
Model with LED lamps Model with conventional bulb lamps
In the event of a breakdown

307

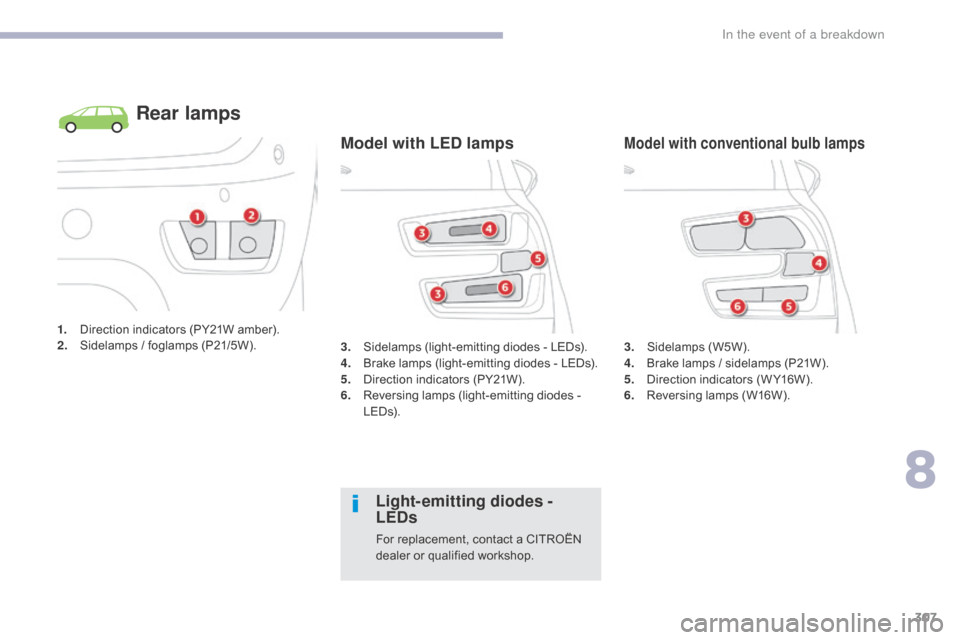

1. Direction indicators (PY21W amber).
2. Sidelamps / foglamps (P21/5W).
Rear lamps
3. Sidelamps (light-emitting diodes - LEDs).
4. B rake lamps (light-emitting diodes - LEDs).
5.
D

irection indicators (PY21W).
6.
R

eversing lamps (light-emitting diodes -
L ED s).
Model with LED lamps
3. Sidelamps (W5W).
4. B rake lamps / sidelamps (P21W).
5.
D

irection indicators (W Y16W).
6.
R

eversing lamps (W16W).
Model with conventional bulb lamps
Light-emitting diodes -
LEDs
For replacement, contact a CITROËN
dealer or qualified workshop.
8
In the event of a breakdown

308

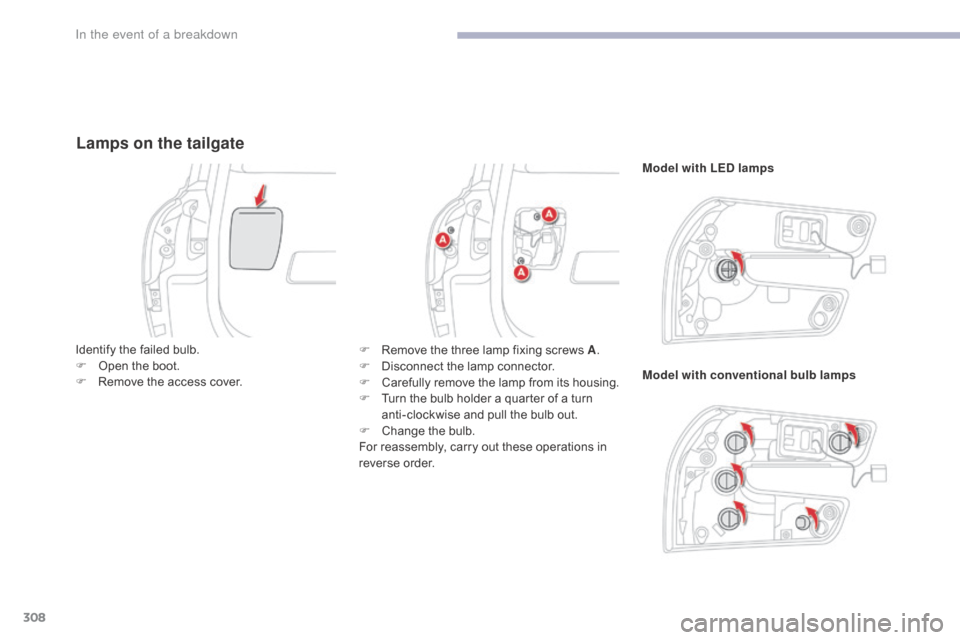

Lamps on the tailgate
Model with LED lamps
Model with conventional bulb lamps
Identify the failed bulb.
F

O

pen the boot.
F

R

emove the access cover. F

R

emove the three lamp fixing screws A .
F

D

isconnect the lamp connector.
F

C

arefully remove the lamp from its housing.
F

T

urn the bulb holder a quarter of a turn
anti-clockwise and pull the bulb out.
F

C

hange the bulb.
For reassembly, carry out these operations in
reverse order.
