Citroen JUMPER 2008 2.G Owner's Manual

140

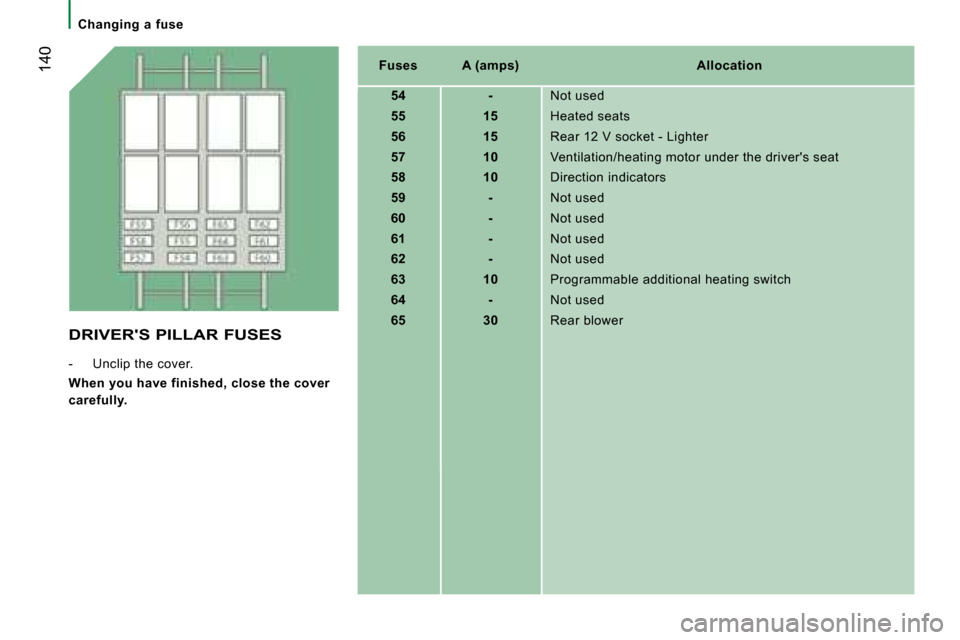

Fuses A (amps) Allocation

54 - Not used

55 15 Heated seats

56 15 Rear 12 V socket - Lighter

57 10 Ventilation/heating motor under the driver's se at

58 10 Direction indicators

59 - Not used

60 - Not used

61 - Not used

62 - Not used

63 10 Programmable additional heating switch

64 - Not used

65 30 Rear blower
DRIVER'S PILLAR FUSES
- Unclip the cover.

When you have finished, close the cover
carefully.
Changing a fuse

TROUBLE SHOOTING
8

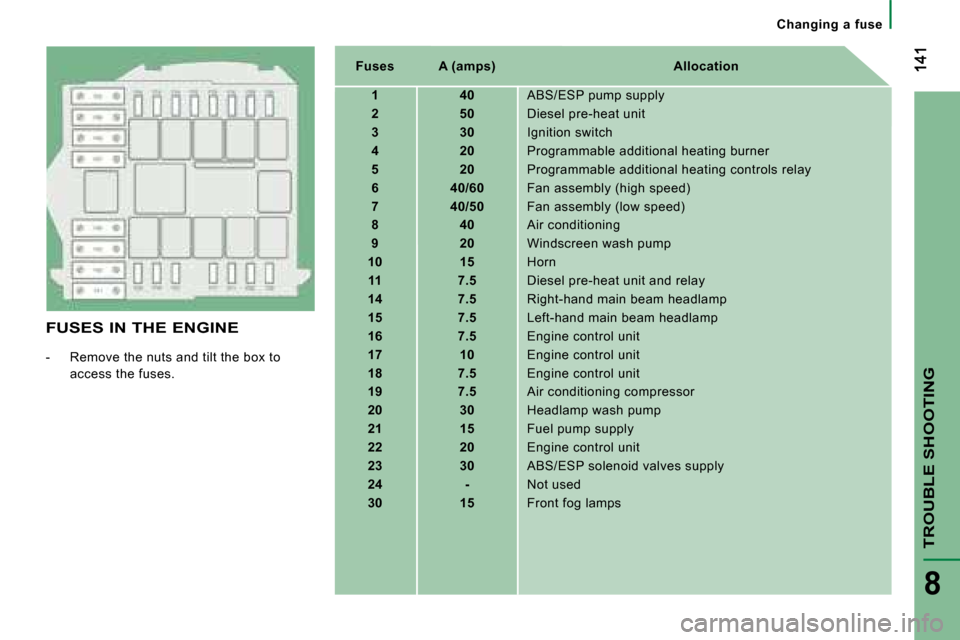

FUSES IN THE ENGINE
- Remove the nuts and tilt the box to access the fuses.
Fuses A (amps) Allocation

1 40 ABS/ESP pump supply

2 50 Diesel pre-heat unit

3 30 Ignition switch

4 20 Programmable additional heating burner

5 20 Programmable additional heating controls relay

6 40/60 Fan assembly (high speed)

7 40/50 Fan assembly (low speed)

8 40 Air conditioning

9 20 Windscreen wash pump

10 15 Horn

11 7.5 Diesel pre-heat unit and relay

14 7.5 Right-hand main beam headlamp

15 7.5 Left-hand main beam headlamp

16 7.5 Engine control unit

17 10 Engine control unit

18 7.5 Engine control unit

19 7.5 Air conditioning compressor

20 30 Headlamp wash pump

21 15 Fuel pump supply

22 20 Engine control unit

23 30 ABS/ESP solenoid valves supply

24 - Not used

30 15 Front fog lamps Changing a fuse

142

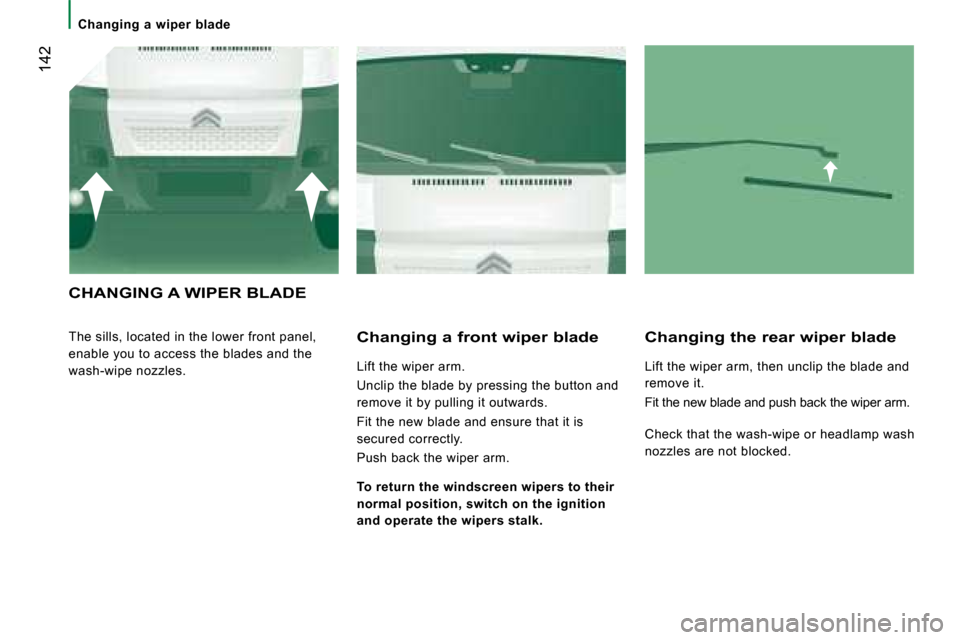

CHANGING A WIPER BLADE
The sills, located in the lower front panel,
enable you to access the blades and the
wash-wipe nozzles. Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Check that the wash-wipe or headlamp wash
nozzles are not blocked.
Changing a wiper blade

143
TROUBLE SHOOTING
8

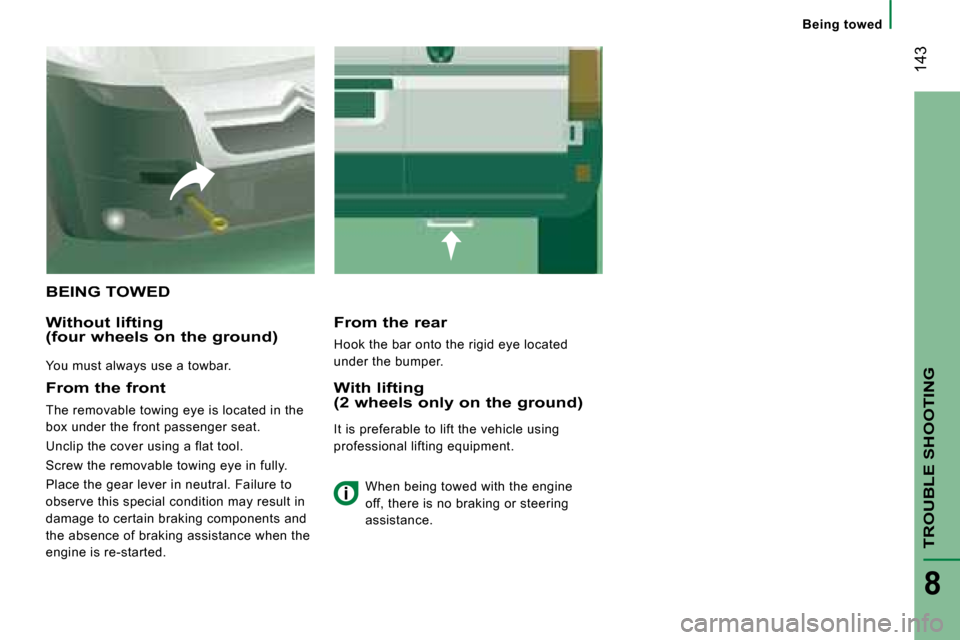

BEING TOWED
Without lifting
(four wheels on the ground)
You must always use a towbar.
From the rear
Hook the bar onto the rigid eye located
under the bumper.
From the front
The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting
(2 wheels only on the ground)
It is preferable to lift the vehicle using
professional lifting equipment. When being towed with the engine
off, there is no braking or steering
assistance.
Being towed

145
9
TECHNICAL DATA
Environment
ENVIRONMENT
CITROËN clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO2. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure. - observe the service intervals; we
recommend that services are carried
out by a CITROËN dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control system, do
not use engine oil additives.
As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving, without frequent and sharp acceleration. Refer to the starting and stopping
"good practice" advice at the end of
chapter 2.

146
Dimensions

147
9
TECHNICAL DATA

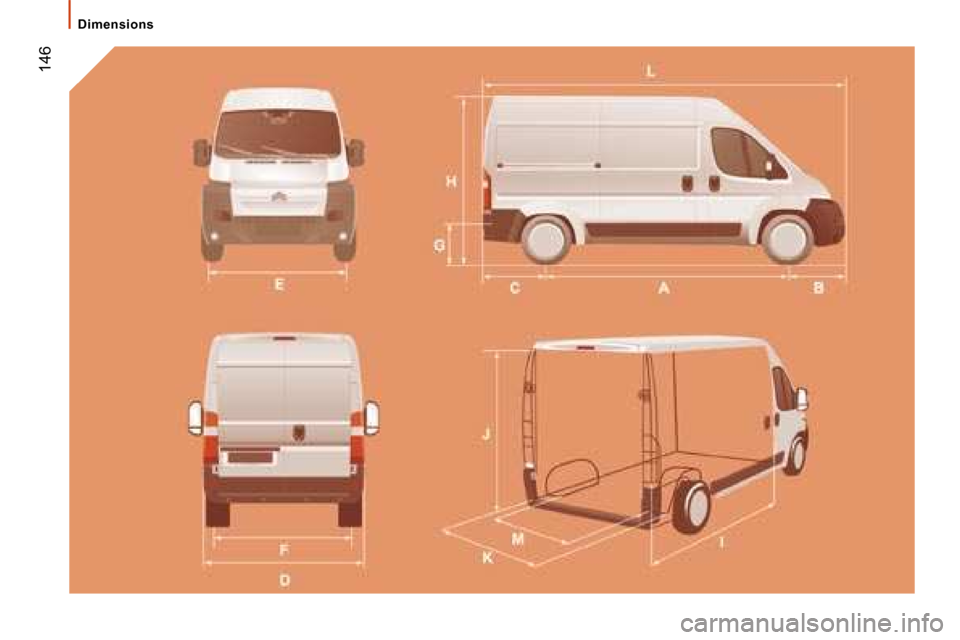

DIMENSIONS
The RELAY is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:

VAN
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 52 4 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 015 1 380
D Overall width (excluding mirrors) 2 050
E Width of front tracks 1 810
F Width of rear tracks 1 790
G Height of load sill 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422

Volume (m 3
)
8 10 11.5 13 15 15 17
Dimensions

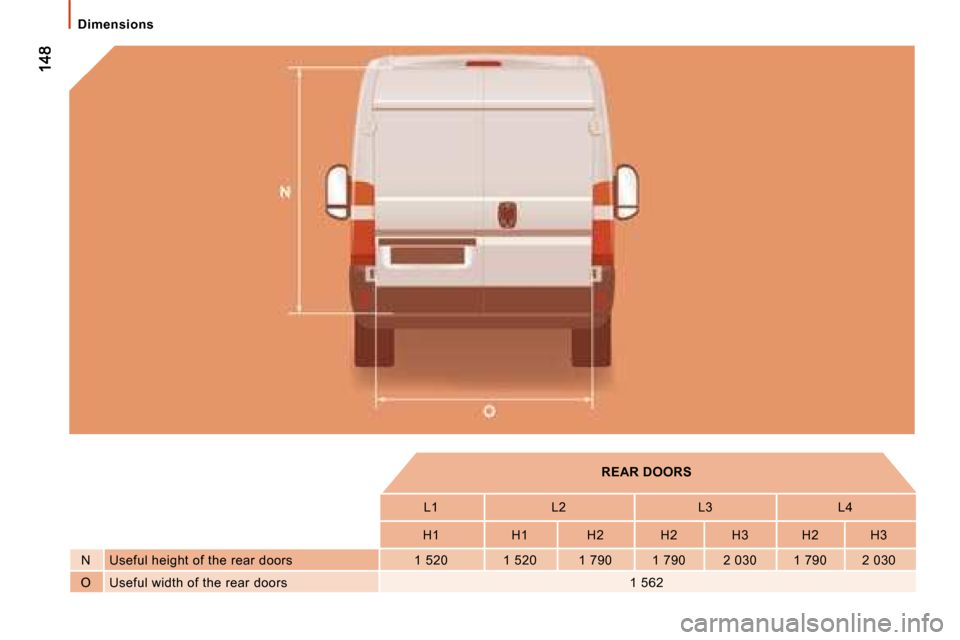

REAR DOORS
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
N Useful height of the rear doors 1 520 1 5 20 1 790 1 790 2 030 1 790 2 030
O Useful width of the rear doors 1 562
Dimensions

9
TECHNICAL DATA

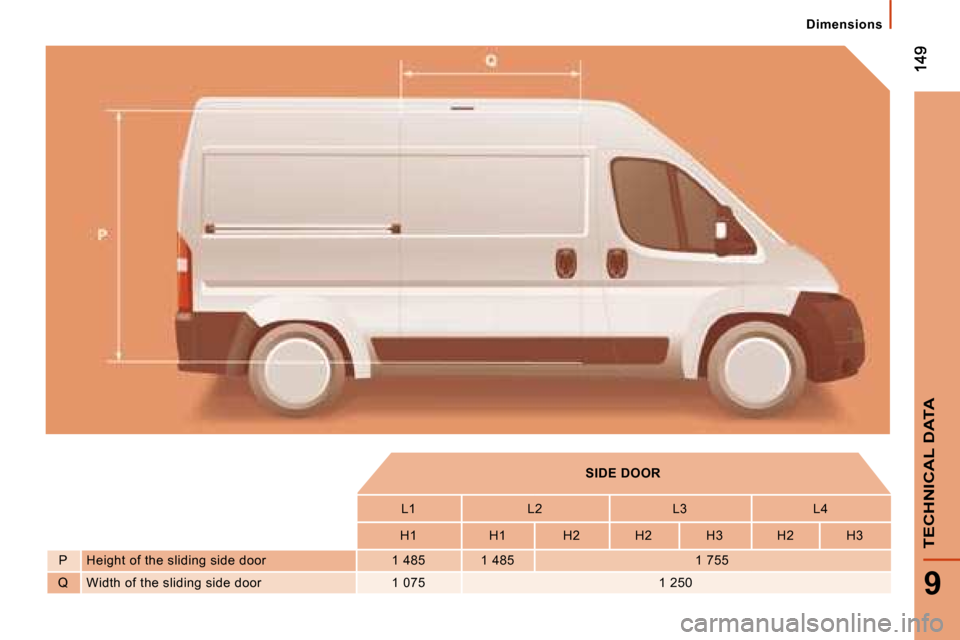

SIDE DOOR
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
P Height of the sliding side door 1 485 1 4 85 1 755
Q Width of the sliding side door 1 075 1 250
Dimensions

150

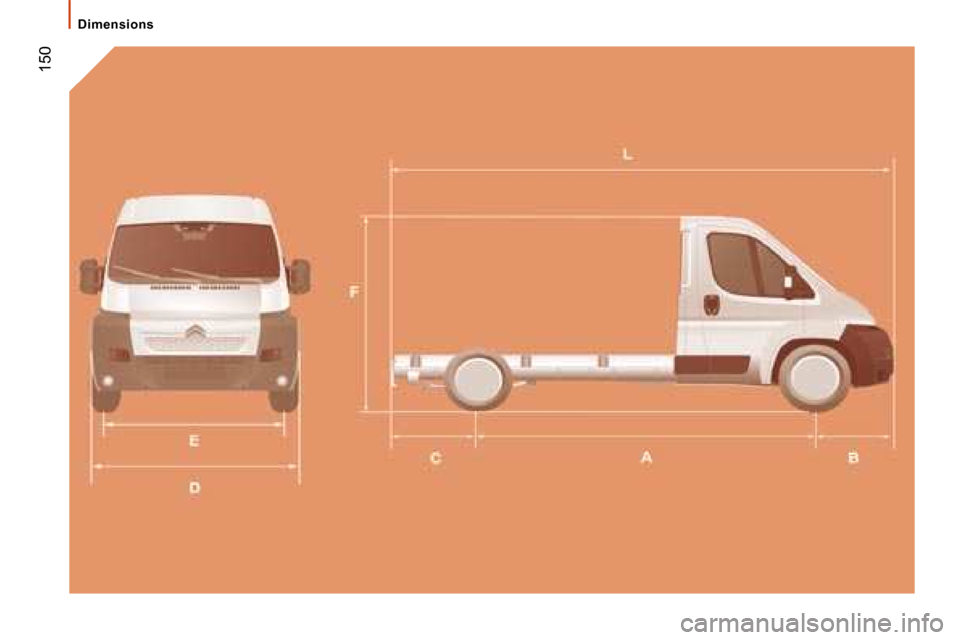

Dimensions
