1
FAMILIARISATION
5
Familiarisation
Reversing camera
This equipment is activated automatically
when reverse gear is engaged, with a
visual return on the screen located in the
interior mirror position.
 76

 41
EXTERIOR
"Follow me home" lighting
After switching off the ignition, when you
leave your vehicle, the front lights remain
on briefly. Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.

 24

 75
Rear parking assistance
This equipment warns you if an obstacle is
detected behind the vehicle when reverse
gear is engaged.

51
3
ERGONOMICS AND COMFORT
Ventilation
Comfort value adjustment ring
The graduation ranges between:
- increasing of the interior ambient air temperature HI (High) which heats to a
maximum graduation of 32,
- cooling of the interior ambient air temperature LO (Low) which cools to a
graduation of 16. increase (+) or reduce (-) the force of the
interior air flow.

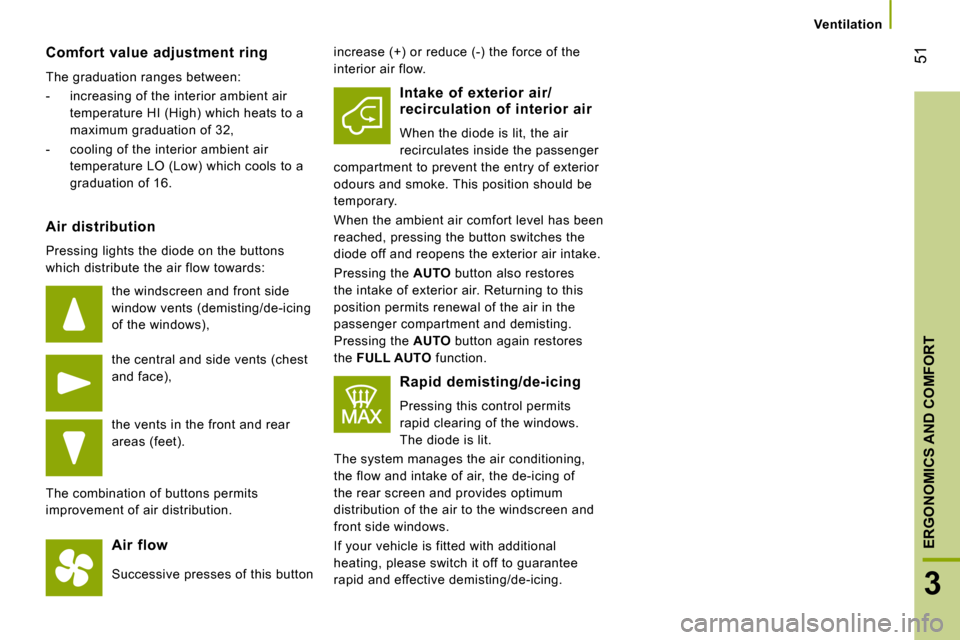

Air distribution
Pressing lights the diode on the buttons
which distribute the air flow towards: the windscreen and front side
window vents (demisting/de-icing
of the windows),
the central and side vents (chest
and face),
the vents in the front and rear
areas (feet).
The combination of buttons permits
improvement of air distribution. Air flow
Successive presses of this button Intake of exterior air/
recirculation of interior air
When the diode is lit, the air
recirculates inside the passenger
compartment to prevent the entry of exterior
odours and smoke. This position should be
temporary.
When the ambient air comfort level has been
reached, pressing the button switches the
diode off and reopens the exterior air intake.
Pressing the AUTO button also restores
the intake of exterior air. Returning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the AUTO button again restores
the FULL AUTO function.
Rapid demisting/de-icing
Pressing this control permits
rapid clearing of the windows.
The diode is lit.
The system manages the air conditioning,
the flow and intake of air, the de-icing of
the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.
If your vehicle is fitted with additional
heating, please switch it off to guarantee
rapid and effective demisting/de-icing.

139
TROUBLE SHOOTING
8
PASSENGER'S SIDE FASCIA PANEL FUSES
- Remove the bolts and tilt the box to access the fuses.

Fuses A (amps)
Allocation

12 7.5 Right-hand dipped headlamp

13 7.5 Left-hand dipped headlamp - Headlamp height adj uster

31 7.5 Relay supply

32 10 Minibus interior lighting - Hazard warning ligh ts

33 15 Rear 12 V socket

34 - Not used

35 7.5 Reversing lights - Water in diesel sensor

36 20 Door locking/unlocking unit

37 10 Brake lights switch - Third brake light - Instr ument panel

38 10 Interior relays

39 10 Audio equipment - Diagnostics socket - Alarm si ren - Programmable additional heating controls

40 15 De-icing: rear screen (left-hand side), mirror (passenger side)

41 15 De-icing: rear screen (right-hand side), mirror (driver's side)

42 7.5 ABS control unit and sensor - ESP sensor - Brak e lights switch

43 30 Windscreen wiper motor

44 20 Lighter - Front 12 V socket

45 7.5 Electric window and mirror switches (driver's s ide) - Passenger electric window

46 - Not used

47 20 Driver's electric window motor

48 20 Passenger electric window motor

49 7.5 Rain/brightness sensor - Audio equipment - Driv er's electric window motor - Alarm - Instrument panel controls

50 7.5 Air bags and pre-tensioners unit

51 7.5 Chronotachograph - Cruise control - Air conditi oning controls

52 7.5 Passenger compartment relays

53 7.5 Instrument panel - Rear fog lamps Changing a fuse
