CITROEN JUMPER 2011 Owners Manual
Manufacturer: CITROEN, Model Year: 2011, Model line: JUMPER, Model: CITROEN JUMPER 2011Pages: 184, PDF Size: 4.98 MB

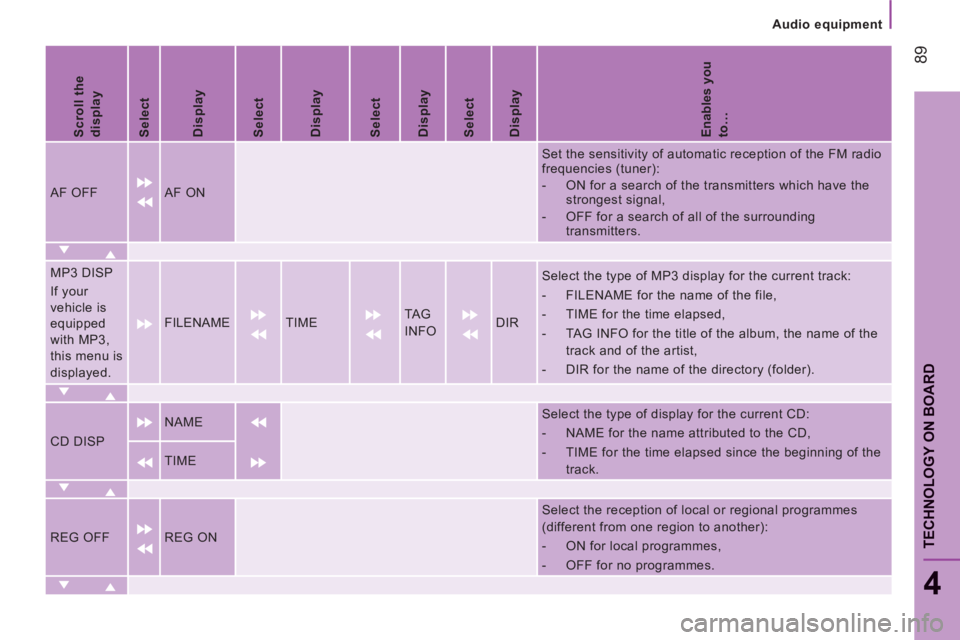

Page 91 of 184
Audio equipment
89
4
TECHNOLOGY ON BOAR
D
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
Display
Enables you
to…
AF OFF
AF ON
Set the sensitivity of automatic reception of the FM radio
frequencies (tuner):
- ON for a search of the transmitters which have the
strongest signal,
- OFF for a search of all of the surrounding
transmitters.
MP3 DISP
If your
vehicle is
equipped
with MP3,
this menu is
displayed. FILENAME TIME TA G
INFO DIR Select the type of MP3 display for the current track:
- FILENAME for the name of the file,
- TIME for the time elapsed,
- TAG INFO for the title of the album, the name of the
track and of the artist,
- DIR for the name of the directory (folder).
CD DISP NAME
Select the type of display for the current CD:
- NAME for the name attributed to the CD,
- TIME for the time elapsed since the beginning of the
track. TIME
REG OFF REG ON
Select the reception of local or regional programmes
(different from one region to another):
- ON for local programmes,
- OFF for no programmes.

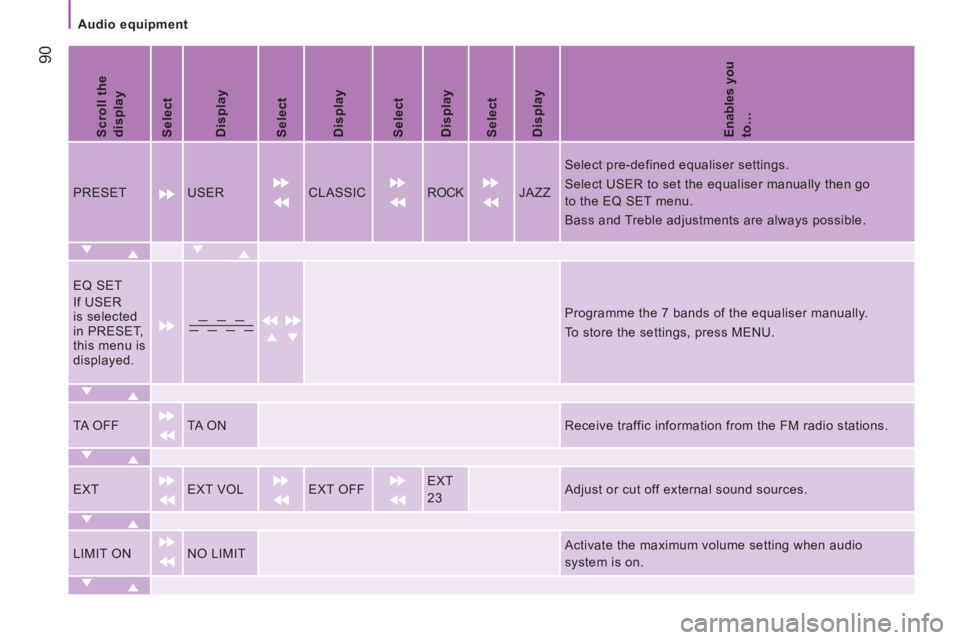

Page 92 of 184
Audio equipment
90
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
Display
Enables you
to…
PRESET USER CLASSIC ROCK JAZZ Select pre-defined equaliser settings.
Select USER to set the equaliser manually then go
to the EQ SET menu.
Bass and Treble adjustments are always possible.
EQ SET
If USER
is selected
in PRESET,
this menu is
displayed.
Programme the 7 bands of the equaliser manually.
To store the settings, press MENU.
TA OFF TA ON
Receive traffic information from the FM radio stations.
EXT EXT VOL EXT OFF EXT
23 Adjust or cut off external sound sources.
LIMIT ON NO LIMIT
Activate the maximum volume setting when audio
system is on.
Page 93 of 184
2
11
CDFFMAMAMASA
AM
FM MUTE CD
AMAS
Audio equipment
91
4
TECHNOLOGY ON BOAR
D
PLAYING A CD -
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.
MP3
In order to be able to play a recorded CDR or CDRW,
when recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz.
No other type of file (.wma, .mp4, m3u...) can be played.
It is advisable to restrict file names to 20 characters without
using special characters (e.g. : " " ? ; ù) to avoid any playing
or displaying problems.
PLAYING AN MP3 CD
Insert circular compact discs only. Some
anti-pirating systems, on original discs or
CDs copied using a personal recorder,
may cause faults which are no refl ection
on the quality of the original player.
Insert a CD or an MP3 CD in the player, play begins
automatically.
If the player already contains a disc,
switch on the audio equipment and
press the CD source button briefly.
The last track played begins.
Press one of the buttons to select a
track on the CD.
Page 94 of 184
Page 95 of 184
93
TECHNOLOGY ON BOAR
D
Bluetooth hands-free system
4
INTRODUCTION
This system allows you to:
- send and receive calls via the Bluetooth® connection with your mobile telephone,
- display the names of your contacts and numbers from the directory of your mobile phone in the instrument panel screen,
- use voice commands to make a call and manage your contacts while keeping both hands on the steering wheel,
- hear your text messages via the voice synthesiser built into the system,
- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files from a USB storage device,
- display information on the track being played in the radio screen (title, artist, etc...),
- control vocally a portable music player (iPod® type),
- recharge your portable music player (iPod® type) via the USB port.
BLUETOOTH HANDS-FREE SYSTEM
KEY
Indicates that a long press is required to start the action described.
Voice mode
Speak the designated voice command clearly and distinctly. Requires a press on the steering mounted "voice" control before speaking the desired voice command.
Page 96 of 184
94
Bluetooth hands-free system
PRESENTATION

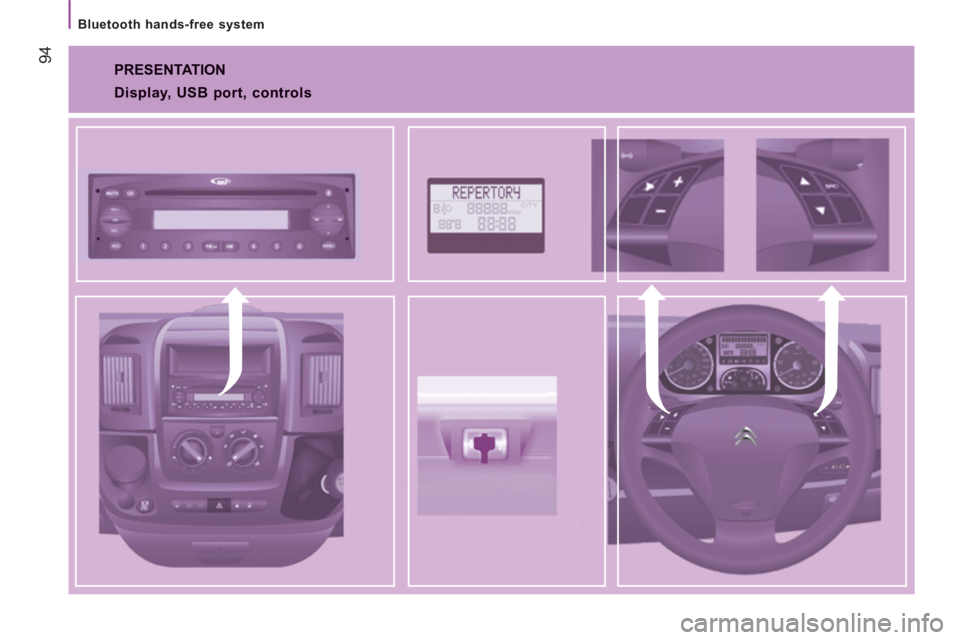

Display, USB port, controls
Page 97 of 184
95
TECHNOLOGY ON BOAR
D
Bluetooth hands-free system
4
PRESENTATION
Adjustment of the volume of
the functions: hands-free, audio
and text message player, voice
announcements.
Pause/resume the file being played
(portable player).
USB connection port. Remove the plastic cover to
connect your portable player.
Display of the menus and directories of the files
being played (USB storage device).
- Scroll the menu options.
- Select the files to be played
(portable player).
- Scroll the list of text messages.
- Activate voice recognition.
- Interrupt the voice message in order
to issue a new voice command.
- Deactivate voice recognition.
- Interrupt the voice message.
- Exit from the main menu.
- Exit from a sub-menu and return to
the previous menu option.
- Exit without storing.
- Deactivate/reactivate the microphone
during a telephone conversation.
- Set the volume of the incoming call
ring to zero.
- Confirm the current menu option.
- Transfer he telephone conversation
from the hands-free system to the
mobile telephone and vice versa.
- Select the audio source.
- Select the text displayed.
- Activate the main menu.
- Confirm the current menu option.
- Accept the incoming call.
- Switch one telephone conversation to
another.
- Select a visual message.
- Reject an incoming telephone call.
- End the current telephone call.

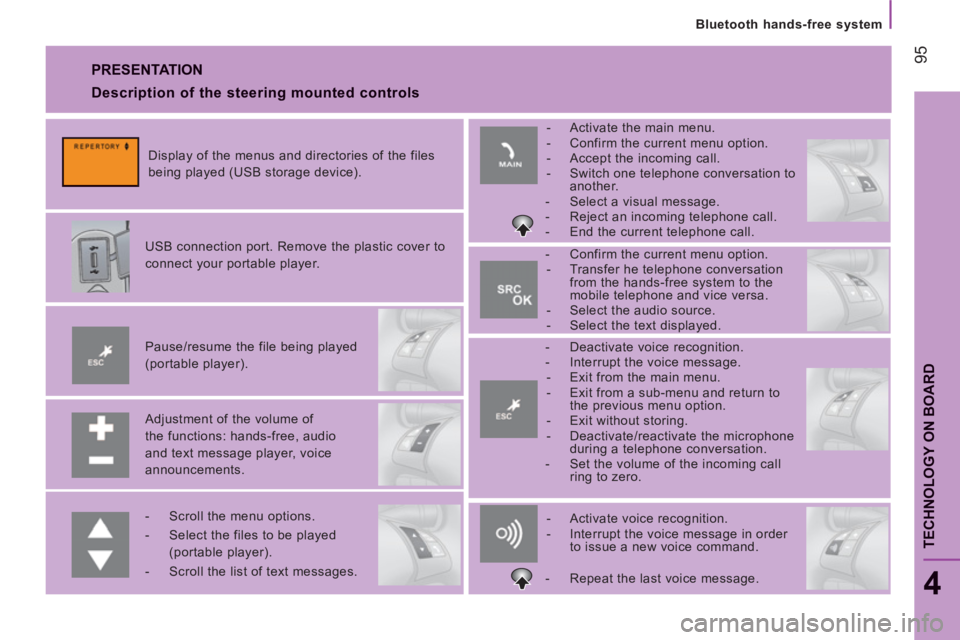

Description of the steering mounted controls
- Repeat the last voice message.
Page 98 of 184
96
Bluetooth hands-free system
PRESENTATION

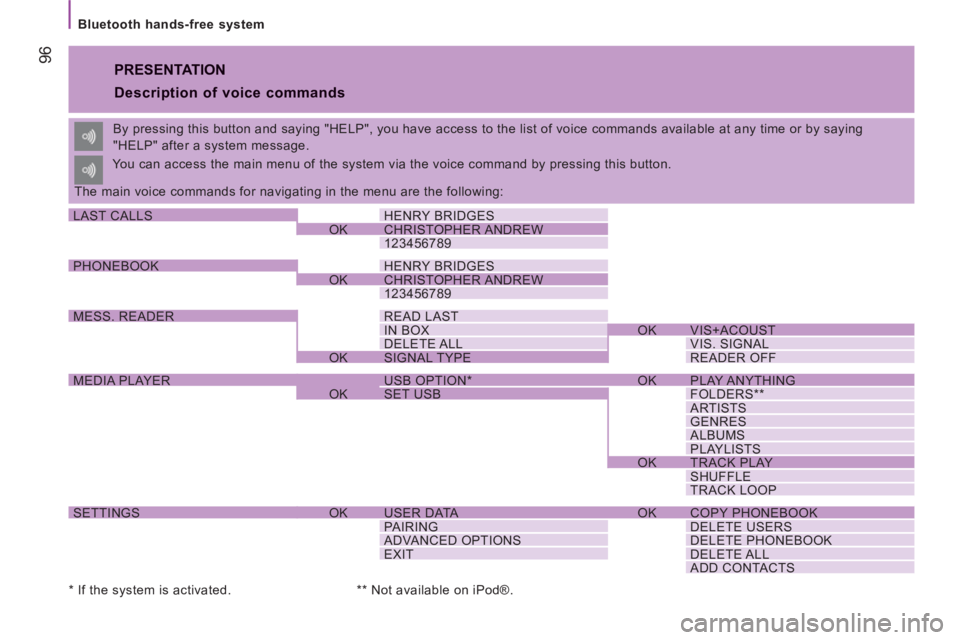

Description of voice commands
By pressing this button and saying "HELP", you have access to the list of voice commands available at any time or by saying
"HELP" after a system message.
The main voice commands for navigating in the menu are the following: You can access the main menu of the system via the voice command by pressing this button.
* If the system is activated.
** Not available on iPod®. LAST CALLS
HENRY BRIDGES
OK CHRISTOPHER ANDREW
123456789
PHONEBOOK HENRY BRIDGES
OK
CHRISTOPHER ANDREW
123456789
MESS. READER READ LAST
IN BOX OK VIS+ACOUST
DELETE ALL VIS. SIGNAL
OK SIGNAL TYPE READER OFF
MEDIA PLAYER USB OPTION * OK PLAY ANYTHING
OK SET USB FOLDERS **
ARTISTS
GENRES
ALBUMS
PLAYLISTS
OK TRACK PLAY
SHUFFLE
TRACK LOOP
SETTINGS OK USER DATA OK COPY PHONEBOOK
PAIRING DELETE USERS
ADVANCED OPTIONS DELETE PHONEBOOK
EXIT DELETE ALL
ADD CONTACTS
Page 99 of 184
TECHNOLOGY ON BOAR
D
Bluetooth hands-free system
4
When prompted by the telephone, enter the
PIN displayed in the instrument panel.
If the pairing has been successful, the
system announces "Connecting".
The name of the telephone identified
appears in the instrument panel screen,
pairing is confirmed. "Settings"\wait for a response\
"Pairing".
PIN

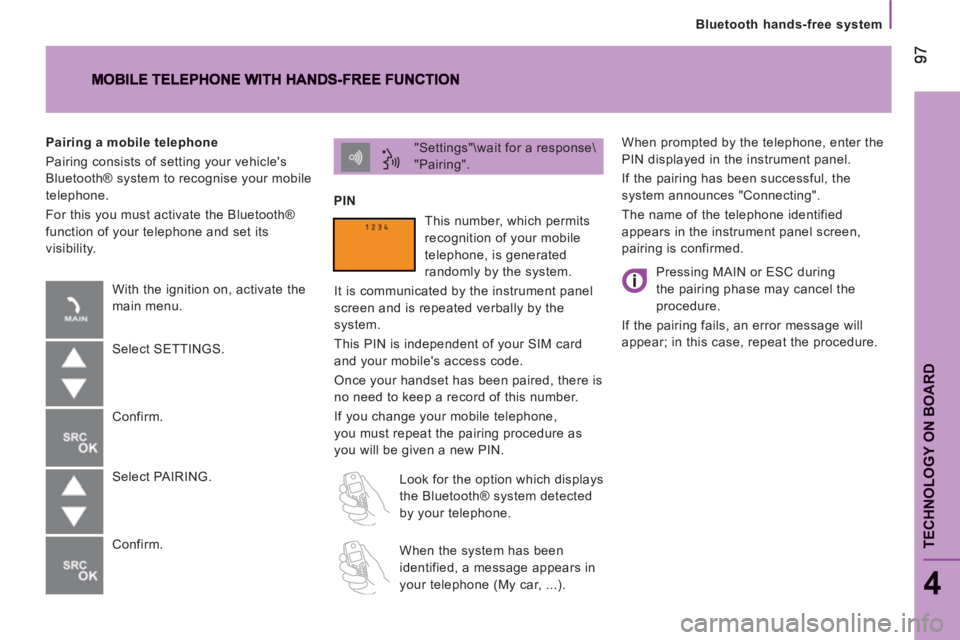

Pairing a mobile telephone
Pairing consists of setting your vehicle's
Bluetooth® system to recognise your mobile
telephone.
For this you must activate the Bluetooth®
function of your telephone and set its
visibility.
With the ignition on, activate the
main menu.
Select SETTINGS.
Confirm.
Select PAIRING.
Confirm. This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.
It is communicated by the instrument panel
screen and is repeated verbally by the
system.
This PIN is independent of your SIM card
and your mobile's access code.
Once your handset has been paired, there is
no need to keep a record of this number.
If you change your mobile telephone,
you must repeat the pairing procedure as
you will be given a new PIN.
Look for the option which displays
the Bluetooth® system detected
by your telephone.
When the system has been
identified, a message appears in
your telephone (My car, ...).
Pressing MAIN or ESC during
the pairing phase may cancel the
procedure.
If the pairing fails, an error message will
appear; in this case, repeat the procedure.
Page 100 of 184
98
Bluetooth hands-free system

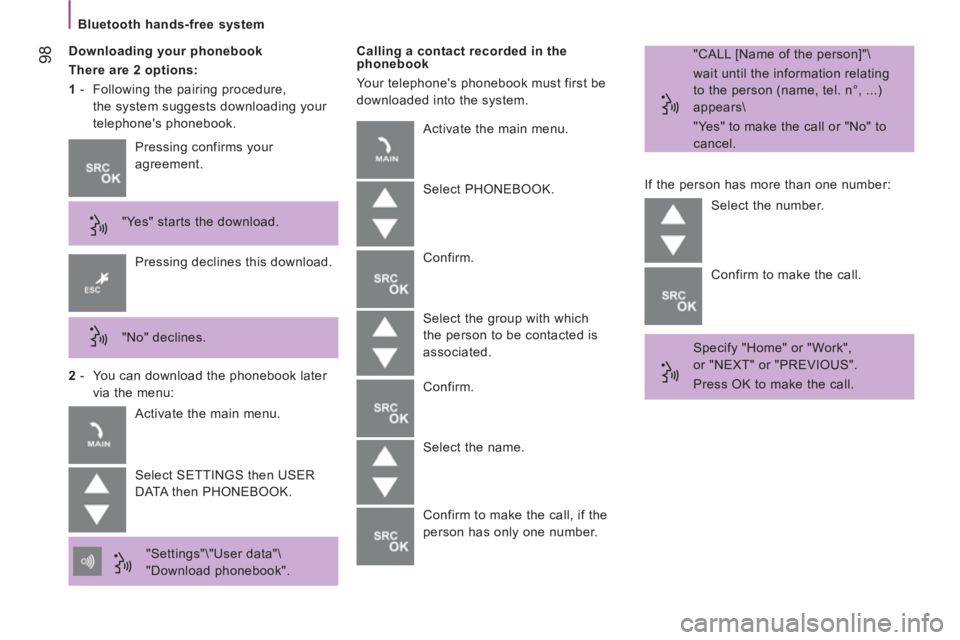

Downloading your phonebook
There are 2 options:
1
- Following the pairing procedure,
the system suggests downloading your
telephone's phonebook.
Calling a contact recorded in the
phonebook
Your telephone's phonebook must first be
downloaded into the system. "CALL [Name of the person]"\
wait until the information relating
to the person (name, tel. n°, ...)
appears\
"Yes" to make the call or "No" to
cancel.
Pressing confirms your
agreement.
"Yes" starts the download.
Pressing declines this download.
"No" declines.
2
- You can download the phonebook later
via the menu:
Activate the main menu.
Select SETTINGS then USER
DATA then PHONEBOOK.
"Settings"\"User data"\
"Download phonebook". Activate the main menu.
Select PHONEBOOK.
Confirm.
Select the group with which
the person to be contacted is
associated.
Confirm.
Select the name.
Confirm to make the call, if the
person has only one number. If the person has more than one number:
Select the number.
Confirm to make the call.
Specify "Home" or "Work",
or "NEXT" or "PREVIOUS".
Press OK to make the call.
