Changing a wheel
PUNCTURE REPAIR KIT

Procedure



-   Apply the parking brake. Unscrew the
tyre valve cap, remove the filling hose  B
and screw the ring  E
 onto the tyr

Page 132 of 164

Citroen JUMPER 2012 2.G Owners Manual

Changing a wheel



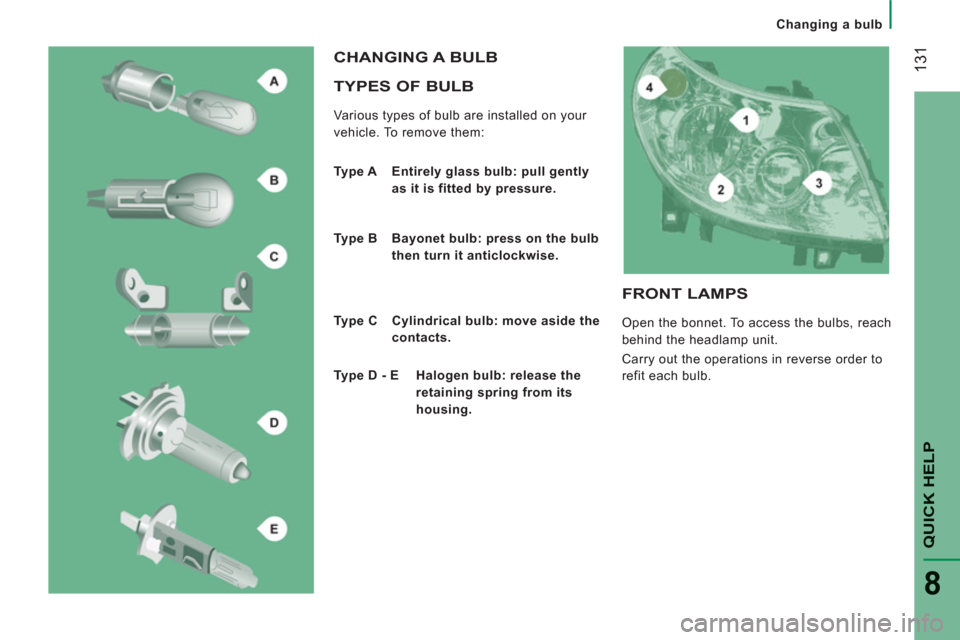

-   If a pressure of at least  3 bars
 is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forwa

Page 133 of 164

Citroen JUMPER 2012 2.G Owners Manual 131
QUICK HEL
P
8
Changing a bulb

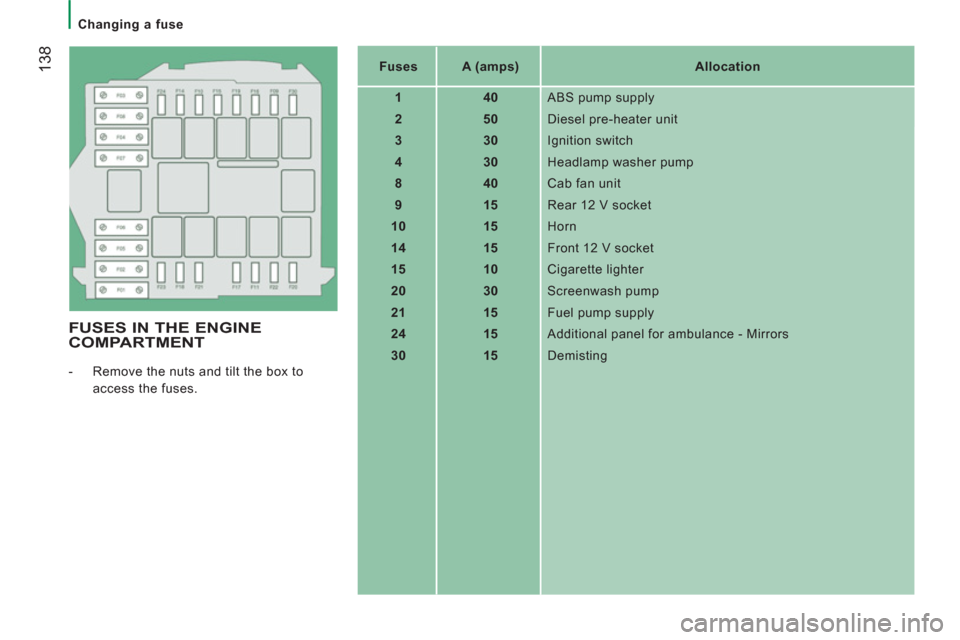

TYPES OF BULB

Various types of bulb are installed on your
vehicle. To remove them:
  CHANGING A BULB


Type A   Entirely glass bulb: pull gently
as it is f

Page 134 of 164

Citroen JUMPER 2012 2.G Owners Manual 132


Changing a bulb

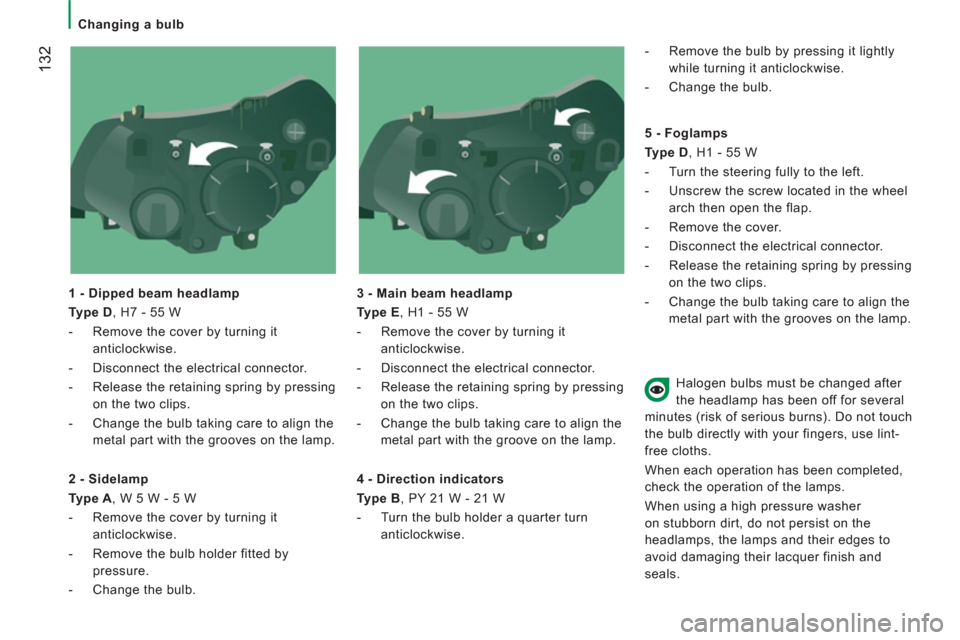

1 - Dipped beam headlamp

Type D
, H7 - 55 W


-   Remove the cover by turning it
anticlockwise.

-   Disconnect the electrical connector.

-   Releas

Page 135 of 164

Citroen JUMPER 2012 2.G Owners Manual QUICK HELP
8
Changing a bulb

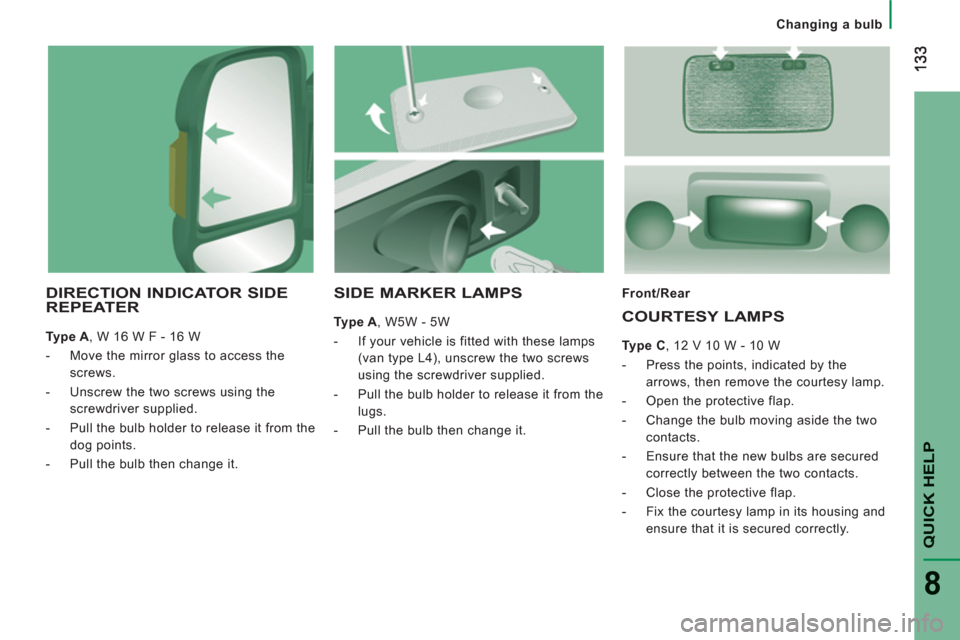

DIRECTION INDICATOR SIDE
REPEATER

Type A
, W 16 W F - 16 W


-   Move the mirror glass to access the
screws.

-   Unscrew the two screws using the
screwdr

Page 136 of 164

Citroen JUMPER 2012 2.G Owners Manual 134


Changing a bulb

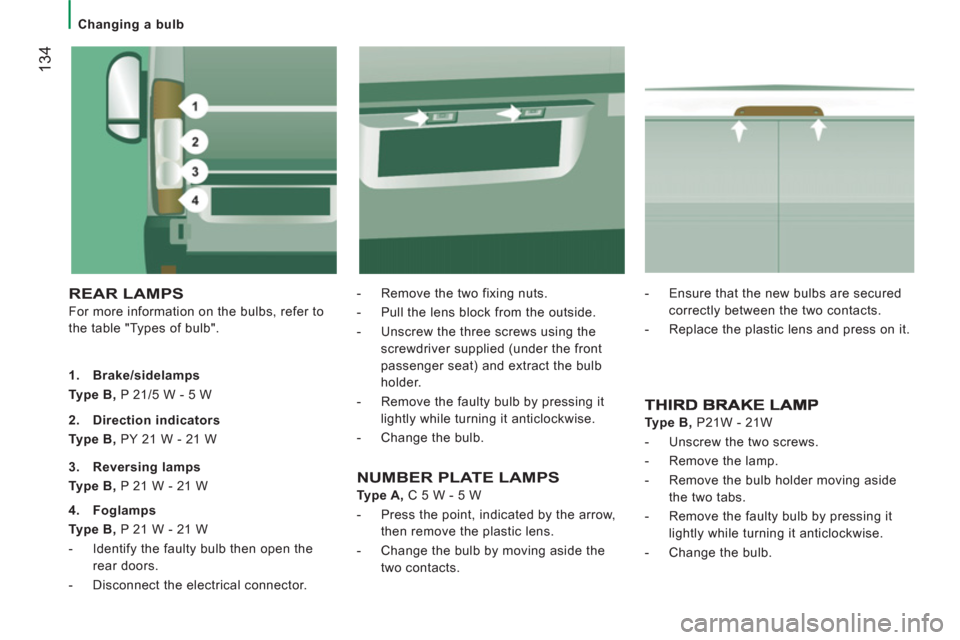

REAR LAMPS

For more information on the bulbs, refer to
the table "Types of bulb".
-   Remove the two fixing nuts.

-   Pull the lens block from the outside.

Page 137 of 164

Citroen JUMPER 2012 2.G Owners Manual 135
QUICK HELP
8
Changing a fuse

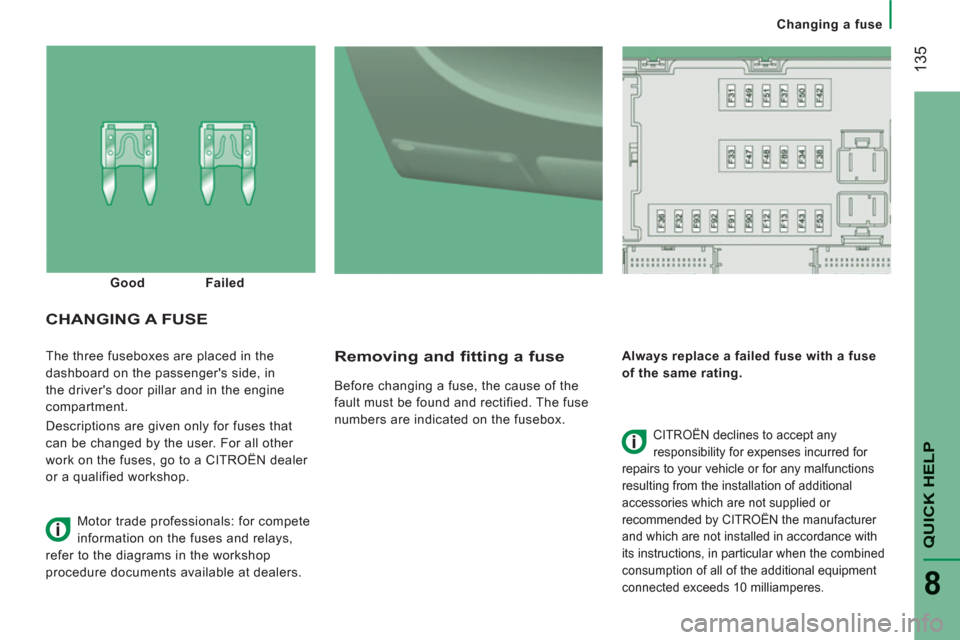

  The three fuseboxes are placed in the
dashboard on the passengers side, in
the drivers door pillar and in the engine
compartment.
  Descriptions are given only

Page 138 of 164

Citroen JUMPER 2012 2.G Owners Manual 136


Changing a fuse


PASSENGERS SIDE DASHBOARD FUSES



-  Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5

Page 139 of 164

Citroen JUMPER 2012 2.G Owners Manual QUICK HEL
P
8
Changing a fuse


Fuses


A (amps)

Allocation


54


-
  Not used


55


15
  Heated seats


56


15
  12 V socket


57

Page 140 of 164

Citroen JUMPER 2012 2.G Owners Manual 138


Changing a fuse


FUSES IN THE ENGINE
COMPARTMENT


-   Remove the nuts and tilt the box to
access the fuses.

Fuses


A (amps)

Allocation


1


40
