Citroen JUMPER 2012 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2012, Model line: JUMPER, Model: Citroen JUMPER 2012 2.GPages: 164, PDF Size: 4.52 MB
Page 141 of 164
139
QUICK HEL
P
8

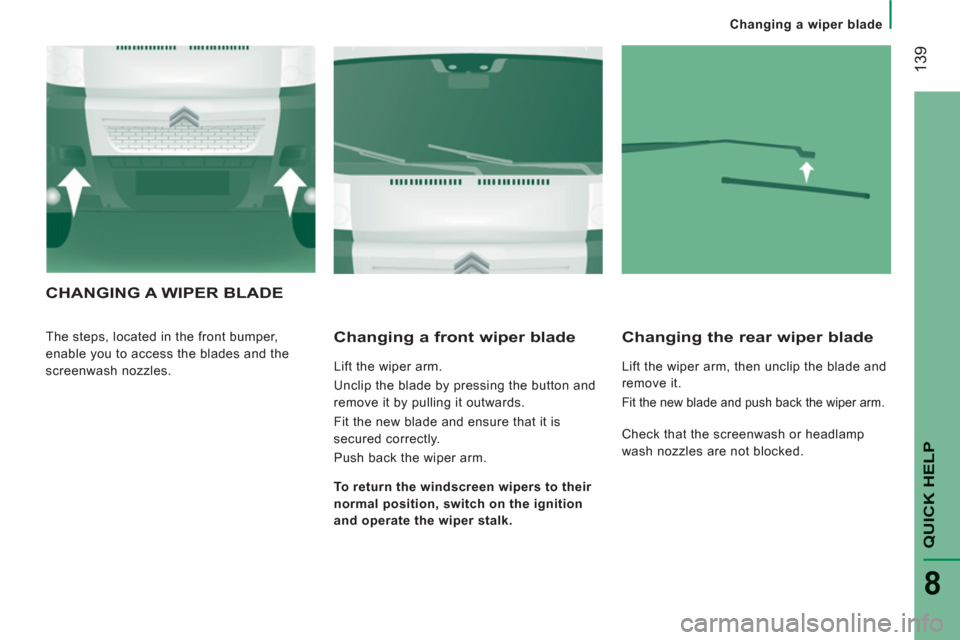

Changing a wiper blade
CHANGING A WIPER BLADE
The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles.
Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wiper stalk.
Check that the screenwash or headlamp
wash nozzles are not blocked.
Page 142 of 164
14
0

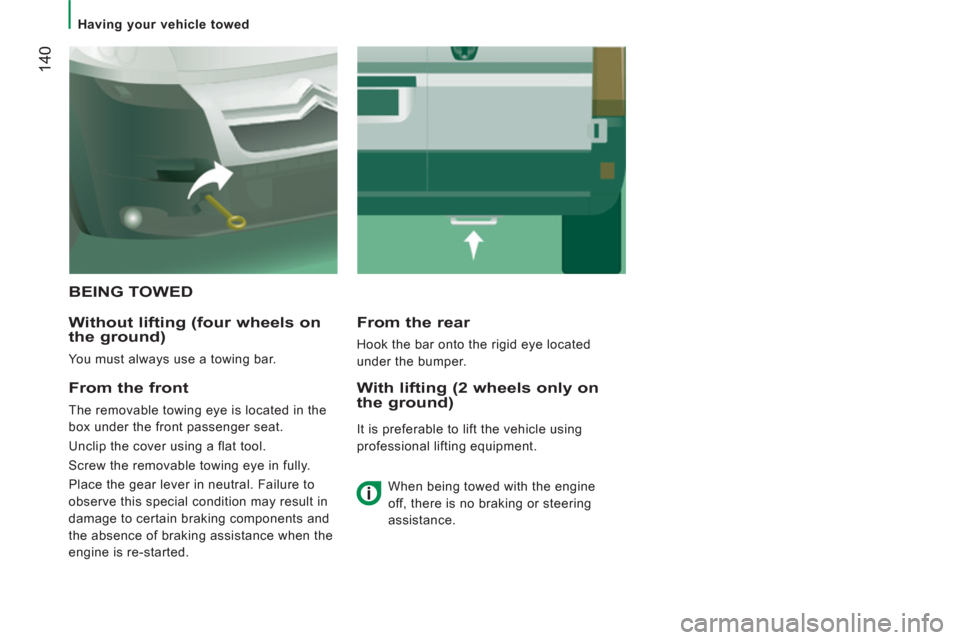

Having your vehicle towed
BEING TOWED
Without liftin
g (four wheels on
the ground)
You must always use a towing bar.
From the rear
Hook the bar onto the rigid eye located
under the bumper.
From the front
The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting (2 wheels only on
the ground)
It is preferable to lift the vehicle using
professional lifting equipment.
When being towed with the engine
off, there is no braking or steering
assistance.
Page 143 of 164
9
TECHNI
CAL DAT
A
Page 144 of 164
142
Dimensions
Page 145 of 164
14
3
9
TECHNI
CAL DAT
A
Dimensions

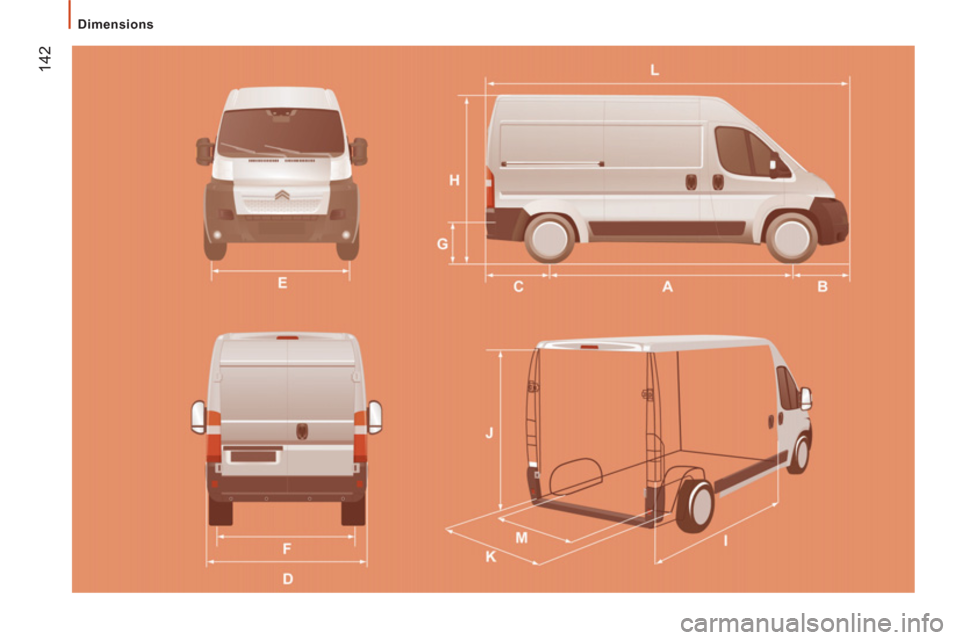

DIMENSIONS
Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:
Va n
L1
L2
L3
L4
H1
H1
H2
H2
H3
H2
H3
L Overall length
4 963
5 413
5 998
6 363
H Overall height
2 254
2 254
2 524
2 524
2 764
2 524
2 764
A Wheelbase
3 000
3 450
4 035
B Front overhang
948
C Rear overhang
1 015
1 380
D Overall width (excluding mirrors)
2 050
E Width of front track
1 810
F Width of rear track
1 790
G Height of load floor
535 to 565
I Length of interior floor
2 670
3 120
3 705
4 070
J Maximum interior load height
1 662
1 662
1 932
1 932
2 172
1 932
2 172
K Maximum interior width
1 870
M Interior width between wheel arches
1 422
Volume (m
3)
8
10
11.5
13
15
15
17
Page 146 of 164
144
Dimensions

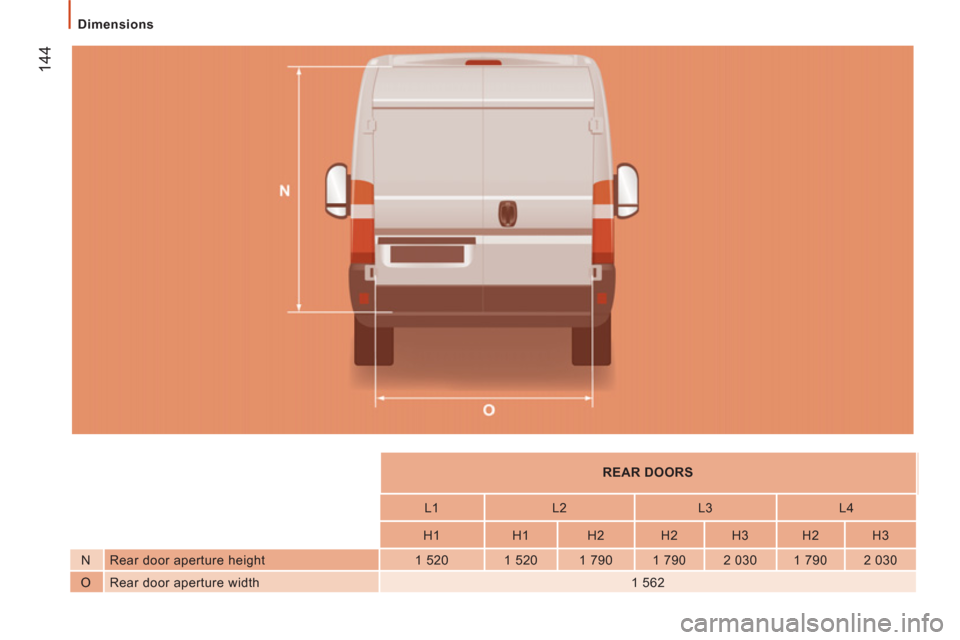

REAR DOORS
L1
L2
L3
L4
H1
H1
H2
H2
H3
H2
H3
N Rear door aperture height
1 520
1 520
1 790
1 790
2 030
1 790
2 030
O Rear door aperture width
1 562
Page 147 of 164
14
5
9
TECHNI
CAL DAT
A
Dimensions

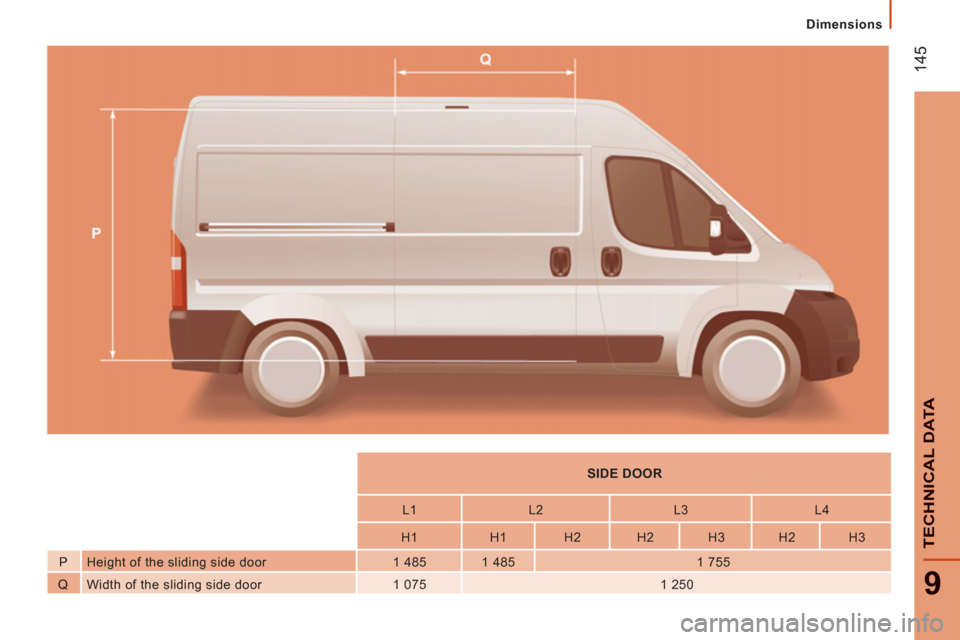

SIDE DOOR
L1
L2
L3
L4
H1
H1
H2
H2
H3
H2
H3
P Height of the sliding side door
1 485
1 485
1 755
Q Width of the sliding side door
1 075
1 250
Page 148 of 164
14
6
Dimensions
Page 149 of 164
9
TECHNI
CAL DAT
A
Dimensions

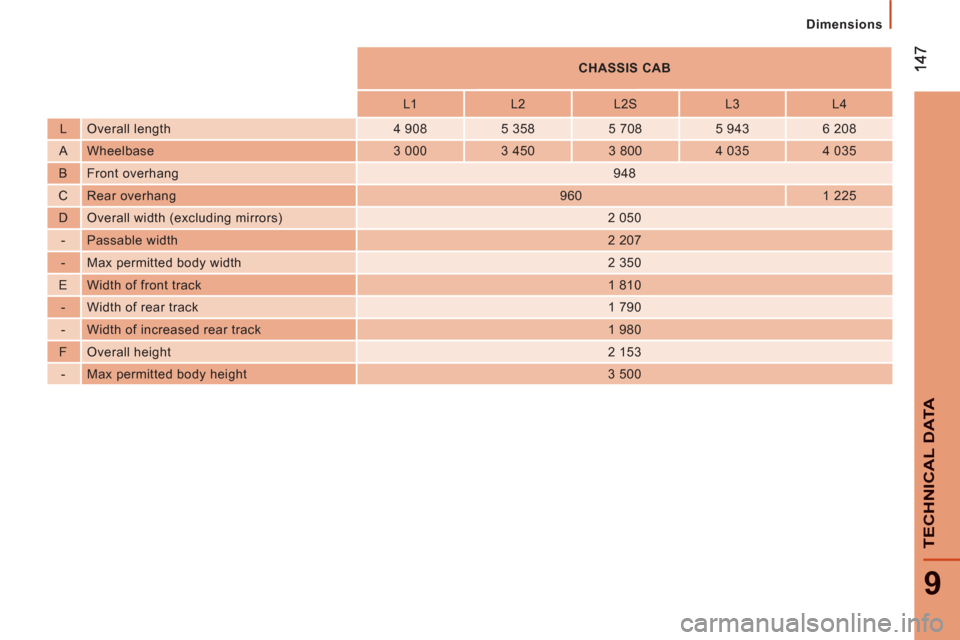

CHASSIS CAB
L1
L2
L2S
L3
L4
L Overall length
4 908
5 358
5 708
5 943
6 208
A Wheelbase
3 000
3 450
3 800
4 035
4 035
B Front overhang
948
C Rear overhang
960
1 225
D Overall width (excluding mirrors)
2 050
- Passable width
2 207
- Max permitted body width
2 350
E Width of front track
1 810
- Width of rear track
1 790
- Width of increased rear track
1 980
F Overall height
2 153
- Max permitted body height
3 500
Page 150 of 164
14
8
Dimensions

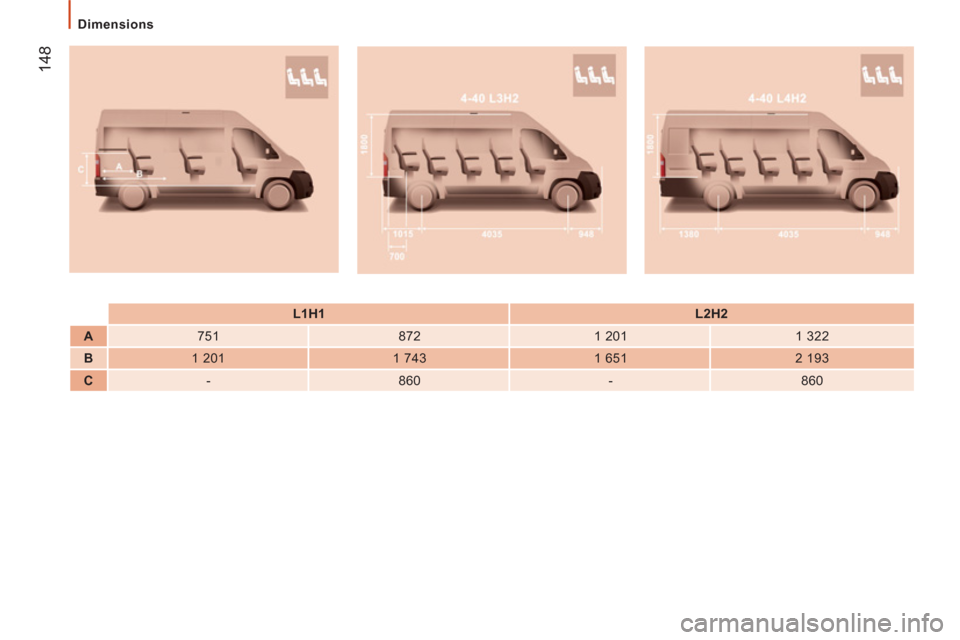

L1H1
L2H2
A
751
872
1 201
1 322
B
1 201
1 743
1 651
2 193
C
-
860
-
860
