Seats
69
3
EASE OF USE
and
COMFORT
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

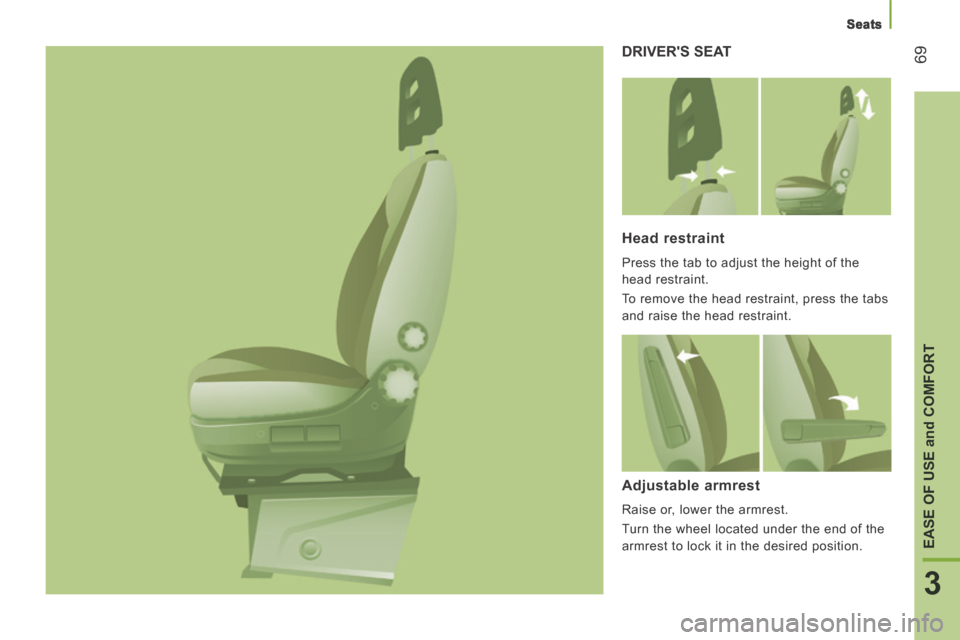

DRIVER'S SEAT
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
Adjustable armrest
Raise or, lower the armrest.
Turn the wheel located under the end of the
armrest to lock it in the desired position.

Seats
70
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014
Lumbar support
Turn the control.
Seat cushion height adjustment
Lift the handle 1 to raise or
lower the front of the seat.
Lift the handle 2 to raise or
lower the rear of the seat.
Heated seat
Use this control to switch the heating of the
seat on or off.
Seat with variable damping
If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.
Seat back angle
Turn the control to adjust the angle of the
seat back.
Forwards-backwards adjustment
Lift the control bar, located under the seat,
and adjust to the required position.
Rotating seat
If fitted on your seat, press the control to
rotate the seat by 180°.

Seats
71
3
EASE OF USE
and
COMFORT
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

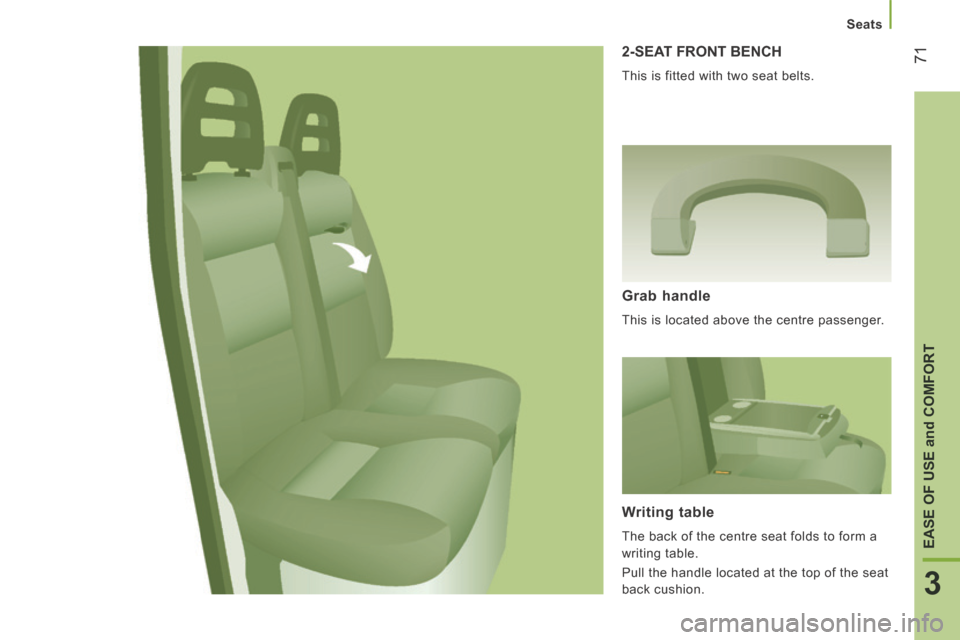

2-SEAT FRONT BENCH
This is fitted with two seat belts.
Grab handle
This is located above the centre passenger.
Writing table
The back of the centre seat folds to form a
writing table.
Pull the handle located at the top of the seat
back cushion.

Seats
72
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

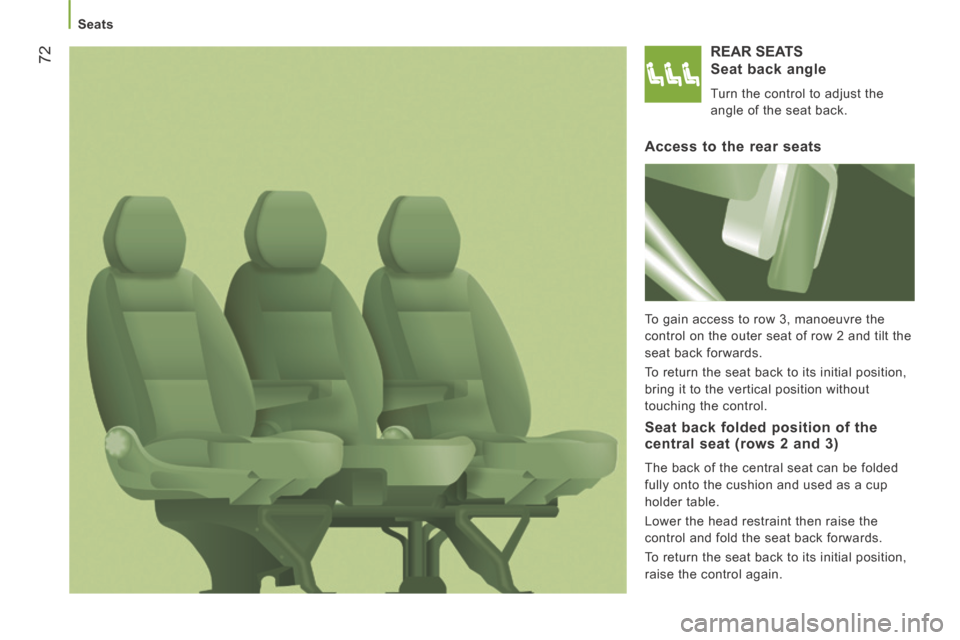

REAR SEATS
Seat back angle
Turn the control to adjust the
angle of the seat back.
Access to the rear seats
To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.
To return the seat back to its initial position,
bring it to the vertical position without
touching the control.
Seat back folded position of the central seat (rows 2 and 3)
The back of the central seat can be folded
fully onto the cushion and used as a cup
holder table.
Lower the head restraint then raise the
control and fold the seat back forwards.
To return the seat back to its initial position,
raise the control again.

Seats
73
3
EASE OF USE
and
COMFORT
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

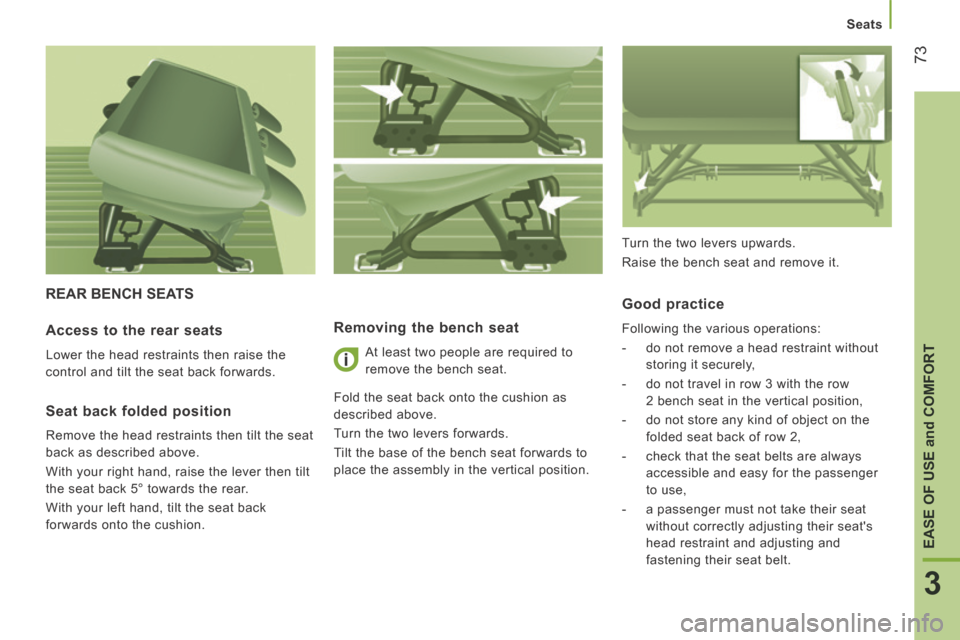

REAR BENCH SEATS
Removing the bench seat
At least two people are required to
remove the bench seat.
Fold the seat back onto the cushion as
described above.
Turn the two levers forwards.
Tilt the base of the bench seat forwards to
place the assembly in the vertical position.
Good practice
Following the various operations:
- do not remove a head restraint without storing it securely,
- do not travel in row 3 with the row 2 bench seat in the vertical position,
- do not store any kind of object on the folded seat back of row 2,
- check that the seat belts are always accessible and easy for the passenger
to use,
- a passenger must not take their seat without correctly adjusting their seat's
head restraint and adjusting and
fastening their seat belt. Access to the rear seats
Lower the head restraints then raise the
control and tilt the seat back forwards.
Seat back folded position
Remove the head restraints then tilt the seat
back as described above.
With your right hand, raise the lever then tilt
the seat back 5° towards the rear.
With your left hand, tilt the seat back
forwards onto the cushion. Turn the two levers upwards.
Raise the bench seat and remove it.

Seats
74
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

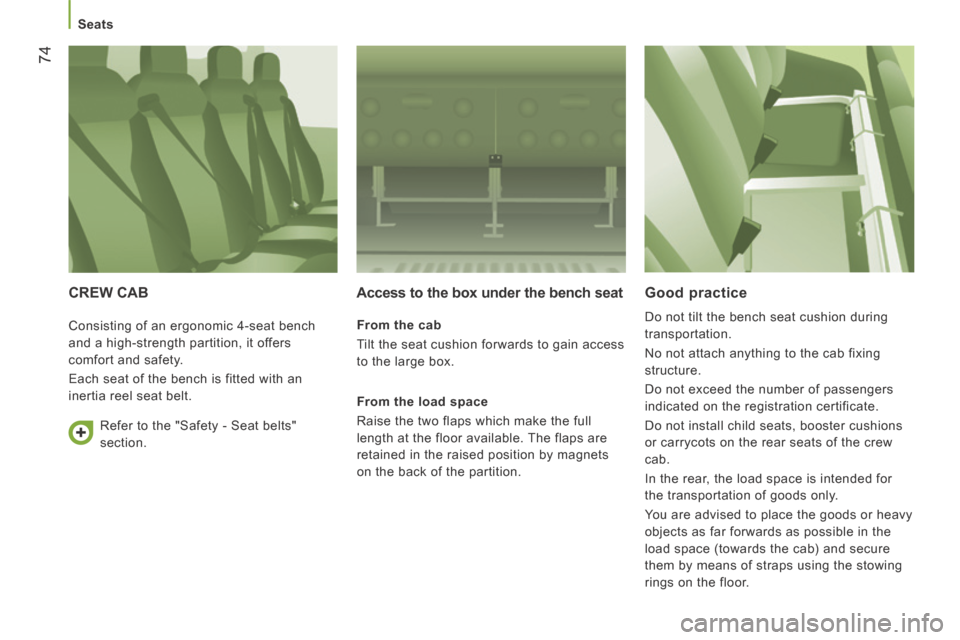

CREW CAB Access to the box under the bench seat
From the cab
Tilt the seat cushion forwards to gain access
to the large box.
From the load space
Raise the two flaps which make the full
length at the floor available. The flaps are
retained in the raised position by magnets
on the back of the partition.
Good practice
Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Do not install child seats, booster cushions
or carrycots on the rear seats of the crew
cab.
In the rear, the load space is intended for
the transportation of goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.
Consisting of an ergonomic 4-seat bench
and a high-strength partition, it offers
comfort and safety.
Each seat of the bench is fitted with an
inertia reel seat belt.
Refer to the "Safety - Seat belts"
section.

Practical information
75
3
EASE OF USE
and
COMFORT
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014
CABIN FITTINGS
Front seat storage
A storage drawer is provided under the
driver's seat.
Central storage tray
This may be lockable (according to
specification). If your vehicle is fitted with a seat with
variable damping, it does not have any
storage compartments. The space under the passenger's seat is
used to store the tool box containing the
tools required to change a wheel or bulb or
to tow the vehicle.

Practical information
76
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

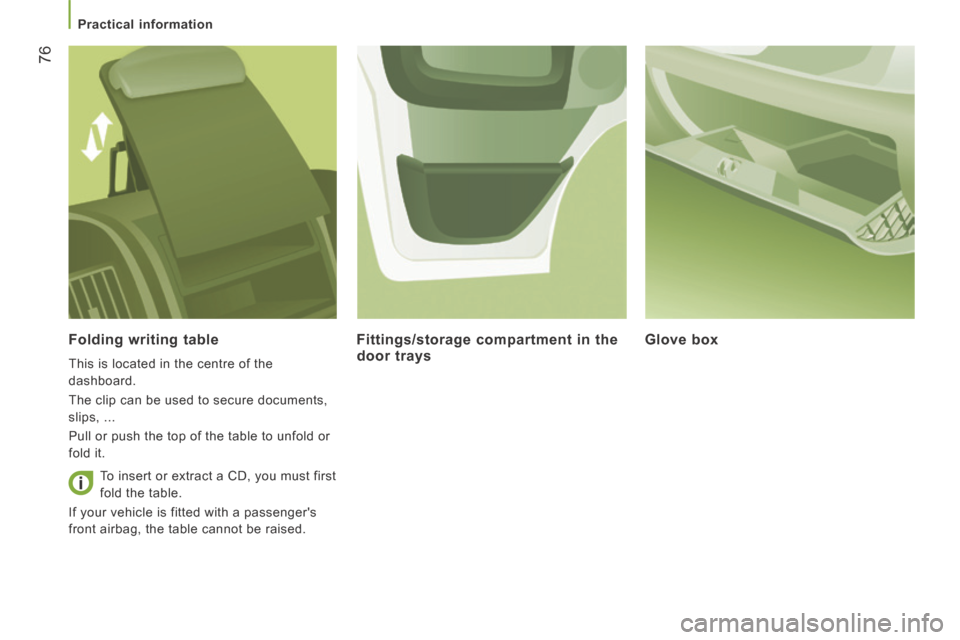

Folding writing table
This is located in the centre of the
dashboard.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.
Fittings/storage compartment in the door trays Glove box
To insert or extract a CD, you must first
fold the table.
If your vehicle is fitted with a passenger's
front airbag, the table cannot be raised.

Practical information
77
3
EASE OF USE
and
COMFORT
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

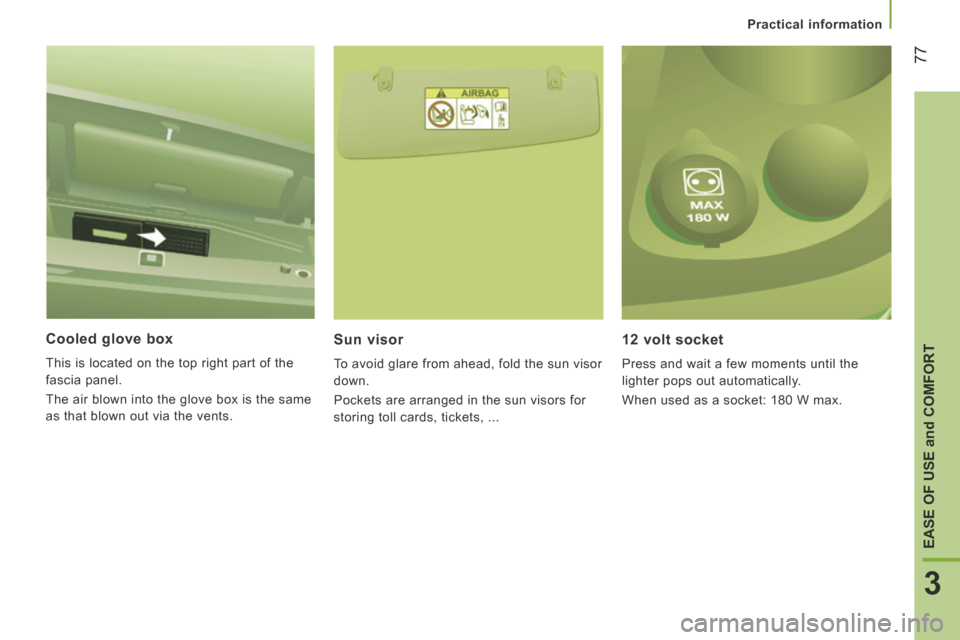

Cooled glove box
This is located on the top right part of the
fascia panel.
The air blown into the glove box is the same
as that blown out via the vents.
Sun visor
To avoid glare from ahead, fold the sun visor
down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, ...
12 volt socket
Press and wait a few moments until the
lighter pops out automatically.
When used as a socket: 180 W max.

Practical information
78
JUMPER-PAPIER_EN_CHAP03_ERGO ET CONFORT_ED01-2014

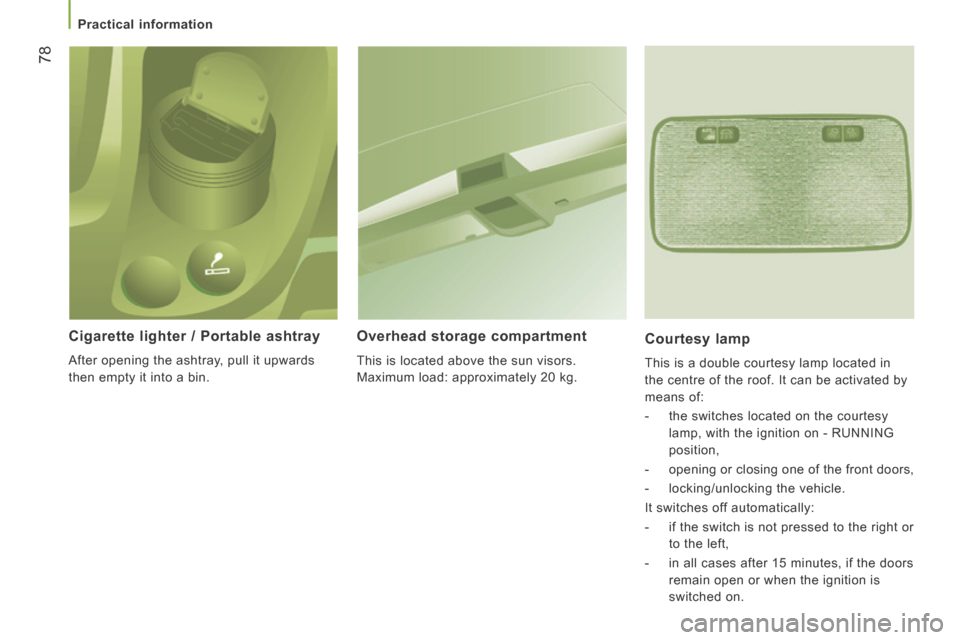

Cigarette lighter / Portable ashtray
After opening the ashtray, pull it upwards
then empty it into a bin.
Overhead storage compartment
This is located above the sun visors.
Maximum load: approximately 20 kg.
Courtesy lamp
This is a double courtesy lamp located in
the centre of the roof. It can be activated by
means of:
- the switches located on the courtesy lamp, with the ignition on - RUNNING
position,
- opening or closing one of the front doors,
- locking/unlocking the vehicle.
It switches off automatically:
- if the switch is not pressed to the right or to the left,
- in all cases after 15 minutes, if the doors remain open or when the ignition is
switched on.
