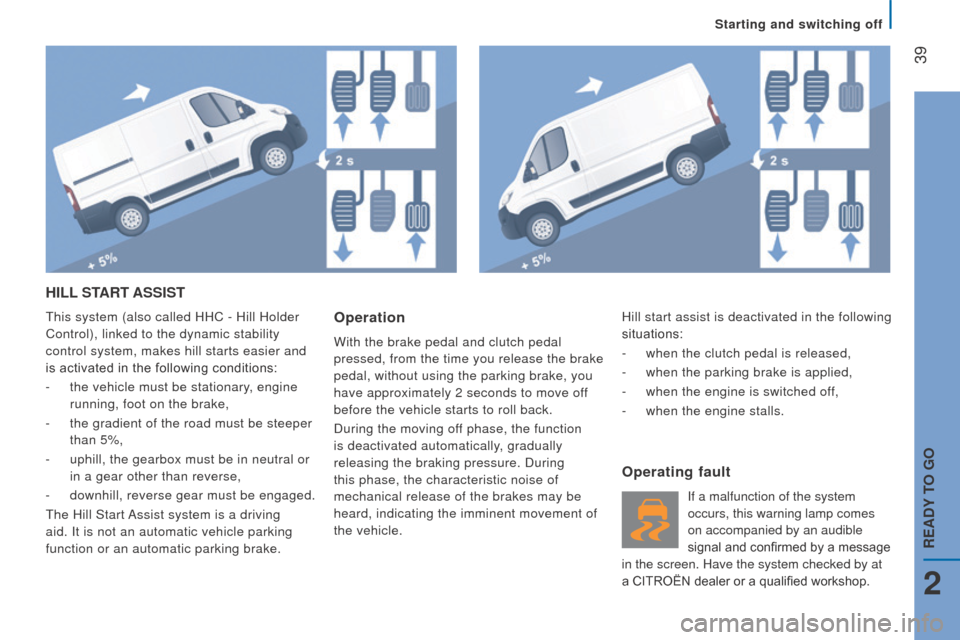

HILL StA rt ASSIS t
This system (also called HHC - Hill Holder
Control), linked to the dynamic stability
control system, makes hill starts easier and
is activated in the following conditions:
-

the vehicle must be stationary
, engine
running, foot on the brake,
-

the gradient of the road must be steeper

than 5%,
-

uphill, the gearbox must be in neutral or

in a gear other than reverse,
-

downhill, reverse gear must be engaged.
The Hill Start

Assist system is a driving
aid.
i t is not an automatic vehicle parking
function or an automatic parking brake.Operation
With the brake pedal and clutch pedal
pressed, from the time you release the brake
pedal, without using the parking brake, you
have approximately 2 seconds to move off
before the vehicle starts to roll back.
During the moving off phase, the function
is deactivated automatically, gradually
releasing the braking pressure. During
this phase, the characteristic noise of
mechanical release of the brakes may be
heard, indicating the imminent movement of
the vehicle.
Operating fault
if a malfunction of the system
occurs, this warning lamp comes
on accompanied by an audible
signal and confirmed by a message
in the screen. Have the system checked by at
a CITROËN dealer or a qualified workshop. Hill start assist is deactivated in the following
situations:
-

when the clutch pedal is released,
-


when the parking brake is applied,
-


when the engine is switched of
f,
-

when the engine stalls.
Starting and switching off
2
rEAdY tO GO

40
jumper_en_Chap02_Pret-a-Partir_ed01-2015

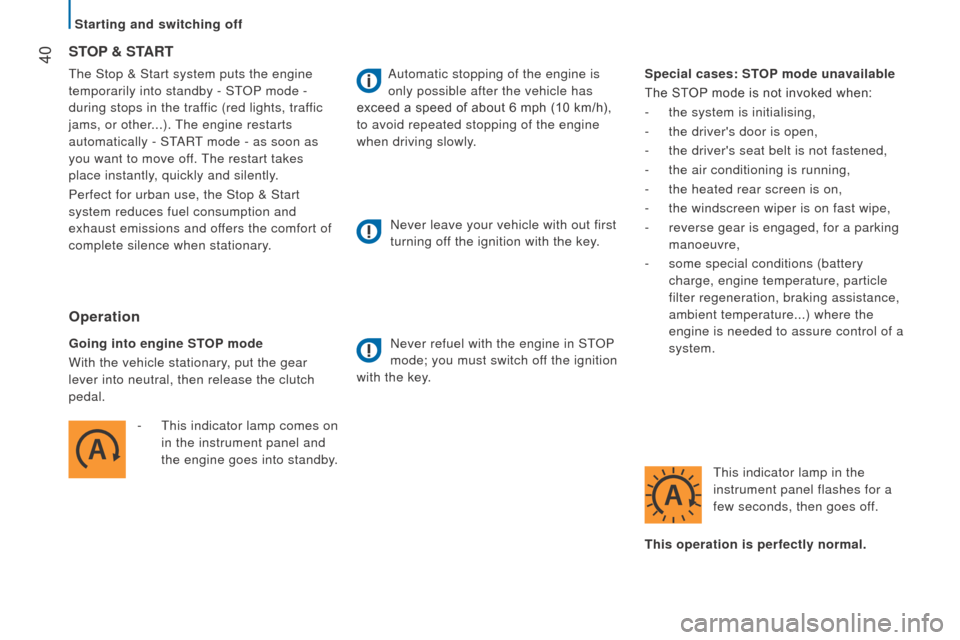

The Stop & Start system puts the engine
temporarily into standby - ST
o
P mode -
during stops in the traffic (red lights, traffic
jams, or other...). The engine restarts
automatically - STA
r
T
mode - as soon as
you want to move off. The restart takes
place instantly, quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions and offers the comfort of
complete silence when stationary.
StOP & StA rt
Operation
Going into engine StOP mode
With the vehicle stationary, put the gear
lever into neutral, then release the clutch
pedal.
-

This indicator lamp comes on

in the instrument panel and
the engine goes into standby. Automatic stopping of the engine is
only possible after the vehicle has
exceed a speed of about 6 mph (10 km/h),
to avoid repeated stopping of the engine
when driving slowly.
n
ever leave your vehicle with out first
turning off the ignition with the key.n ever refuel with the engine in STo P
mode; you must switch off the ignition
with the key. Special cases: S
t
OP
mode unavailable
The STOP mode is not invoked when:
-
the system is initialising,
-

the driver's door is open,
-

the driver's seat belt is not fastened,
-

the air conditioning is running,
-

the heated rear screen is on,
-

the windscreen wiper is on fast wipe,
-

reverse gear is engaged, for a parking

manoeuvre,
-
some special conditions (battery

charge, engine temperature, particle
filter regeneration, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.
This indicator lamp in the
instrument panel flashes for a
few seconds, then goes off.
t

his operation is perfectly normal.
Starting and switching off

41
jumper_en_Chap02_Pret-a-Partir_ed01-2015

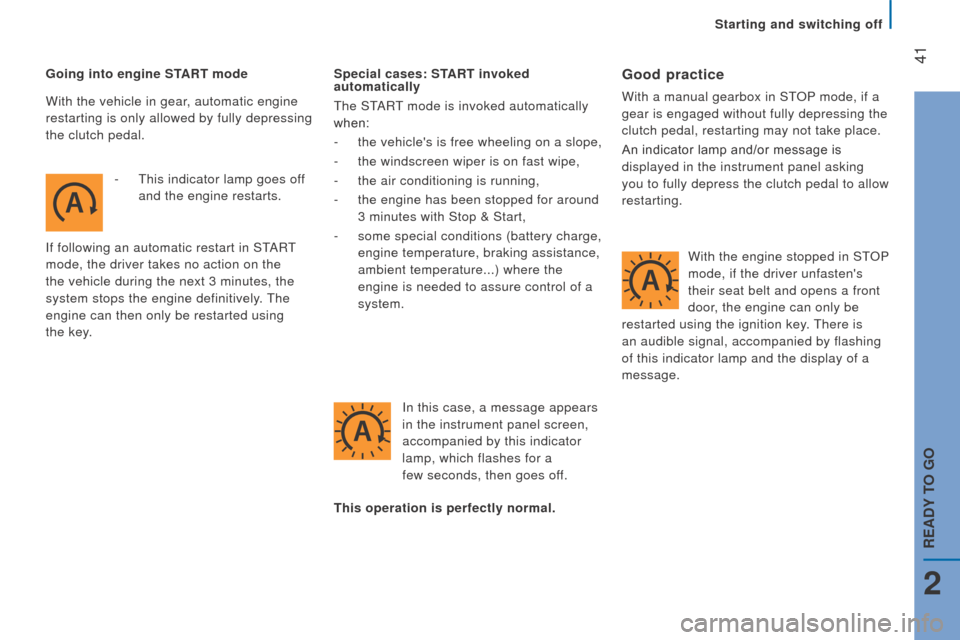

Going into engine StArt mode
-
This indicator lamp goes of
f
and the engine restarts.
i

f following an automatic restart in STA r
T

mode, the driver takes no action on the
the vehicle during the next
3 minutes, the
system stops the engine definitively. The
engine can then only be restarted using
the
key. Special cases: S
tA rt invoked
automatically
The STA
r
T
mode is invoked automatically
when:
-

the vehicle's is free wheeling on a slope,
-


the windscreen wiper is on fast wipe,
-


the air conditioning is running,
-


the engine has been stopped for around

3 minutes with Stop & Start,
-

some special conditions (battery charge,

engine temperature, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.
i

n this case, a message appears
in the instrument panel screen,
accompanied by this indicator
lamp, which flashes for a
few
seconds, then goes off.Good practice
With a manual gearbox in SToP mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.
An indicator lamp and/or message is
displayed in the instrument panel asking
you to fully depress the clutch pedal to allow
restarting.
t

his operation is perfectly normal.
With the vehicle in gear, automatic engine
restarting is only allowed by fully depressing
the clutch pedal.
With the engine stopped in ST
o

P
mode, if the driver unfasten's
their seat belt and opens a front
door, the engine can only be
restarted using the ignition key. There is
an audible signal, accompanied by flashing
of this indicator lamp and the display of a
message.
Starting and switching off
2
rEAdY tO GO

42
jumper_en_Chap02_Pret-a-Partir_ed01-2015

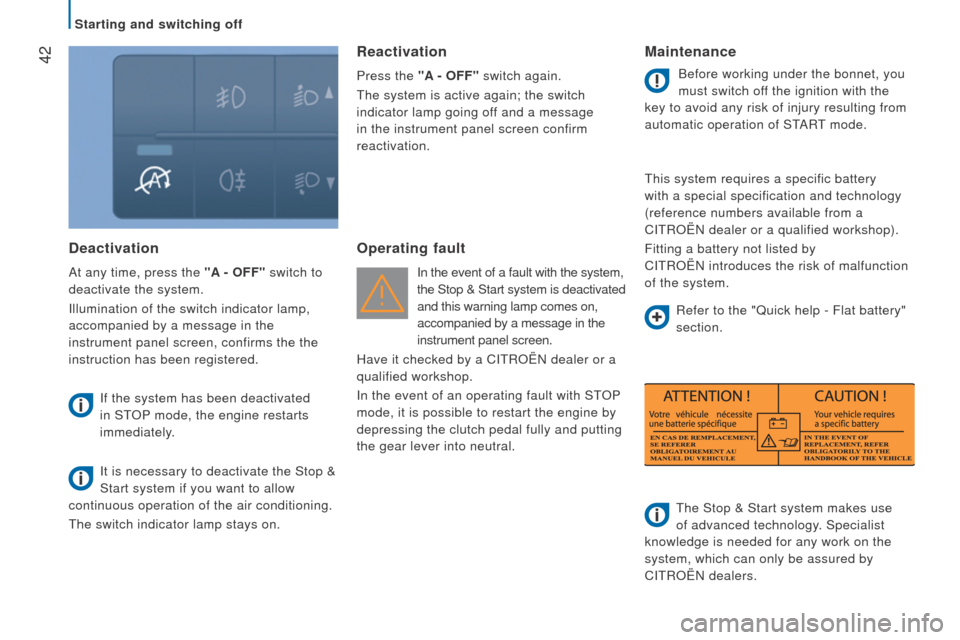

deactivation
At any time, press the "A - OFF" switch to
deactivate the system.
i

llumination of the switch indicator lamp,
accompanied by a message in the
instrument panel screen, confirms the the
instruction has been registered.
i

f the system has been deactivated
in ST
o

P mode, the engine restarts
immediately.
i

t is necessary to deactivate the Stop &
Start system if you want to allow
continuous operation of the air conditioning.
The switch indicator lamp stays on.
reactivation
Press the "A - OFF" switch again.
The system is active again; the switch
indicator lamp going off and a message
in the instrument panel screen confirm
reactivation.
Operating fault
in the event of a fault with the system,
the Stop & Start system is deactivated
and this warning lamp comes on,
accompanied by a message in the
instrument panel screen.
Have it checked by a C
i T roën dealer or a
qualified workshop.
i

n the event of an operating fault with ST
o
P
mode, it is possible to restart the engine by
depressing the clutch pedal fully and putting
the gear lever into neutral.
Maintenance
Before working under the bonnet, you
must switch off the ignition with the
key to avoid any risk of injury resulting from
automatic operation of STA
r
T
mode.
This system requires a specific battery
with a special specification and technology
(reference numbers available from a
C
i
T
roën dealer or a qualified workshop).
Fitting a battery not listed by
C
i
T
roën introduces the risk of malfunction
of the system.
The Stop & Start system makes use
of advanced technology. Specialist
knowledge is needed for any work on the
system, which can only be assured by
C
i
T
roën dealers.
r
efer to the "Quick help - Flat battery"
section.
Starting and switching off

43
jumper_en_Chap02_Pret-a-Partir_ed01-2015

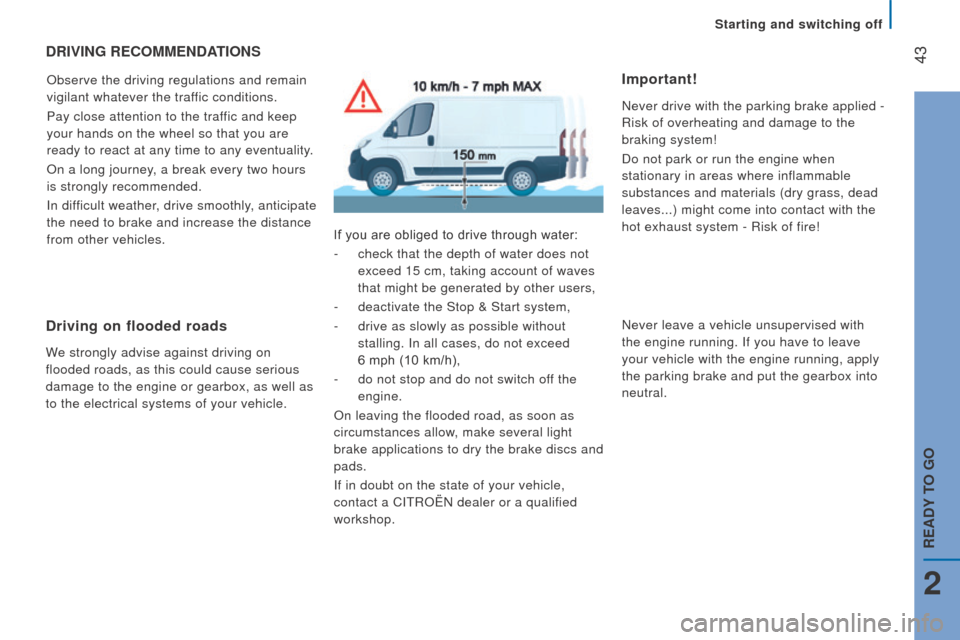

drIVInG rEcOMMEndAtIO n S
observe the driving regulations and remain
vigilant whatever the traf fic conditions.
Pay close attention to the traffic and keep
your hands on the wheel so that you are
ready to react at any time to any eventuality.
o

n a long journey, a break every two hours
is strongly recommended.
i

n difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
driving on flooded roads
We strongly advise against driving on
flooded roads, as this could cause serious
damage to the engine or gearbox, as well as
to the electrical systems of your vehicle. If you are obliged to drive through water:
-

check that the depth of water does not

exceed 15 cm, taking account of waves
that might be generated by other users,
-
deactivate the Stop & Start system,
-

drive as slowly as possible without

stalling. i n all cases, do not exceed
6 mph (10 km/h),
-

do not stop and do not switch of
f the
engine.
o

n leaving the flooded road, as soon as
circumstances allow, make several light
brake applications to dry the brake discs and
pads.
i

f in doubt on the state of your vehicle,
contact a C
i T roën dealer or a qualified
workshop.
Important!
never drive with the parking brake applied -
r
isk of overheating and damage to the
braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass, dead
leaves...) might come into contact with the
hot exhaust system -
r isk of fire!
n

ever leave a vehicle unsupervised with
the engine running.
i f you have to leave
your vehicle with the engine running, apply
the parking brake and put the gearbox into
neutral.
Starting and switching off
2
rEAdY tO GO

44
jumper_en_Chap03_Ergo-et-confort_ed01-2015

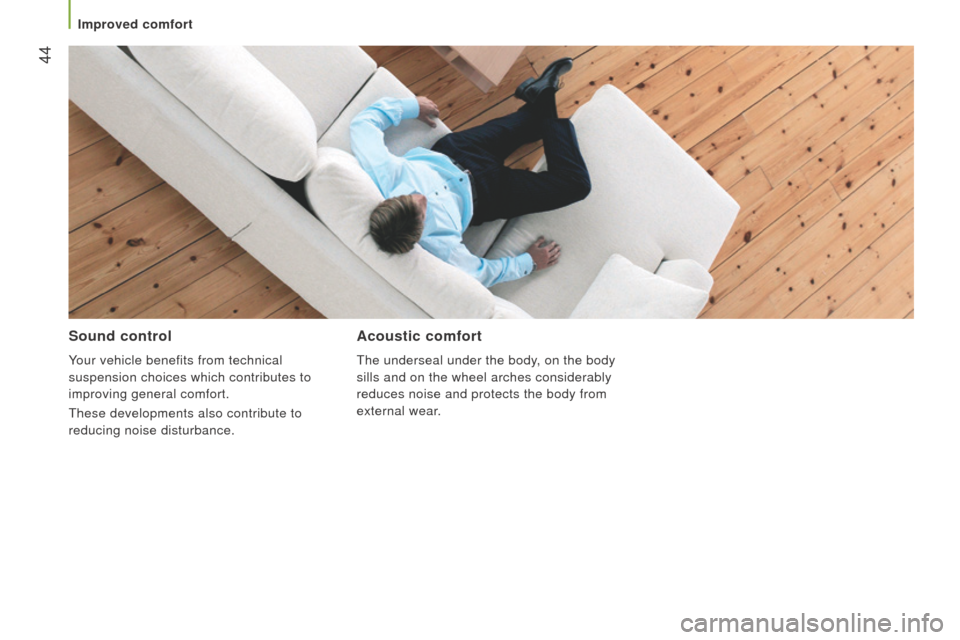

Sound control
Your vehicle benefits from technical
suspension choices which contributes to
improving general comfort.
These developments also contribute to
reducing noise disturbance.
Acoustic comfort
The underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from
external wear.
Improved comfort

45
jumper_en_Chap03_Ergo-et-confort_ed01-2015

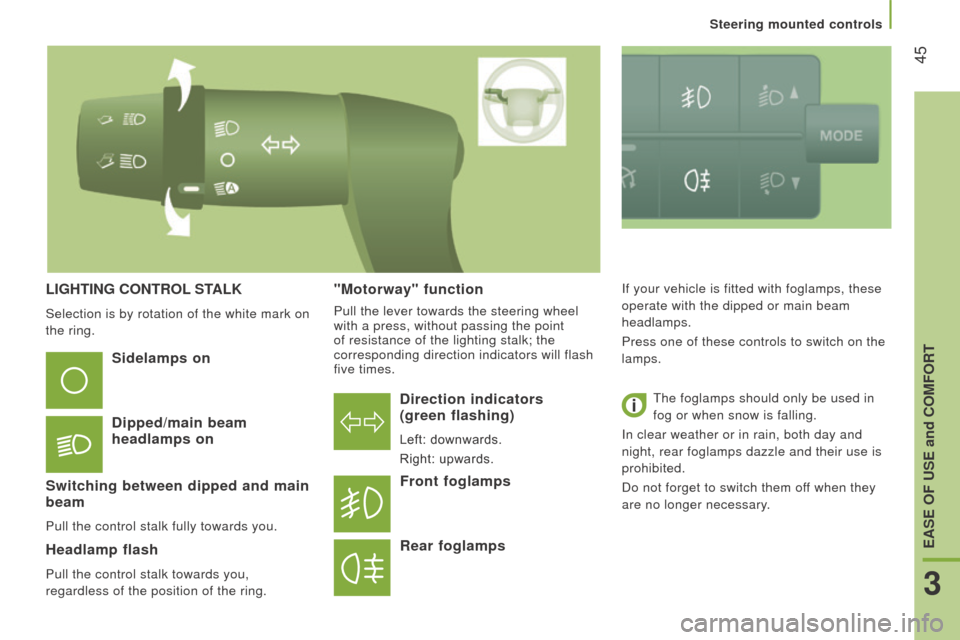

LIGHtInG cOntrOL StALK
Selection is by rotation of the white mark on
the ring.
direction indicators
(green flashing)
Left: downwards.
Right: upwards.
Sidelamps on
d

ipped/main beam
headlamps on
Switching between dipped and main
beam
Pull the control stalk fully towards you.
Headlamp flash
Pull the control stalk towards you,
regardless of the position of the ring.
Front foglamps
r

ear foglamps
if your vehicle is fitted with foglamps, these
operate with the dipped or main beam
headlamps.
Press one of these controls to switch on the
lamps.
The foglamps should only be used in
fog or when snow is falling.
i

n clear weather or in rain, both day and
night, rear foglamps dazzle and their use is
prohibited.
Do not forget to switch them off when they
are no longer necessary."Motorway" function
Pull the lever towards the steering wheel
with a press, without passing the point
of resistance of the lighting stalk; the
corresponding direction indicators will flash
five times.
3
EASE OF uSE and cOMFOrt
Steering mounted controls

46
jumper_en_Chap03_Ergo-et-confort_ed01-2015

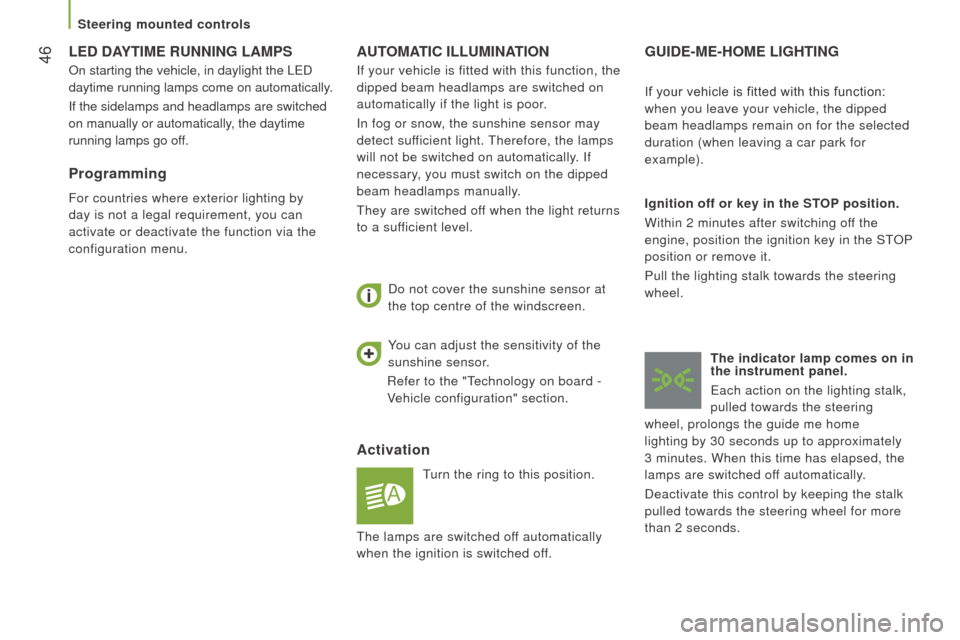

AutOMAtI c ILL u MI n At IO n
Activation
Turn the ring to this position.
Do not cover the sunshine sensor at
the top centre of the windscreen.
GuIdE-ME-HOME LIGHtInG
Ignition off or key in the StOP
position.
Within 2 minutes after switching off the
engine, position the ignition key in the ST
o

P
position or remove it.
Pull the lighting stalk towards the steering
wheel.
t

he indicator lamp comes on in
the instrument panel.
Each action on the lighting stalk,
pulled towards the steering
wheel, prolongs the guide me home
lighting by 30 seconds up to approximately
3
minutes. When this time has elapsed, the
lamps are switched off automatically.
Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 seconds. If your vehicle is fitted with this function:
when you leave your vehicle, the dipped
beam headlamps remain on for the selected
duration (when leaving a car park for
example).
You can adjust the sensitivity of the
sunshine sensor.
r

efer to the "Technology on board -
Vehicle configuration" section.
i

f your vehicle is fitted with this function, the
dipped beam headlamps are switched on
automatically if the light is poor.
i

n fog or snow, the sunshine sensor may
detect sufficient light. Therefore, the lamps
will not be switched on automatically.
i
f
necessary, you must switch on the dipped
beam headlamps manually.
They are switched off when the light returns
to a sufficient level.
LEd dAYtIME runnInG LAMPS
on starting the vehicle, in daylight the LED
daytime running lamps come on automatically .
i

f the sidelamps and headlamps are switched
on manually or automatically, the daytime
running lamps go off.
Programming
For countries where exterior lighting by
day is not a legal requirement, you can
activate or deactivate the function via the
configuration menu.
The lamps are switched off automatically
when the ignition is switched off.
Steering mounted controls

47
jumper_en_Chap03_Ergo-et-confort_ed01-2015

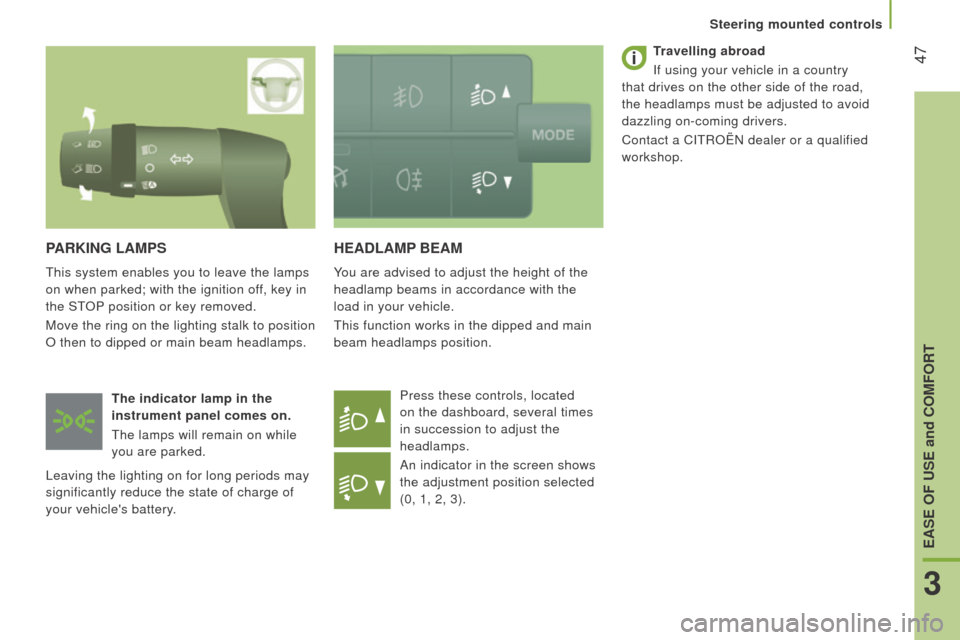

HEAdLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
This function works in the dipped and main
beam headlamps position.Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.
An indicator in the screen shows
the adjustment position selected
(0, 1, 2, 3).
PArKInG LAMPS
This system enables you to leave the lamps
on when parked; with the ignition off, key in
the ST
o
P position or key removed.
Move the ring on the lighting stalk to position
o

then to dipped or main beam headlamps.
t

he indicator lamp in the
instrument panel comes on.
The lamps will remain on while
you are parked.
Leaving the lighting on for long periods may
significantly reduce the state of charge of
your vehicle's battery.
travelling abroad
i
f using your vehicle in a country
that drives on the other side of the road,
the headlamps must be adjusted to avoid
dazzling on-coming drivers.
Contact a C i T roën dealer or a qualified
workshop.
3
EASE OF uSE and cOMFOrt
Steering mounted controls

48
jumper_en_Chap03_Ergo-et-confort_ed01-2015
WIPEr cOntrOL S tALKSlow continuous wiping: 2 notches downwards.
Do not cover the rain sensor, located
at the top centre of the windscreen.
Screenwash and headlamp wash
Pull the wiper control stalk towards you,
the screenwash is accompanied by a timed
operation of the wipers.
Depending on version, the headlamp wash is
coupled with the screenwash, it is triggered if
the dipped beam headlamps are on.
Windscreen wipers
Wiping is only active when the ignition key is
in the runn I n G position.
The control stalk has five different
positions:
Wipers off.
Intermittent wiping: 1 notch downwards.
i

n this position, four wiping frequencies
can be selected by turning
the ring:
-

very slow frequency
-


slow frequency
-


standard frequency
,
-

fast frequency
.
Automatic rain sensitive windscreen
wipers
if your vehicle is fitted with this system, the
wiping speed is adapted automatically to the
intensity of the rainfall.
Automatic wiping: 1 notch downwards. This is
confirmed by one wipe. Must be reactivated
each time the ignition is switched on.
i

n this position, the sensitivity of the rain
sensor can be increased by turning the ring.
Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
Use the step in the front bumper, to remove
any accumulation of snow at the base of the
windscreen and on the blades.
You can change the wiper blades.
r

efer to the "Quick help - Worn wiper
blade" section.
You can check the fluid level.
r

efer to the "Checks - Levels and
checks" section.
Fast continuous wiping: 3 notches
downwards.
Single wipe: pull the control stalk towards
the steering wheel.
With Stop & Start, when the wiper
control stalk is in the fast wipe position,
the ST
o

P mode is not available.
When washing the vehicle, switch off the
ignition or deactivate the automatic rain
sensitive wipers.
Steering mounted controls
