Citroen JUMPER DAG 2008 2.G User Guide

Familiarisation

Automatic air conditioning : use of the fully automatic operation by pressing th e "AUTO" button is preferable.
VENTILATION

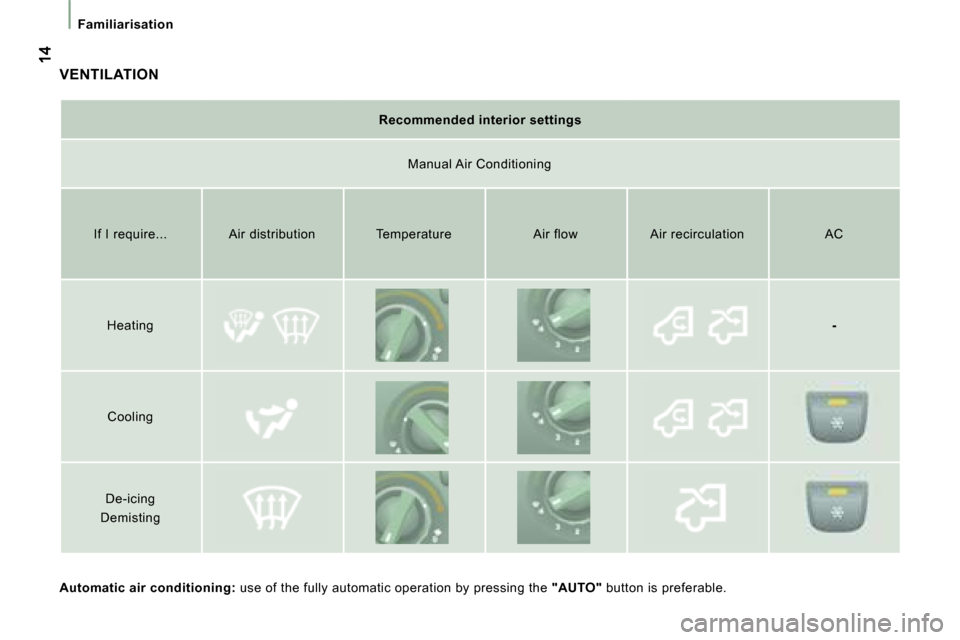

Manual Air Conditioning
If I require... Air distribution Temperatur e Air flow Air recirculation AC
Heating -
Cooling
De-icing
Demisting
Recommended interior settings

1
FAMILIARISATION
15
Familiarisation
MONITOR THOROUGHLY
Instrument panel Warning lights

A. Speedometer.

B. Instrument panel display.

C. Rev counter. With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If warning lights remain on, refer to the
chapter concerned.

 26

 27 Reversing camera
The camera comes on when you engage
reverse gear and remains active up to
approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

Screen
Press the button and place the screen in the
required position.

Buttons
Brightness adjustment.
Back-lighting adjustment.
ON/OFF provides views of the
rear without engaging reverse
gear.

 76

16
Familiarisation Child lock
This prevents opening of the sliding side
door from the inside. Two rings, located between the seat back
and the seat cushion permit the securing of
a child seat.
Isofix mountings

 23
 111
KEEP YOUR PASSENGERS SAFE

 72
To disarm the front passenger air bag, refer
to the "MODE" section of chapter 4, then on
the "Passenger air bag” menu, select OFF.
The air bag warning light on the instrument
panel comes on throughout the duration of
disarming.

1
FAMILIARISATION
17
Familiarisation
Cruise control
The cruise control is displayed on the
instrument panel by a warning light located
in the rev counter.

 43 Hill start assistance
This function, linked with the ESP, makes
hill starts easier and is activated in the
following conditions:
- the vehicle must be stationary, with the
engine running,
- the gradient of the road must be higher than 5 %

 38 Pneumatic suspension
This equipment allows you to alter the
height of the rear sill to make loading or
unloading easier.
Press the control, release to stop the
movement. Each press increases by one
level: +1 to +3.
Press the control, release to stop the
movement. Each press decreases by one
level: -1 to -3.
Driving with the sill too high or too low may
damage the components under the body.

 78
Function deactivated.
Function selected.
DRIVE SAFELY

18
REMOTE CONTROL
ACCESSES
Unlocking the cab
Press this button to unlock your
vehicle's cab. The diode on the
remote control is lit, the interior
courtesy light comes on briefly
and the direction indicators
flash twice. Unlocking the rear doors
Press this button to unlock the
side door and the rear doors of
the load space. The diode on the
remote control is lit. Central locking
Press this button briefly to lock all
of your vehicle's doors, cab and
load space. If one of the doors is
open or is not closed correctly,
the central locking will not work.
The direction indicators flash once.
The indicator light on the control
on the centre console comes on
then flashes.
Accesses

19
2
READY TO SET OFF
Deadlocking Press this button twice in
succession to deadlock the
vehicle. It is then impossible to
open the doors from the inside or
the outside.
The direction indicators flash three times.
Never leave anyone inside the vehicle when
it is deadlocked.
Folding/unfolding the key
Press this button to release the
key from its housing.
To fold the key, press the button
then fold the key into the housing.
If you do not press the button, the
mechanism may be damaged. Accesses

3
2
1
20
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
REMOTE CONTROL BATTERY
If the diode flashes when one of the remote
control buttons is pressed, the battery must
be changed.
Reference: CR 2032/3 volts.
Changing the remote control battery
- press the button to eject the key,
- turn the screw 1 from the closed padlock
to the open padlock using a screwdriver
with a thin tip, - use the screwdriver as a lever to extract
the battery holder housing 2 ,
- remove the housing and change the battery 3 observing the polarities,
- put the battery holder housing 2 back
inside the key and secure it by turning
the screw 1 .
There is a risk of damage if the
replacement battery does not conform.
Only use batteries which are identical or
of an equivalent type to those recommended
by a CITROËN dealer. Take used batteries
to an approved collection point.
Accesses

21
2
READY TO SET OFF
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition. Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
However, if none of the doors is opened
within approximately thirty seconds following
unlocking, the doors relock automatically.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the number of the
keys. If they are lost, your CITROËN dealer
will be able to carry out his work more
quickly and effectively if you give him this
number and the confidential card.
Do not make any modifications to the
electronic immobiliser system. This warning light is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition when
leaving the vehicle, even for a short time.
After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.

When purchasing a second-hand vehicle:
- ensure that you are given the confidential card,
- have the keys memorised by a CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.
CONFIDENTIAL CARD
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a dealer on the
electronic immobiliser system. This code is
hidden by a film, which should be removed
only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers. Accesses

22 While the alarm is monitoring, any intrusion
triggers the siren for approximately
30 seconds, accompanied by lighting of the
direction indicators.
The alarm then returns to monitoring mode
but the triggering event is stored and is
indicated by rapid flashing of the diode, if
the alarm is deactivated.
The alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.
Automatic activation
Depending on the country in which the
vehicle is sold: this function activates
monitoring automatically approximately
2 minutes after the last door is closed. To
avoid triggering the alarm when opening a
door, the unlocking button on the remote
control must be pressed again.
Deactivation using the key
Unlock the doors using the key and enter the
vehicle. Switch on the ignition, identification
of the key code will switch off the alarm. Deactivation using the remote control
When this button (cab and key) is
pressed, the alarm is deactivated
when the vehicle is unlocked.
Deactivation of the anti-lift
protection Press this button to deactivate the
protection (for example when the
vehicle is being towed with the
alarm set).
The protection remains active until the
central unlocking of the doors is activated.
Good practice

To deactivate the siren quickly following
unwanted triggering:
- switch on the ignition, identification of the key code will switch off the alarm,
- press the unlocking button (cab and key) on the remote control.
To avoid setting the alarm, when washing
the vehicle for example, lock the vehicle
using the key.
Unlocking the vehicle using the remote
control deactivates the siren automatically. ALARM
If your vehicle is fitted with an ANTI-THEFT
ALARM.

this provides:
- exterior perimeter protection by means of detectors on the doors and bonnet
and on the electrical supply,
- anti-lift protection.

The equipment also includes a siren and
a diode which can be seen from outside,
indicating the three possible statuses of
the alarm:
- alarm activated (monitoring), slow flashing of the red diode,
- alarm not activated (not monitoring), diode off,
- alarm triggered (intrusion signal), rapid flashing of the red diode when the
vehicle is unlocked.
Activation of the alarm
First ensure that all of the accesses are
closed correctly. The alarm is activated by
pressing this padlock, the
protection is active after a few
seconds.
Accesses

23
2
READY TO SET OFF
FRONT DOORS Child lock
This prevents opening of the sliding side
door from the inside.
Press the control located on the edge of the
side door.
Driver's door
Use the remote control to unlock/lock.
SLIDING SIDE DOOR
Take care not to obstruct the guide space
on the floor in order for the door to slide
correctly. From outside
Pull the handle towards you then towards
the rear.
From inside
To unlock and open, push the handle
towards the rear.
Ensure that the door opens fully in order for
the device at the base of the door to lock.
To release and close, pull the handle while
sliding the door.
Do not drive with the sliding side door
open. Accesses
