Citroen JUMPER DAG 2008 2.G Owner's Guide

24
REAR DOORS
From outside
Pull the handle towards you. The two hinged
doors open to 96°.
Opening/Closing the doors
To open, pull the handle towards you then
pull the lever to open the left-hand door.
To close, start with the left-hand door then
close the right-hand door. Opening to 180°/270°
If your vehicle is fitted with this equipment,
a retractable check strap system permits
extending of the opening from 96° to 180° or
270° (250° for the right-hand door).
Press the button, located on the door trim
pad, to widen the angle of the door.
The check strap will take up its securing
position again automatically on closing.
Accesses

25
2
READY TO SET OFF
LOCKING/UNLOCKING FROM INSIDE
Door open warning light If this warning light comes on,
check that the cab doors, the rear
or side doors and the bonnet are
closed correctly.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency.
Cab and load space
Pressing permits electric central
locking, when the doors are
closed.
Pressing permits electric central
unlocking.
The doors can still be opened from the
inside. If one of the doors is open or is not
closed correctly, the central locking
does not work. The indicator light on the control:
- comes on when the accesses are locked and the ignition is
switched on,
- then flashes when the accesses are locked when stationary with
the engine off.
The control is not active when the vehicle
has been locked using the remote control or
the key from the outside. Load space
Press to lock or unlock the side
door and rear doors from the cab.
The warning light remains on on
locking.
Protection against attack
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the function
The function is activated/deactivated by
means of Mode, selecting "Autoclose". Refer to the "Mode" section in
chapter 4. Accesses

2
134
26
Instruments and controls
INSTRUMENT PANEL

1. Distance recorder in kilometres/miles.

2. Display.

3. Dials and gauges.

4. Rev counter.
INSTRUMENTS AND CONTROLS
Instrument panel display 1
- Time,
- Kilometres/Miles travelled,
- Range,
- Consumption,
- Average speed,
- Headlamp beam height,
- Programmable overspeed warning via
MODE,
- Service indicator. Instrument panel display 2
- Time,
- Date,
- Exterior temperature,
- Kilometres/Miles travelled,
- Range,
- Consumption,
- Average speed,
- Headlamp beam height,
- Programmable overspeed warning via
MODE,
- Service indicator,
- Warning messages displayed in the top section,
- Radio (frequency of the current station).

27
2
READY TO SET OFF
Instruments and controls

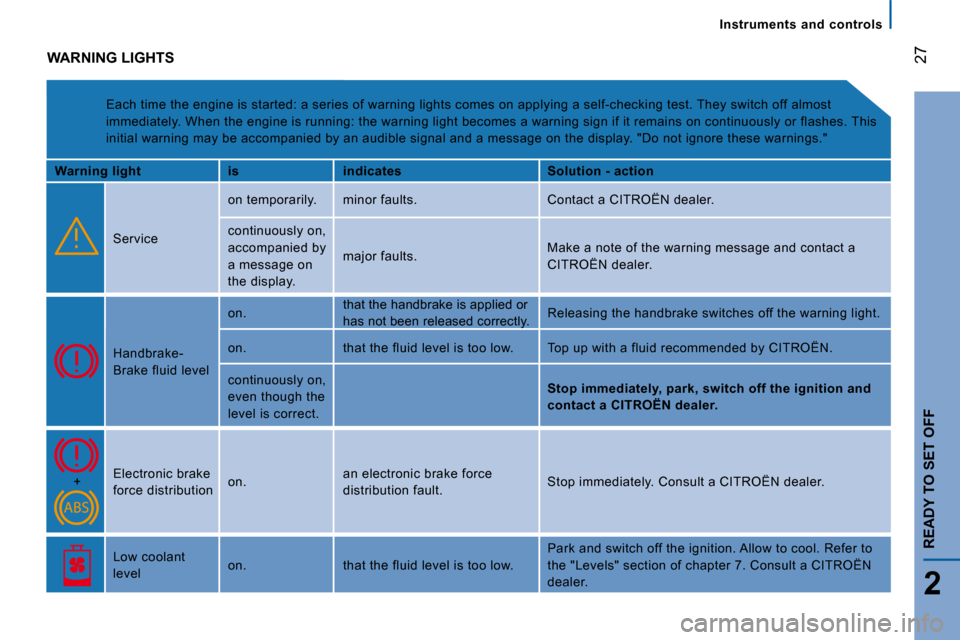

WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-checking test. T hey switch off almost
immediately. When the engine is running: the warnin g light becomes a warning sign if it remains on continuously or flashes. This
initial warning may be accompanied by an audible si gnal and a message on the display. "Do not ignore these warnings."

Warning light is indicates Solution - action
Service on temporarily. minor faults. Contact a CITRO
ËN dealer.
continuously on,
accompanied by
a message on
the display. major faults.
Make a note of the warning message and contact a

CITROËN dealer.
Handbrake-
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the warning l
ight.
on. that the fluid level is too low. Top up wi th a fluid recommended by CITROËN .
continuously on,
even though the
level is correct.

Stop immediately, park, switch off the ignition and
contact a CITROËN dealer.
+ Electronic brake
force distribution on. an electronic brake force
distribution fault. Stop immediately. Consult a CITROËN dealer.
Low coolant
level
on. that the fluid level is too low. Park and switch off the ignition. Allow to cool.
Refer to
the "Levels" section of chapter 7. Consult a CITRO ËN
dealer.

28
Instruments and controls

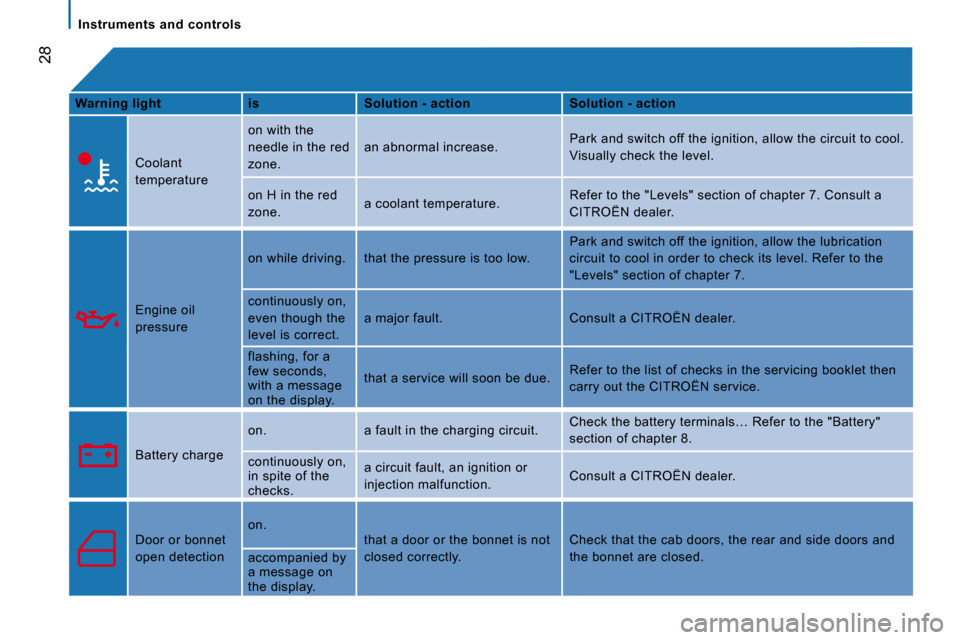

Warning light is Solution - action Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition, allow the circui
t to cool.
Visually check the level.
on H in the red
zone. a coolant temperature. Refer to the "Levels" section of chapter 7. Consu
lt a
CITROËN dealer.
Engine oil
pressure on while driving. that the pressure is too low.
Park and switch off the ignition, allow the lubric
ation
circuit to cool in order to check its level. Refer to the
"Levels" section of chapter 7.
continuously on,
even though the
level is correct. a major fault. Consult a CITROËN dealer.
flashing, for a
few seconds,
with a message
on the display. that a service will soon be due.
Refer to the list of checks in the servicing boo
klet then
carry out the CITROËN service.
Battery charge on. a fault in the charging circuit.
Check the battery terminals… Refer to the "Battery
"
section of chapter 8.
continuously on,
in spite of the
checks. a circuit fault, an ignition or
injection malfunction.
Consult a CITROËN dealer.
Door or bonnet
open detection on.
that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors
and
the bonnet are closed.
accompanied by
a message on
the display.

29
2
READY TO SET OFF
Instruments and controls

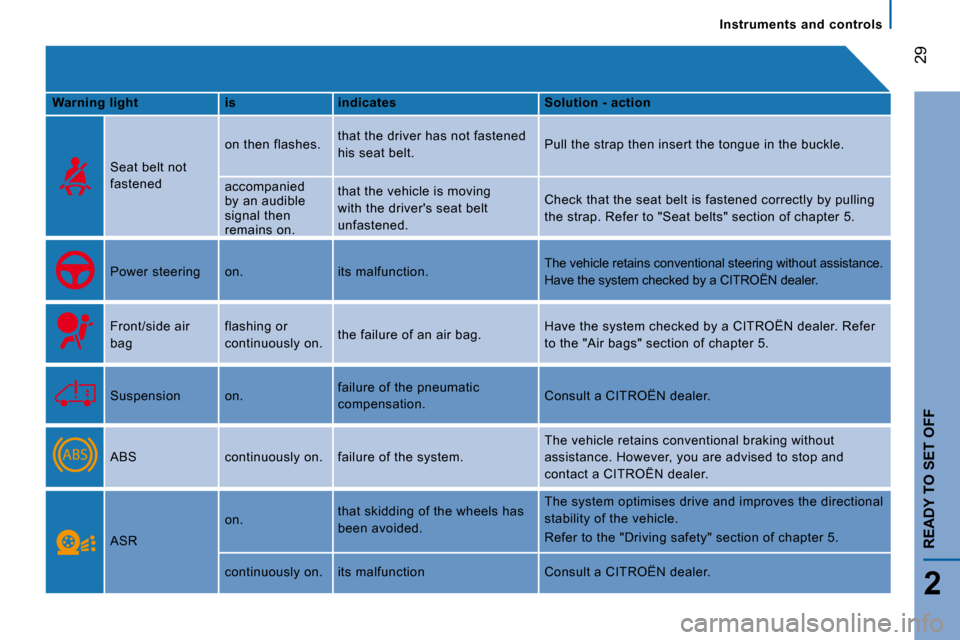

Warning light is indicates Solution - action
Seat belt not
fastened on then flashes.
that the driver has not fastened
his seat belt. Pull the strap then insert the tongue in the buckl
e.
accompanied
by an audible
signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened.
Check that the seat belt is fastened correctly by
pulling
the strap. Refer to "Seat belts" section of chapter 5.
Power steering on. its malfunction. The vehicle retains conventional steering withou
t assistance.
Have the system checked by a CITROËN dealer.
Front/side air
bag flashing or
continuously on.
the failure of an air bag. Have the system checked by a CITROËN dealer. Ref
er
to the "Air bags" section of chapter 5.
Suspension on. failure of the pneumatic
compensation. Consult a CITROËN dealer.
ABS continuously on. failure of the system. The vehicle retains conventional braking without

assistance. However, you are advised to stop and
contact a CITROËN dealer.
ASR on.
that skidding of the wheels has
been avoided. The system optimises drive and improves the direct
ional
stability of the vehicle.
Refer to the "Driving safety" section of chapter 5.
continuously on. its malfunction Consult a CITR OËN dealer.

30
Instruments and controls

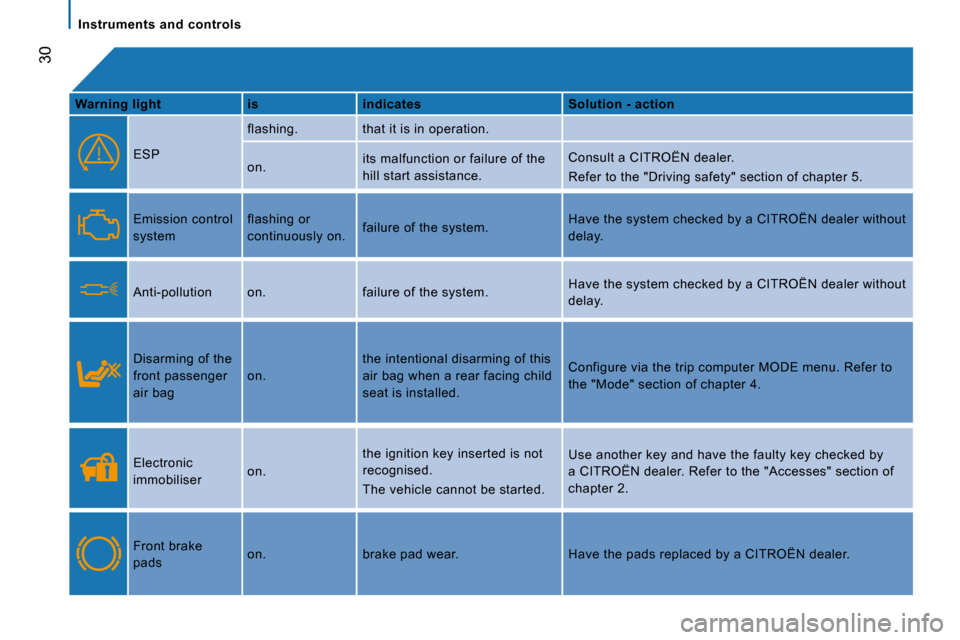

Warning light is indicates Solution - action
ESP flashing. that it is in operation.

on. its malfunction or failure of the
hill start assistance. Consult a CITROËN dealer.
Refer to the "Driving safety" section of chapter 5.

Emission control
system flashing or
continuously on.
failure of the system. Have the system checked by a CITROËN dealer with
out
delay.
Anti-pollution on. failure of the system. Have the system checked by a CITROËN dealer wi
thout
delay.
Disarming of the
front passenger
air bag
on. the intentional disarming of this
air bag when a rear facing child
seat is installed. Configure via the trip computer MODE menu. Refer t
o
the "Mode" section of chapter 4.
Electronic
immobiliser
on. the ignition key inserted is not
recognised.
The vehicle cannot be started. Use another key and have the faulty key checked
by
a CITROËN dealer. Refer to the "Accesses" section of
chapter 2.
Front brake
pads
on. brake pad wear. Have the pads replaced by
a CITROËN dealer.

31
2
READY TO SET OFF
Instruments and controls

Warning light is indicates Solution - action
Water in diesel
filter on,
accompanied by
a message on
the display. that there is water in the diesel
fuel filter.
Have the filter bled by a CITROËN dealer. Refe
r to the
"Checks" section of chapter 7.
Low fuel level on with the
gauge needle in
zone E. that the fuel reserved is being
used. Fill up with fuel without delay. The evaluation of
the fuel
reserve is a parameter which is sensitive to the st yle of
driving, the profile of the road, the time elapsed and the
distance travelled since the warning light first ca me on.
Diesel
pre-heating
on. that the weather conditions
impose pre-heating. Wait for the warning light to switch off before op
erating
the starter.
Side lights on. manual selection. Turn the ring on the lights sta
lk to the first position.
automatic switching on of the
lights, ring in position A. Adjust the sensitivity of the brightness sensor vi
a the
MODE menu. Refer to the "Mode" section of chapter 4 .
Dipped
headlamps
on. manual selection. Turn the ring on the lights sta
lk to the second position.
Main beam
headlamps pulling of the stalk towards you. Pull the stalk
to return to dipped headlamps.

Instruments and controls

Warning light is indicates Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lights stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the centre
console has been pressed. Manual selection.
The fog lamps only operate if the side lights or di
pped
headlamps are on.
Rear fog lamps on. that the button on the centre
console has been pressed. Manual selection. The fog lamps only operate if th
e
side lights or dipped headlamps are on. When visibi lity
is normal, please switch the fog lamps off.
Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering wheel controls" section of
chapter 3.
Faulty bulb on.
accompanied by
a message on
the display. that one or more bulbs have
blown.
Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or
contact a CITROËN dealer
Rear parking
assistance
on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN dealer
without delay.

33
2
READY TO SET OFF
Instruments and controls

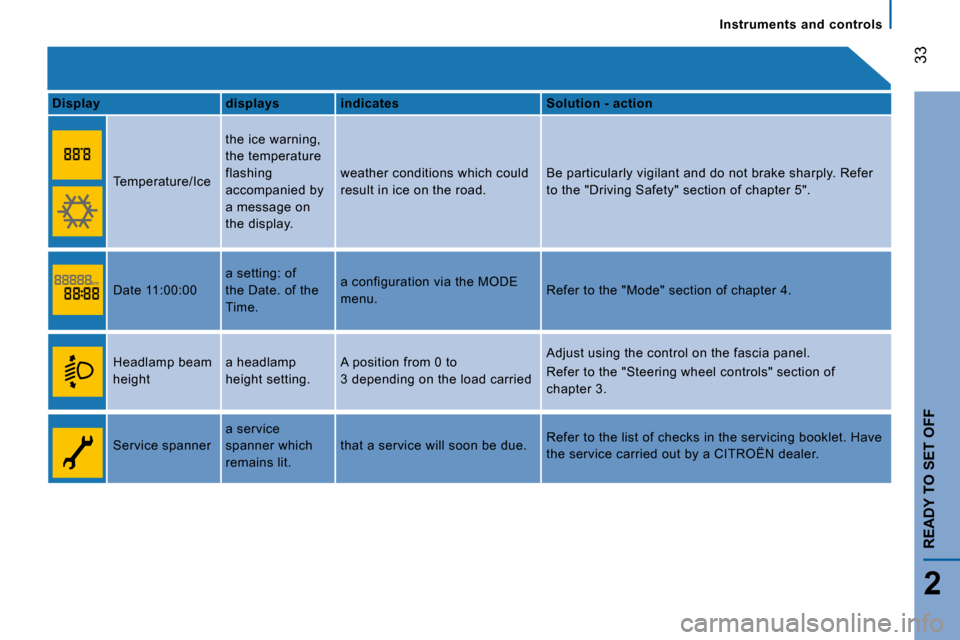

Display displays indicates Solution - action
Temperature/Ice the ice warning,
the temperature
flashing
accompanied by
a message on
the display. weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
Refer
to the "Driving Safety" section of chapter 5".
Date 11:00:00 a setting: of
the Date. of the
Time. a configuration via the MODE
menu.
Refer to the "Mode" section of chapter 4.
Headlamp beam
height a headlamp
height setting. A position from 0 to
3 depending on the load carried Adjust using the control on the fascia panel.
Refer to the "Steering wheel controls" section of
chapter 3.
Service spanner a service
spanner which
remains lit. that a service will soon be due.
Refer to the list of checks in the servicing boo
klet. Have
the service carried out by a CITROËN dealer.
